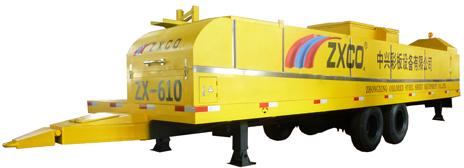

ZX-610 Large Span Roll Forming Machinery, Brand Name : ZXCO.

₹ 23.66 Lakh / Set

MOQ1 Set(s)
Brand NameZXCO.
CertificationCE certificate
ApplicationFor the arch roof building
Number Of FlowerRoll forming machine
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All Countries Except India

Company Information

Yingkou Zhongxing Colored Steel Sheet Equipment Co., Ltd

Member Since 11 Years
Nature of Business Supplier
Year of Establishment 2000

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerRoll forming machine
Brand NameZXCO.
ApplicationFor the arch roof building
After-Sales Service ProvidedThree-year warranty
CertificationCE certificate
Country of OriginYingkou city, Liaoning province
Sewing: 10m/minMax span: 38m
Working speed: Straight sheet: 15m/minArch sheet: 13m/min
Model NumberZX-610
Size: 9300mmx2270mmx2400mmTotal weight: About 9000KG
Step of rollers: 13 stepsFeeding Width: 914mm
Material of rollers: 45#steel, quenched HRC 52-58Material of roller shafts: 45#steel
Bending Power: 4.0kw+1.5kw+1.5kwCutting Power: 3.0kw
Effective Width: 610mmMaterial of cutting blade: Cr12 steel
Thickness of the coil: 0.6-1.6mmThe depth of the groove: 203mm
Controlling System: PLC SiemensForming Power: 7.5kw

This model is widely used for the large span machine. the applicable span is from 7m to 38m. It can only produce one shape (arch shape). it can againest the gale and heavy snow.
