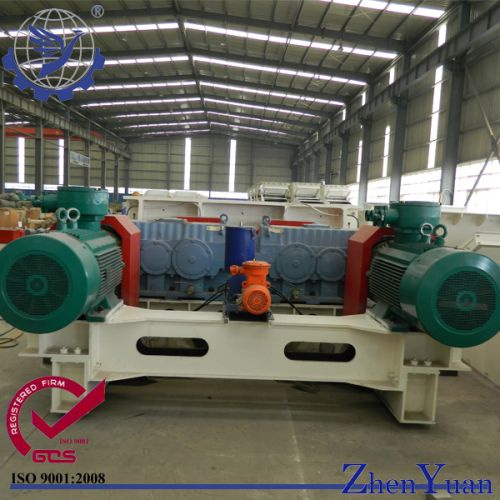

Zym Double Roll Coal Crusher

We are offering zym double roll coal crusher.
Advanced design
zym double roll coal crusher is composed of electromotor, connecting cover, reducer, torque-limiting fluid coupling, tooth rollers and the main body.
structures
2plf series teeth-roller crusher is composed of electromotor,constant-filling fluid,shaft coupling,connecting cover, reducer, toothed rollers, and the main body.
(1) constant-filling fluid coupling
it is used as connection between the electromotor and reducer, buffering the strike and vibration generated when starting, as well as over load protection.
(2)connecting cover
the electromotor and the reducer are connected as a wholt by connecting cover,bearing the weight of the motor, protecting constant-filling fluid coupling,and ensure the electromotor and the reducer concentric rotating. Additionally, through the monitoring hole on the cover, working condition of constant-filling fluid coupling could be monitored.
(3)tooth-roller
tooth-roller is the key component of crusher, spiral arrangement of teeth. The toothholders and principal axis are assembled using the multiple dove-tail grooves, which enhance the shear strength.small size materials are sieved out by two tooth-roller which rotate inward synchronously in opposite direction, and the massive materials are crushed by the broken tooth.broken tooth is casted by adopting special formula which fuses multiple rare elements. It is quenched after processing,make it higher strength as well as toughness,better abrasion resistance
and longer service life.
(4)shaft coupling
plum-shaped elastic coupling with high-performance polyurethane are applied,greatly reduce the impact and vibration from tooth-roller to reducer.
(5)over load protector
speed detection sensor over load protection ensure safe production.
