Our Products
Our Complete range of products are Vertical Hot Water Generator, 3 Pass Reverse Flue Shell Type Hot Water Generators, Hot Air Generator, Electrical Hot Water Generators-01 and Wood Fired Hot Air Generators.
astra - 3 pass reverse flue shell type hot water generators
we design & manufacture various types of hot water generators. Astra is a shell type, three pass, reverse flue design hote water generator, usually built horizontally, but is also available in vertical models. The astra has an internal water cooled furnace with low heat release rate. It can be supplied with the rugged ross make burner or compact monobloc burner. The reverse flue design achieves higher efficiency & saves precious fuel. Each astra undergoes a complete firing test, including a thorough check up of all electrical components & adjustment of burner for efficient combustion. the salient features of the astra are :
Acclaimed as one of the leading Exporters, we extend our capability in offering a durable range of Hot Air Generators that is offered in numerous vertical and horizontal designs, standard and tailor-made models to exactly match the customers specifications and application needs. Practically free from any maintenance, the Electric Hot Air Generators offered by us renders high level of safety and reliability. Offering enhanced thermal efficiency, our complete range of Industrial Hot Air generators consist of Oil-Gas Fired Hot Air Generators and Wood Fired Hot Air Generators. Moreover, we fabricate these generators in varied capacities, sizes as well as a number of fuel firing options at leading prices.

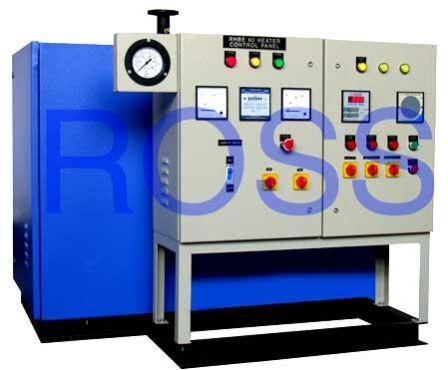

rhbe - electrical hot water generators
the rhbe series of electric hot water generators provide economical hot water supply for commercial & industrial applications. Since no separate boiler house or chimney is required, installation is fast & easy. No fuel storage & handling is required. Low watt density heaters are used to ensure longer life of electric heaters. These units have high thermal efficiency & low maintenance. Units are easy to install & can be located close to the point of use. They are environment friendly & pollution free. Units are available in capacities from 3 kw up to 1000 kw. These units are ideal for commercial & residential buildings for generating hot water. All units are factory tested ready to use. Ross electric hot water generator have small physical size as compared to oil or gas fired units, hence require less floor space. Electric hot water generators can be custom built to suit specific requirements. These can be manufactured in ss construction or food grade applications. Flanged water immersion heaters are used which consist of tubular heating elements that are welded or brazed into a pressure rated flange. Units can be supplied with thyristorised control panel for places where precise temperature control is required. The heat load can be controlled from 0% to 100% of the total installed kw. the distinct advantages of the ross electric hot water generators are
RGW - Oil & Gas Fired Hot Air Generators
The RGW series hot air generators are offered in vertical or horizontal designs, either as standard models or tailor made models to match customer's specificatiions and applicatons. Designed in Direct and Indirect heating types, these systems are practically free from any maintenance and are highly efficient. Units can be manufactured in SS for high temperature applications. Direct systems find their applications in high temperature drying, whereas the Indirect systems are used where pure air is required for drying. The design is compact & hence space saving. Units are designed for continuous round the clock operation. Salient features of the RGW series hot air generators are
RG - Oil & Gas Fired Hot Air Generators
The RG series hot air generators are offered in vertical or horizontal designs, either as standard models or tailor-made models to match customer's specifications and applications. Designed in Direct and Indirect heating types, these systems are practically free from any maintenance and are highly efficient. Direct systems find their applications in high temperature drying, whereas the indirect systems are used where pure air is required for drying. The design is compact & hence space saving. Units are designed for continuous round the clock operation. Salient features of the RG series hot air generators are
Units are available from capacities of 20, 000 Kcal/hr to 30, 00, 000 Kcals/hr. Imported & indigeneous burners can be supplied with various firing options like light oil, heavy oil & gas. Units can be manufactured in various materials of construction like SS. Units can be supplied with optional imported burners or ROSS burners.
rhbe - electrical hot water generators
the rhbe series of electric hot water generators provide economical hot water supply for commercial & industrial applications. Since no separate boiler house or chimney is required, installation is fast & easy. No fuel storage & handling is required. Low watt density heaters are used to ensure longer life of electric heaters. These units have high thermal efficiency & low maintenance. Units are easy to install & can be located close to the point of use. They are environment friendly & pollution free. Units are available in capacities from 3 kw up to 1000 kw. These units are ideal for commercial & residential buildings for generating hot water. All units are factory tested ready to use. Ross electric hot water generator have small physical size as compared to oil or gas fired units, hence require less floor space. Electric hot water generators can be custom built to suit specific requirements. These can be manufactured in ss construction or food grade applications. Flanged water immersion heaters are used which consist of tubular heating elements that are welded or brazed into a pressure rated flange. Units can be supplied with thyristorised control panel for places where precise temperature control is required. The heat load can be controlled from 0% to 100% of the total installed kw. the distinct advantages of the ross electric hot water generators are
RHBW - Solid Fuel Fired Hot Water Generators
Hot Water Generators are designed for outlet temperatures of 95 Deg C & Delta T from 5 to 20 Deg C. Custom built units can be manufactured upto 160 Deg C outlet temperature with expansion tank. These units are designed to run on multiple fuels like wood, coal, bagasse pellets, & agrowaste pellets. The units are user friendly, they have wide fuel feeding & ash doors for easy feeding & ash removal. The horizontal models can be easily converted for operation on liquid and gaseous fuels. Hinged doors on the horizontal model allow for easy inspectioin & maintenance of unit. Units offer upto 70% savings in running costs when compared to light oil firing boilers.
RHBW Horizontal Units
| Model | Heat Output (Kcal/hr) |
|---|---|
| RHBW 100 | 100000 |
| RHBW 150 | 150000 |
| RHBW 200 | 200000 |
| RHBW 250 | 250000 |
| RHBW 300 | 300000 |
| RHBW 400 | 400000 |
| RHBW 500 | 500000 |
| RHBW 600 | 600000 |
| RHBW 800 | 800000 |
| RHBW 1000 | 1000000 |
Offering economical hot water supply for commercial and industrial applications, the Hot Water Generators fabricated by us are designed to achieve higher efficiency and enhanced working life. The complete line of premium grade Pressurized Hot Water Generators offered by us include 3 Pass Reverse Flue Shell Type Hot Water Generators, Two Pass Shell Type Vertical Hot Water Generators, Solid Fuel Fired Hot Water Generators and Electrical Hot Water Generators. Easy to install and maintain, our precision engineered Vertical Hot Water Generators also save precious fuels and are known for their ease of maintenance. Owing to these superb qualities of our products, we have made our stand among the reputed Manufacturers based in India.
rhb - two pass shell type vertical hot water generator
the rhb is a vertical shell type compact, two pass design hot water generator. The combustion chamber is enclosed by a water jacket. An air jacket encloses the water jacket. The air blower is attached at the bottom. Air is preheated before it enters the combustion chamber, thus increasing efficiency. Capacities available are from 20, 000 kcals/hr to 1, 50, 000 kcals/hr standard models are available in light oil firing with the rugged ross burner. Gas fired units are also available. Outlet temperature normally is 95oc. Due to the shell type design, unit is ideally suited for higher water flow rates. Being very easy to run & maintain, it is one of the most popular designs in the market today.
