Our Products
Our offered Product range includes Horizontal Band Sealing Machine and Manual Induction Sealing Machine.

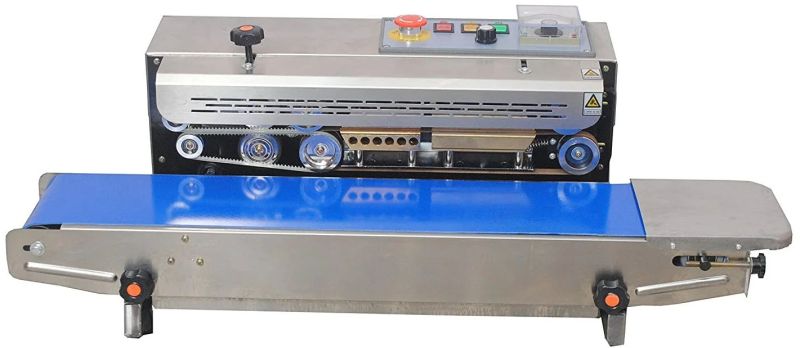

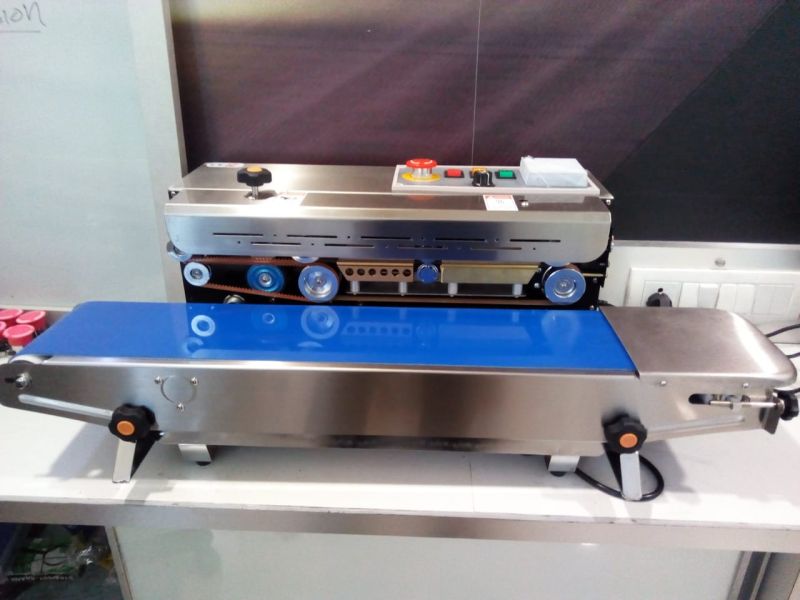

A Horizontal Band Sealing Machine is a continuous sealing device used for sealing pre-filled plastic or laminated pouches in a horizontal position. It’s commonly used for powders, granules, small hardware, snacks, seeds, and dry goods where the contents must remain stable during sealing.
What It Is:
A band sealer uses heat and pressure via a pair of moving belts to seal the mouth of pouches as they pass through the machine horizontally on a conveyor.
Specifications (Typical):
Advantages:
Ideal For Sealing:
Key Features
| Feature | Description |
|---|---|
| Horizontal Operation | Pouches lie flat; ideal for dry or solid products. |
| Adjustable Temperature | For sealing various films like PE, PP, BOPP, and laminated foils. |
| Speed Control | Adjustable sealing speed (typically 0–12 meters/min). |
| Conveyor Belt | Supports pouches during sealing; often height- and pressure-adjustable. |
| Embossing/Printing | Optional ink or emboss coder for batch/date stamping. |
| Material | MS or SS body; stainless steel preferred for food/chemical use. |

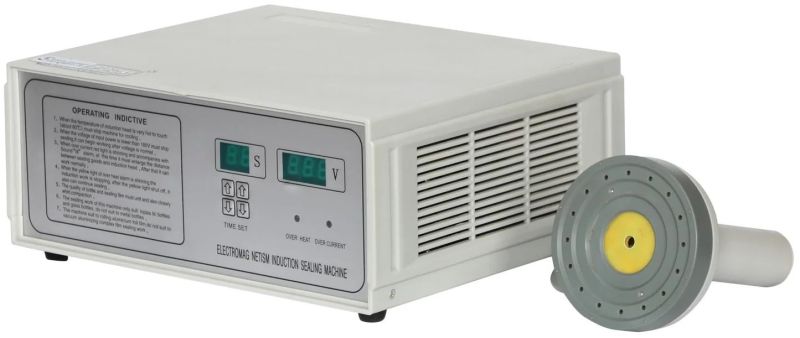

A Manual Induction Sealing Machine is a compact, hand-operated device used to seal the aluminum foil liner of caps onto plastic or glass bottles using electromagnetic induction heat. It’s ideal for small-scale production, laboratories, pharmacies, or startups that need tamper-evident, leak-proof sealing.
What It Is:
This machine uses electromagnetic induction to heat the foil liner in the cap, melting the layer that bonds the foil to the container mouth—creating an airtight and secure seal.
Advantages:
Applications:
Important Notes:
Key Features
| Feature | Description |
|---|---|
| Manual Operation | Hand-held sealing head; operator places it over the cap. |
| Cap Size Range | Usually 20mm–100mm (varies by model). |
| Material Compatibility | Works with PET, PE, HDPE, LDPE, glass bottles (with foil liners). |
| Digital Timer/Power | Adjustable sealing time and power settings. |
| Sealing Time | Typically 1–3 seconds per bottle. |
| Power Requirement | 220V / 50Hz, single-phase (approx. 500–800W). |
