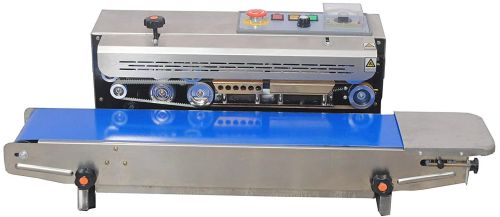

Semi Automatic 50/60 Hz Polished Horizontal Band Sealing Machine

₹ 13,000 - ₹ 16,000 / piece

MaterialStainless Steel
Driven TypeElectric
Automatic GradeSemi Automatic
Frequency50/60 Hz
Supply TypeManufacturer, Exporter, Supplier, Retailer, Importer
Preferred Buyer Location All over the world

Company Information

4.4/5

Member Since 15 Years
Nature of Business Manufacturer
GST No. 27AHEPP9007B1ZJ

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ApplicationIndustrial Use
Country of OriginIndia
Total Carbohydrate1 Year
PhaseSingle Phase
Driven TypeElectric
Automatic GradeSemi Automatic
Frequency50/60 Hz
FinishingPolished
CertificationISI Certified
MaterialStainless Steel
Supply Voltage230v Ac 50hz
Power750 Watt
Working Speed0 to 15 Seal/ Min
Sealing Width6 to 12 Mm
Temp Range0 to 300 Degree
Machine Weight25kg
Brand NameS P Engineering
Machine Size (l*b*h)1060x470x380mm
Max Conveyor LoadingMax 3kg

A Horizontal Band Sealing Machine is a continuous sealing device used for sealing pre-filled plastic or laminated pouches in a horizontal position. It’s commonly used for powders, granules, small hardware, snacks, seeds, and dry goods where the contents must remain stable during sealing.

What It Is:

A band sealer uses heat and pressure via a pair of moving belts to seal the mouth of pouches as they pass through the machine horizontally on a conveyor.

Specifications (Typical):

Voltage: 220V / 50Hz (single-phase)
Power: 500–750W
Sealing width: 6–12 mm
Max pouch weight: 1–5 kg (depending on model)
Temperature range: 0–300°C

Advantages:

Continuous high-speed sealing (20–40+ packs per minute)
Consistent, leak-proof seal
Compact and easy to operate
Minimal maintenance
Suitable for integration into production lines

Ideal For Sealing:

Chips, dry fruits, spices, namkeen
Seeds, fertilizers, agro products
Hardware kits, electronic parts
Powdered chemicals or cosmetics
Coffee, tea, bakery products

Key Features

Feature	Description
Horizontal Operation	Pouches lie flat; ideal for dry or solid products.
Adjustable Temperature	For sealing various films like PE, PP, BOPP, and laminated foils.
Speed Control	Adjustable sealing speed (typically 0–12 meters/min).
Conveyor Belt	Supports pouches during sealing; often height- and pressure-adjustable.
Embossing/Printing	Optional ink or emboss coder for batch/date stamping.
Material	MS or SS body; stainless steel preferred for food/chemical use.
