Our Products
We offer a complete product range of Motorised Decoiler, Decoiler with Straightener, Twin Decoiler, Twin Decoiler (Heavy Duty ) and Double Side Decoiler

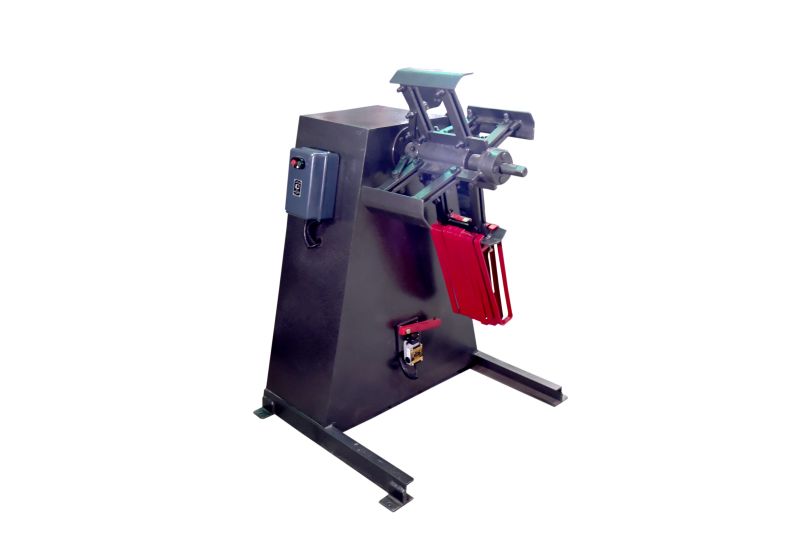

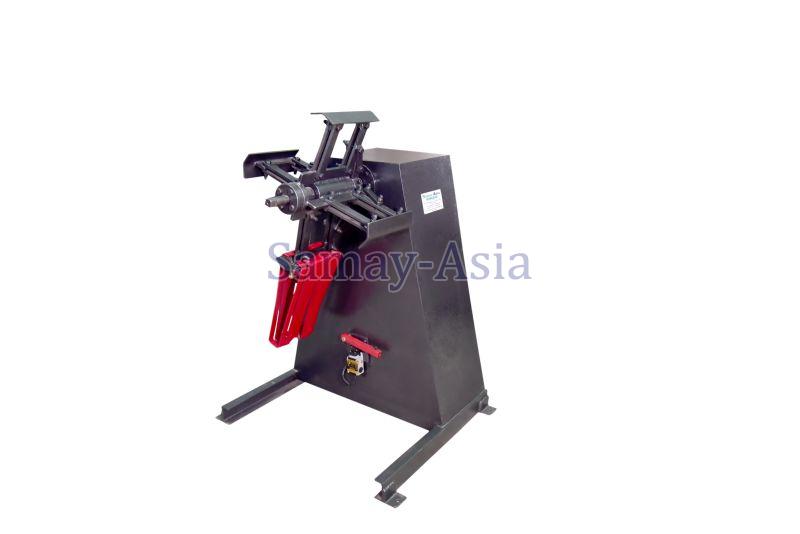

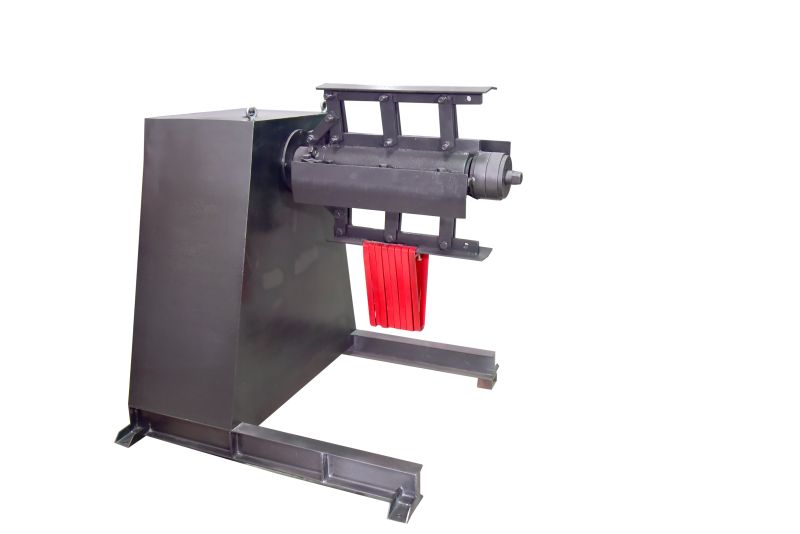

Samay-Asia Motorized Decoiler machine is specially designed for a flawless Un-winding/de-coiling with heavy duty structure. It controls the speed and direction of the strip of metal as it un-winds from the coil and is sent to the line for processing.
Features
Specifications
| Coil Width Max. (mm) | Coil I.D. | Coil O.D. | Coil Weight Max. kg |
|---|---|---|---|
| 100 | 150 - 300 | 900 | 150 |
| 150 | 350 - 450 | 1000 | 500 |
| 250 | 350 - 450 | 1200 | 750 |
| 300 | 400 -500 | 1200 | 1000 |
| 400 | 500 - 600 | 1200 | 1500 |
| 600 | 550 - 650 | 1500 | 2000 |
| 1200 | 550 - 650 | 1500 | 3000 |
| 1600 | 550 - 650 | 1500 | 5000 |
Additional Information:
Packaging Details : Wood Box.
Delivery Time : 2 TO 3 WEEK.
Samay-Asia Decoiler machine is specially designed for a flawless Un-winding/de-coiling with heavy duty structure. It controls the speed and direction of the strip of metal as it un-winds from the coil and is sent to the line for processing.
SPECIAL FEATURES:
Suitable for all kind of coil/roll form material un-coiling.
Easily synchronized with straightener/sharing machines,
Available in motorized and manual segment as per client requirement.
Coil holding mandrels with guiding equipment.
Rigid fabrication.
Easy to operate.
Guaranteed stable operations after setting suitable for small space and shorter distance easysetting.
Additional Information:
Payment Terms :
Packaging Details : WOODEN AND POLYFILM TYPE (AS PER CUSTOMER REQUIREMENT)
Delivery Time : 1 TO 12 WEEKS
samay-asia motorized decoiler machine is specially designed for a flawless un-winding/de-coiling with heavy duty structure. it controls the speed and direction of the strip of metal as it un-winds from the coil and is sent to the line for processing.
special features:
suitable for all kind of coil/roll form material un-coiling.
easily synchronized with straightener/sharing machines,
available in motorized and manual segment as per client requirement.
coil holding mandrels with guiding equipment.
rigid fabrication.
easy to operate.
guaranteed stable operations after setting suitable for small space and shorter distance easy setting.
Additional Information:
Payment Terms :
Packaging Details : WOODEN BOX AND POLY FILM TYPE (AS PER CLIENT REQUIREMENT).
Delivery Time : 1 TO 15 WEEKS
Samay-Asia decoiler machine is specially designed for a flawless un-winding/de-coiling process and built with heavy duty fabricated structure. It controls the speed and direction of the strip of metal as it un-winds from the coil and sent to the line for processing. There are manual and automatic segment available in the single side de-coiler machine, and the mechanism of the machine suits all type of coil unwinding process.
SPECIAL FEATURES:
Suitable for all types of coil/roll form material un-coiling.
Easily synchronize with straightener/sharing/feeding machines.
Available in motorized and manual segment.
Both side coil holding mandrels with guiding devices.
Rigid fabrication.
Easy to operate.
Guaranteed stable operations after settings.
Suitable for small space and shorter distance.
Additional Information:
Payment Terms :
Packaging Details : WOODEN BOX AND POLY FILM TYPE (AS PER CUSTOMER REQUIREMENT).
Additional Information:
Payment Terms : L/C, Western Union
Packaging Details : wood box
Delivery Time : 4 week
Samay-Asia 2-IN-1 (Combined unit) Un-coiler and Straightener machine are accurate and styled to improve factory usable space, machine built to handle a wide range of material width and thickness with free loop can reduce waste. Our ergonomic design provides more efficient operation and enhanced capabilities to meet your specific press room needs.
Machine rollers adopt the solid bearing steel and hard chrome plating treatment. All rollers made of D2 steel, have all been quenched, hard chrome platted and grinded with HRC 62°. The additional back press wheel enables the straightening and result much better.
Compact design saves floor space.
Staightener Wih De-Coiler / Cradle Type
| Model No. | Call Width (mm) | Strip Thickness (mm) | Coil I.D. (mm) | Coil O.D. (mm) | Motor Power | Coil Weight Kg |
|---|---|---|---|---|---|---|
| S-A/DCE-I | 150 | 0.35-1.50 | 350-550 | 1000 | 3HP | 300 |
| S-A/DCE-II | 200 | 0.35-1.50 | 350-550 | 1000 | 500 | |
| S-A/DCE-III | 300 | 0.35-1.50 | 350-550 | 1000 | 500 | |
| S-A/DCE-IV | 400 | 0.35-1.50 | 350-550 | 1200 | 500 | |
| S-A/DCE-V | 200 | 0.35-1.50 | 450-550 | 1200 | 5HP | 1000 |
| S-A/DCE-VI | 300 | 0.35-1.50 | 450-550 | 1200 | 1000 | |
| S-A/DCE-VII | 400 | 0.35-1.50 | 450-550 | 1200 | 1000 | |
| S-A/DCE-VIII | 500 | 0.35-1.50 | 450-550 | 1200 | 1000 | |
| S-A/DCE-IX | 200 | 1.0 -3.50 | 450-550 | 1200 | 1500 | |
| S-A/DCE-X | 300 | 1.0 -3.50 | 500-600 | 1200 | 1500 | |
| S-A/DCE-XI | 400 | 1.0 -3.50 | 500-600 | 1200 | 1500 | |
| S-A/DCE-XII | 200 | 1.60 -5.50 | 500-600 | 1200 | 1500 | |
| S-A/DCE-XIII | 300 | 1.60 -5.50 | 500-600 | 1500 | 7.5HP | 2000 |
| S-A/DCE-XIV | 400 | 1.60 -5.50 | 500-600 | 1500 | 2000 |

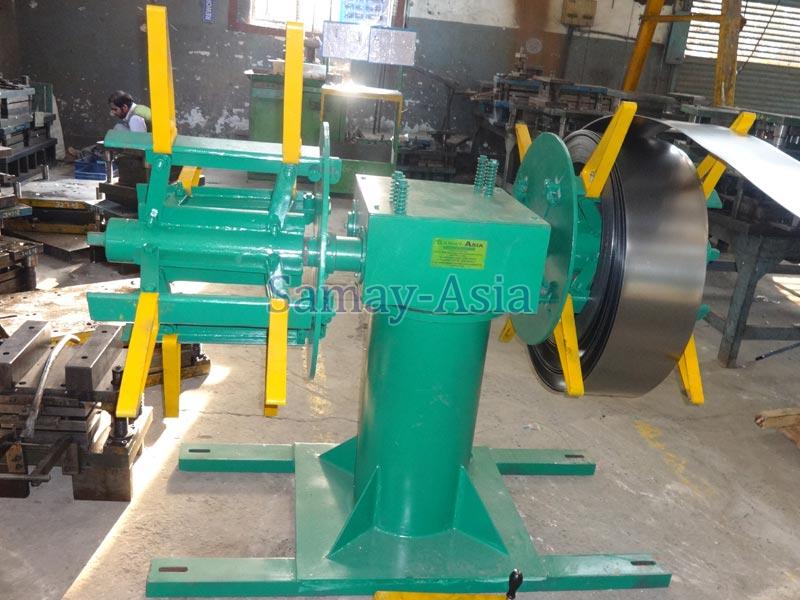

Samay-Asia Twin side/Double Head De-coilers/Un-coilers are specially designed for the time saving purpose and suitable for continuous feeding for all kind of coil material feeding and can work together with straightener.
The machine is guaranteed operation after setting and available in motive and none motive style depends upon suitability.
FEATURES:
Save the material changing time, improve production efficiency.
Suit to all kind of straightening process.
Manual expansion comes in the standard segment. Hydraulic expansion is optional.
For narrow material, cradle can ODM to move right and left.
Suitable for fast punching speed like stator rotor and EI sheets etc
Additional Information:
Packaging Details : WOODEN BOX AND POLY FILM TYPE
Delivery Time : 1 TO 15 WEEKS
Samay-Asia Twin side/Double Head De-coilers/Un-coilers are specially designed for the time saving purpose and suitable for continuous feeding for all kind of coil material feeding and can work together with straightener.
The machine is guaranteed operation after setting and available in motive and none motive style depends upon suitability.
FEATURES:
Save the material changing time, improve production efficiency.
Suit to all kind of straightening process.
Manual expansion comes in the standard segment. Hydraulic expansion is optional.
For narrow material, cradle can ODM to move right and left.
Suitable for fast punching speed like stator rotor and EI sheets etc
Additional Information:
Payment Terms :
Packaging Details : WOODEN AND POLYFILM TYPE (AS PER CUSTOMER REQUIREMENT)
Delivery Time : 1 TO 12 WEEKS
Samay-Asia Motorized Decoiler with hold down arm is specially designed for a flawless Un-winding/de-coiling with heavy duty structure as well as holding the material coil outer diameter to prevent unwanted accedents. It controls the speed and direction of the strip of metal as it un-winds from the coil and is sent to the line for processing.
SPECIAL FEATURES:
Suitable for all kind of coil/roll form material un-coiling.
Easily synchronized with straightener/sharing machines.
Available in motorized and manual segment as per client requirement.
Coil holding mandrels with guiding equipment.
Rigid fabrication.
Easy to operate.
Guaranteed stable operations after setting suitable for small space and shorter distance easy setting.
Additional Information:
Payment Terms :
Packaging Details : Wooden and poly film type.
Delivery Time : 1 TO 15 WEEKS
We have marked a definite and dynamic position within the market by providing a top quality array ofDecoiler. The offered product is factory-made with the assistance of premium quality steel and complex technology in compliance with set industrial norms. This product is wide used for producing automobile parts in numerous industries. We are also supply for Domestic and International Market.
Features:
Precisely built
Sturdy construction
Anti corrosive
Samay-Asia Twin side Double Head De-coilers/Un-coilers are specially designed for the time saving purpose and suitable for continuous feeding for all kind of coil material feeding and can work together with straightener.
The machine is guaranteed operation after setting and available in motive and none motive style depends upon suitability.
Features
Twin Side Decoiler / Uncoiler
|
Model No. |
Coil Width (mm) |
Coil I.D (mm) |
Coil O.D. (mm) |
Coil Weight (Kg) Each side |
|---|---|---|---|---|
|
S-A/TSD-I |
150 |
150-400 |
1000 |
150kg |
|
S-A/TSD-II |
200 |
350-550 |
1200 |
500kg |
|
S-A/TSD-III |
300 |
450-600 |
1200 |
750kg |
|
S-A/TSD-IV |
400 |
450-600 |
1500 |
1000kg |
Samay-Asia Decoiler machine is specially designed for a flawless Un-winding/de-coiling with heavy duty structure. It controls the speed and direction of the strip of metal as it un-winds from the coil and sent to the line for processing and there are two segments available in the single side de-coiler. Example: Motorized & Manual segment.
Features
Specifications
| Model No: | Coil Width (MM) | Coil I.D. | Coil O.D. | Coil Weight (KG) |
|---|---|---|---|---|
| S-A/DE-I | 100 | 150-300 | 900 | 150 |
| S-A/DE-II | 150 | 350-450 | 1000 | 500 |
| S-A/DE-III | 250 | 350-450 | 1200 | 750 |
| S-A/DE-IV | 300 | 400-500 | 1200 | 1000 |
| S-A/DE-V | 400 | 500-600 | 1200 | 1500 |
| S-A/DE-VI | 600 | 550-650 | 1500 | 2000 |
| S-A/DE-VII | 1200 | 550-650 | 1500 | 3000 |
| S-A/DE-VIII | 1600 | 550-650 | 1500 | 5000 |
