Pipes & Fittings

Our product range contains a wide range of SWR Pipes

SWR Pipes

SWR Pipes
  • Number Of Flower Plumbing
  • Material SWR
  • Shape Round

SFMC Manufacturers Plain and Socket end Pipes with nominal Out side Diameter from 75, 90, 110 Et 160 mm. These Pipes are used in soil and waste discharge system inside the building including ventilating and rain water applications.

Features :

  • High flow rate a Non - Conductive  -  SFMC uPVC Pipes have smooth inner surface. uPVC SWR Pipes & Fittings are non-conductive and galvanic or electrolytic action does not affect in working. Thus flow rate will be more.
  • Low Priced  -  Due to light weight and simple jointing techniques, saving can be affected in the cost of material, transportation and installation. Cost of SFMC uPVC SWR Pipes & Fittings are therefore more cost effective than conventional drainage pipes.
  • Resilient and resistant to most of the chemicals  -  SFMC uPVC SWR Pipes & Fittings are resistant to alcohol, fats, oil, aromatic & chlorinated hydrocarbons. Also they are more reliable and do not support any fungal growth.
  • UV Stabilized  -  SFMC SWR Pipes & Fittings usable for drainage system is UV Stabilized which eliminates the adverse effect of sunlight and weather. Therefore the system can be used for outdoor applications.
  • Non-Corrosive  -  Pipes do not support any formation of rust on pipes.Durable and long lasting  -  It has very good tensile and impact strength, hence, site breaking is totally eliminated.
  • Fast and convenient installation  -  As the SFMC uPVC SWR Pipes & Fittings are extremely light in weight and provided with special rubber jointing technique, installation will be easier. Jointing can be done within seconds with special rubber rings which eliminate leakages. Cleaning is also very easy.

Graph


Download Detail File : Click Here

Type - A

Nominal Out Side Diameter Mean Out Side Diameter Wall Thickness Type - A
In mm Min. Max. Min. Max.
75 75.00 75.30 1.80 2.20
90 90.00 90.30 1.80 2.30
110 110.00 110.40 2.20 2.70
160 160.00 160.50 3.20 3.80



Type - B

Nominal Out Side Diameter Mean Out Side Diameter Wall Thickness Type - A
In mm Min. Max. Min. Max.
75 75.00 75.30 3.20 3.80
90 90.00 90.30 3.20 3.80
110 110.00 110.40 3.20 3.80
160 160.00 160.50 4.00 4.60

Specification

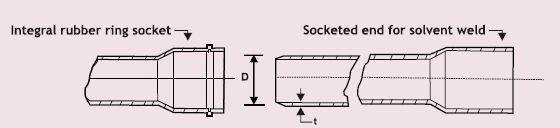

Nominal Out Side Diameter (D) mm Tolerance on Out Sidee diameter mm Wall Thisckness-Type-A (t) mm Wall Thisckness-Type-B (t) mm
Min. Max. Min. Max.
75 +0.3 1.8 2.2 3.2 3.8
90 +0.4 1.9 2.3 3.2 3.8
110 +0.4 2.2 2.7 3.2 3.8
160 +0.5 3.2 3.8 4.0 4.6
