Our Products

Precast RCC Drains

Our Complete range of products are RCC Box Culvert, Precast U Drain, Concrete Box Culvert and Precast Box Culvert.

FEATURES & SPECIFICATION

Manufactured with M - 30 grade of concrete by vibro compaction process
Suitably reinforced to promote long life
For Jointing, it is recommended to fill the joint between two adjacent drains with cement mortar
The drain should be laid on a properly compacted base
Heavier drains are provided with lifting nuts

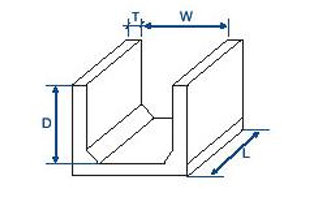

Dimensions (In Mm)

Download Detail File : Click Here

Specifications

Product code	Nominal Size	Length	Width	Depth	Thickness
UDR01	500x200x250	500	200	250	50
UDR02	500x300x300	500	300	300	50
UDR03	500x300x375	500	300	375	50
UDR04	500x300x450	500	300	450	50
UDR05	400x350x500	400	350	500	60
UDR06	610x340x315	610	340	315	60
UDR07	610x585x310	610	585	310	70
UDR08	475x685x355	475	685	355	80
UDR09	500x855x300	500	855	300	80
UDR10	1000x1000x1000	1000	1000	1000	150
UDR11	1000x1200x1000	1000	1000	1200	150
UDR12	800x1200x1000	1000	800	1200	300
UDR13	1000x1500x1000	1000	1000	1500	200
