LED Lights

Our product range contains a wide range of Solar LED Street Light, Solar LED Garden Light and LED Warning Light

Solar LED Street Light

FEATURES OF SOLAR LED STREET LIGHTING FIXTURE

High efficiency electronic circuitry
Very low self-consumption
100% short circuit protection
Surge/lighting protected
Perfect design, Easy Installation
PWM MOSFET based solar charge controller for efficient battery charging
Automatic dawn dusk operation (with timer-optional)
Automatic dawn dusk operation (dim light with timer-optional)
Highly Economic and reliable
Temperature Compensated Battery charging
Approved by Ministry of New & Renewable Energy Sources, Govt. of India
"Fit and Forget" device

KEY FEATURES

Excellent for remote villages
Low maintenance
One time installation
High reliability and durability
More intensity of light

LUMINARY TYPE	LSSL006	LSSL0012
Output Light Intensity	8 -10Lux @ 12Ft	16-20 Lux @ 12Ft
Nominal Power	8W	16Watt
Efficiency	>76% >78%
No of Led’s	06LED	12LED (1Watt)
LED’s Power	> 1Watt	1Watt
LED’s Make	Oshram Multichip
SPV Modules	>40Watt 75Watt
Max Module Current	>3Amp 5Amp
Nominal Battery Voltage	12Vol
Battery	40AH Tubular 75AH Tubular
Charging Method	CC-CV(boost)/ CV(Float)
Display Indications	LED (Low Battery, Charging)
Battery Connection	4 meter long 1.5 mm Sq cupper wire with lugs provided
Indication	Battery Charging, Battery Low, Battery Overcharge
SPV Connection	2.5 meter 1.5 Sq mm two core cupper wire fitted with Lugs
Pole	15Ft (4.5meter)
Installation	Pole / Wall Mounting
Luminary Dimension	290 X 145 X 190mm
Battery Box	Ms Sheet box with non weatherproof power coating
Luminary Degree of Protection	IP65
Cooling	Natural air cooled
Ambient Temperature	-20⁰C to +50⁰C

View Complete Details

Ask Latest Price & Details

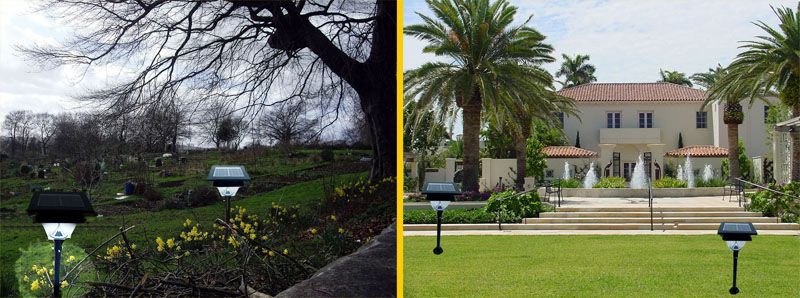

Solar LED Garden Light

Dusk to Dawn ESI-02023B
\r\n \r\n \r\n \r\n\r\n \r\n

Let the world focus its constant attention at the centre of the planetary system where the sun, the supreme power of the universe resides.

Solar Led Garden light Illuminating system can dramatically enhance the beauty of a garden. Shrinath Engineerings offers a complete solution of solar powered garden light designed for adequate lighting, beautification, longer operating hours (up to 12 hrs), quality and reliability. All the limitations of conventional solar garden lights like limited hours of operation, inadequate lighting, inefficient charging and less storage capacity etc are eliminated in Shrinath Engineerings Garden Light.

FEATURES

Centralized charing by Solar PV Modules
Automatic Dusk to dawn controller avai
Attractive and Weather proof luminaries
Highly efficient charge controller and inverter
Adequate protections and indications
Available with SMF battery
Uses highly efficient bright LED'.

View Complete Details

Ask Latest Price & Details

LED Warning Light

Size 72 X 150mm
LED 6 Nos
LED Color Red & Yellow
Material ABS and PC
Battery NI - MH rechargeable
Working Temperature - 40 – 70OC
Weight 260g
Solar Cell 225mW, 2.5V, 90mA
Running hours 10 hours autonomy

KEY FEATURES

High visibility Leds.
Solar powered for isolated or standalone applications.
Ideal for construction/re-innovation/repair of high way, road, bridge, sub way and other similar etc and
can be widely used in similar projects as warning light

View Complete Details

Ask Latest Price & Details
