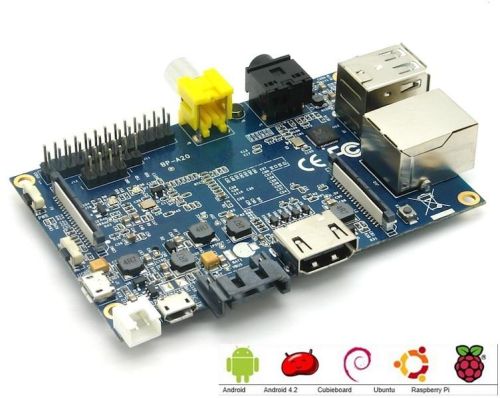

Banana Pi Bpi-m1 Dual Core Single-board Computer

MOQ100 Piece(s)
Brand NameBanana pi
Number Of Flowerdrive IC
Country of OriginChina
RemoteIR (Optional)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 11 Years
Nature of Business Supplier
Year of Establishment 2004

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of Flowerdrive IC
Brand NameBanana pi
Country of OriginChina
ButtonsReset button: Next to MicroUSB connector Power button: Next to Reset button Boot button (Optional): Behind HDMI connector
Power Source5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG
Memory1GB DDR3 (shared with GPU)
RemoteIR (Optional)
GPIO(2X13) pinGPIO,UART,I2C bus,SPI bus with two chip selects, CAN bus,ADC,PWM,+3.3v,+5v,ground.
Video InputA CSI input connector allows for the connection of a designed camera module
OSAndroid 4.2,Firefox OS and Linux etc. OS
CPUA20ARM Cortex™-A7 Dual-Core
Video OutputsHDMI, CVBS , LVDS/RGB
USB 2.0 Ports2 (direct from Allwinner A20 chip)
Onboard StorageSD (Max. 64GB) / MMC card slot UP to 2T on 2.5 SATA disk
Model NumberBPI-M1
GPUARM Mali400MP2Complies with OpenGL ES 2.0/1.1
Weight48g
Audio Output3.5 mm Jack and HDMI
Onboard Network10/100/1000 Ethernet RJ45,optional WIFI
Product size92 mm × 60mm

E: cherryjiang at banana-pi.com skype: sinovoip-02
We are offering dual core single board computer.
Banana pi series runs android, debian linux, ubuntu linux, opensuse linux,raspberry pi images and cubieboard images.
Banana pi is an open source hardware platform which was produced to run the elastos.org open source os among others. Banana pi a dual core, android 4.2 product which is much better than the raspberry pi.
the banana pi hardware runs android, debian linux, ubuntu linux, opensuse linux and images that run on the raspberry pi and cubieboard.
banana pi has a gigabit ethernet port and a sata socket. It can run with android 4.2.2 smoothly. The size of banana pi m1 is about the same size as a credit card,
it can easily run games as it supports 1080p high definition video output. The gpio is compatible with raspberry pi and can run raspberry pi images directly.

Additional Information

Payment Terms T/T, Western Union
Port of Dispatchshenzhen
Packaging Detailsstandard packing 100pcs/box/7kg Unit Type: piece Package Weight: 0.080kg (0.18lb.) Package Size: 12cm x 8cm x 3cm (4.72in x 3.15in x 1.18in)
Delivery Time1 day
