Our Products

  1. Starters 8 Products available
  2. Microcontroller 7 Products available
  3. Motor Control Panels 5 Products available
  4. Water Level Controller 4 Products available
  5. Changeover Switches 3 Products available
  6. Automotive Components 2 Products available
  7. Control Panels 2 Products available
  8. Liquid Level Indicator 1 Products available
  9. Electric Coil 1 Products available
  10. Energy Meter 1 Products available
  11. Timer Switch 1 Products available
  12. Electronic Timers 1 Products available
  13. Starter Panel 1 Products available
  14. Electrical Box 1 Products available
  15. Level Controllers 1 Products available
  16. Ammeter 1 Products available
  17. Calibrators And Monitoring Systems 1 Products available
  18. Voltmeter 1 Products available
  19. Others Products 4 Products available

Motor Control Panels

Our Complete range of products are Three Phase Control Panel, Snr/IP 2007 3 PH. Control Panel, Snr/IP/dms (Rly) 3 PH. Control Panel, SNR/3PH/ALT-2(RLY) Three Phase Pump Control Panel and Three Phase Control Panel (model No. Ip 2007).

Three Phase Control Panel

Three Phase Control Panel
  • Min. Order (MOQ) 1 Piece
  • Feature Motor Starts Automatically After Time Delay Of 1/3/5 Min, Separate Indicators For Time, OK, O/L, SPP, Dryrun, Standard Make Contractor And Thermal Relay For Switching, Auto/Manual Facility On Front Panel, Digital Amp. & Voltmeter For Displaying Current And Vo
  • Country of Origin 250V
  • Usage/Application Control And Protection Of 3 Phase Submersible And Monoblock Pumps, Fire Fighting Motor Pumps, Water Supply Schemes
  • Material MS Steel
  • Shape Square
  • Country of Origin India
  • Number Of Flower Control Panel
  • Technology Micro Controller Based

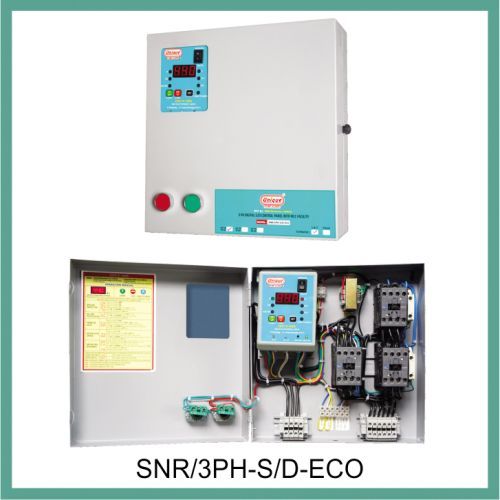

3 PH. CONTROL PANEL (UPTO 15 H.P. PUMPS)

(SNR/3PH-S/D-ECO)
Features:

      • Micro Controller Based Technology

      • Motor starts automatically after time delay of 1 / 3/5 min. (enable/disable facility)

      • Operates on low voltage (250V)

      • Useful for 3 Ph. Submersible, monoblock pumps.

      • Useful for Fire Fighting motor pumps starter, water supply scheme for gram panchayat

      • Separate Indicator for time, OK, 0/L, SPP, Dryrun.

      • Standard make contractor and thermal relay for switching.

      • Auto/Manual facility on front panel.

      • Heavy MS steel fabricated box with high quality powder coating like outdoor type.

      • Digital Amp. & Voltmeter for display current and voltage.

      • Panel material can be changed as per requirement of customer.

      • Water level controller & other facility can be added as per requirement.

      • In Reverse phase condition SPP LED blinks and display shows rsp.

Technical Specifications:

    • (As per SNR/IP 2007)

    • and as per Auto switch RDM

View Complete Details
Ask Latest Price & Details

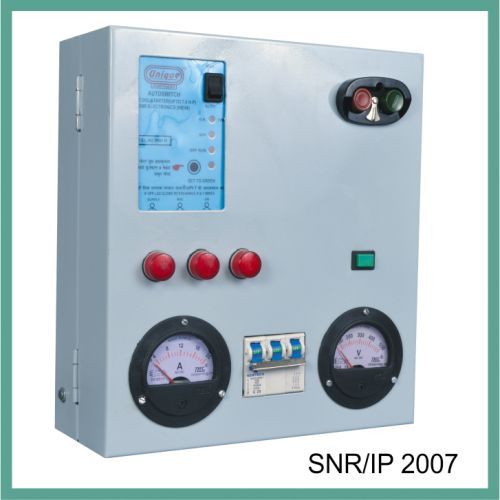

Snr/IP 2007 3 PH. Control Panel

Snr/IP 2007 3 PH. Control Panel
  • Min. Order (MOQ) 1 Piece
  • Feature Microcontroller Based Technology, Motor Starts Automatically After Time Delay 1/3/5 Min, Protection From Voltage & Current Unbalance, Single Phasing, Overload & Dry Run, RYB Indication For Each Phase, Operates On Low Voltage (from 250 V), Separate Indicators F
  • Usage/Application For 3 Phase 1 To 6 H.P. Openwell, Submersible, Monoblock Pumpsets
  • Country of Origin India
  • Power Type AC
  • Shape Square
  • Phase Two Phase
  • Country of Origin 250V
  • Material Stainless Steel
  • Number Of Flower Control Panel
  • Technical Specification 220 To 460 VAC, 50 Hz, 7 Sec, Not Specified, 70% Of Full Load Current, 4 Sec, 35 Volts, Not Specified

3 PH. CONTROL PANEL

(SNR/IP 2007)
Features:

Microcontroller based technologyMotor starts automatically after time delay 1/3/5 minProtection from voltage & current unbalance, single phasing, overload & dry run. (auto push button setting)RYB indication for each phaseOperates on low voltage (from 250 V)

Useful for 3 Ph. 1 to 6 H.P. Openwell, Submersible, Monoblock pumpsets.

Separate indicators for Timer, OK, SPP, Dry run & 0/L.Auto / Manual Facility.3 pole MCB for mains ON/OFF & Short circuit protection

Technical Specification:

Operating voltage: 220 to 460 VAC, 50 Hz.Dry Run trip timing - 7 sec.Overload Electromagnetic Relay.Dry Run setting -70% of full load current.SPP Trip time delay - 4 sec.Voltage Unbalance Set - 35 volts.Voltage Sensing SPP.

View Complete Details
Ask Latest Price & Details
Snr/IP/dms (Rly) 3 PH. Control Panel

Snr/IP/dms (Rly) 3 PH. Control Panel
  • Min. Order (MOQ) 1 Piece
  • Feature Micro Controller Based Technology, Motor Autostart Facility With Settable On Delay Time, Protection From Voltage Unbalance, Single Phasing, Overload, Dryrun & Current Sensing, LED Display For Voltage & Ammeter, 40 A Power Relay For ON/OFF Switching, Compact Si
  • Usage/Application 3 Phase Motor Control Panel For 1 To 5 H.P. Pumps
  • Country of Origin India
  • Phase Three Phase
  • Country of Origin 220V
  • Material Stainless Steel
  • Number Of Flower Control Panel
  • Technical Specification As Per Model - IP2007

3 PH. CONTROL PANEL (UP TO 5 H.P.)

(SNR/IP/DMS (RLY)

Features:

Micro Controller Based Technology

Motor Autostart Facility with settable on delay time.

Protection from voltage unbalance, single phasing, overload, Dryrun & also current sensing SPP, (Push button for Setting)

LED Display for voltage & ammeter & also indicator

40 A power relay for ON/OFF switching.

Compact size.

0/L percentage can be settable from 110% to 170%.

N/L % can be set from 90% to 50%

After Dry run trip restart relay facility available (with variable time set).

SPP/0/L protection enable/disable facility, as per DMA

Useful for 3 Ph. 1 to 5 H.P. Openwell, Submersible, Monoblock pumps.

Auto/Manual Facility.

Water level controller facility also available.

In reverse phase condition SPP LED Blinks and display shows rsp.

Technical Specification:

As per Model - IP2007

View Complete Details
Ask Latest Price & Details

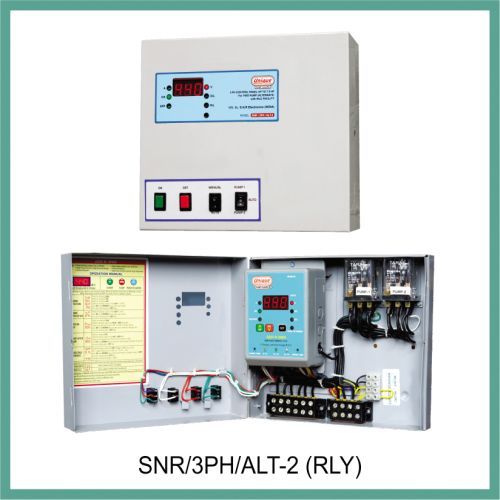

SNR/3PH/ALT-2(RLY) Three Phase Pump Control Panel

SNR/3PH/ALT-2(RLY) Three Phase Pump Control Panel
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Phase Three Phase
  • Country of Origin 220V
  • Feature Microcontroller Based Technology, Two Separate Contactors For Operating Each Motor, Auto/Manual/By Pass Facility, Input Timer For Alternate Operation, ON/OFF Switch For Pump 1 & Pump 2, Sequential Operation Of Pumps In Auto Mode, All Indication Facilities Avail
  • Usage/Application Alternate Pump Operating Panel For 1 Ph. & 3 Ph. Pumps
  • Shape Square
  • Material Stainless Steel
  • Number Of Flower Pump Control Panel
  • Technical Specifications As Per Autoswitch RDM

1 PH. & 3 PH. ALTERNATE PUMP OPERATING PANEL
SNR/3PH/ALT-2(RLY)

Features :

Microcontroller based technology.

Useful for 1 Ph. & 3 Ph. Pumps.

Same protection & features as per RDM Auto Switch.

Two separate contactors for operate each motor.

Auto/Manual / By pass facility.

Input timer for alternate.

ON/OFF Switch for pump 1 & Pump 2.

One pump can operate at one time and next time other pump is operate in Auto mode only.

All Indication of facility are available in panel.

Technical Specifications as per Autoswitch RDM

View Complete Details
Ask Latest Price & Details
Three Phase Control Panel (model No. IP 2007)

Three Phase Control Panel (model No. IP 2007)
  • Number Of Flower Three Phase Control Panel
  • Feature Protection From Voltage Unbalance, Single Phasing, Overload & Dry Run
  • Suitable For 3 Ph. 1 To 7.5 H.P. Pumpsets
  • Country of Origin Operates On Low Voltage (from 250 V)
  • Technology Microcontroller Based
  • Indications Timer, OK, SPP, Dry Run & O/L
  • Protection Single Phasing Protection Up To Motor Terminal
  • MCB 3 Pole MCB For Mains ON/OFF & Short Circuit Protection
We are instrumental in offering high quality Three Phase Control Panel to our clients. This Three Phase Control Panel is made with the use of cutting edge technology and are extremely easy to operate. Our Three Phase Control Panel is manufactured from best components and other high grade raw materials which assure endurance and durability. FeaturesMicrocontroller based technologyProtection from voltage unbalance, single phasing, overload (thermal) & dry run. (Auto push button setting)Motor starts automatically after time delay 1/3/5 minUseful for 3 Ph. 1 to 7.5 H.P. Openwell, Submersible, Monoblock pumpsetsSeparate indications for Timer, OK, SPP, Dry run & O/LOperates on low voltage (from 250 V)Single Phasing Protection up to motor terminalAuto Manual Facility3 pole MCB for mains ON/OFF & Short circuit protection
View Complete Details
Ask Latest Price & Details
