CYCLIC PROGRAMMABLE TIMER (SNR/CPT) Features

• Operates on low voltage (from 200V)

• Useful forAgriculture & Industrial automation.

• Digital Time indications with LED Display.

• ON Time setting 1Sec. to 999 Sec. & 1 Min. to 999 Min. Settable.

• OFF Time setting 1Sec. to 999 Sec. & 1 Min. to 999 Min. Settable.

Technical Specifications

• Operating voltage-

• For 3 Ph - 220 to 440 VAC, 50Hz.

• For 1 Ph - 160 to 240 VAC For 1 Ph.

• Relay Contact- 30 A

1 PH. SUBMERSIBLE MCB STARTER

(SNR/MCB)

Features



• Suitable for Submersible Pumps

• Available for 0.5 to 2 H.P. Pumps

• MCB Overload Protection

• Separate analog meters for voltage & current

1 PH. & 3 PH. ALTERNATE PUMP OPERATING PANEL (SNR/3PH/ALT-2)

Features

• Microcontroller based technology.

• Useful for 1 Ph. & 3 Ph. Pumps.

• Same protection & features as per RDM Auto Switch.

• Two separate contactors for operate each motor.

• Auto/Manual / By pass facility.

• Input timer for alternate.

• ON/OFF Switch for pump 1 & Pump 2.

• One pump can operate at one time and next time other pump is operate in Auto mode only.

• All Indication of facility are available in panel.

Technical Specifications as per Autoswitch RDM

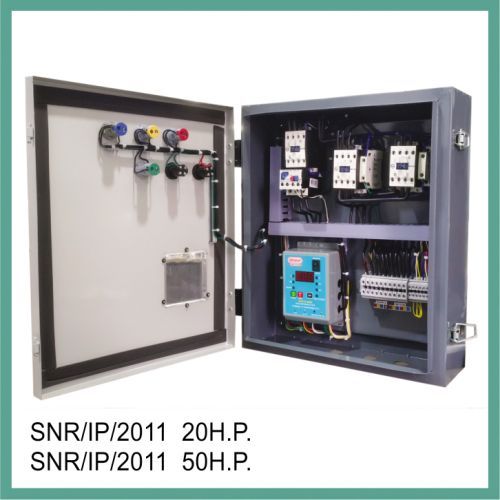

3 PH. CONTROL PANEL (UPTO 50 H.P. PUMPS)

(SNR/IP/2011 (20H.P.), SNR/IP/2011 (50H.P.))
Features:

• Micro Controller Based Technology

• Motor starts automatically after time delay of 1 / 3/5 min. (enable/disable facility)

• Operates on low voltage (250V)

• Useful for 3 Ph. Submersible, monoblock pumps.

• Useful for Fire Fighting motor pumps starter, water supply scheme for gram panchayat

• Separate Indicator for time, OK, 0/L, SPP, Dryrun.

• Standard make contractor and thermal relay for switching.

• Auto/Manual facility on front panel.

• Heavy MS steel fabricated box with high quality powder coating like outdoor type. (IP-54)

• 3 pole MCB for main ON/OFF and short circuit protection.

• Digital Amp. & Voltmeter for display current and voltage.

• Panel material can be changed as per requirement of customer.

• Water level controller & other facility can be added as per requirement.

• In Reverse phase condition SPP LED blinks.

Technical Specifications:

• (As per SNR/IP 2007)

2 PH. 3 PH. CHANGEOVER (SNR/ 2-3 P) (SNR/2-3 P) Features:

• Only for 3 ph. condition, protection for unbalance & Single Phasing.

• Auto start at 1/3/5 timer (ON DELAY)

• Motor starts Automatically in 2 ph. condition with the help of box type Mfd. capacitor.

• Auto manual facility & 2ph. & 3 ph. switch for both condition.

• Heavy duty model for 10 HP and 15 HP.

• Seperate 2 pole contactor for touch capacitor switching.

Features (Top Section)



Micro Controller Based Technology
It indicates the levels of water in the Overhead tank thru S.S. sensor placed in overhead tank i.e. 20%, 40%, 60%, 80% & Full. As the tank gets full, buzzer sounds and you have to manually stop the motor and push reset button to stop buzzer sound.

UNIQUE NO VOLT COIL (220 V TO 360V) (SNR/NVC) Features

For 1 PH. & 3 PH.

High quality coil for DOL and Star Delta Starter,

Voltage range 160V to 230V ac & 280 V to 440 V ac.

DIGITAL A/V METER BOX FOR 3 PHASE (SNR/DGAV3) Features

Useful for 3 Ph. Motor upto 20 HP

Seperate Digits meter for Amp. and Volt (upto 60 A and 600V)

Seperate RYB Indicator

It displays RN, YN, BN, RY, YB & BR. six types of voltages & 1 Amp.

Nano size, long life with 12 M. warranty



2 PH.3 PH. CHANGEOVER WITH DRY RUN(SNR/2-3 P D/R)


Features :

• As per 2 PH. Changeover (SNR/2-3 P)



• Only for 3 ph. condition, protection for unbalance & singel phasing and Dry run



2 PH. 3 PH. SERIES CHANGE OVER Features

Other features as per SNR/2-3 PD/RMicrocontroller-based technology.Motor starts automatically in 2 PH. condition with help of box cap.Digital Display of Amp. & Volt.

SNR/ROBOT-2

ROBOT TIMER (SNR/ROBOT-2) Features

Microcontroller based technology.

High Quality LED Display.

Useful for timer for streetlight, garden lighting, housing society, signboards etc

Separate 2 programe in 1 unit for 2 different applications.

Use can be 1 ph. as well as 3 ph. supply.

Auto/Manual Facility.

Indicator for each program ON on LED as well as LCD display.

Low cost. High quality, Domestic Timer for any timer purpose.



Technical Specifications

Microcontroller based technology.

operating voltage.

For 1 Ph. 220 to 440 VAC 50Hz.

For 3 Ph - 410 to 440 VAC For 1 Ph IC PROGRAM CPT)



We have come up with exclusive autoswitch snr-as-9000a. The autoswitch snr-as-9000a finds wide usage in agricultural and constructional areas. Our autoswitch snr-as-9000a is easy to operate and consumes less power. featuresmicrocontroller based technologymotorstarts automatically after time delay of 20 sec. To 5 minutes set ablerestart timer 2 hour for after dry run tripprotection from voltage unbalance, single phasing & dry runs automatic push button setting)operates on low voltage (from 200 v)useful for 3 ph. 3to 30h.p. Openwell, submersible, monoblock pump setsseparate indications for timer, ok, spp & dry runauto manual facility

We present to our reputed clients the finest range of Control Panel Boxes. Our sophisticated Control Panel Boxes are manufactured with the use of cutting edge technology and are user friendly. These Control Panel Boxes are well tested under strict industry norms for perfection and quality. FeaturesSeparate assembly of starter, main switch, Meter box, Cutout etcUseful for 3 Ph. 3 to 10 H.PHeavy duty Galvanized sheet box with handle and locking arrangement

We present to our valuable customers, high quality Digital Voltmeters. Our Digital Voltmeters have striking features and are extremely user friendly and can be easily operated. These Digital Voltmeters give accurate readings about the voltage. These Digital Voltmeters are very sensitive and record even the slightest of the change in the voltage. AttributesHigh performanceExtremely sensitiveAccurate readingsEasy to useReasonably priced

We bring to our clients, an exclusive Digital Ammeter range. These Digital Ammeters are made from the modern technology and are appreciated for accurate readings. These Digital Ammeters have finely designed mechanisms that make them highly efficient. Our Digital Ammeter can be obtained at market leading prices. AttributesAccurate readingsEasy to useHigh performanceAffordable

The mobile autoswitch snr-ma-gsm is an easy to operate machine. Finding wide usage in agricultural field the mobile autoswitch snr-ma-gsm is based on latest technology. The mobile autoswitch snr-ma-gsm consumes less power and is available at the market leading price. featuresmicro controller based technologymotor can be operated by phone on calling or sms from any destination automatically (mobile network necessary)you will get audio feedback and sms feedback of each operation and protectionmobile auto can operate a specific number ( 5 nos.) which will be feed by customer for his convenience to avoid misuse of mobile autoyou can get detail technical information by sending sms for st about current of each phase r y b and also voltage between r y, yb & br at that timewhen motor stops due to no load or overload you will get the current (a) at which current motor got dryrun or overload on lcd displayuseful for 1 ph. & 3 ph 1 hp to 20 hp openwell, submersible & monoblock pumps. protection from voltage unbalance, reverse phasing, single phasing (current sensing) overload, dry runseperate indicator for timer, ok, spp, o/l & n/l and also display on lcdmobile auto can operate in various languagesmarathihindienglishgujarathikanadaenable / disable facility available for each protection & automation(i.e. If you do not require o/l protection then you can disable this protection)no need to attatc mobile handset with this unit you can direct insert sim card to this unitauto / manual & mobile on/off facilityfor details of voice feedback & other information please refer instruction manual with this unit

We present best quality Water Level Controller which is appreciated for its high performance. We make our Water Level Controller with the use of latest technology to ensure easy handling. These Water Level Controllers are tested under stringent industry norms to prevent any faults in performance or flaws. FeaturesMicrocontroller based technologyProtection from overload & dry run (Auto push button setting)Useful for 1 Ph. MotorpumpsSeparate indications for Overload, tank full and tank emptyCorrosion free Float sensorAuto Manual FacilityUseful ForGround tankOverhead tanks1 ph. sub. pumps

We have come up with the finest range of Digital Programmable Timers. Our Digital Programmable Timers have striking features and are used at various places. These Digital Programmable Timers are manufactured with the use of modern technology and provide accurate readings. These Digital Programmable Timers are provided at economic prices. AttributesOperates on low voltage (from 200 V)Useful for Agriculture and Industrial automationDigital time indication with LED DisplayCan set 8 programs in 24 hours and a week aheadProtection from single phasingMicrocontroller based technologyUseful ForGreenhouseDrip irrigationAkshay prakash schemesWater supply schemesTechnical SpecificationOperatign voltage : 220 & 440 VAC, 50 Hz.
