Technical Characteristics

• High selectivity
• TDLAS is high resolution spectrum technology, due to the "fingerprint" characteristics of the spectrum, it is
• not affected
• by the interference of other gases. This feature compared with other methods molecularhas obvious
• advantages
• High versatility
• TDLAS is an effective general technology to all activist withinfrared absorption. Only need to change laser
• and standard gas, the same instruments can be convenient to measure the other components. Based on
• this characteristic, it can be easily changed to multi-component measurement instrument.
• High sensitivity
• TDLAS has the advantages of rapid response speed and high sensitivity. In the case of not losing
• sensitivity, its time resolution can be found in ms level.

Features:

• Fully integrated system up to 7 gases in a single compact analyzer.
• Wide measurement range from 0 100 PPM up to 0 10, 000 PPM.
• Widely accepted, cerfied pe ormance complies with the latest monitoring standards.
• Simple installaton &i mai tanance requires no specialist skills or training, all maintenance carried out onsite.
• Highest measurement performance ultra low dri Measuremen t t echnology.
• Measured Total NOx (NO+NO2) separate sensors for true NOx monitoring.
• Record and store vital emission data internal data logging funcon.
• Combuson efficiency measurement opon or a maintenance carried out onsite condion

Application:

• Gas turbines
• Power plants
• Boiler systems coal, oil and gas fired
• Incinerators domesc, biological waste
• Wood, sawdust, pellet and bark burners
• Thermal oxidizers
• Pulp and paper
• Cement & lime manufacture
• Gas pipeline compressors
• Biofuel power generaon
• Petrochemical and refineries

Product Details:

• A continuous surveillance of the produced biogas is necessary to efficiently control the production process of a biogas plant. Methane, Residual oxygen, carbon dioxide & hydrogen sulphide in the gas stream can be measured simultaneously or singularly.
• Its simple automatic operation, continuous measurement and digital display of gas makes it a valuable aid for on-site instant analysis and follow up acon. Its data logging & the computer interface facility is helpful for further detailed analysis in the laboratory.

Applications:

• Process surveillance of the fermentation of biogas.
• Optimization of the calorific value.
• Protection of the gas turbines from high- hydrogen sulphide concentration.
• Different customer specific measuring- requirements upon request.

Special Features:

• Complete automatic operation.
• Self diagnostic check.
• Application specific sensor technologies.
• Continuous, stable alphanumeric display.
• Data logging and RS 232 output capability.

Operations

• Electrochemical sensor for O2.
• Extra long life oxygen sensor not Poisoned with Co2.
• Data logging and built in printer.
• Date & me stamp.
• Custom designed sample Conditioning system.
• Analog / Digital Output.

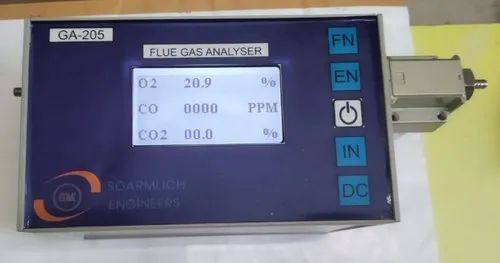

Special Features:

• Portable, compact and rugged.
• Complete Automatic Operation
• Graphics displays messages and values through the operation of the analyzer.
• Self check facility and a special software ensures accurate analysis of data.
• Standard Fuels with their parameters are preprogrammed. Others on request.
• Battery operating period of 6 hours.
• Inbuilt Buzzer announces various stages of operation.
• A mere Six key to operate the complete instrument.
• Visual alarms for Low Bat, No Flow and Sensor Fault.
• Automatic sampling & Analysis for specified periods at preset intervals - TUV Certified Instrument.
• Compact, Portable construction and simplicity of person makes Soarmlich Portable Gas Analyzers a valuable aid for institute use in constantly changing measurement sites.
• Its versatile modular design permits configuration and upgradation to suit specific needs. You determine the number of Sensors for your instrument from (1 to 8) or should your analyzer have a built-in printer or RS 232 Output or a smoke test probe so you pay only for what you need.
• Self check of components and functions by Special Software ensures perfect functioning of the unit, thereby accurate analysis data. Any unacceptable deviation from the standard stored values is displayed as an indication “ FAULT”.
• Instant Printout (with Time and Date) confirms the displayed readings that have been measured and calculated at the point of test. The instrument may also be instructed to sample and analyze for specified periods at preset intervals completely unattended.
• Software Package to store and analyze the data in various manners with PC XT, AT, 386, 486.

The highly upgradable SM-PGA-203 model can be AC Powered and/or Battery operated. It may include a chargeable battery, battery charger, Sampling Probe with condensate trap and an inline Micro Filter and an inbuilt Sampling Pump. It can be built to include upto 8 Nos. of Gas Sensors and Temperature Sensor, Dra/ Pressure besides the calculated parameters and have opons of :

• Data Logger
• Integral Printer
• RS 232 Output
• Date & Time
• Facility for Automatic analysis for specified period at preset intervals

Sample Treatment

• A condensate & Dust Trap & a low porosity in line filter to condition the sample. Time Tested, Sturdy, High Suction inbuilt Pump.
• A supervisory Electronic Circuit to continuously monitor the pump against failures.
• Proven Sensor Technology : Special purpose long life Sensors with cross interference filters to achieve high accuracy. Oxygen Sensor guaranteed for 4 years and other Electrochemical Sensor for 2 years.
• Volumetric (PPM), Quantitative (EMG/M³) analysis of desired parameters with printouts confirming displayed readings.
• Calculated Values for NOX, Fuel Efficiency, Lambda, CO2 & Diff. Temp.
• Smoke Measurement - Analyzer samples a pre-calibrated volume of Flue Gas across a filter which can then be compared with the Bachrach Scale to determine the smoke density number.
• Customized Versions - Heated & other special probes and accessories available to measure and match customers special requirements.

Special Features

• Portable, compact and rugged.
• Complete Automatic Operation
• Graphics displays messages and values through the operation of the analyzer.
• Self check facility and a special software ensures accurate analysis of data.
• Standard Fuels with their parameters are preprogrammed. Others on request.
• Battery operating period of 6 hours.
• Inbuilt Buzzer announces various stages of operation.
• A mere Six key to operate the complete instrument.
• Visual alarms for Low Bat, No Flow and Sensor Fault.
• Automatic sampling & Analysis for specified periods at preset intervals - TUV Certified Instrument.
• Compact, Portable construction and simplicity of person makes SoarMlich Portable Gas Analyser a valuable aid for institute use in constantly changing measurement sites.
• Its versatile modular design permits configuration and upgradation to suit specific needs. You determine the number of Sensors for your instrument from (1 to 8) or should your analyzer have a built-in printer or RS 232 Output or a smoke test probe so you pay only for what you need.
• Self check of components and functions by special soware ensures perfect functioning of the unit, thereby accurate analysis data. Any unacceptable deviation from the standard stored values is displayed as an indication “ FAULT”.
• Instant Printout (with Time and Date) confirms the displayed readings that have been measured and calculated at the point of test. The instrument may also be instructed to sample and analyze for specified periods at preset intervals completely unattended.
• Software Package to store and analyze the data in various manners with PC XT, AT, 386, 486.

The highly upgradable SM-PGA-203 model can be AC Powered and/or Battery operated. It may include a chargeable battery, battery charger, Sampling Probe with condensate trap and an inline Micro Filter and an inbuilt Sampling Pump. It can be built to include upto 8 Nos. of Gas Sensors and Temperature Sensor, Dra/ Pressure besides the calculated parameters and have opons of :

• Data Logger
• Integral Printer
• RS 232 Output
• Date & Time
• Facility for Automatic analysis for specified period at preset intervals

• Sample Treatment
• A condensate & Dust Trap & a low porosity in line filter to condition the sample. Time Tested, Sturdy, High Suction inbuilt Pump.
• A supervisory Electronic Circuit to continuously monitor the pump against failures.
• Proven Sensor Technology : Special purpose long life Sensors with cross interference filters to achieve high accuracy. Oxygen Sensor guaranteed for 4 years and other Electrochemical Sensor for 2 years.
• Volumetric (PPM), Quantitative (EMG/M³) analysis of desired parameters with printouts confirming displayed readings.
• Calculated Values for NOX, Fuel Efficiency, Lambda, CO2 & Diff. Temp.
• Smoke Measurement - Analyzer samples a pre-calibrated volume of Flue Gas across a filter which can then be compared with the Bachrach Scale to determine the smoke density number.
• Customized Versions - Heated & other special probes and accessories available to measure and match customers special requirements.

Features:

• Quick 2 second sampling rate
• Six large LED displays
• Measures 5 gases: HC, CO, CO2, O2, and NOX
• Measures RPM for 2 or 4 stroke engines
• Calculates AFR and Lambda
• Built-in real-time clock and data recorder
• Internal/External printer

Highlights

• Dual exhaust measurement
• Exhaust dilution warning
• Auto-zero for maintaining high accuracy
• Flow indicator
• Pump switch for gas purging
• Custom print-outs with user-selectable header text (optional)

Description:

• Online Stack Gas Analyzer continuously monitors the concentration of gases ranging from 100%V/V down to PPM level. Features include a dual wavelength sensor, Remote Sampling, Graphics LCD Display, adjustable level relay output for alarm and 4-20mA output for control purpose and minimal maintenance.
• Special gas sample Conditioning systems are used to clean and dry the gas sample for accurate and High performance operation. An Internal Pump draws gas samples into the sensor through a dust particle filter from an intake which can be located at distance up to 40 meters from the monitor.

The Sensor and Electronic component are housed in tough aluminium housing:

• For hazardous area applications the sensor may be mounted remotely in the hazardous area and safely connected via a zener barrier to the electronics unit in the safe area. Alternatively the electronics unit can be supplied in an Explosion proof enclosure.


Features:

• Fully integrated system up to 7 gases in a single compact analyzer
• Wide measurement range to 0 - 10, 000 PPM.
• Widely accepted, Certified pe romance complies with the latest monitoring standards.
• Simple installation & maintenance requires no special skills or training, all maintenance carried out on-site.
• Highest measurement performance ultra-low drop Measurement Technology.
• Measured Total NOx (NO+NO2) separate sensors for true NOx monitoring.
• Record and store vital emission data internal data logging function.
• Combustion efficiency measurement for aPpmia aon oc efficiency where all maintenance carried out on-site conditions ae changing

Application:

• Gas turbines
• Power plants
• Boiler systems - coal, oil and gas fired
• Incinerator Domestic, Hazardous, Clinical and Biological Waste
• Wood, sawdust, pellet and bark burners
• Thermal oxidizers
• Pulp and paper
• Cement & lime manufacture
• Gas pipeline compressors
• Biofuel power generation
• Petrochemical and refineries

Calibration:

• Manual
• Outputs/Inputs
