Viscosity Instruments

Our product range contains a wide range of SI-V201 Digital Viscometer, SI-V205 Digital Viscometer and SI-V195 Digital Viscometer

SI-V201 Digital Viscometer

Min. Order (MOQ) 1 Piece
Country of Origin India
Display LCD Touch Screen
Power Supply AC 220V/50 Hz
Weight 9 Kg
Measuring Range m.P.A.S. 10 - 2, 000, 000 mPAS
RPM 0.3, 0.6, 1.5, 3, 6, 12, 30, 60
No. of Standard Spindles #1, #2, #3, #4 is standard configuration (#0 is for option)
Measurement Accuracy ±1.0 % of Range
Repeatability ±0.5 %
Output RS 232 Interface
Dimensions L X H X B (mm) 400 X 350 X 360

Digital Viscometer is a touch screen compact and easy to operate instruments with auto range showing time function for measurements. This is a unique system that combines convenience with accuracy and precision in analysis.

Features :

Touch screen compact and easy to operate
Auto range showing time function for measurements
Sound alarm at under 20% torque, linear calibration

Applications :

Pharmaceuticals
Coating Solvents
Polymer Solution
Oil Paints
Inks Latex Adhesives
Juices and Dairy Products

Click Here To View Catalog

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

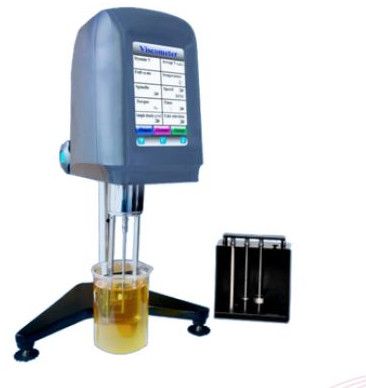

SI-V205 Digital Viscometer

Min. Order (MOQ) 1 Piece
Country of Origin India
Display LCD Touch Screen
Power Supply AC 220V/50 Hz
Weight 9 Kg
Measuring Range m.P.A.S. 10 - 2, 000, 000 mPAS
RPM 0.3, 0.6, 1.5, 3, 6, 12, 30, 60
No. of Standard Spindles #1, #2, #3, #4 is standard configuration (#0 is for option)
Measurement Accuracy ±1.0 % of range
Repeatability ±0.5 %
Output RS 232 Interface
Dimensions L X H X B (mm) 400 X 350 X 360

Touch screen compact and easy to operate
Auto range showing time function for measurements
Sound alarm at under 20% torque, linear calibration

Applications :

Oil Paints
Inks Latex Adhesives
Juices and Dairy Products
Pharmaceuticals
Coating Solvents
Polymer Solution

Click Here To View Catalog

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

SI-V195 Digital Viscometer

Min. Order (MOQ) 1 Piece
Display LCD
Weight 6.8 Kg
Measuring Range 20-2, 000, 000 M.pas
Number Of Standard Spindles #1, #2, #3, #4
Measurement Accuracy ±1.0% Of Range
Repeatability ±0.5%
Temperature Monitoring RTD Sensor Probe
Output Interface RS 232
Environment Temperature 5-35 C
Relative Humidity ≤80%
Dimensions 370 X 325 X 280 Mm

Digital viscometers operate on the principle of how a fluid’s internal friction affects its flow behavior. They typically measure the time it takes for a given amount of fluid to flow through a specific geometry (usually a capillary tube or rotating spindle) under controlled conditions. The measurement is then used to calculate the fluid’s viscosity

Applications :

Dairy Products
Juices, etc.
Pharmaceuticals
Polymer Solutions Oils Paints
Inks latex Adhesives (Solvent Base)
Coatings Solvents

Advantages of Digital Viscometers :

High precision and accuracy in viscosity measurement.
Quick and repeatable measurements.
Can be used for a wide range of fluid types, from low to high viscosities.
Some models can measure at different shear rates, providing valuable information about the fluid’s behaviour under different conditions.

Features :

Stepping Motor means Accurate, reliable operation
Direct readout of all measurement parameters
Auto Range Showing
Time Function for measurement
Sound alarm at under 20% Torque
Linear calibration
Wide range power supply:100V-240V

Click Here To View Catalog

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details
