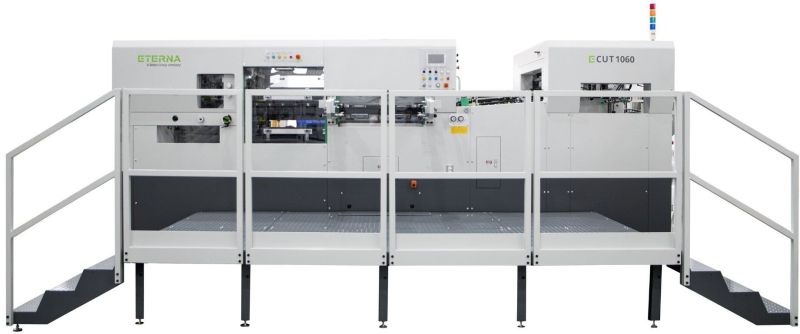

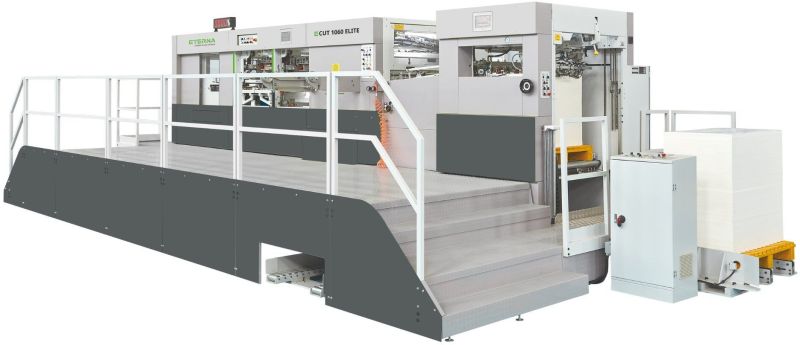

• Min. Sheet Size400 mm x 360 mm
• Max. Mechanical Speed7500 s/h
• Max. Sheet Size1050 mm x 750 mm
• Total Power Required65 kw
• Max. Cutting Pressure300 ton
• Net Weight16 tons
• Machine Dimensions7075 × 4960 × 2810 mm
• Max. Air Compressor Displacement0.8 m3/min
• Cardboard80-600 g/m2

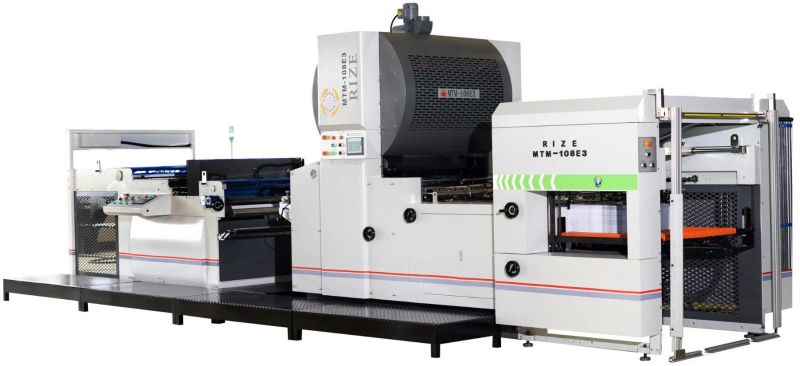

Automatic feeder  Servo control automatic high speed feeder. Non-stop feeding device. Side lay register  Mechanical side lay register. High speed paper registration. Powder Removal System  Electrostatic paper powder collector as standard to increase paper brightness and reduce the amount of glue.  Laminating Section lectromagnetic heating system Quick heating Energy saving and environmental protection

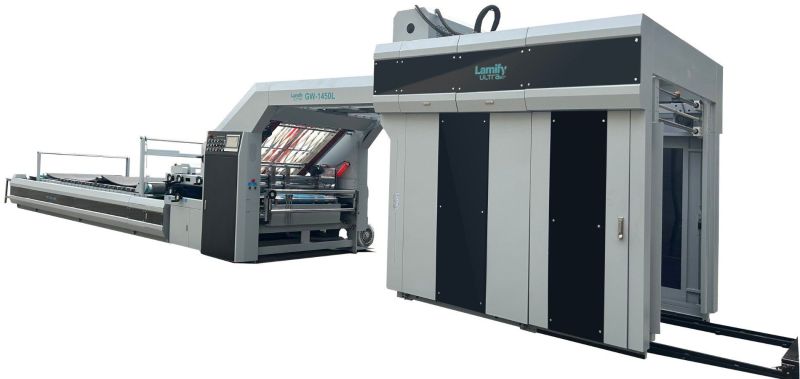

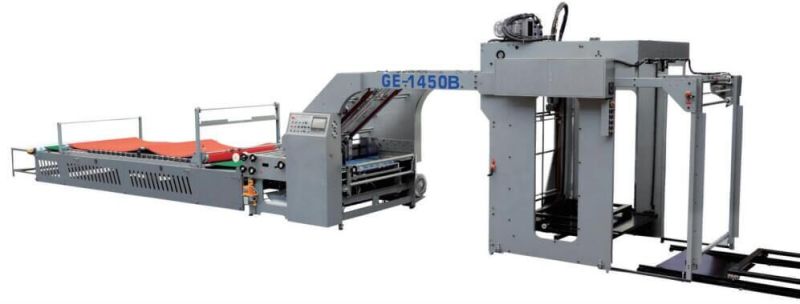

Three-way of top sheet loading Pre- stacking loading: for sheet uneven stacking or with static electricity, manual pre-stacking on pre-loading platform, and keep the job-change over within 3mins. Whole pallet loading: adopt the whole pallet loading design to save the manpower and time. After the pallet is loaded against the gear gauge, aligning the zero position to make left and right adjustment Separate manual stacking: when the platform descend, manual stack the paper on the pallet. Feeding lifting pile plate the lifting platform is controlled by 4 sets of double chains to ensure the smooth and safety operation. 10 limits and protective sensors, real-time detection and adjustment to ensure safety production. Industry Initiative of servo control lifting platform, single sheet lifting same as offset printing press, without wear, and can be set as from 1~50 sheet/lifting. High speed shaft-less feeder Industry Initiative of high speed shaft-less feeder, smooth feeding, maintenance-free, max speed up to 22, 000sheet/hour. The correction system of paper feeding ensure the high speed feeding smoothly without any skew. The sheet delivery stopper make sure the single sheet feeding, optional to upgrade by adding double sheet detection system. Becker vacuum pump with large suction, strong blowing, good stability and durable.  Conveyor part Belt length can be adjusted automatically to fit with different size of products. thickened sponge carpet to avoid crack at top edge of board. Standard with 6m length of enhanced conveying part (optional shorten to 5m).

Three-way of top sheet loading Pre- stacking loading: for sheet uneven stacking or with static electricity, manual pre-stacking on pre-loading platform, and keep the job-change over within 3mins. Whole pallet loading: adopt the whole pallet loading design to save the manpower and time. After the pallet is loaded against the gear gauge, aligning the zero position to make left and right adjustment Separate manual stacking: when the platform descend, manual stack the paper on the pallet. Feeding lifting pile plate the lifting platform is controlled by 4 sets of double chains to ensure the smooth and safety operation. 10 limits and protective sensors, real-time detection and adjustment to ensure safety production. Industry Initiative of servo control lifting platform, single sheet lifting same as offset printing press, without wear, and can be set as from 1~50 sheet/lifting. High speed shaft-less feeder Industry Initiative of high speed shaft-less feeder, smooth feeding, maintenance-free, max speed up to 22, 000sheet/hour. The correction system of paper feeding ensure the high speed feeding smoothly without any skew. The sheet delivery stopper make sure the single sheet feeding, optional to upgrade by adding double sheet detection system. Becker vacuum pump with large suction, strong blowing, good stability and durable. Driving System Using 60mm extra widening timing belts to instead of traditional wheel chain, make sure the synchronous wheel and timing belt perfect transmission, truly achieve zero wear, and ensure the lamination in high accuracy at any time. Industry initiative of double bearing design, effectively extend the life span of the bearings. Industry initiative of auto bearing oiling injection system, maintenance free to saving manpower.

Upper Paper on Paper System Adopting the latest pre-stacking paper structure which not only supports manually pre-stacking paper, but also pushing up whole sheet of paper directly. Saving a huge of labor. Bottom Paper Feeding System Adopting servo paper feeding which with high sensitivity and fast speed to ensure bottom paper output smoothly, no paper jams. Paper Aligning System Adopting advanced high speed motion control servo tracking system, each sheet calculates separately for the position of front guide and servo automatically tracking compensation to ensure the stability and high precision of the front guide.

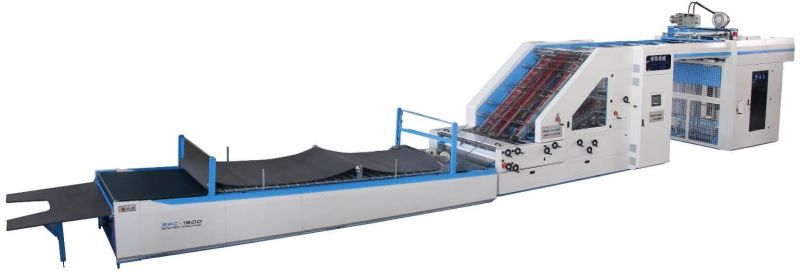

Bottom Paper Feeding Both bottom feeding part adopt lead edge feeding, the wheels use unidirectional bearing (reduce the wear of rubber wheels). The wide rubber wheels ensure that the E, F, and G corrugated does not deform. Top Sheet Feeding Mechanism Equipped with high speed feeder, and together with Becker vacuum pump. The front and rear of feeder are controlled by the servo motor. After input paper size, it will be automatically positioned. Both paper lifting and forwarding sucker can freely adjust to ensure that whether thick or thin paper can be delivered rapidly and smoothly. Electrical System Mainly using Siemens electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen. Automatic Lubrication System Lubricate the bearing regularly to prolong the service life of the bearing and save the cost.
