Our Products

  1. Products 15 Products available

Our Products

We offer the best product range of Automatic Foil Stamping & Die cutting Machine, UV Curing System, Carton Erecting Forming Machine, Offline Stripping Blanking Machine and Automatic Window Patcher.

Automatic Dry Film Laminating Machine

Automatic Dry Film Laminating Machine
Automatic feeder
  • Servo control automatic high speed feeder.
  • Non-stop feeding device.
  • Side lay register
  • Mechanical side lay register.
  • High speed paper registration. Powder Removal System
  • Electrostatic paper powder collector as standard to increase paper brightness and reduce the amount of glue.  Laminating Section
  • lectromagnetic heating system
  • Quick heating
  • Energy saving and environmental protection

Model 108E 145E
Max. laminating width (mm) 1080 1080
Max sheet W×L (mm) 1080×1080 1080X1450
Min sheet W×L (mm) 350×350 350×350
Paper thickness (gsm) 100-500 100-500
Film thickness (µm) 6--25 6--25
Machine speed (m/min) 10-80 10-80
Machine Dimension L*W*H (mm) 10765*2754*2926 12994*2754*2926
Machine weight (kgs) 8600 10200
Connected power (kw) 68kW 68kW
Production usage (kW) 30kW 30kW
View Complete Details
Ask Latest Price & Details
Automatic Foil Stamping & Die cutting Machine

Automatic Foil Stamping & Die Cutting Machine
  • Cardboard 80-600 g/m2
  • Max. Sheet Size 1050 mm x 750 mm
  • Min. Sheet Size 400 mm x 360 mm
  • Max. Mechanical Speed 7500 s/h
  • Max. Cutting Pressure 300 ton
  • Total Power Required 65 kw
  • Max. Air Compressor Displacement 0.8 m3/min
  • Machine Dimensions 7075 × 4960 × 2810 mm
  • Net Weight 16 tons
Feeder
  • Improved preloading design for easy loading onto main pallet directly with pallet jack.
  • Powerful four pickup/four forward suction heads to ensure smooth transport.
  • Patented turbo spiral air blower for better sheet lift.
    Feed Table Section
    • Slanted Feed Table to obtain stable and accurate registration, especially for lightweight paper at high speed.
    • Side lays on both left- and right-hand sides push and pull easily convertible.
    • Sheet slow down device of feeding belts with selective on/off switch to ensure accurate registration of the sheet at front lays.
      Non-Stop Impression On
      • Impression On function can be switched on in high speed, without stopping the machine (actual speed automatically set depends on working pressure). Greatly reduce the number of wasted sheets and burnt foil due to machine stop/start cycle and increase productivity.
        Waste Foil Collections Systems ( Optional )
        • Optional three shaft Waste Foil Collection System specially designed for rewinding narrow waste foil strips (20-40 mm wide);
        • Optional free standing waste foil rewinder with 6 torque motor driven shafts and 6 dancing rollers for persistent tension control.
View Complete Details
Ask Latest Price & Details
High Speed Automatic 3Ply Flute Laminator Machine

High Speed Automatic 3Ply Flute Laminator Machine
Three-way of top sheet loading
  • Pre- stacking loading: for sheet uneven stacking or with static electricity, manual pre-stacking on pre-loading platform, and keep the job-change over within 3mins.
  • Whole pallet loading: adopt the whole pallet loading design to save the manpower and time. After the pallet is loaded against the gear gauge, aligning the zero position to make left and right adjustment
  • Separate manual stacking: when the platform descend, manual stack the paper on the pallet.
    Feeding lifting pile plate
    • the lifting platform is controlled by 4 sets of double chains to ensure the smooth and safety operation.
    • 10 limits and protective sensors, real-time detection and adjustment to ensure safety production.
    • Industry Initiative of servo control lifting platform, single sheet lifting same as offset printing press, without wear, and can be set as from 150 sheet/lifting.
      High speed shaft-less feeder
      • Industry Initiative of high speed shaft-less feeder, smooth feeding, maintenance-free, max speed up to 22, 000sheet/hour.
      • The correction system of paper feeding ensure the high speed feeding smoothly without any skew.
      • The sheet delivery stopper make sure the single sheet feeding, optional to upgrade by adding double sheet detection system.
      • Becker vacuum pump with large suction, strong blowing, good stability and durable.
        Conveyor part
        • Belt length can be adjusted automatically to fit with different size of products.
        • thickened sponge carpet to avoid crack at top edge of board.
        • Standard with 6m length of enhanced conveying part (optional shorten to 5m).

Models GW–1450L/ GW-1450B GW–1700L/ GW-1700B GW–2200L/ GW-2200B
Max.Sheet Size (W x L)  1450mm x 1450mm 1700mm x 1650mm  2200mm x 2100mm
Min.Sheet Size (W x L) 360mm x 360mm 360mm x 360mm 450mm x 380mm
Bottom Paper Sheet Thickness GW-1450L/1700L/2200L:   Approx 400gsm(0.55mm)–10mm GW-1450B/1700B/2200B:  Approx 250gsm(0.35mm)–10mm
Upper Paper Sheet Thickness Approx 120g–700g (for 3ply paper, maximum 3ply E flute )
Normal Working Speed 16,000 Sheets/hour (165M/Min)
Laminating Accuracy            ±1.0mm (Standard Sheet Paper)
Applicable Glue Resin adhesive, starch glue and etc. (PH6~8 will be suitable for laminating glue)
Machine Weight 8000kg 8500kg 9000kg
Dimension (LxWxH) 15700mm *  2400mm * 2550mm 16500mm*2650mm* 2550mm 18500mm* 3050mm *2880mm
Voltage                  380VAC/3P
Power 26kw 30kw 32kw
View Complete Details
Ask Latest Price & Details
02 High Speed Automatic 3Ply Flute Laminator Machine

02 High Speed Automatic 3Ply Flute Laminator Machine
Three-way of top sheet loading
  • Pre- stacking loading: for sheet uneven stacking or with static electricity, manual pre-stacking on pre-loading platform, and keep the job-change over within 3mins.
  • Whole pallet loading: adopt the whole pallet loading design to save the manpower and time. After the pallet is loaded against the gear gauge, aligning the zero position to make left and right adjustment
  • Separate manual stacking: when the platform descend, manual stack the paper on the pallet.
    Feeding lifting pile plate
    • the lifting platform is controlled by 4 sets of double chains to ensure the smooth and safety operation.
    • 10 limits and protective sensors, real-time detection and adjustment to ensure safety production.
    • Industry Initiative of servo control lifting platform, single sheet lifting same as offset printing press, without wear, and can be set as from 150 sheet/lifting.
      High speed shaft-less feeder
      • Industry Initiative of high speed shaft-less feeder, smooth feeding, maintenance-free, max speed up to 22, 000sheet/hour.
      • The correction system of paper feeding ensure the high speed feeding smoothly without any skew.
      • The sheet delivery stopper make sure the single sheet feeding, optional to upgrade by adding double sheet detection system.
      • Becker vacuum pump with large suction, strong blowing, good stability and durable.
        Driving System
        • Using 60mm extra widening timing belts to instead of traditional wheel chain, make sure the synchronous wheel and timing belt perfect transmission, truly achieve zero wear, and ensure the lamination in high accuracy at any time.
        • Industry initiative of double bearing design, effectively extend the life span of the bearings.
        • Industry initiative of auto bearing oiling injection system, maintenance free to saving manpower.

Models GW–1450L/ GW-1450B GW–1700L/ GW-1700B GW–2200L/ GW-2200B
Max.Sheet Size (W x L)  1450mm x 1450mm 1700mm x 1650mm  2200mm x 2100mm
Min.Sheet Size (W x L) 360mm x 360mm 360mm x 360mm 450mm x 380mm
Bottom Paper Sheet Thickness GW-1450L/1700L/2200L:   Approx 400gsm(0.55mm)–10mm
GW-1450B/1700B/2200B:  Approx 250gsm(0.35mm)–10mm
Upper Paper Sheet Thickness Approx 120g–700g (for 3ply paper, maximum 3ply E flute )
Normal Working Speed 16,000 Sheets/hour (165M/Min)
Laminating Accuracy            ±1.0mm (Standard Sheet Paper)
Applicable Glue Resin adhesive, starch glue and etc. (PH6~8 will be suitable for laminating glue)
Machine Weight 8000kg 8500kg 9000kg
Dimension (LxWxH) 15700mm *  2400mm * 2550mm 16500mm*2650mm* 2550mm 18500mm* 3050mm *2880mm
Voltage                  380VAC/3P
Power 26kw 30kw 32kw

View Complete Details
Ask Latest Price & Details
Automatic 3Ply Flute Laminator Machine

Automatic 3Ply Flute Laminator Machine
Upper Paper on Paper System
  • Adopting the latest pre-stacking paper structure which not only supports manually pre-stacking paper, but also pushing up whole sheet of paper directly. Saving a huge of labor.
    Bottom Paper Feeding System
    • Adopting servo paper feeding which with high sensitivity and fast speed to ensure bottom paper output smoothly, no paper jams.
      Paper Aligning System
      • Adopting advanced high speed motion control servo tracking system, each sheet calculates separately for the position of front guide and servo automatically tracking compensation to ensure the stability and high precision of the front guide.

Model： GE-1450B GE-1450BP
Max. Sheet Size (W×L)： 1450mm * 1300mm
Min. Sheet Size (W×L)： 360mm * 360mm
Sheet Thickness Bottom paper 250gsm～10mm
Upper paper 120gsm～700gsm
Max. Working Speed ： 13000 sheets/hour (153M/min) (Depends on paper quality)
Laminating Accuracy： ±1.0mm (Standard Sheet Paper)
Applicable Glue： Resin adhesive, starch glue and etc.(PH 6～8 will be suitable for laminating glue)
Machine Weight： 7000kg
Dimension (L×W×H): 15.4m × 2.3m × 2.55m
Power： 380VAC/4P
Power 20kw
Applicable Corrugated board Laminating of A, B, E, F, double corrugated paper and other flat corrugated papers and above 250 gsm cardboard
Auto-adjust of glue amount NO YES
Auto-adjust of roller pressure NO YES
View Complete Details
Ask Latest Price & Details
Automatic 5Ply Flute Laminator

Automatic 5Ply Flute Laminator
Bottom Paper Feeding
  • Both bottom feeding part adopt lead edge feeding, the wheels use unidirectional bearing (reduce the wear of rubber wheels). The wide rubber wheels ensure that the E, F, and G corrugated does not deform.
    Top Sheet Feeding Mechanism
    • Equipped with high speed feeder, and together with Becker vacuum pump. The front and rear of feeder are controlled by the servo motor. After input paper size, it will be automatically positioned. Both paper lifting and forwarding sucker can freely adjust to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
      Electrical System
      • Mainly using Siemens electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.
        Automatic Lubrication System
        • Lubricate the bearing regularly to prolong the service life of the bearing and save the cost.

MODEL SFC-1500 SFC-1700
Max Sheet 1500×1500mm 1700×1700mm
Min Sheet 360×380mm 360×400mm
Top Sheet Thickness: 120-800g 120-800g
Max Speed: 150m/min 150m/min
Register Accuracy: ±1.5mm ±1.5mm
Machine Power: 22KW 25KW
Bottom Sheet Thickness ≤10mm(A-F corrugated board) ≥400g cardboard ≤10mm(A-F corrugated board) ≥400g cardboard

View Complete Details
Ask Latest Price & Details
Automatic Diecutter With Stripper

Automatic Diecutter With Stripper
Feeder
  • Preloading system with either preloading rail cart or with pallet jack to reduce down time;
  • Non-stop feeder with automatic pile lift;
  • Four pick-up and forward suction heads with angle adjustments;
  • Patented turbo spiral air blower for smooth sheet transport.
    Feed Table Section
    • Slanted Feed Table to obtain stable and accurate registration especially for lightweight paper at high speed;
    • Side lays on both left- and right-hand sides push and pull convertible;
    • Sheet slow down device of feeding belts with selective on/off switch to ensure accurate registration of the sheet at front lays.
      Stripping Section
      • Triple action movement of the upper and lower stripping frames with lower spring-loaded stripping pins;
      • Upper and lower stripping tool mounting frame can be pulled out for job set up;
      • Motorized upper frame suspending hoister.
        Lubrication System
        • Cooling system for lubrication oil to reduce pressure difference thus lower product defective rate;
        • Gripper driving chain lubrication system is controlled by solenoid valves to avoid splashing oil onto products;
        • Gripper bar is force lubricated via pumping system.

Model ECUT 1060E ECUT 1060 ECUT 1450E
Cardboard 80-2000 g/m2(subject to quality of the paper) 80- 2000 g/m2 (subject to quality of the paper) 2000 gsm (thickness: 2 mm)
Corrugated Board thickness 4mm (subject to quality of the corrugated board) thickness ≤ 4mm (subject to quality of the corrugated board) E/B/C flute, thickness up to 4.5 mm
Max. Sheet Size 1060 760 mm 1060 × 750 mm 1450 × 1100 mm
Min. Sheet Size 400 x 370 mm 400 × 360 mm 580 × 500 mm
Max. Mechanical Speed 7500 s/h 7500 s/h 6000 s/h
Max. Cutting Pressure 300 ton 300 ton 400 ton
Max. Cutting Size 1045 x 745 mm 1040 × 720 mm 1450 × 1085 mm
Inner Chase Size 1080 x 774 mm 1080 × 745 mm 1480 × 1108 mm (with quick locking system)
Min. Gripper Margin 8 mm 8 mm 9-18 mm
Cutting Rule Height 23.8 mm 23.8 mm 23.8 mm
Total Power Required 20 kw 19 kw (ECUT 1060); 20 kw (ECUT 1060E) 43 kw (ECUT 1060H); 44 kw (ECUT 1060EH) 38.5 kw
Max. Air Compressor Displacement 0.36 m3/min 0.36 m3/min 1.05 m3/min
Machine Dimensions 7075 x 4290 x 2030 mm 6120 × 4290 × 2030 mm (ECUT 1060, ECUT 1060H)  15 tons (ECUT 1060, ECUT 1060H) 10098 × 5112 × 2763 mm (L × W × H)
Gross Weight 16 tons 16.5 tons (ECUT 1060E, ECUT 1060EH) 7075 × 4290 × 2030 mm (ECUT 1060E, ECUT 1060EH) 36 tons
View Complete Details
Ask Latest Price & Details
Automatic Die Cutting Blanking Stripping Machine

Automatic Die Cutting Blanking Stripping Machine
Feeder
  • Based on Group standard technical platform, the feeder is precise, stable, reliable and smooth to feed sheets from 90g paper to thin corrugated board.
    Ultrasonic Double Sheet Detector
    • The ultrasonic double sheet detector has no contact with sheet, precise and easy to adjust, which can reduce marking of printed surface.
      Die-Cutting Station
      • 15mm synthetic supporting plate with +/-0.9mm micro adjustment for quick set up and make ready.
        Apt (Optional)
        • The system can facilitate auto feeding, auto empty pallet evacuation, and auto pile exit at delivery;
        • It is convenient for operation, intelligent and efficient in production;
        • It can be connected with automated production system, and integrated with overall intelligent management software.

Model ECUT 1060E ELITE ECUT 1060ER ELITE
Corrugated Board Up to 4mm up to 4mm
Max. Sheet Size 1060 × 760 mm 1060 × 760 mm
Min. Sheet Size 400 × 350 mm 400 × 350 mm
Max. Mechanical Speed 8000 s/h 7500 s/h
Max. Cutting Pressure 260 ton 260 Ton
Max. Cutting Size 1060 × 745 mm 1060 × 745 mm
Inner Chase Size 1080 × 770 mm 1080 × 770 mm
Adjustable Gripper Bite Range 9-17 mm 9~17 mm
Cutting Rule Height 23.8 mm 23.8 mm
Minimum Width of Double Cuts 5 mm 5 mm
Total Power Required 26 kw 27 kw
Main Motor Power 11 kw 11 kw
Machine Dimensions 7420 × 4520 × 2640 mm (L × W × H) 9249 × 6036 × 2640 mm (L × W × H)
Gross Weight Approx. 23 ton 25 Ton
View Complete Details
Ask Latest Price & Details

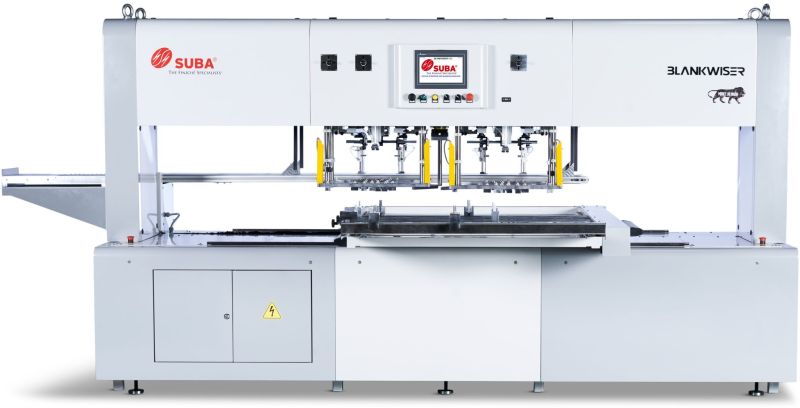

Offline Stripping Blanking Machine

Offline Stripping Blanking Machine
Pile Loading & Navigation
  • Pile loaded in carrier - no bottom scratches or contamination
  • No need to clean table between blanking cycles
  • High end servo motors and drives
  • Position accuracy - 10 microns
  • Sensor for operator safety Customized Parking Position for operation comfort and increase in productivity.
  • Larger carrier size (1060 1060mm) for versatile sheet loading.
  • Equipped with THK Ballscrews and Linear Guides for precision performance
    Blanking Station
    • Double head blanking
    • Balanced hydraulic system with three cylinders in bottom punch
    • Optional 3rd head for window hole remover
    • Safety mechanism for operator
    Waste Removal
    • 2 waste slopes ensures undisturbed waste removal
    • Ensures no requirement of table cleaning between blanking cycles
      Touch Screen
      • Ease of operations
      • Easy programming
      • Memory for 500 programs
      Electrical
      • Branded electrical and electronic components for reliable performance.
        Motorized Pile Lifter (Optional)
        • Sensor based pile auto up down movement
        • Reduces operator fatigue
        • Can be used on multiple machines for material handling.

Model Blankwiser 106 Blankwiser – XL
Max. Sheet size (mm) 1060 x 1060 1080×780
Min. Sheet size (mm) 300 x 300 450×320
Max. Blank size (mm) 350 x 468 500×700
Min. Blank size (mm) 30 x 30 30×30
Optional: RPA – Robotic pickup arm (min/max) with conveyor 50 x 50-250 x 280 N/A
Optional: W – window hole remover (min to max) mm Min 15x15mm Max 100x150mm N/A
Pile of paper high (mm) 50-85mm 40-120mm
Strokes/min *Output depends on sheet thickness, no. of ups/carton size etc., 15-20 15-20
Max. work stress (tons) 2.5 2.5
Power (kw) 10 7
Compressed air pressure requirement (bar) Compressed air pressure requirement with conveyor (bar) 6
8		 8
Machine Size (l*w*h) mm Machine size with conveyor (l*w*h) mm 2700 x 3400 x 2200 2700 x 4400 x 2200 3500x1800x1900mm
Machine with working suggested area (l*w*h) mm Machine with working suggested area with conveyor (l*w*h) mm 4400 x 4800 x 2500 4400 x 5400 x 2500 5700 * 4200 * 2500
Weight (kgs) Weight with conveyor (kgs) 2000
2500		 2000
Make ready time (“subject to operator skill and job type) 15 to 30 min


View Complete Details
Ask Latest Price & Details

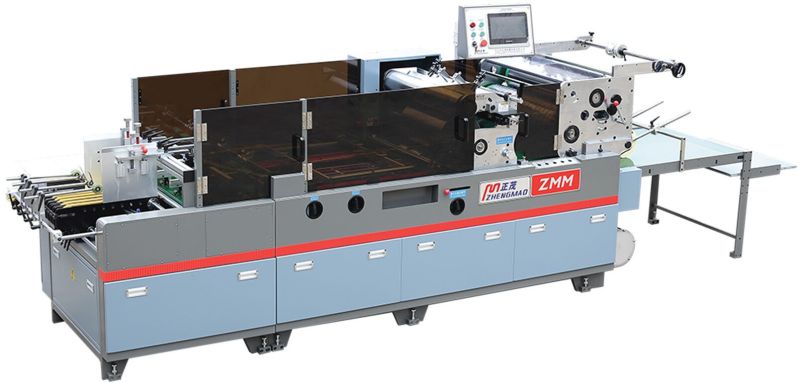

Automatic Window Patcher

Automatic Window Patcher
Feeding Unit
  • Independent servo control motor instead of traditional clutch control system was adopted for intermittent belt conveying. Intermittent delivery distance can be adjusted according to the length of the paper. Paper feeding from the bottom, realized continuous paper feeding without stopping the machine. Compared with traditional machines, the increase of excessive paper production mechanism is more stable.
    Gluing Unit
    • Single high-hardness stainless steel tube rollers transmit the glue. The tube rollers are equipped with a sliding block which can quickly regulate glue thickness. Flexible template gluing is adopted, and the template shop can be engraved according to product requirements. The roller for template installation is graved with a base line, and the template installation is accurate, convenient and quick. Left and right position for gluing can be adjusted freely. Front and back position are adjusted with an adjusted which can adjust front, back, left and right position for gluing without shutdown. When being cleaned and maintained, the glue device can be pulled out. It can be cleaned and maintained more conveniently.

Model TC-800H TC-1050H
Blank length(mm) 100-750 100-750
Blank width(mm) 80-800 80-1050
Film length(mm) 60-520 60-520
Film width (mm) 30-520 30-840
Paper weight 250-150 /㎡≤4mm 250-1500 /㎡≤4mm
Film Thickness (mm) 0.03-0.2mm 0.03-0.2mm
Mechanical speed ≦400/18000pcs/h ≦400/18000pcs/h
Positioning accuracy ±1mm ±1mm
Power voltage 380v/50Hz 380v/50Hz
Machine power (kw) 10 12
Machine weight(About) 4000KG 4500KG
Dimension（L*W*H/mm） 5980*1250*1650 5980*1470*1650
View Complete Details
Ask Latest Price & Details

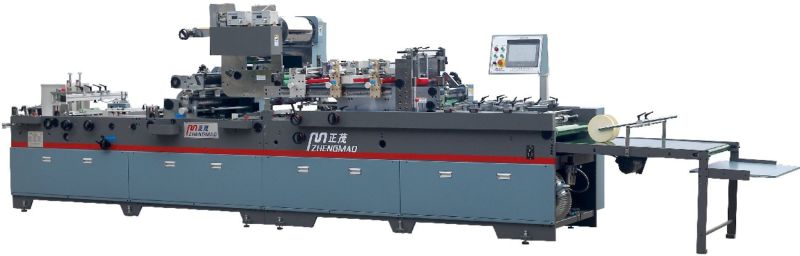

Speciality V-cut Window Patching Machine

Speciality V-cut Window Patching Machine
Sheet feeding Section
  • Intermitted belt conveying system using Servo motor and drive. Adjustment of blank size is done by computer HMI. The bottom friction feed belt works with start and stop motion with synchronize time with the machine chain conveying section. Multiple belts are equipped with gear and rack for easy movement and quick positioning. Fine control for feeder gate height adjustment.
    Gluing section
    • Single, high-hardened stainless steel tube roller for glue application. The glue roller can be adjusted for glue thickness with the help of sliding block. The stereo cylinder is hard chrome coated and with marking for easy fixing of stereo rubber. The stereo cylinder can be moved left or right, forward or backward to set the glue position accurately without stopping the machine. Glue roller can be pulled out for easy cleaning.
      Control System
      • The machine works with PLC, HMI and servo control. All electronic components and detector are made from France, German, Taiwan, Japan etc, .
        Delivery section
        • Soft belt conveying can prevent product damage, Motorised belt conveyor for even overlapping ensuring perfect quality.

Model V – Cut 650 V – Cut 1050
Max. Sheet size (L)600 x (W)650(mm) (L)650 x (W)1050(mm)
Min. Sheet size (L)150 x (W)150(mm) (L)180 x (W)180(mm)
Max. Window size (L)300 x (W)300(mm) (L)300 x (W)400 (mm)
Min. Window size (L)50 x (W)50(mm) (L)50 x (W)50(mm)
Paper thickness 200-450gr/m2 , E flute 200-450gr/m2, E flute
Film thickness 0.1-0.25mm 0.1- 0.25mm
Mechanical speed 6000 sheets / hour 6000 Sheets /hour
Positioning accuracy ±0.5mm ±0.5mm
Power Voltage 380v/50Hz 380v/50Hz
Machine Power 5.5KW 7.5KW
Machine Weight 3500KG 4500KG
Overall Dimension (L)7200 x (W)1300 x (H)1600mm (L) 8458 X (W)1642 X(H)1600mm
View Complete Details
Ask Latest Price & Details

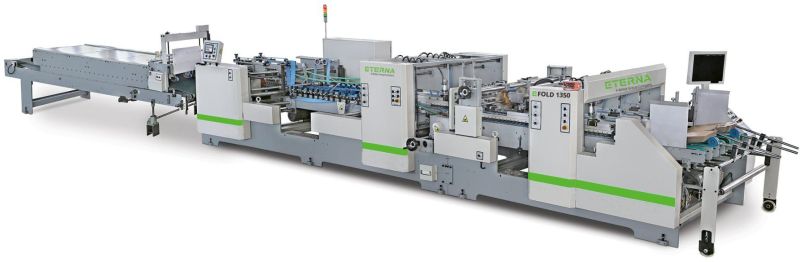

Folding Gluing Machine

Folding Gluing Machine
Feeder Section
  • Designated A/C motor with micro-adjustable variable speed controller for even spacing of box blanks;
  • Individual adjustable feed belts (four of which are suction belts) ensure easy setup and smooth feeding;
  • Motorized embossing roller guiding the belts to transport sheet.
    Side-Alignment Section
    • The side-alignment section guarantees the stability of high speed sheet feeding between the feeder and lock bottom section.
      Conveyor Compression Section
      • Two operation modes of compressing belt speed;
      • Pneumatic pressing system for easy adjustment to increase the gluing effect.

Model 650 900 1100 1350 1450
Card board 250-800 g/m2 250-800 g/m2 250-800 g/m2 300-800 g / m 2 300-800 g / m 2
Corrugated board E and F Flute E and F Flute E and F Flute E/ B/ C/ A Flute E/ B/ C/ A Flute
Max. Belt Speed 420 m/min 420 m/min 420 m/min 200 m/min 200 m/min
Jogging Speed 20 m/min 20 m/min 20 m/min 20 m/min 20 m/min
Main motor 15 kw 15 kw 15 kw
Total Power Requirement 22 kw 22 kw 22 kw 31.5 kw 31.5 kw
Max. Air Requirement 0.7 m 3 /min 0.7 m 3 /min 0.7 m 3 /min 0.7 m 3 /min 0.7 m 3 /min
Machine dimensions 15.8 x 1.35 m 15.8 x 1.5 m 15.8 x 1.8 m 16.8 x 2 m 16.8 x 2.1 m
Weight 5.5 Ton 6 Ton 6.5 Ton 8 Ton 8.5 Ton
View Complete Details
Ask Latest Price & Details

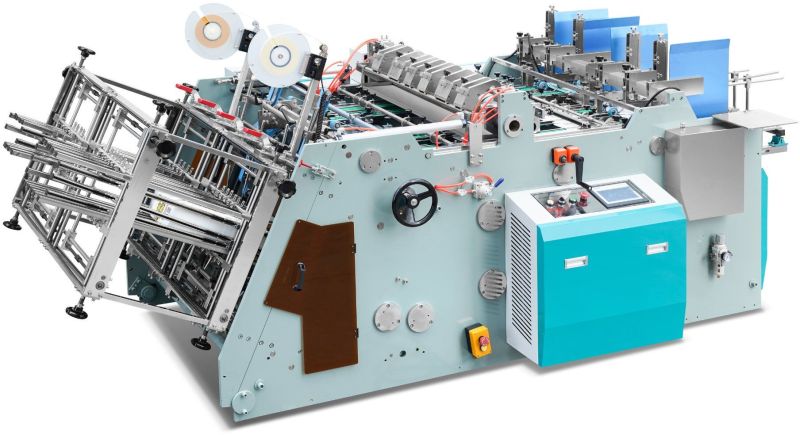

Carton Erecting Forming Machine

Carton Erecting Forming Machine

Automatic Carton Erecting machine is suitable for make Burger, Noodles, French fries, Popcorn boxes, Meal boxes, sweet boxes, four corner tray forming through cold glue process. (Note: Hot melt available at optional) With Firm structure, High quality, High efficiency.

Model Single lane Dual lane
Blank size (L*W*H) Length: 100 x 450 mm
Width: 100 x 580 mm
Box Height: 20-200 mm		 Length: 100 x 450 mm
Width: 100 x 420 mm
Box Height: 20-200 mm
Carton thickness 200-600 GSM/1.5mm corrugated 200-600 GSM/1.5mm corrugated boars
Carton conicity(Angle) 5°-40° mm 5°-40° mm
Total Power 5.5 KW, 3-Phase, 380V, 50HZ 7 KW, 3-Phase, 380V, 50HZ
Weight 2000 Kgs 2700 kgs
Machine dimensions 3520 x 1465 x 1550 mm 3600 x 1600 x 1600 mm
Speed 60-160 pcs/min speed may vary depending on material and shape. 120-320 pcs/min speed may vary depending on material and shape.




View Complete Details
Ask Latest Price & Details

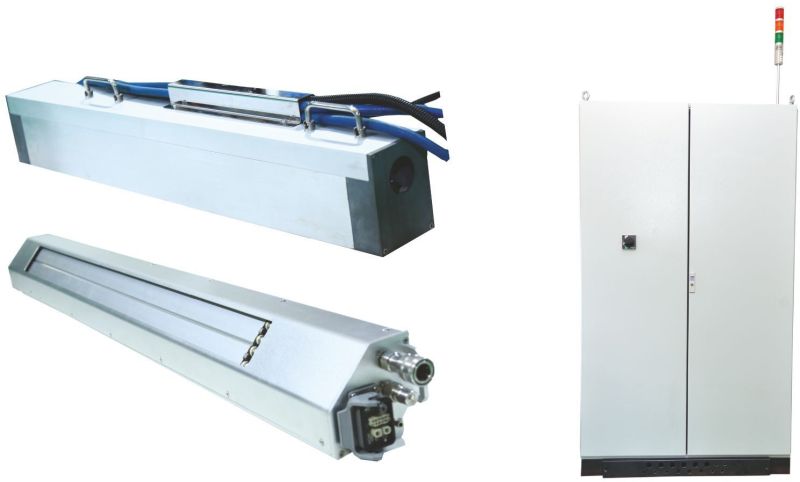

UV Curing System

UV Curing System
  • Automatic Grade Semi Automatic
  • The CURAL WE UV drying system is setting new standards.
  • State-of-the-art tools both research and development have been used in its design. Water cooled extrusion and Electronic Ballast works as an excellent combination in low power consumption and high UV output. Equipped with Di-Chroic coated reflector ensure minimum heat and maximum UV output.
  • SUBA CURAL WE UV Curing system consists of water cooled Interdeck, End Of Press, UV hood with Electronic Ballast and Touch Monitor.
    UV Light Irradiator:
    • Extruded Aluminum Hood, with water cooled system.
    • Shutter type system for open/close during impression on/off. Water cooled shutter for efficient heat transfer
    • Dichroic mirror reflector for UV lamps for more efficiency and cold UV.
    • Air suction detection high temperature cut off and shutter position detection.
    • Air pressure detector for individual hood.
    • Single Lock connectors for Easy removal.
    Compact Control Panel:
    • Compact Control panel from Rittal, India.
      Electronic Ballast:
      • Significant power saving. lamp idle power 20% or less.
      • Balanced three phase load.
      • Power factor @ 95%.
      • Eliminates high startup current.
      • Suitable for any type of lamp.
      • High Frequency (8-16KHz) square wave.
      • Available at 8/12/16/21 KW.
      • Stepless lamp power variation and control of initial start-up current.
      Electronic Control System:
      • PLC controlled operation system with color touch screen for easy operation.
      • Internal Components of control panel adopt well known brands.
      • Air pressure control and detector for individual hood.
      • Interface between printing Machine and UV panel.Remote maintenance device
View Complete Details
Ask Latest Price & Details

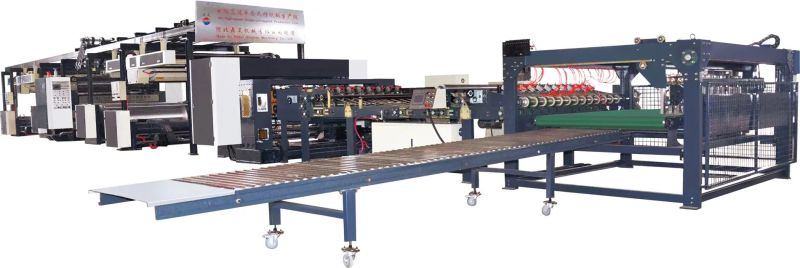

Single Corrugated Line

Single Corrugated Line
  • Moisture controlled 2 ply sheets with precision cutting to produce high quality 3 ply or 5 ply boxes.
  • Available with paper saving angle slot technology.
  • Available with technology for handling micro flutes N to E flutes
  • High productivity.
  • Optimally priced configurations from simple corrugator to highly productive 2 ply line.
View Complete Details
Ask Latest Price & Details
Tell Us What are you looking for? Will call you back

Contact Us

View Contact No.
