Leading Manufacturer, Supplier & Retailer of Modular Ceiling Loudspeaker.

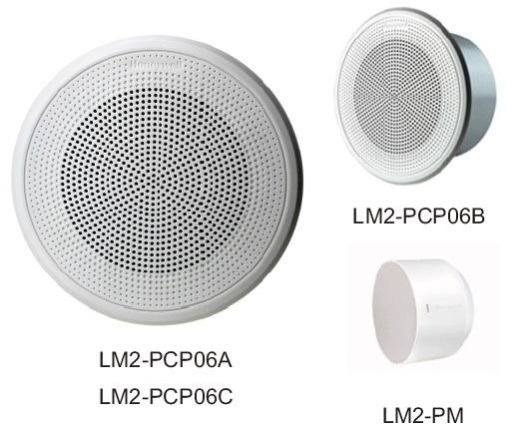

LM2-PCP06 is a series of 6W economic modular ceiling loudspeaker, including three models for selection direct ceiling mounted loudspeaker LM2-PCP06A , ceiling loudspeaker LM2-PCP06B ( with ABS back dome)and moisture-proof ceiling loudspeaker LM2-PCP06C, adapting to different installation requirement. Its stylish design with pretty white cover makes it blends easily into all indoor decoration. Moisture-proof components are adopted for LM2-PCP06C to comply with IP54 standard. Besides, when used with back dome LM2-PM, the LM2-PCP06C features better moisture-proof ability , complying with IP55 standard, to be the good choice for damp environment such as sauna room, washroom and bathroom. The series of loudspeaker features good moist and dust proof ability: integrated panel protecting the inside components from splashing water drops and ABS material preventing the enclosure from being rusted by the water on its surface.
features
/td>
|
Model |
LM2-PCP06A |
LM2-PCP06B |
LM2-PCP06C |
LM2-PM |
|||||||
|
|
|
|
|
|
|||||||
|
Max power |
9W |
|
|||||||||
|
Rated power |
6W |
|
|||||||||
|
Power taps @ 100 V |
6 W / 3 W / 1.5 W |
|
|||||||||
|
Power taps @ 70 V |
3 W / 1.5 W / 0.75 W |
|
|||||||||
|
SPL at 6 W /1 W (120 Hz-18 KHz,1 m) |
99 dB / 91Db |
99 dB / 91dB |
97 dB / 89dB |
|
|||||||
|
Frequency range(-10 dB) |
80 Hz - 20 KHz |
|
|||||||||
|
Dispersion angle (1 Khz / -6 dB) |
184/90 |
|
|||||||||
|
Rated input voltage |
100 V / 70 V |
|
|||||||||
|
Rated impedance |
1.7 KΩ / 3.3 KΩ / 6.7 KΩ |
|
|||||||||
|
Connection |
4-pole screw plastic block |
|
|||||||||
|
Dimensions(Ø x H) |
Ø180 x 73 mm |
Ø180 x 105 mm |
Ø180x73 mm |
Ø139 x 100 mm |
|||||||
|
Hole cut-out size |
Ø160 mm |
|
|||||||||
|
Diameter of speaker |
5” |
|
|||||||||
|
Material |
ABS(UL94V0) |
ABS(UL94V0) |
|||||||||
|
Weight |
0.64 kg |
0.76 kg |
0.64kg |
0.12 kg |
|||||||
|
Color |
White (RAL9003) |
White (RAL9003) |
|||||||||
|
Certification |
CE |
CE / IP54 / IP55 |
|
||||||||
