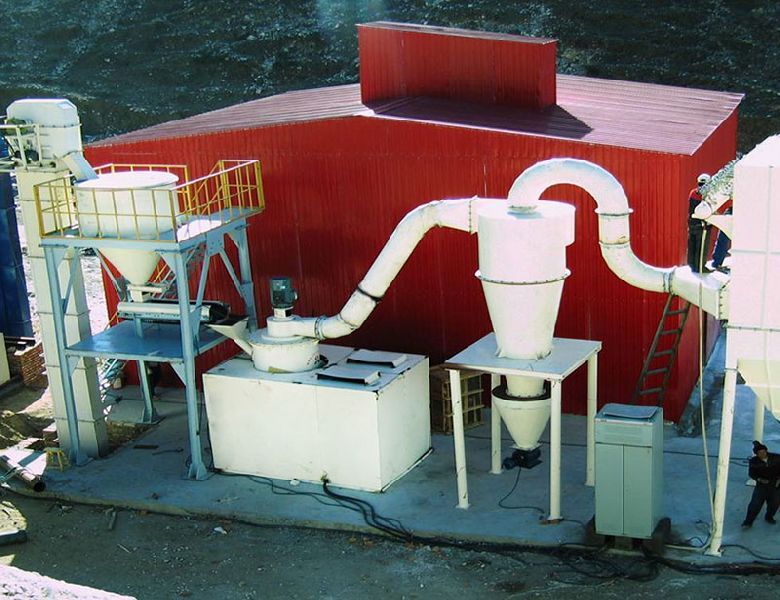

HGM Series of Three-rings and Medium-speed Micro-powder Grinder is absolute advanced leading machine in grinding mill industry.

AdvantageLong Service Life

Service life could be 1 year. Service life is longer than wear-out parts of impact crusher and turbine crusher if material and product size are same.

High Efficiency and Low Consumption

Under the condition of same material power and final product size its capacity is higher than jet mill and stirred mill by 40%.

Superfine Powder Process

Final size of the material processed by superfine mill could reach d975m.

Safety Operating

No antifriction bearing and bolt inside the grinding cavity no bearing or sealing element or bolt falling out and damaging machinery situation.

Product introduction

• Processable Material : Limestone calcite fly ash calcium carbide kaolin calcium carbonate coal gangue gypsum slag ore slag coal dust bentonite barite marble talc refractory material.
• Production capacity : 0.35-6T/H Notice: Mean value the specific production capacity is subject to clients actual equipment configuration.
• Range of Application : Non flammable brittle material whose Moh's hardness is less than 6.

Working principle

HGM Series of Three-rings and Medium-speed Micro-powder Grinder Mill is also called superfine grinding mill, its a new type superfine powder process grinder designed by EMCC and based on many years grinding mill production experience, this new type grinding mill absorbed advanced machinery manufacturing technology from Sweden and it was made after 20 times tests. HGM Series of Three-rings and Medium-speed Micro-powder Grinder is absolute advanced leading machine in grinding mill industry. HGM Series of Three-rings and Medium-speed Micro-powder Grinder is widely used in making fine powder or ultra-fine powder, and the raw materials should be non-inflammable and non-explosive under the Mohs hardness less than 6 grade such as limestone, calcite, dolomite, kaolin, bentonite, talc, illite, pyrophillite, barite, meerschaum, fluorite, potash ore, etc. The lifetime of spare parts is relied on the hardness of raw materials, and is lowered once the Mohs hardness is up to 4-6 grades.

Hyper Pressure V Type Grinder is new type high efficiency grinding mill designed by EMCC engineer combining clients requirement and practical situation.

AdvantageStar rack and V type grinding roller

centrifugal force is transformed to grinding force grinding roller parallel transmit around vertical axis to press grinding ring to guarantee the max surface contact of grinding roller and grinding ring capacity is improved by 30%.

Classifier is available

According to fineness requirement bladed classifier (80-325 mesh) and cage classifier (200-1250 mesh) are available.

Spacer protective measures

Main machine is under protection easy to be replaced and maintenance costs is reduced

Grinding device

Grinding roller and grinding ring get wear uniformly and lengthen the using lifetime.

Product introduction

• Production capacity : 0.5-40T/H Notice: this capacity is mean value capacity and the specific production capacity is subject to clients actual equipment configuration.
• Processable Material : Power process for limestone calcite fly ash calcium carbide kaolin calcium carbonate coal gangue gypsum slag ore slag coal dust bentonite barite marble talc refractory material.
• Range of Application : Glass rubber farm chemical enamel oil paint phosphatic fertilizer and papermaking industry.

Hyper Pressure V Type Grinder is new type high efficiency grinding mill designed by EMCC engineer combining clients requirement and practical situation. Compared with traditional high pressure trapezium mill and high pressure overhang roll mill in the market, it has many advantages. Hyper Pressure V Type Grinder is widely applied in glass, rubber, farm chemical, enamel, oil paint, phosphatic fertilizer and papermaking industry and it could process material whose Mohs hardness is less than 9.3, moisture is less than 6%, such as talc, barite, calcite, limestone, manganese ore, iron ore, quartz stone and bentonite.

Working principle

After reducing driving force of the main motor by the gear reducer when the drive center axis and the quincunx rack fixed on the center axis revolve under the centrifugal force the roller revolves around the center axis at the same time parallel swing around the shaft making the roller compress out side to the ring thus ensure that the roller and ring has maximum surface contact. At the same time the roller self revolves around the roller shaft making the material scooped up by the shovel blade to grind after grinding the powder blew to upper part of the mainframe then separating by the separator too coarse powder drops to the grinding room to re-grind the qualified powder airflows into the cyclone powder collector through the discharging pipe is qualified product.

Technical Parameters

MTW European Mill is innovatively designed through deep research on powder mill and development experience. It absorbs the latest European powder grinding technology and concept, and combines the suggestions of 9158 customers of powder mill. This mill perfectly satisfies the production demands of the customers on 200-33m (80-425Mesh) fine powder.

Advantage

1. unique structure 2. all thin oil lubrication 3. low power consumption, product size uniformity 4. whole cast steel bearing 5. stable performance 6. limited analytical techniques, higher intensity 7. less costs, easy management 8. simple, compact and light mechanical structure

Product introduction

• Production capacity : 3-50T/H
• Range of Application : MTW mill is mainly used in mining industry, building materials industry and chemical industry, etc.
• Processable Material : It is suitable for materials such as quartz, feldspar, calcite, talcum, barite, fluorite, rare earth, marble, Bauxite, manganese ore, iron ore, copper ore, phosphate rock, zircon sand, slag, slag, cement and so on.

MTW European Mill is innovatively designed through deep research on powder mill and development experience. It absorbs the latest European powder grinding technology and concept, and combines the suggestions of 9158 customers of powder mill. This mill perfectly satisfies the production demands of the customers on 200-33m (80-425Mesh) fine powder.

Working principle

The system consists of grinding mill, separator, air blower, jaw crusher, vibrating feeder, hopper, dust collector, pipe, powder collector, electric cabinet, motors, etc. Big lump materials are crushed to required size by jaw crusher, then elevated to buffering hopper through elevator, after that fed into the mill to be ground. Materials are to be ground between ring and rollers, and move up with the air flow, those particles which cannot pass the separator will fall down and be ground again, while others will be collected as finished product. Air flow passing through separator will go to the air blower for recycling, it's a closedsystem.

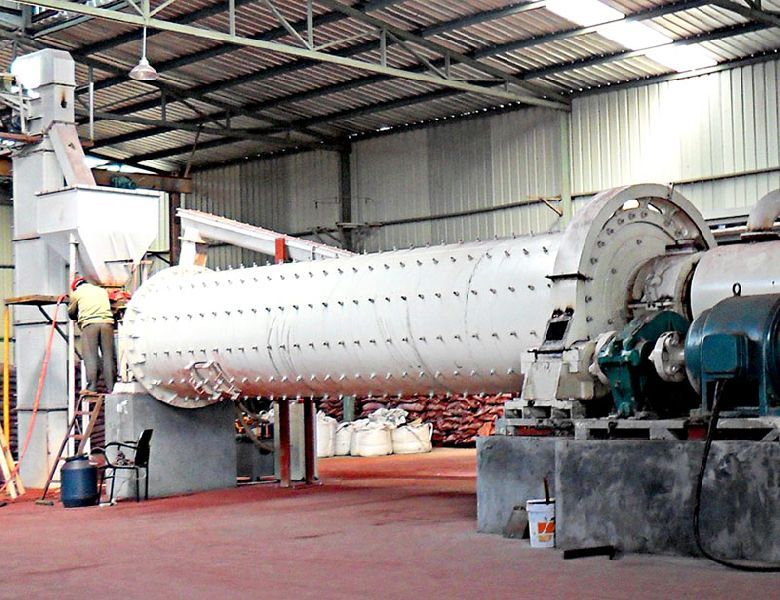

MQX series Superfine Ball Mill is a kind of new type and high-efficient powder and superfine powder process machinery which is used for grinding the medium and low-hard material, the classified powder could be adjusted between 300 and 2500 mesh.

AdvantageLining plate and grinding medium

Optimize texture of lining plate and grinding medium according to German technology to reduce rate of spoiled products and increase efficient of grinding.

Grinding medium and grinding auxiliaries

Grinding medium is reasonable loaded by the final product request with high filling rate and high efficiency.

Optimize aperture ratio and aperture design of grid plate

Optimize aperture ratio and aperture design of grid plate small grinding medium could improve the grinding fineness. Smooth final product discharge overflow grinding is eliminated barrel do not need to be cooled down.

The advanced and reasonable design

Design meets the Germany superfine padding mineral requirement which its optimized draw ratio could make the best grinding effect instead of over grinding.

Product introduction

• Production capacity : 0.5-15T/H Note: this capacity is mean value capacity and the specific production capacity is subject to clients actual equipment configuration.
• Processable Material : Limestone calcite fly ash calcium carbide kaolin calcium carbonate coal gangue gypsum grain slag ore slag coal dust bentonite barite marble talc refractory material.
• Range of Application : Medium and low hard non-flammable non-explosive fragile minerals material that Mohs hardness is below 6 humidity is less than 8%.

MQX series Superfine Ball Mill is a kind of new type and high-efficient powder and superfine powder process machinery which is used for grinding the medium and low-hard material, the classified powder could be adjusted between 300 and 2500 mesh, the final product could be finer if classifier is assembled to meet clients requirement. MQX series Superfine Ball Mill is mainly for grinding medium and low hard material that Mohs hardness is below 6, humidity is less than 8%, and non-flammable non-explosive fragile minerals, like calcite, chalk, limestone, kaolin, talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, kieselguhr, barite, gypsum, alunite, graphite, fluorite, phosphate ore, potassium ore, pumice, this is the best choice for nonmetal ore superfine grinding. The wear-out part service life would be decreased if When used Mohs hardness of the material in the 4 to 6.

Working principle

after washing and drying process raw ore(water content less than 1%) will be coarse crushed below 2mm by jaw crusher and hammer crusher hoisting equipment takes crushed material to raw material stock bin material will be taken to superfine ball mill through frequency conversion belt system under the force of rotary grinding medium will impact and grind the material grinded material will go to fine powder classifier through bucket elevator to be first classified coarse particle will be separated and fine powder will be taken to turbine classification zone by updraft to be secondary classified standard fine powder will be taken by classification collected by cyclone collector and bag collector coarse particle will go back to ball mill to be re-grinded from bottom of classifier.

The mill crushes large size solid material into required size. It is composed of coarse crushing, fine crushing, air conveying and other devices, and it crushes material by high velocity collision.

Advantage

The machine adopt the progressive technological programmes, well-designed. Hammer room like droplet, it can effectively eliminate material run into this room. Optimize the arrangement of knifes, adjust the gap between knifes and screen Many precision testings to insure equipments running smoothly and reduce noise, optimal performance. Creative hammer process with low power, the twice hammer structure , it can enhance the rubbing action, then reduce power consumption and improve capacity. Movable and opened operation door, new model of screen structure screen, make operation more convenient. Critical components are imported with longer using life.

Product introduction

• Production capacity : 2-18 T / H

The mill crushes large size solid material into required size. It is composed of coarse crushing, fine crushing, air conveying and other devices, and it crushes material by high velocity collision. Using wind energy, the mill crushes material into powder at one time, canceling traditional screening procedures. It is mainly applied to mining, building materials and other industries.

Working principle

During working, the mill motor drives shaft and turbine rotating at high speed. Turbine and blocks on the screen ring composed of compact crushing and grinding system. After getting into machine cavity from hopper, the material has close friction and strong impact to the turbine blade inner edge in the rotating air flow, and grinds again in the gap of blade and grinding block.

ball mill could wet grind and dry grind many kinds of minerals and grindable material according to different ore discharge methods there are grid type and overflow type ball mill.

AdvantageDischarge port

Reasonable discharge port design de-ironing separator could be set according to clientss requirement

Lining board

High manganese steel plate is more wear-resisting and it has longer service life.

Wheel gear

Pinion drives rack wheel rotating

Reduction box

High quality and national standard reduction box

Product introduction

• Production capacity : 0.37-65T/H Note: this capacity is mean value capacity and the specific production capacity is subject to clients actual equipment configuration.
• Processable Material : Limestone calcite coal ash kaolin calcium carbonate gangue gypsum grain slag superfine slag powder coal dust bentonite barite marble talc refractory material
• Range of Application : Cement silicate product new building materials refractory material chemical fertilizer nonferrous and ferrous metal beneficiation and glass ceramic industries.

ball mill could wet grind and dry grind many kinds of minerals and grindable material, according to different ore discharge methods, there are grid type and overflow type ball mill.

Working principle

This machine is barrel horizontal type rotation device outer gear transmission and two bins. Raw material is taken to first bin from feeding port through hollow shaft there are stepped lining plate and corrugated plate inside the bin and different size of steel ball steel ball is taken to a certain height by the force of centrifugal which is caused by barrels rotation material will be impacted and grinded. After coarse grinding process in the first bin material will be delivered to the secondary bin. There are plane liner and steel ball to further grind the material. Powder material will be discharged from discharging grate plate and the grinding process is completed.
