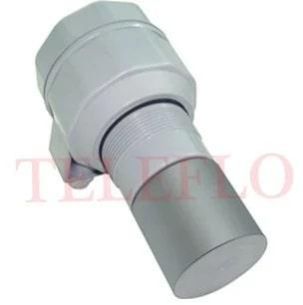

We offer the best product range of Ultrasonic Level Transmitter.
With the unwavering support of our assiduous teammates, our organization is able to present a remarkable range of Ultrasonic Level Transmitter. These offered valves are precisely designed using qualitative raw material along with latest machinery and tools.
Specifications
| Range | 0.40 m to 5.0 m |
|---|---|
| Accuracy | 0.25% of Full Scale |
| Resolution | 1 mm |
| Frequency | 56 kHz |
| Beam Angle | 12 deg |
| Enclosure | Plastic |
| Pulse Rate | 5 Pulses per second |
| Display | 2 LED’s for echo and programming |
| Signal Output | 4 – 20 mA DC (0 – 20 mA) Factory settable only |
| Relay Out Put | None |
| Operating Temperature | 0 to 70 Deg C Maximum |
| Storage Temperature | -40 to 85 Deg C |
| Temperature Compensation | Automatic built-in |
| Pressure Output | Atmospheric Pressure Only |
| Relay Output | Optional |
| Power Consumption | |
| Voltage | 12 to 15 V DC |
| Power Consumption | 1-watt maximum |
