Industrial Furnace

We offer a complete product range of Raising Hearth Furnace

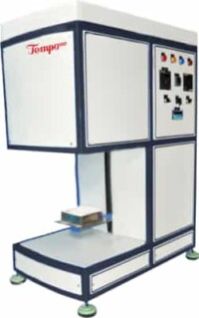

Raising Hearth Furnace

Raising Hearth Furnace
  • Min. Order (MOQ) 1 Piece
  • Driven Type Electric
  • Application Laboratory
  • Certification CE Certified
  • Country of Origin 220V
  • Total Carbohydrate 1 Year
  • Country of Origin India
  • Temperature Range 1800°C Max

Features

  • Maximum operating temperature range up to 1800°C
  • Dimensions from 1 up to 64 litres.
  • Compact design for minimum space requirement.
  • Rugged and durable Construction.
  • Outer casing is made up thick mild steel with duly powder coated or thick buffed stainless steel, gives long service life with extremely resistant.
  • Multilayer insulation with vacuum formed ceramic fibre or refractory bricks with low thermal mass.
  • Reliable vibration free bottom lifting with electro-mechanical movement
  • Prepared to carry heavy charge weight.
  • Hot raising by hydraulic.
  • Furnace design with powerful heating elements i.e. FeCrAl, SiC and MoSi2 installed in four walls of the chamber
  • providing fast heating rate and excellent temperature uniformity.
  • Fast heat up and cool down rates.
  • Temperature uniformity +/- 5°C.
  • Temperature control with PID controllers.
  • Power control with solid state relays or Thyristor units
  • for very precise temperature Control, wear-free and noiseless.
  • High mechanical durability, short heating cycle and low power consumption.

Optional Features

  • Over Temperature/Over Current Limiter.
  • Touchscreen temperature controller.
  • Port for additional thermocouple on top or rear wall of the furnace.
  • Buzzer, Digital timer, Emergency shut down.
  • Data Recorder.
  • RS232/RS485/USB interface.
  • Calibration of temperature measurement systems.
  • Table/Stand for supporting the systems.
  • Data Acquisition System (DAS) through software.
  • UPS Systems.
  • Customization as per user requirement.
  • Caster wheels with brakes.
  • Door safety switch.

Application

  • Raising Hearth Furnace is designed for R&D labs, Educational institutions, Medicine and Industry, Thermal Process Technology, Dental Labs, Advanced Materials for following applications- Drying, Hardening, Annealing, Brazing, Sintering, Research, Heat treatment, Dental crowns and frameworks etc.

Specification

Models Tmax °C Chamber Dimension
W × L × H (MM)		 Overall Dimension
W × L × H (MM)		 Heating Elements Voltage (V) Power (KW)
TI – 71 RHF 1 1150 100 × 100 × 150 450 × 610 × 910 Kanthal A1 230 2.5
TI – 71 RHF 2 1150 150 × 150 × 220 500 × 660 × 960 Kanthal A1 230 2.76
TI – 71 RHF 3 1150 200 × 200 × 300 540 × 710 × 1050 Kanthal A1 230 4.6
TI – 72 RHF 1 1450 100 × 100 × 150 490 × 690 × 1010 SiC 230 3.6
TI – 72 RHF 2 1450 150 × 150 × 200 540 × 740 × 1060 SiC 230 4.1
TI – 72 RHF 3 1450 200 × 200 × 300 600 × 750 × 1210 SiC 415 9.1
