Separators & Strainers

We offer a complete product range of Hydrogen Sieve JLPH5 and Lithium Oxygen sieve JLOX-100

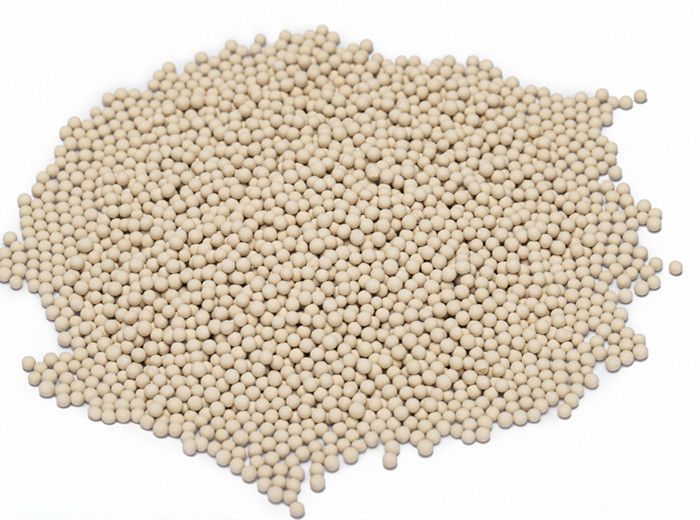

Hydrogen Sieve JLPH5

Capacity 10 Ton
Storage The product should be stored in original pack or air-proof package in cool and dry conditions should not be left exposed to open air.
Regeneration Molecular sieve Binderless 5A JLPH5 can be regenerated by increasing temperature or reducing
Package Moisture wt%
Particle Ratio ≥97.00

Luoyang JALON JLPH5 is a synthetic crystalline aluminosilicate with well-developed three-dimensional pore structure and strong polarity with pore opening of 0.5nm. Molecular sieve JLPH5 is Binderless 5A specially designed for PSA hydrogen purifications. It can also used for separation of normal paraffins from branched and cyclic hydrocarbons, PSA oxygen generation.

Storage
The product should be stored in original pack or air-proof package in cool and dry conditions should not be left exposed to open air.
Regeneration
Molecular sieve Binderless 5A JLPH5 can be regenerated by increasing temperature or reducing the pressure.

Technical Specification

Property	Unit	Bead	Note
Diameter	mm	1.6-2.5
Static Water Adsorption	wt%	≥25.00	RH75%, 25℃, activated
N2 Adsorption	ml/g	≥11.00	760mmHg, 25℃, activated
CO Adsorption	ml/g	≥28.00
Bulk Density	g/ml	0.74±0.02	760mmHg, 25℃, activated
Crush Strength	N	≥30.00	Settled
Particle Ratio	%	≥97.00	Standard Sieve
Package Moisture	wt%	≤1.50	575℃, 1hr

TDS

Download Detail File : Click Here

MSDS

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Lithium Oxygen Sieve JLOX-100

Storage The product should be stored in original pack or air-proof package in cool and dry conditions should not be left exposed to open air.
Regeneration Molecular sieve JLOX-100 series can be regenerated by increasing temperature or reducing the pressur
Related Products JLOX-500 products are mainly used in PSA industrial oxygen production and medical center oxygen supp

Molecular sieve JLOX-100 series of high-efficiency oxygen generation molecular sieve is a lithium X-type aluminosilicate crystal, which is an oxygen generation molecular sieve with international advanced level. Widely used in: iron and steel, non-ferrous metallurgy, chemical industry, furnace energy-saving transformation, environmental protection, papermaking, aquaculture, medical care and other industries.

Advantage

The JLOX-100 series of high-efficiency oxygen molecular sieve is mainly used in pressure swing adsorption oxygen generation devices. It has the characteristics of large nitrogen adsorption capacity, high nitrogen and oxygen separation coefficient, and easy desorption. Its nitrogen adsorption capacity is 2-3 larger than A-type oxygen molecular sieve. The separation coefficient of nitrogen and oxygen is more than 2 times that of A-type oxygen molecular sieve.
JLOX-101 is designed for PSA portable medical oxygen concentrator 1-5L/Min, JLOX-103 is designed for VPSA industrial oxygen generator, which oxygen flow rate is above 300Nm³/h, oxygen purity can up to 93%±3%.

StorageThe product should be stored in original pack or air-proof package in cool and dry conditions should not be left exposed to open air.

RegenerationMolecular sieve JLOX-100 series can be regenerated by increasing temperature or reducing the pressure.

Related ProductsJLOX-500 products are mainly used in PSA industrial oxygen production and medical center oxygen supply systems.

Technical Specification

Item Type	Diameter	Static H₂O Adsorption	Static N₂ Adsorption	N2/O2 Selectivity	Bulk Density	Crush Strength	Package Moisture
JLOX-101 Bead	0.4-0.8	≥30	≥22	≥6.20	0.63±0.03	﹣	≤0.5
JLOX-103 Bead	1.3-1.7	≥30	≥22	≥6.20	0.63±0.03	≥15	≤0.5
Unit	mm	%wt	﹣	﹣	g/ml	N	%wt
Note		RH75%,25℃	25℃，760mmHg	25℃，760mmHg	Settled	Average	550℃，KF
