Our Product / Services
We offer a complete product range of CNC Turning Machine, tbx-300l cnc slant bed turning machine, TBX-200L CNC Slant Bed Turning Machine, Mechanical Services and CNC Lathe Machine

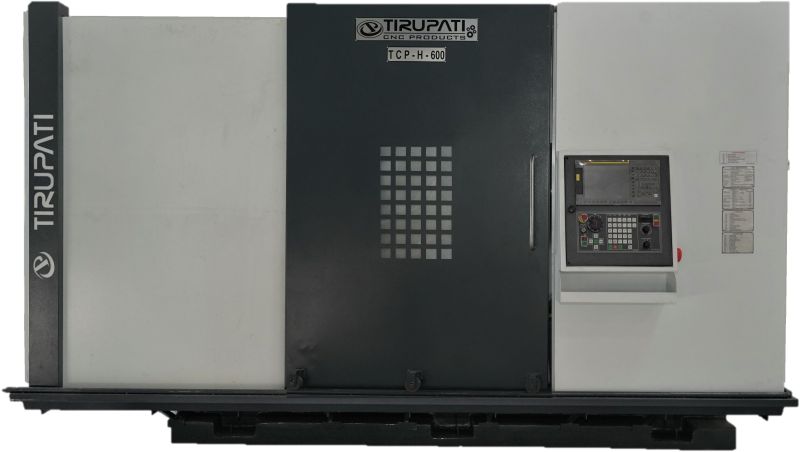

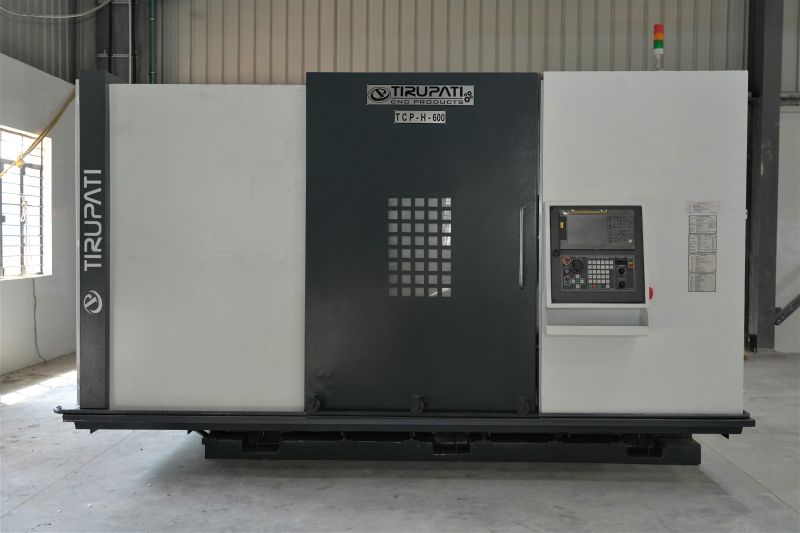

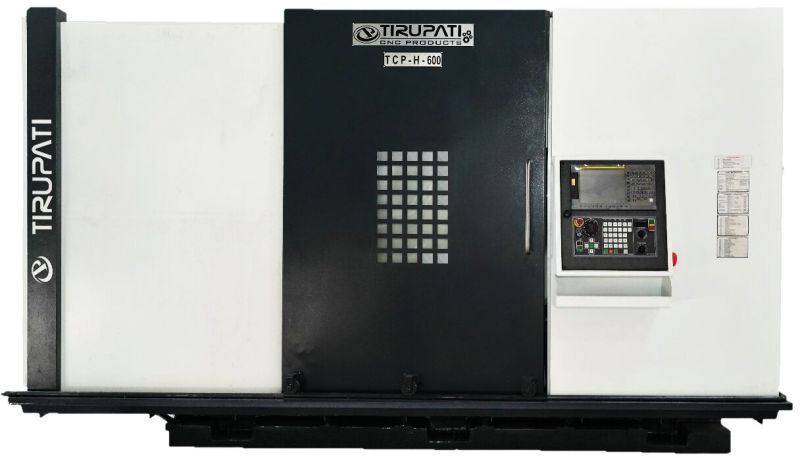

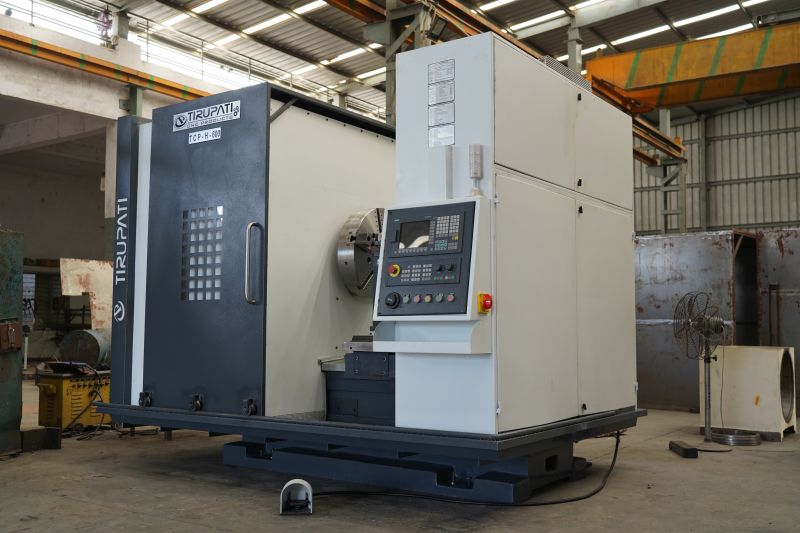

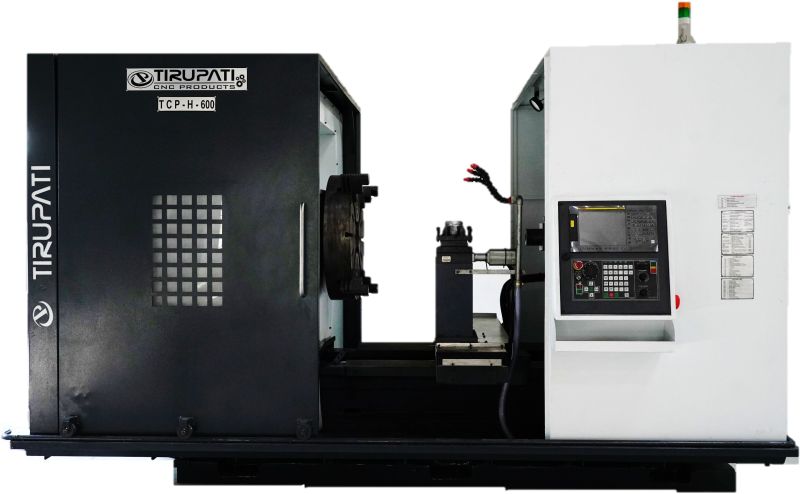

We offer TCP-H-500L-2000MM CNC Lathe Machine to our clients.
Capacity:
Spindle:
Axis:
Tooling:
Lubrication System:
Tailstock:
General:
Additional Information:
Payment Terms :
Delivery Time : 4 WEEK
Features :
Optional Equipment :
Specifications
| CAPACITY | |
|---|---|
| SWING OVER BED | 500 mm |
| MAXIMUM TURNING DIAMETER | 300 mm |
| MAXIMUM TURNING LENGTH | 600 mm |
| TRAVERSES | |
| X-AXIS STROKE | 150+25 mm |
| Z-AXIS STROKE | 650 mm |
| RAPID FEED RATE | 24 m/min |
| BALLSCREW | |
| Z-AXIS | 32 mm x mm |
| MOTOR TORQUE | 7 m/min |
| X-AXIS | 32 mm x mm |
| MOTOR TORQUE | 7 Nm |
| LM BOTH AXIS | 35mm |
| SPINDLE | |
| SPINDLE NOSE | A2-6 |
| HOLE THROUGH SPINDLE | 63 mm |
| MAXIMUN BAR CAPACITY | 51 mm |
| SPINDLE MOTOR POWER | 7.5/11 KW/HP |
| SPINDLE SPEED | 3500RPM |
| FULL POWER SPEED | 50-2000 RPM |
| CHUCK SIZE | 300mm |
| TURRET | BTP 80 |
| NO. OF STATION | 8 NOS |
| TOOL SHANK | 25 mm |
| MAX BORING BAR CAPACITY | 40mm |
| ACCURACY | |
| POSITIONING ACCURACY | 0.01mm |
| REPEATABILITY | 0.006mm |
| TAILSTOCK | |
| TAILSTOCK | YES |
| GENERAL | |
| CONTROLLER | SIEMENS / FANUC / MITSUBISHI |
Features :
Optional Equipment :
Specifications
| CAPACITY | |
|---|---|
| SWING OVER BED | 340 mm |
| MAXIMUM TURNING DIAMETER | 200 mm |
| MAXIMUM TURNING LENGTH | 500 mm |
| TRAVERSES | |
| X-AXIS STROKE | 125+25 mm |
| Z-AXIS STROKE | 550 mm |
| RAPID FEED RATE | 24 m/min |
| BALLSCREW | |
| Z-AXIS | 32 mm x mm |
| MOTOR TORQUE | 7 m/min |
| X-AXIS | 32 mm x mm |
| MOTOR TORQUE | 7 mm |
| LM BOTH AXIS | 35mm |
| SPINDLE | |
| SPINDLE NOSE | A2-5 |
| HOLE THROUGH SPINDLE | 38 mm |
| MAXIMUN BAR CAPACITY | 26 mm |
| SPINDLE MOTOR POWER | 7.5/11 KW/HP |
| SPINDLE SPEED | 3500RPM |
| FULL POWER SPEED | 50-2000 RPM |
| CHUCK SIZE | 200mm |
| TURRET | BTP 80 |
| NO. OF STATION | 8 NOS |
| TOOL SHANK | 25 mm |
| MAX BORING BAR CAPACITY | 40mm |
| ACCURACY | |
| POSITIONING ACCURACY | 0.01mm |
| REPEATABILITY | 0.01 |
| TAILSTOCK | |
| TAILSTOCK | YES |
| GENERAL | |
| CONTROLLER | SIEMENS / FANUC / MITSUBISHI |
Machine Mechanical Services provide comprehensive solutions for the maintenance and repair of industrial machinery. Our experienced technicians offer expertise in diagnosing and resolving mechanical issues efficiently. From routine maintenance to emergency repairs, we ensure minimal downtime and optimal performance. We specialize in troubleshooting mechanical failures, conducting thorough inspections, and implementing effective solutions to enhance machinery lifespan and reliability. With a focus on precision and quality craftsmanship, we strive to exceed client expectations and keep operations running smoothly. Trust our team to deliver reliable mechanical services tailored to your specific needs, ensuring uninterrupted productivity for your business.
We are delight to introduce tirupati cnc machines manufacturing company.
A specialization in cnc machines solution. Our machines are renowned for their Precision, Durability and innovative technology, ensuring top-notch performance.
We invite you to explore how our products can enhance your operations
Additional Information:
Delivery Time : 4 / 6 WEEK
