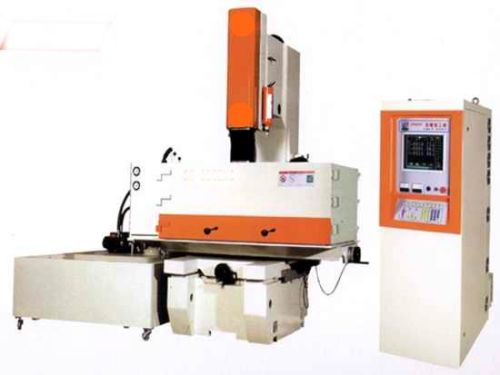

We are offering Znc Edm Sinker Machine.
Specifications of znc edm sinking machine
model:znc-650
the movement of axes
1.longitudinal travel of worktable x -axis 650 mm
2.cross travel of worktable y-axis 550 mm
3.ram servo travel z1-axis 250 mm
4.work head elevating travel z2-axis 300 mm
worktable
1.maximum load 2000 kg
2.dimension of worktable 600*1000mm
3.out size of work tank 1600*1000*600 mm
oil tank
1.out size of oil tank 2000*1250*600 mm
2.capacity of oil tank 1100 litres
other parameters
1.maximum distance from the work head to the surface of worktable 820 mm
2.maximum weight of electrode 220 kg
3.gross weight of complete machine 3000 kg
standard accessaries
oil filtering net 2 pcs
tool kit 1 set
drill chuck 1 pcs
fire extinguisher 1 pcs
working clamping device 1 groups
hex keys 1 set
quartz working lamp 1 pcs
magnetic base of oil-jet 1 pcs.
