Leading Manufacturer, Supplier & Retailer of Chart Recorder, Temperature Indicator, Temperature Controller, Benchtop Dissolved Oxygen Meter and Benchtop TDS Meter.
Description
ThermoView Pi20 is a rugged thermal imaging camera designed for industrial process control applications. The camera is designed with an IP54 rating. ThermoView Pi20 cameras are offered in two temperature ranges: -40C to 500C (-40F to 932F) and 200C to 2000C (392F to 3632F). For each temperature range, three lens options are available: 21.7 x 16, 30 x 22 or 45.2 x 33.7. ThermoView Pi20 provides easy networking over long distances using the standard Ethernet interface. This interface allows for the PC operating the DataTemp Pi (DTPi) software to be located far away. The Ethernet interface transmits up to 30 frames per second of imaging data and also allows for camera control. For long Ethernet cable runs beyond 90m (300ft), additional fiber optic Ethernet accessories are available.A full complement of hardware accessories includes:
High temperature and outdoor enclosures: To meet specifications for the demanding environments Raytek products are typically installed into, an IP67 (NEMA 4) rated enclosure is available with integrated cooling and air purge options. Integrated Junction Box: Allows I/O modules.
MODEL SELECTION- DPM-6-00A-BC0-DE
|
ITEMS |
SPECIFICATIONS |
CODE |
DETAILS |
|
|
DPM-6 |
|
DIGITAL INDICATOR |
|
A |
ALARMS (Refer Note -1) |
0 |
No Alarm |
|
1 |
One Relay Contact 3A, 230 VAC |
||
|
2 |
Two Relay Contact 3A, 230 VAC |
||
|
3 |
Three Relay Contact 3A, 230 VAC |
||
|
4 |
Four Relay Contact 3A, 230 VAC |
||
|
B |
RETRANSMISSION OUTPUT (Refer Note -2 ) |
0 |
None |
|
1 |
1 nos 4-20mA Retransmission Output (Isolated) |
||
|
2 |
2 nos 4-20mA Retransmission Output (Isolated) |
||
|
3 |
Other Linear Signals |
||
|
C |
INPUT SIGNAL (REFER NOTE -3) (Refer Note -2 ) |
1 |
T/C |
|
2 |
Pt-100 |
||
|
3 |
Cu 50 |
||
|
4 |
4-20mA DC |
||
|
5 |
Other Linear Signal |
||
|
D |
COMMUNICATION (Refer Note -2 ) |
0 |
None |
|
1 |
RS485 |
||
|
2 |
Mod bus |
||
|
E |
ADD-ONS (Refer Note -2 ) |
0 |
None |
|
1 |
24 VDC 2 wire Transmission Power Supply |
||
Description
4-20 mA Loop Analyser, IT52.51 is a versatile portable instrument for rapid checking & simulation of 2 wire Transmitters and checking Indicators, Controllers, Recorders, Current alarms, Data Loggers, Final control elements & Computers etc. operating on 4-20 mA DC input/output.
IT52.51 with its built-in power source and LCD display has four modes of operation, viz. Normal Source, 2-wire Transmitter Simulation, Normal Read and 2-wire Transmitter Read.
Normal Source mode provides 4-20 mA DC output. 2-wire Transmitter Simulation mode modulates external power to pass 4-20 mA in the external loop. In these two modes, "QUICK CHECK" switch provides instant 4 mA & 20 mA output; for rapid check of zero & span end points. "QUICK CHECK" switch also has an intermediate Dial position; selection of this position allows precise intermediate settings between 4-19.99 mA on 10 turn potentiometer operated by a separate knob. Normal Read mode measures input currents fed to the Analyser. 2-wire Transmitter Read mode supplies 27 Volts in series with the internal measuring circuit at the output terminals and measures 2-wire Transmitter output, thus eliminating need of external power supply.
APPLICATIONS
Used for rapid checking & simulation of 2 wire transmitters and checking Indicators, Controllers, Recorders, Current alarms, Data Loggers, Final control elements & computers etc.
Description
The IST-Rees Mini PTZ Mk2 provides a complete inspection system including a sealed, underwater capable, high performance, pan/tilt/zoom color CCD camera. The cameras compact housing provides for cable or pole deployment through small openings whilst its unique slip clutch design allows fail-safe retrieval. The integrated high-intensity white LED lighting provides sufficient illumination for most inspection applications. The integrated microcontroller supports many additional features including position feedback, thermal management and also optional radiation dosimetry when the camera is used in radiation environments. An intelligent controller, available in a rack mounted or robust portable enclosure, provides a convenient user-interface to utilize the systems advanced features.
FEATURES
Description
"RevMonitor" is the SpeedSwitchcan automatically record the current revolution speed by simply pressing the MOD button.If the speed drops 5-10% from the recorded speed, "RevMonitor"will output an alarm signal."RevMonitor" is applicable for a wide variety of application such as the detection of adnomal revolition of transfer conveyor of food production line, kneading machine, mixer etc.and chain breakage of bucket conveyor.Easy installation and no complicated setting required.
No adjustment required because the RevMonitor automatically records the current revolution speed of the machine shaft as a benchmark
After setting the transducer to the normal speed, the actual speed of the machinary can be monitored remotely
No need to worry about wear and tear caused by friction, because the speed is monitored without direct contact machines
For early detection of mechanical loss
For detection of chain break
For verification of the number of revolutions
For verification of actual conveyors speeds
Belt Tear Detector immediately detects conveyor belt tear accident caused by foreign substance piercing the conveyor belt at the outlet of chute of conveyor, in order to stop the belt conveyor. Belt Tear Detector consists of sensor to detect the belt tear accident and transducer to output breakage signal. Belt Tear Detector is high safety sensor since the transducer is equipped with wire-breakage alarm output to detect the breakage of cable of sensor. Sensors are installed according to the number of Impact Rollers. Since the wiring is loop connection between sensors and to transducer, it is possible to save the wiring cost.
In various industries such as Cement, Metal, Power and Glass for conveyor belt safety.

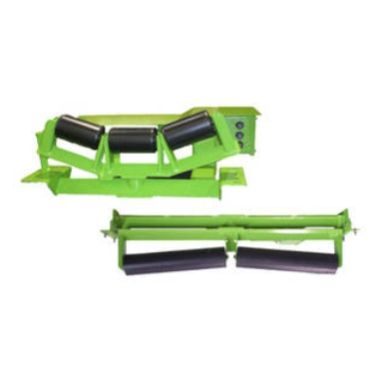

Motor-operated Adjusting Carrier is a belt sway correction equipment controlled by servo-system, and consists of a belt sway detector, motor actuator and adjusting carrier. The Motor-operated Adjusting Carrier is widely used in order to prevent belt breakage and load-falling caused by the sway of conveyor belt. Types to mount the carrier side and the return side are available. Besides, types for use with reversing- operation conveyors are available.
