Our Products

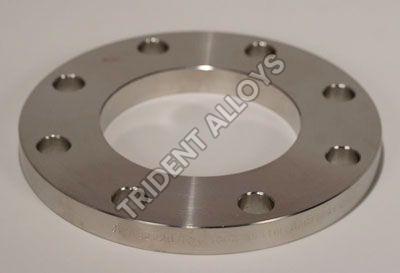

We offer a complete product range of Flat Flanges
Highly acclaimed Manufacturer & Supplier of Flat Flanges, Carbon Steel Flat Flanges, Stainless Steel Flat Flanges, Alloy Steel Flat Flanges, Inconel Flat Flanges, Nickel Alloy Flat Flanges, Hastelloy Flat Flanges, Monel Flat Flanges in India
We are largest manufacturers of Flat Flanges & have huge stock of 304 Flat Flanges, 316 Flat Flanges, astm a105 Flat Flanges, astm a182 Flat Flanges as per asme / ansi B16.5 Flat flanges, ansi B16.47 Flat flanges, Din Flat flanges, jis Flat flanges & uni Flat flanges Standards.
We offer high quality Flat Flanges in all size, classes & dimensions like Class 150 Flat Flanges, Class 300 Flat Flanges, Class 600 Flat Flanges, Class 900 Flat Flanges, Class 1500 Flat Flanges & Class 2500 Flat Flanges
We are largest Manufacturer, Supplier and Exporter of ASME 16.5 Flat Flanges. The Flat Face flange has a gasket surface in the same plane as the bolting circle face. Applications using flat face flanges are frequently those in which the mating flange or flanged fitting is made from a casting.
Flat face flanges are never to be bolted to a raised face flange. ASME B31.1 says that when connecting flat face cast iron flanges to carbon steel flanges, the raised face on the carbon steel flange must be removed, and that a full face gasket is required. This is to keep the thin, bittle cast iron flange from being sprung into the gap caused by the raised face of the carbon steel flange, Our flat flanges sit flat on the ground and have a neck. The flat face (full face) flange has a gasket surface in the same plane as the bolting circle face.
Details
| Producty Type | Flat Flanges |
|---|---|
| Size | ½” (15 NB) to 48″ (1200NB) |
| Stainless Steel Flat Flanges | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L |
| Carbon Steel Flat Flanges | ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70 |
| Alloy Steel Flat Flanges | ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91 |
| Duplex Steel Flat Flanges | ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 |
| Pressure Class Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Specialize | As per drawing |
| Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 ,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Connection Type / Flange Face Type | Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove |
