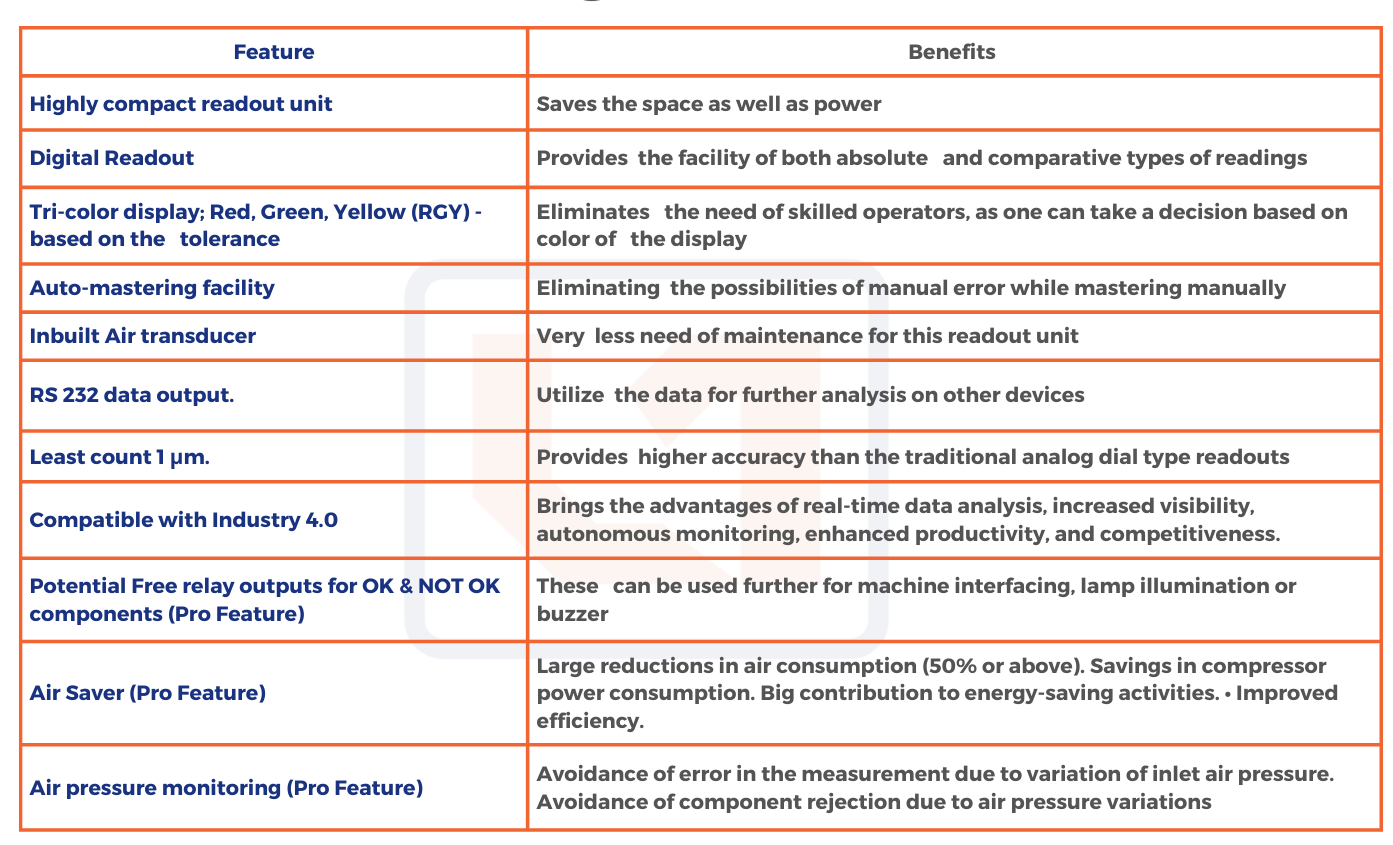

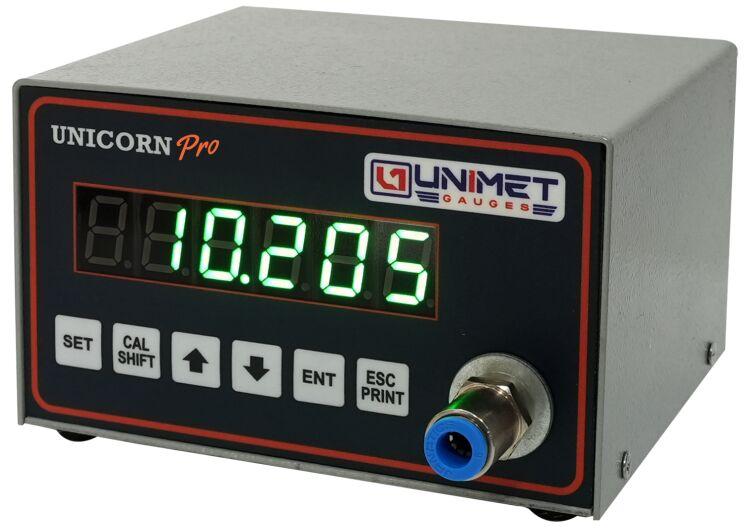

Presenting Our Unimet Unicorn Micro-controller based single channel Electronic readout systems which is used to measure single static parameters. It offers exceptional performance and is intuitive and easy to use. Key Features -

 Highly compact readout unit  - Saves space as well as power

 Digital Readout - Provides the facility of both absolute and comparative types of readings

 Tri-color display; Red, Green, Yellow  (RGY) - based on the tolerance -Eliminates the need of skilled operators, as one can take a decision based on the color of the display

 Auto-mastering facility - Eliminating the possibilities of manual error while mastering manually

 Inbuilt Air transducer - Very less need of maintenance for this readout unit

 RS 232 data output - Utilize the data for further analysis on other devices

 The least count 1 μm. It provides higher accuracy than the traditional analog dial-type readouts

In-built Air Saver to reduce air consumption and compressor power consumption

Relay output for OK/Not-OK can be used for machine interface or other external signals

Air monitoring system to ensure avoidance of measurement errors due to low air-pressure

 #unimetgauges #multigauging #metrology #manualgauging #grt #gauging #qualityassurance #precision

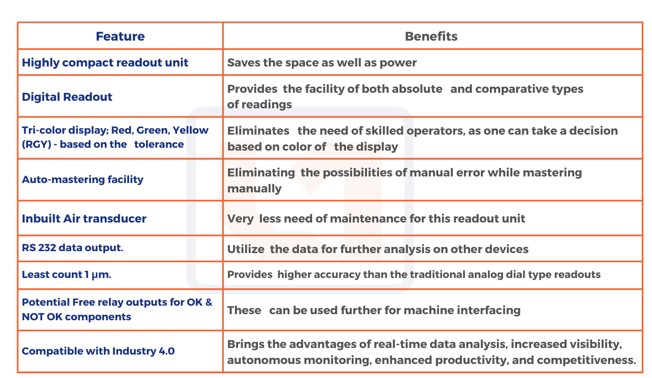

Presenting Our Unimet Unicorn Micro-controller based single channel Electronic readout systems which is used to measure single static parameters. It offers exceptional performance and is intuitive and easy to use. Key Features -

Highly compact readout unit  - Saves space as well as power

Digital Readout - Provides the facility of both absolute and comparative types of readings

Tri-color display; Red, Green, Yellow  (RGY) - based on the tolerance -Eliminates the need of skilled operators, as one can take a decision based on color of the display

Auto-mastering facility - Eliminating the possibilities of manual error while mastering manually

Inbuilt Air transducer - Very less need of maintenance for this readout unit

RS 232 data output - Utilize the data for further analysis on other devices

The least count 1 μm. Provides higher accuracy than the traditional analog dial-type readouts

#unimetgauges #multigauging #metrology #manualgauging #grt #gauging #qualityassurance #precision

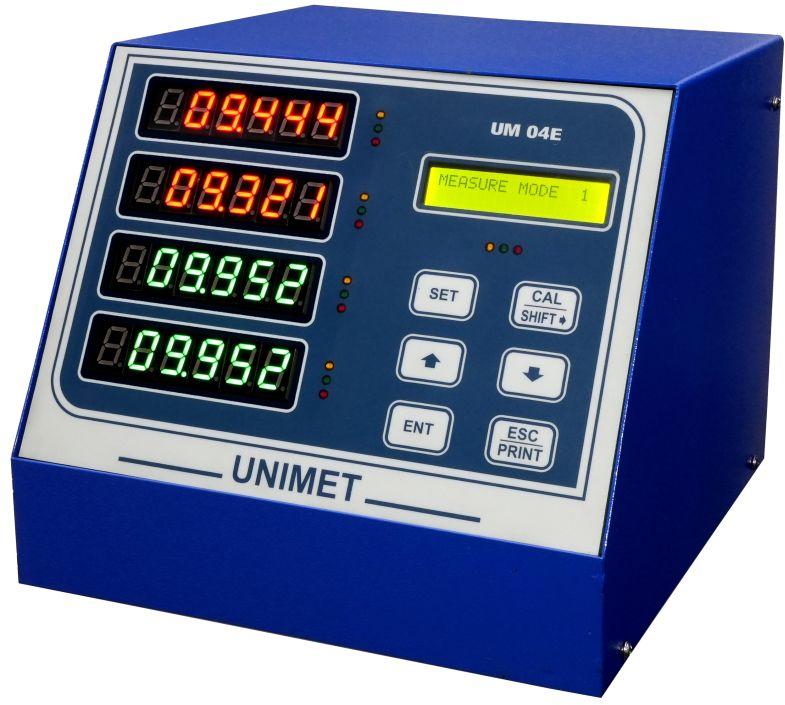

Unimet Electronic Readout units are micro-controller-based readout systems that are used to measure several dimensions simultaneously. Unimet UM-XX series electronic readout units offer exceptional performance and are intuitive and easy to use.rnrnThis autonomous electronic readout instrument is designed for measuring lengths such as external, internal, step, height, or depth dimensions, as well as distances. Some parameters which can be measured (but not limited to) could be external/internal diameters, straightness, squareness, ovality, run-out of faces, etc.rnrnIts concept also enables measurements of form and orientation tolerances such as straightness or taper errors.

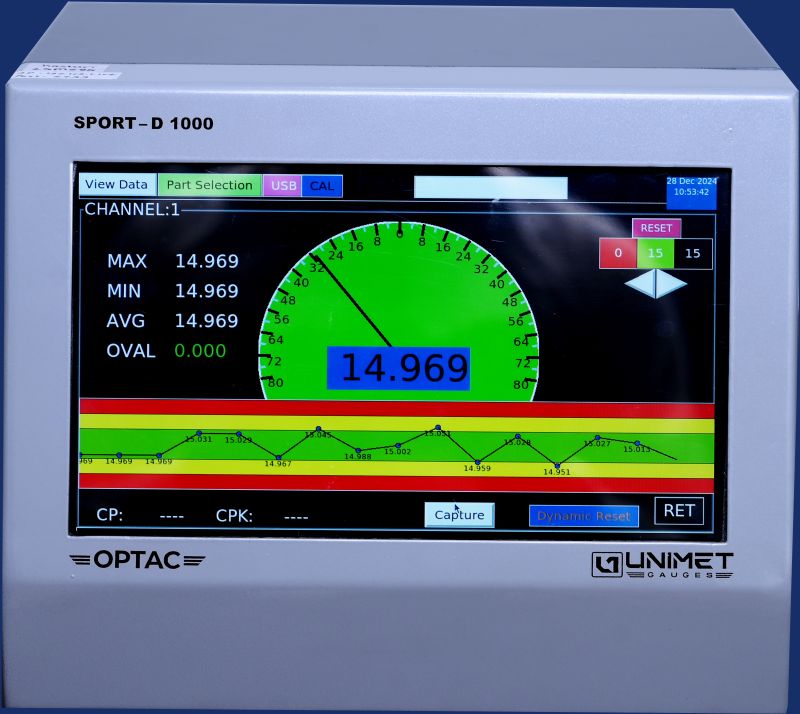

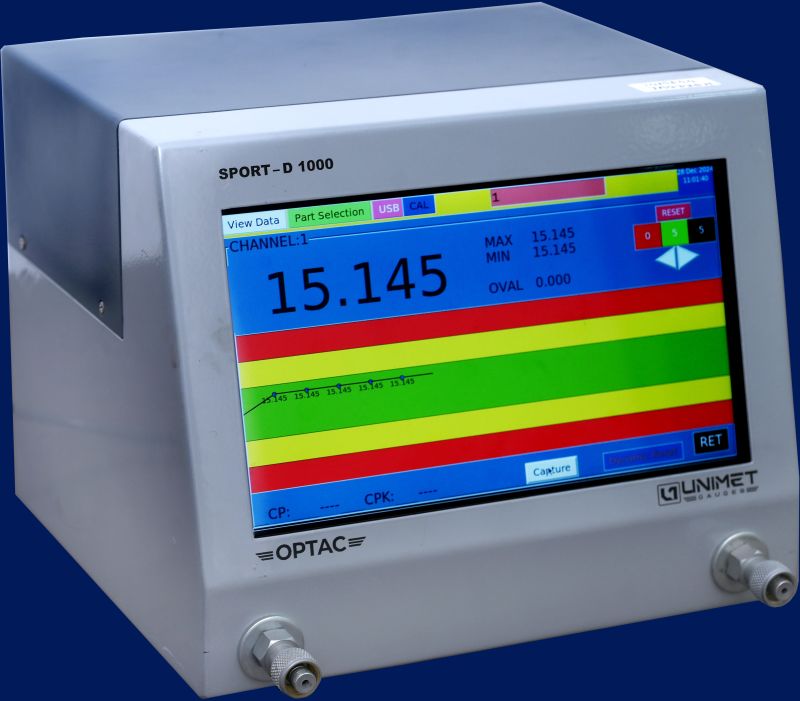

UNIMET Make SPORT-D 1000 (Statistical Process of Real-Time Data)

Key Features

• Multi-gauging
• TFT-based display
• Real-time run chart with digital display, CP & CPK
• Auto selectable display & auto display switching for in-process checking gauge
• 8 different models based on the number of channels i.e. 1 to 8
• Number of programs based on a variety of checking components
• Auto data storing & Auto air saver
• Suitable for all make air plugs & air rings
• Reports based on date, time operator
• Data can be transferred through a USB
• Real-time unit monitoring on mobile phone
• Wi-Fi connectivity & Zero maintenance

This autonomous electronic readout instrument is designed for measuring lengths such as external, internal, step, height, or depth dimensions, as well as distances. Some parameters which can be measured (but not limited to) could be external/internal diameters, straightness, squareness, ovality, run-out of faces, etc.

Its concept also enables measurements of form and orientation tolerances such as straightness or taper errors.
