Drill & Boring Equipments
We offer a complete product range of Water Drilling Machine

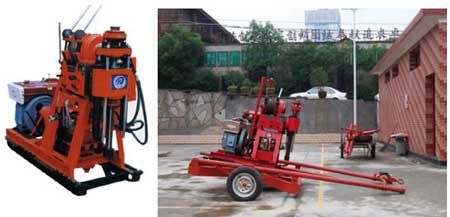

Water Drilling Machine
We are offering water drilling machine.
feature : - it can move on the skid, backward for lifting and forward for drilling. And distance moveable is 300mm.
- the driving stem is much stronger hexagonal kelly of 46*dia51mm
- it has wide range of rotary speed from 144rpm to 1083rpm, so it can drill with either high or slow speed, and suitable for steel-ball, tungsten carbide or diamond drilling for different formation.
- manual chuck is easy to handle.
- the fastest hoisting speed can reach 2.9ms, can meet the demand for percussion drilling with hammer.
- the drilling head part can be rotated up to 360degree, so it can drill for horizontal, vertical or inclined hole.
- electric motor or diesel is optional.
- in 1992, our xul-100 worked for chinese academy of science in antarctica for the sample boring.
- compact in design, and can be separated into four parts, is easy to carry. And mast with trailer is optional.
- very powerful, the recorded deepest hole is 218m with diameter of 171mm in limestone.
View Complete Details

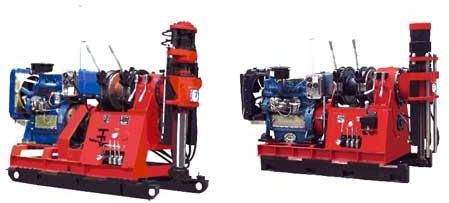

Water Drilling Machine
We are offering water drilling machine.
feature : - it can move on the skid, backward for lifting and forward for drilling. And distance moveable is 400mm.
- the driving stem is much stronger hexagonal kelly of 53*dia59mm
- it has wide range of rotary forward speed from 54rpm to 956rpm, and reverse speed from 43rpm to 198rpm. With high speed it can drill small hole with diamond bit and with low speed, for large hole or drilling water well. And it is safer with low reverse speed.
- two kinds of chuck, fully hydraulic type and mechanical type are optional. Manual chuck below is optionaltoo.
- with the spindle through hole diameter of 96mm, it is suitable for drilling hole with small or large diameter.
- the drilling head part can swivel up to 360degree, so it can drill for horizontal, vertical or inclined hole.
- electric motor or diesel is optional.
- as a traditional model, it keeps many records of drilling more than 400m.
View Complete Details

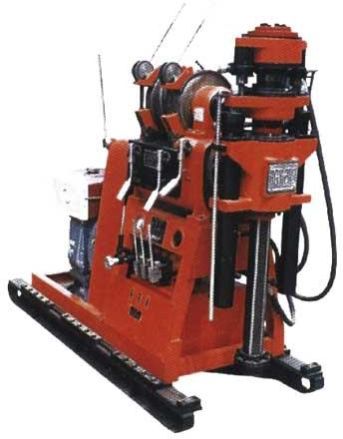

Water Drilling Machine
We are offering water drilling machine.
features : - with total length of 2.5m and total height of 1.9m, its low center of gravity ensures good stability.
- hydraulically operated sliding base provides 400mm of movement on or off the hole for speedy connection of tools.
- very compact in structure, easy to assemble and disassemble. It can be divided into 7 parts, and the heaviest part is 430kgs
- easy to carry.
- control levers are conveniently grouped for easy effortless operation.
- model ca151 heavy-duty automotive gear box is adopted. With higher safety factor and better reliability its torque can reach 530n.m. And it has 10 forward rotary speed from 54rpm to 1081rpm, and 2 reverse speed from 58rpm to 152rpm.
- clutch is also from model ca151 heavy-duty truck, controlled with hydraulic system , with good reliability.
- the parts of transfer box are interchangeable with auto parts, and available easily. By driving with angular gear, which is patented in china, it can transmit more powerful torque smoothly with less noise.
- the transmission box is connected with transfer box with internal tooting flexible coupling. It is simple in structure, easy to maintain, and has less noise, better efficiency and longer working life. The cushion between the power plant and the pedestal base has good cushioning effect.
- with the spindle through hole diameter of 96mm, it is suitable for drilling hole with small or large diameter.
- the drilling head part can swivel up to 360degree, so it can drill for horizontal, vertical or inclined hole.
- water brake is optional.
View Complete Details

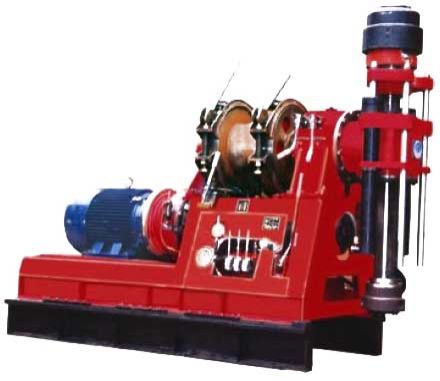

Water Drilling Machine
we offer water drilling machine.
feature : - it can move on the skid, backward for lifting and forward for drilling. and distance moveable is 360mm.
- the driving stem is much stronger hexagonal kelly of 53*dia59mm
- it has wide range of rotary forward speed from 60rpm to 830rpm, and reverse speed from 35rpm to 480rpm. with high speed it can drill small hole with diamond bit and with low speed, for large hole or drilling water well. and it is safer with low reverse speed.
- two kinds of chuck, fully hydraulic type and mechanical type are optional. manual chuck below is optional too.
- the fastest hoisting speed can reach 3.4ms, can meet the demand for percussion drilling with hammer.
- the drilling head part can be rotated up to 360degree, so it can drill for horizontal, vertical or inclined hole.
- electric motor or diesel is optional.
- with patented 2 to 1 design of transmission box, it is compact, and can be separated into five parts, easy to carry.
- very powerful, the recorded deepest hole is 325m with diameter of 75mm.
View Complete Details
