We offer the best product range of Candy Wrapping Machine, ONE SIDE TWIST CANDY WRAPPING MACHINE, DOUBLE SIDE TWIST CANDY WRAPPING MACHINE, Toffee Cut & Wrap Machine and HI-SPEED TOFFEE MACHINE.
Double side Twist Candy Wrapping Machine: This machine is used for packaging hard candies of round, oval or elongated in double twist wrap technique. The candies may be stamped or moulded with or without or with center filling (pasty or firm center of up to about 15%).The machine uses all commercial packaging materials, outer wrapper such as cellophane and P.V.C, inner wrapper such as waxed paper and paper foil.The sugar boiled sweets are charged into the S.S Hopper from where it is released on to the rotary format by an automatically controlled vibrator. The paper flows from the paper feed station, cut to appropriate length & the sweet is lifted along with folded wrapper in to the twisting turret. The sweets are held in position by the rubber gripper and the twisting operation is performed mechanically by twisting fingers on both sides & then it is further collected from delivery chute.
Dimensions of Packing Roll SizeOuter 250 mm Width 70 to 100 mm Inside Core 40 To 80mm
The machine uses all commercial packaging materials, outer wrapper such as cellophane and P.V.C, inner wrapper such as waxed paper and paper foil. The machine is fully automatic including No-Paper mechanism. The sugar boiled sweets are charged in to the S.S. Hopper from where it is released on to the rotary format by an automatically controlled vibrator. The paper flows from the paper feed station, cut to appropriate length & the sweet is lifted along with folded wrapper in to the twisting turret. The sweets are held in position by the rubber gripper. On one side fold wrapping is done by folder arm & on other side twist wrapping is done by twisting fingers and further it is collected from delivery chute.
This machine is used for packaging hard candies of round, oval or elongated in double twist wrap technique. The candies may be stamped or molded with or without center filling (pasty or firm center of up to about 15%). The machine uses all commercial packaging materials, outer wrapper such as cellophane and P.V.C, inner wrapper such as waxed paper and paper foil. The sugar boiled sweets are charged into the S.S Hopper from where they are released on to the rotary format by an automatically controlled vibrator. The paper flows from the paper feed station, cut to appropriate length & the sweet is lifted along with folded wrapper in to the twisting turret. The sweets are held in position by the rubber gripper and the twisting operation is performed mechanically by twisting fingers on both sides & then it is further collected from delivery chute.
Additional InfoSizing Wheel Design For Precise Toffee Size, Scissors Or Rotating Knife For Cutting

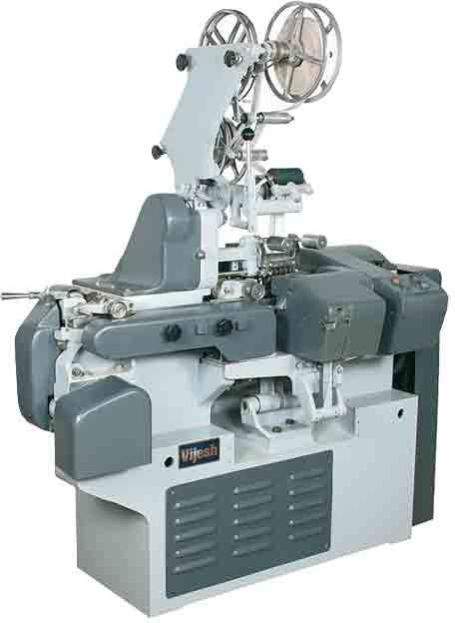

Toffee rope from rope sizer machine is further proceeded into Toffee Cut & Wrap Machine where it is passed through sizing wheel design as per required size of toffee to get final rope size. Then after it is cut by scissors or rotating knife according to length of toffee & then gripped in the format with paper & packed in twist form by twisting of nylon twister.
The High Speed Toffee machine is used to forming, cutting and wrapping in double twist wrap or fold wrap products such as, toffees, chewy sweets, chewing gum and bubble-gum products. The High Speed Toffee Machine is equipped with a rope feeding unit to produce products in various shapes like round, square, rectangular shapes.
