VERTICAL MULTISTAGE PUMPS

Our Complete range of products are Vertical Centrifugal Pumps and Pumping Systems.

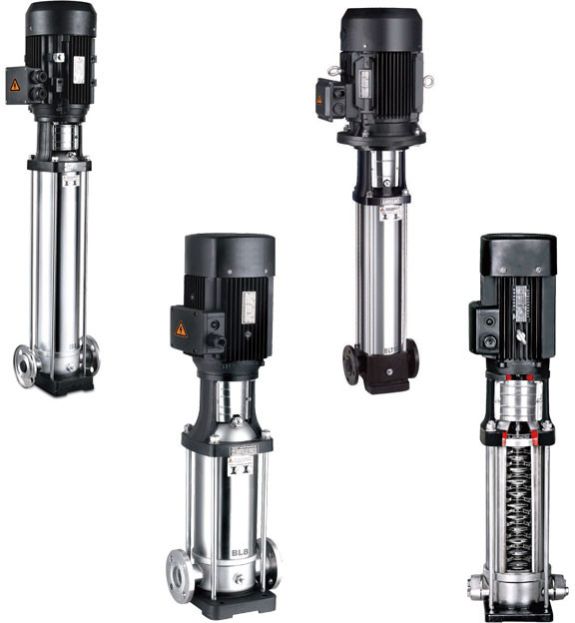

Vertical Centrifugal Pumps

Vertical Centrifugal Pumps
₹ 25,000 - ₹ 3 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Brand Name ADELINO
  • Material Stainless Steel
  • Finishing ED COATED
  • Driven Type Electric
  • Condition New
  • Power 1-3kw, 3-6kw, 6-9kw, 9-12kw
  • Power Source Electric
  • Pressure Medium Pressure, High Pressure
  • Operating Type Manual
  • Motor Horse Power 2-5 HP, 5-27 HP
  • Usage Water
  • Type Of End Use INDUSTRIAL, HOTELS, APARTMENT AND COMMERCIAL BUILDINGS
  • Certification ISO 9001:2008 Certified, CE Certified
  • Country of Origin 220V, 380V
  • Packaging Type Wooden Box
  • Specialities Ruggedly Constructed, Durable, Easy To Use, Excellent Functionality, Less Maintenance
  • Pump Size 30X30mm, 40X40mm, 50X50mm
  • Discharge Size Millimeter 32mm, 40 Mm And 50 Mm Depends On Model
  • Number Of Flower Centrifugal Water Pump
  • Availability 20-40kg, 40-80kg, 80-120kg, 120-150kg, Depends On Model
  • Frequency 50
  • Efficiency 94
  • Total Carbohydrate 1 Year
  • Cooling Method Air Cooled
  • Country of Origin GERMAN
  • Degree of Protection IP55
  • Head UP TO 300 Mtrs
  • Max Flow Rate 90000 Ltrs / Hr
  • Motor Speed 2880 RPM
  • Corrosion Resistance Yes
  • Motor Phase Three Phase
  • Maximum Discharge Flow 90000 Ltrs / Hr
  • Insulation Class F
  • Liquid Temperature 90 Degree Centigrade
  • Class Of Insulation F
  • Direction Of Rotation ANTICLOCKWISE
  • Type Of Duty S1
  • Rotor Shaft SS410

adelino vertical multistage pumps

View Complete Details
Ask Latest Price & Details

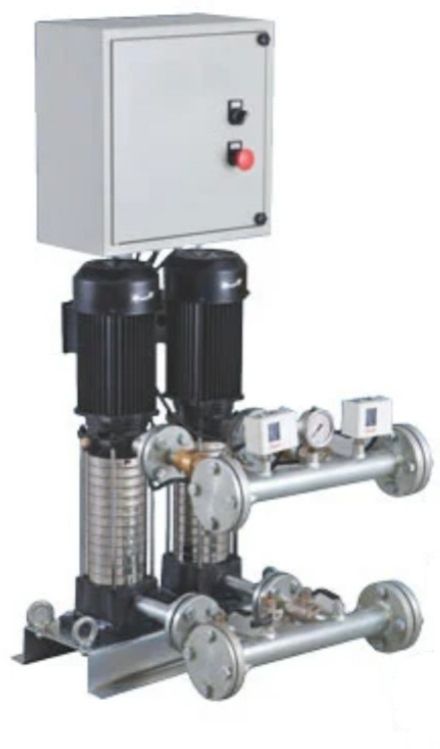

Pumping Systems

Pumping Systems
₹ 1.50 Lakh - ₹ 2 Lakh / Set Get Latest Price
  • Min. Order (MOQ) 1 Set
  • Number Of Flower Vertical Multistage Pumps
  • Condition New
  • Pressure 8 Bar
  • Power 5.5 KW
  • Material SS304 Impellers And Diffusers, SS 304
  • Surface Finishing Powder Coated Pump Body
  • Brand Name ADELINO / CNP
  • Packaging Type Wooden Box

ADELINO / CNP Pressure Booster Pump sets consist of 2 to 4 identical

Vertical multistage pump mounted in parallel on a common

Base frame, control cabinet with motor protection and integrated controller.

These Pumps are automatically operated according to the requirement by means of Pressure Switches (One for Each Pump)

The setting of Pressure Switches has to be optimal performance area of each pump model.

Automatic Operation of One or more pumps with VFD Control.

ADELIN0 / CNP HPN Booster Systems are supplied Complete Preassembled and Tested Systems including Suction and Discharge manifolds, isolating valves, non-return valves , Pressure Gauge and Pressure Switches.

To ensure stable operation the Hydro pneumatic Pressure Boosting systems must fitted with Suitable Diaphragm Tank .

Pressure Boosting Systems are designed for the transfer and

pressure boosting of clean water for community water supply,

apartment complex, hotels, hospitals, industries, commercial

buildings, schools.

ADELINO BLT SERIES VERTICAL MULTISTAGE PUMPS PERFORMANCE RANGE
Model BLT -2 BLT - 4 BLT - 8 BLT - 12 BLT - 16 BLT - 20 BLT - 32 BLT - 45 BLT - 64 BLT - 90 BLT -120 BLT -150
Rated Flow M/ Hr 2 4 8 12 16 20 32 45 64 90 120 150
Flow Range M/ Hr 1 - 3.5 1.5 - 7 5 - 11 7 - 16 8 - 20 14 - 28 16 - 40 25 - 55 30 -80 50 - 110 60 - 150 80 - 180
Max Pressure in Bar 23 21 21 22 22 23 27 28 22 16 17 16
Motor Power Kw 0.37 - 3 0.37 - 4 0.75 - 7.5 1.5 - 11 2.2 - 15 2.2 - 18.5 3 - 30 5.5 - 45 7.5 - 45 11 - 45 11 - 75 11 - 75
Max Efficiency % 45 57 62 63 66 67 70 74 75 76 75 76
DIN Flange DN25 DN32 DN40 DN50 DN50 DN50 DN65 DN80 DN100 DN100 DN125 DN125
Temperature Range STANDARD TYPE - 0 - 68 C , HOT WATER TYPE 0 -120 C

Additional Information:

Payment Terms : T/T

Packaging Details : Wooden Box

Delivery Time : Within 20 Days
