Our Product / Services
Our Complete range of products are Galaxy Light, Retrofit LED Light and Round and Square COB Down Light.
| Product Name | Product Code | Wattage |
Annual Power Consumption |
Maximum Lumens | Overall Dimensions in mm | ||
|---|---|---|---|---|---|---|---|
| Length /Dia | Height | Reflector Dia | |||||
| 7 Watt RGL Light | RGL 001 | 7 Watts | 20 KW | 630 lm | 80 | 28 | 70 Dia |
| 12 Watt RGL Light | RG L002 | 12 Watts | 35 KW | 1080 lm | 140 | 30 | 120 Dia |
| 18 Watt RGL Light | RGL 003 | 18 Watts | 53 KW | 1620 lm | 170 | 28 | 160 Dia |
| 7 Watt SGL Light | SGL 004 | 7 Watts | 20 KW | 630 lm | 81 x 81 | 28 | 73 x 73 Sq |
| 12 Watt SGL Light | SGL 005 | 12 Watts | 35 KW | 1080 lm | 138 x 138 | 38 | 122 x 122 Sq |
| 18 Watt SGL Light | SGL 006 | 18 Watts | 53 KW | 1620 lm | 180 x 180 | 40 | 160 x 160 Sq |

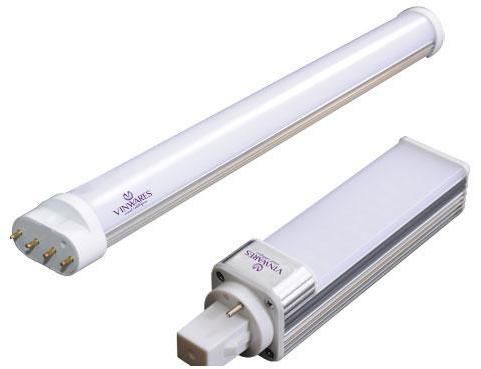

Designed to replace traditional 4 pin fluorescent lamps, used mainly in commercial spaces. Vinwares direct LED Retrofit Lighting offer high level of energy & maintence saving over fluorescent counterparts. They operate directly without the existing ballast and fit into same 4-pin sockets seamlessly, with no addtional wiring required.
Excellent efficacy (>90lm) and wide beam angle result in bright & glare free light.
| Product Name | Product Code | Wattage |
Annual Power Consumption |
Maximum Lumens | Overall Dimensions in mm |
Cutout Dimension |
|
|---|---|---|---|---|---|---|---|
| Length /Dia | Height | ||||||
| 05 Watt R COB DL | COS DL 001 R | 05 Watts | 16 KW | 450 lm | 90 | 60 | 82 Dia |
| 10 Watt R COB DL | COS DL 002 R | 10 Watts | 30 KW | 900 lm | 90 | 60 | 82 Dia |
| 05 Watt S COB DL | COS DL 003 S | 05 Watts | 16 KW | 450 lm | 92 | 65 | 84 Dia |
| 10 Watt S COB DL | COS DL 002 S | 10 Watts | 30 KW | 950 lm | 92 | 65 | 84 Dia |
