Testing Equipment #1353903

Gas Volume Tester

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Application Industrial Use
  • Pressure Range 0 - 4.2 kg/cm2 with 0 - 60 PSI
  • Maximum Height 400 mm
  • Least count 1 PSI
  • Thermometer Digital Type with dual output Deg. Centigrade and Farenheat
  • Material Of Construction Stainless Steel 304
  • Material of Construction of p. Gauge Complete Stainless Steel 304 and 316.

APPLICATION

Capitalizing on our vast industry experience, we offer a premium quality range of gas volume testers which is also known as carbonation tester. These testers are extensively used to measure several types of gas chambers, pet and glass bottles. Apart from this, these testers are also used to measure the amount of dissolved carbon dioxide in carbonated drinks. In any aerated drink making unit, these testers are essentially required. These testers are available in two primary form of glass bottles fitted with crown caps and PET bottles with plastic ROPP caps.

View Complete Details

Digital Compressibility And Recovery Tester

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Digital dials 0 to 10 mm X 0.001 mm least count or LVDT
  • Load cell 1500 N
  • Motor ½ hp 3 phase induction motor
  • Power requirements 500 W, 220 VAC single phases
  • Related Standard Astm F 36

Our Compressibility and Recovery Tester of Gasket Material Consist of an Anvil- A hardened and ground surface on which the sample is placed. There are a set of steel cylindrical shape penetrators of specified sizes and shape according to the material test (as per Table-1). There are two dials also mounted on the anvil for the measurement of the thickness of the test specimen at the time of preloading and the total load. There are two digital dials so that by taking the average value you can measure the accurate thickness. There is the software in the load monitor for the application of preload and major load for the specified period after that buzzer give the indication to note the dial gauge reading. Preload – A preload which shall include the weight of the penetrator itself and added weight of the penetrator itself and added weights to give the value specified within ± 1%. Preloads for various types of gasket materials are as shown in Table 1, unless otherwise specified.

There is a selector switch on the control panel for the setting of load conditions as given below.

  • Mode 1= pre-load 22.2 N & total load 1112 N
  • Mode 2= pre-load 4.4 N & total load 222 N
  • Mode 3= pre-load 4.4 N & total load 445 N
  • Mode 4= pre-load 4.4 N & total load 356 N

There are two process of movement of the penetrator that is manual and other is auto. For testing purpose as per modes always use auto mode and for the movement of the penetrator always use manual. In manual mode for up and down movement first of all press the rotary switch for the up or down position and than in manual mode. And for AUTO mode switch off the digital monitor then select the mode and change the penetrator as per requirements then switch on the digital monitor. For testing place the test specimen on the anvil and then press the push to test switch.



All the parts are either painted/powder coating chrome plating for corrosion resistance long life.

View Complete Details

Transparency Tester For Preform

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Measure Range 0 -100.0
  • Accuracy ±0.5
  • Power Supply 230 V, 50 Hz
  • Resolution 0.1
  • Measuring Unit %
  • Environment Temperature 5˚~50˚C

Description :-Transparency Tester is also called Light Transmittance Meter. This is used to check transparency rate in PET PREFORM. This is special designed for PET Preform.

View Complete Details

HDT Tester

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Display Type Digital
  • Phase single
  • Operating Current Single Phase
  • Distance between supports 100 mm
  • Temperature controller 0 – 150º C X 1º C
  • Measurement of deflection Dial micrometer of range 0 – 10 X 0.01 mm
  • Loadings By dead weight to give loads from 100 gm to 1600 gm in Step of 10 gm.
  • Related Standard Astm D – 1525 and Astm D – 648

The Apparatus for Temperature of Deflection under Load consists of a specimen support, an immersion bath, a set of weights under deflection –measuring device.The specimen support consists of a two parallel metal supports having rounded edges fixed at a specified distance on an aluminium frame. Load is applied on the test specimen midway between two supports. This block is fitted to the lower end of the vertical rod, which is guided inside a metallic sleeve and is constrained to move without rotating along a vertical axis. The upper end of the vertical rod carries a load carrying plate on which loading weight can be placed to load the test specimen. All the parts are made of aluminium having same co-efficient of linear expansion.

The immersion bath consists of a double walled reservoir having the  inner walls made from Stainless Steel sheet and outer walls made of mils steel sheet. The space in between the walls is filled with glass wool insulation. The liquid in the bath is heated by means of an immersion heater and the rate of rise of temperature controlled with the help of an electronic voltage regulator. A digital temperature controller is provided to restrict the maximum temperature of the bath.

The deflection of the specimen is measured with the help of dial gauge.

View Complete Details

Bursting Strength Tester Digital Model

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Capacity 0 to 50 kg/cm²
  • Least Count 0.1 kg/cm²
  • Opening in upper clamp 30.5 mm diameter
  • Opening in lower clamp 38.1 mm diameter
  • Rate of fluid displacement 95 cc/ minute
  • Test Fluid Glycerine
  • Gear Box Worm reduction type
  • Power required 220 VAC, 500 W, 50 Hz single phase

Bursting strength tester of any material such as fabric, leather, paper, paper board & corrugated box etc. Its strength under multi- directional force and is defined, as the hydrostatic pressure required producing rapture of the material when pressure is applied at a controlled increasing rate through a rubber diaphragm.



Bursting Strength Tester is designed to find bursting strength of fabric/leather/ paper/paper board & corrugated box. A test specimen is held between two annular clamps under sufficient pressure to minimize slippage. The clamping is done by hand wheel/screw arrangement or by pneumatic pressure with pressure gauge, solenoid valve and pressure regulator as per model. The upper clamping surface which is in contact with the test specimens has a continuous spiral grooves. A circular diaphragm of pure gum rubber is clamped between the lower clamping plate & pressure cylinder so that before the diaphragm is stretched by pressure underneath it the centre of its upper surface is below the plane of the clamping surface.



The equipment is fitted with a motor driven screw mechanism, which increases fluid displacement on the lower side of the diaphragm at a specified rate. The equipment is fitted with an arrangement, which automatically brings down the pressure and stops the motor on completion of the test cycle. A maximum reading type pressure gauge (or pressure sensor and digital indicator with peak hold and tare facility in digital model) gives the bursting pressure.





The equipment is raggedly designed to give a long & trouble free life. The components are brighter chrome plated or painted in metallic paint to give the tester an aesthetic appearance.



View Complete Details

COF Tester

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Material Plastic
  • Sled size 63.5 × 63.5 × 6 mm
  • Weight of sled 200 ± 5 gm
  • Speed of traverse of plane 150 ± 30 mm/min
  • Capacity 500 gm × 0.1 gm
  • Related Standard: Astm D 1894

COF tester –horizontal plane have a Sled of specified dimensions with a suitable eye screw fastened in one end for the holding to the load cell by a flexible nylon thread.

There is a moving plane which is polished plastic, of specified dimensions. A smooth, flat piece of glass covers the upper surface of the plane. This provides a smooth support for the specimen. The plane moved with the help of the motor.

The force is indicating on the digital display which indicates the frictional force.

All the parts are either painted or bright chrome platted for the corrosion resistance long life.

View Complete Details

De-mattia Flex Tester

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Power Source Electric
  • Application Industrial
  • Number of test specimens tested 6 or 12 (Six or Twelve)
  • Maximum opening between grips 75mm (adjustable)
  • Travel of reciprocating grip 57.15mm (adjustable)
  • Flexing frequency 300cpm
  • Motor ¼HP single phase 230 V AC
  • Related Standards Is: 13217: 1991

De-Mattia Flex Tester has a set of grips to hold test specimens in two tiers with their holding faces lying in the same vertical plane. Holding one end of the test specimen in a fixed grip and the other end in a reciprocating grip provides the flexing and unflexing action. The set of grip has two-fixed grip and one large reciprocating grip positioned between them in order to flex half of the test specimen while the other half is being unflexed. The reciprocating grip is slide on hardened and ground rods made of high carbon steel. The reciprocating motion is provided by an eccentric and linkage mechanism driven by an electric motor through V-belt and pulleys. A six digit electronic counter is provided for indicating the number of the test cycles undergone.

The equipment is build on a rigid fabricated base plate and finished in metallic painting and bright chrome/zinc plating to give it a corrosion resistant finish. Moulding dies for preparing test specimen, and jig and punch assembly for making initial crack in test specimen for crack growth test are available as optional accessories.

View Complete Details

Digital Torque Tester For Bottle Caps

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Type Torque Tester

APPLICATION

Torque Tester is used for Measuring Incremental / Removal torque of closures. Round / Square/ Rectangular /Oval Bottles / Jars can be held.



FEATURES

Adjustable posts effectively grip a broad range of container shapes and sizes. Flat and custom made jaws are available for unique profiles. A rugged aluminum and Stainless steel design and simple operation allow for use in laboratory and production environments.



View Complete Details

Digital Base Clearance Tester

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Type Digital Type
  • Condition New

APPLICATION:

The Base Clearance Gauge is specifically designed to measure the dome height in the bottom of PET containers. The Base Clearance Gauge comes complete with a high accuracy, digital readout with built-in port for serial communications. A see-through base ensures clear visibility as measurements are taken.

Used to measure the dome height in the bottom of the bottle

FEATURES

  • Reliable and simple to use
  • Thick acrylic base
  • Ideal for at-the-line measurements near the blow molder
  • Optimum functionality
  • Durable Finish
  • Longer functional life
  • Mitutoyo dial gauge with digital output is fitted for accurate results



View Complete Details

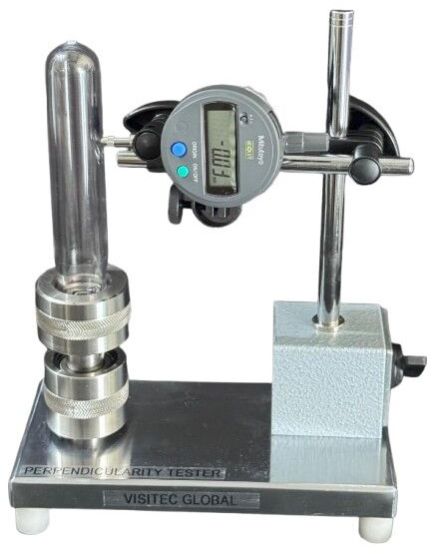

Digital Preform Perpendicularity Tester

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Type Perpendicularity Tester
  • Material Stainless Steel
  • Feature Durable, Easy To Use, Fine Finished, High Strength
  • Condition New

Preform Perpendicularity Gauge verifies that the body of a preform is perpendicular to the finish surface. A rigid stand, designed to hold preforms in position for accurate measurement, permits quick and easy identification of bent or out-of-round preforms. This gauge comes complete with a high accuracy, digital readout with built-in port for serial communications.

Preform Perpendicularity Tester is a consistent tool that helps the manufacturer in testing the perpendicularity of PET preforms. It is based on the principle to test the accuracy of the shape and size of preforms. Reliable and simple to use.



FEATURES

  • Optimum functionality
  • Easy and accurate readout
  • Comes with Zero Tolerance
  • Adjustable measurement operations
  • Repeatability in test measurements of preforms
  • Longer functional life
View Complete Details

Closure Concavity Tester

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Capacity 25.4 mm
  • Resolution 0.01 mm with digital indication
  • Display LCD
  • Indicator Mitutoyo Make
  • Base Plate Chrome plated ground finish base
  • Clamp Adjustable clamp

APPLICATION:

Closure Concavity Tester is useful for bottle closure. It is provided with digital gauge for more accurate measurements.

FEATURES:

  • Features LCD display support
  • Stainless Steel guide rod
View Complete Details

Drop Tester

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Power Source Electric
  • Drop Heights Maximum 2000mm
  • Drop Heights Minimum 500mm
  • Max. weight of the test package 60 kg
  • Max. size of the package Platform 600 x 600mm
  • Operation Motorized Up and Down

Essential for quality control and development for consumers of corrugated and solid fibre board, shipping containers, bottles, filled bags etc.

Drop test is intended for use in evaluating the capability of a container, corrugated box, filled bags, bottles and other similar items to with stand the sudden shock resulting from a free fall, or to evaluate the capability of these and its inner packing to protect its contents during the sudden shock resulting from a free fall. Drop test method may also be used to compare the performance of different package designs. This test method may also permit observation of the progressive failure of a these items and the damage to its contents.



OPERATION:

A box attached to a vertical column is provided with mechanism to release the resting table instantaneously. For easy adjustment of the drop heights this box is balanced by a counter-weight over a pulley. Package under test is placed on the resting table. By pressing the lever on the box, the package is allowed to fall on the platform at the bottom. The fall is straight and perfectly vertical. The machine is sturdy and easy to operate.



SALIENT FEATURES:

  • A precise and reliable machine
  • Sturdy in construction
  • Precisely machined to International Standards
  • Fitted with angular drop arrangement - for checking transport-worthiness from all angles
  • Costs less than half of the similar imported tester — saves valuable foreign exchange too.
  • Facility for corner drop
  • Optional Features: Pneumatic model and in various platform sizes also available as per requirement.
View Complete Details

Top Load Tester For Bottle

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Type Top Load Tester
  • Application Testing Load Capacity
  • Condition New

Top Load Tester is used for measuring vertical strength of bottle. Good strength avoids damage of bottles during stacking, Transportation, Storage and packing. Bottle Compression Tester is efficient and easy to use equipment intended for measuring the ability of bottle to resist external compressive forces. This method describes how to determine the resistance of a bottle to compressive forces. This is accomplished by placing the bottle between two flat platens, one of which is mechanically driven to compress the bottle. A recording device is incorporated to indicate the force required to compress the bottle. The method is used to compare the compressive resistance of different lots of similar bottles or to compare bottles of different grades.



The instrument is made in two parts, one is for main instrument and the other is the control panel. The ultimate test is to determining overall quality and performance of the bottles and jars. The instrument is bright chrome plating, zinc plating, painted in metallic paints. It is supplied complied with electrical which include micro-switches, Push buttons and contactors for safe and convenient operation.



In Computerized model, we provide the Window based software which gives the different measurement parameter and the graph. The report can be printout by using proper printer. The variable speed model speed is vary by a knob fixed on the panel and the speed also digitally indicated on the control panel of the instrument or by simply types the speed on the monitor of the computer. Different model have speeds suitable for testing different materials. Various built in safety arrangements such as over travel protection, are provided.

View Complete Details

Transparency Tester Ball Integration Type

  • Min. Order (MOQ) 1 Piece
  • Finishing Coated
  • Condition New
  • Resolution 0.1
  • Measuring Unit %
  • Environment Temperature 5˚~50˚C
  • Maximum Matrix Thickness 10mm
View Complete Details

Manual Type Drop Tester

1 /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Application Industrial Use

Drop test is intended for use in evaluating the capability of a container, corrugated box, filled bags, bottles and other similar items to with stand the sudden shock resulting from a free fall, or to evaluate the capability of these and its inner packing to protect its contents during the sudden shock resulting from a free fall. Drop test method may also be used to compare the performance of different package designs. This test method may also permit observation of the progressive failure of a these items and the damage to its contents.



SALIENT FEATURES:

  • a) A precise and reliable machine
  • b) Sturdy in construction
  • c) Precisely machined to International Standards
  • d) Costs less than half of the similar imported tester — saves valuable foreign exchange too.
  • e) Facility for corner drop



OPTIONAL

1. Range Available : Max. Drop Heights : 1000mm, 2000mm, 3000mm

2. Pneumatic Drop Feature



RELATED STANDARD

IS 7028 (Part VI) 1973

View Complete Details

Sole Adhesion Tester Digital Model

1 /piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Load Range 0 to 100 kg X 10 gm.
  • Lever Ratio 1:5
  • Curvatures of Toe Pieces 25, 30, 35, 40 and 45 mm.
  • Length of Contact Arc 22 mm
  • Power consumption 100 W
  • Power supply 220 V.AC – 50/60 Hz

The strength of adhesion of sole of a shoe to its upper is determined by measuring the force needed to pull off the sole from the upper. A suitable last is placed inside the shoe which is then placed on a straight edge acting as a fulcrum for applying load on the joint of the sole and upper. The maximum load the sole is able to withstand before coming off is determined and reported as the sole adhesion strength. This test can be carried out either at the heel or at the toe of the shoe.

Sole Adhesion Tester consists of a load cell and digital indicator to indicate the load applied at the junction of the sole and the upper, a lever arrangement to transmit the load exerted on the toe piece to the spring dynamometer, a straight edge fulcrum for resting the shoe on during the test, and a set of interchangeable toe pieces having different curvature.

The load indicator indicate the load applied on the joint directly in kilograms, taking into account the mechanical advantage of the lever transmitting the force from the toe piece to it. The indicator has the facility of peak hold and tare.

There is an screw arrangement to hold the shoe with last and have the arrangement to up and down movement (load application to the shoe) with the help of the motor, gear box, and screw arrangement.

The toe piece are five in number and having different curvature to enable toes and heels of different shapes and sizes to be tested. The length of arc of each toe piece, however, is the same to ensure that the load is applied only on a fixed length of joint. They are made from carbon steel for giving a long operational life. Any one of the toe pieces can be held in the equipment at one time.

The fulcrum on which the shoe is placed during the test has adjustable height to enable soles of different thickness to be tested. The height of the fulcrum is adjusted with the help of spacer strips provided with the instrument.

The instrument is finished in painting and bright chrome plating to give it a corrosion resistant finish.

View Complete Details
