Wires

We are leaders in the market for providing best range of Electrical Building Wires, co-axial cables, Single Core Flexible Cables, Automobile Battery Cables and Flame Retardant Low Smoke Cables

Electrical Building Wires

Avail from us, prime quality Electrical Building Wires, which are insulated with a special grade PVC compound. These Electrical Wires are widely used for wiring domestic and commercial buildings, owing to their qualitative features. Manufactured from bright annealed 99.97% pure bare copper conductors, our range of Electrical Wires have longer working life. Features :
Low conductor resistant
Saves power consumption
High insulation resistant
Long life
Used For :
Domestic buildings
Commercial buildings

Technical Specifications
Working voltageUpto 1100 VTemperature range-15^{o^{C to +70^{o^{C Sizes Available 0.75, 1.0, 1.5, 2.5, 4.0, 6.0 & 10.0 sq mmColor codesRed, Yellow, Blue, Black and Green (for earthing) SpecificationIS 694:1990ApprovalsFIATAC, ISI markedPackingIn 90-meter coils in attractive cartons}}}}
Specifications
Nominal area of Conductor NumberNom. Dia. of Wire Thickness of Insulation (Nom.) Approx. Overall Dia. Current carrying capacity * 2 cables, single phaseCurrent carrying capacity * 2 cables, single phase Resistance (Max) per Km.@20CSq. mmmmmmmmAmps.Amps.Ohms.1.014.30.72.8111218.101.522.30.73.1131612.102.536.30.83.818227.414.056.30.84.424294.956.084.30.85.031373.30* As per IS 3961 (Part V) - 1968.Standard Colors : Black, Red, Blue, Yellow, and Green (For earthing). Supplied in 90 metre lengths in attractive cartons.Conform to IS 694:1990. BIS Lincence no. CML - 0382242 and CML - 7306463

View Complete Details

Ask Latest Price & Details

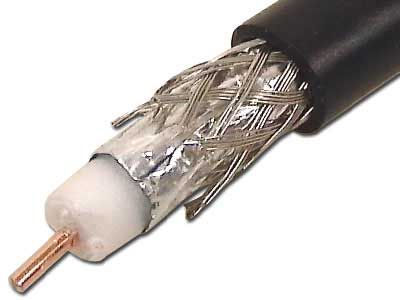

Co-axial Cables

We are engaged in manufacturing and supplying of Co-axial Cables in both domestic as well as international market. These Co-axial Cables are extensively used DTH / CATV Industry. Co-axial Cables offered by us, are known for their superior performance and easy installation among the buyers and have attracted them to place repeated orders for the same. Construction :
Central conductor is made of 99.97 % pure solid copper
Insulated with Nitrogen gas injected physical foam dielectric manufactured from imported polyethylene
Demanded For :
High tensile strength
UV resistant nature
Robust performance
Longer working life
Low loss of signal quality
Used For :
Transmission of Video and Audio signals
Multi channel application
Power pass application

Technical Specifications

Sizes RG 59, RG 6 and RG 11
Inner conductor Solid Copper
Insulation Gas injected physical foamed polyethylene
Flooding compound Jelly
Outer conductor Bonded Polyaluminum tape, braided with Aluminum alloy wires
Outer jacket UV resistant black PVC jacket
Marking Progressive sequential length marking on every meter
Packing 305 m on bobbins and 100m coils

Electrical Specifications

Cable Type RG 11 F RG 6 F RG 59 F
Inner Conductor - Max. Resistance (Ohm/Km)@ 20^oC 0.84 2.13 3.55
Inner Conductor - Loop Resistance (Ohm/Km)@ 20^oC 1.66 2.78 4.64
Nom. Capacitance (pF/mttr.) 53 53 53
Nom. Impedence (Ohm) 75 75 75
Nom. Velocity Ratio (%) 85 85 85
Nom. Attenuation @ 25^o(dB/100m)
@ 55 Mhz. 2.82 1.95 6.73
@ 83 Mhz. 3.87 6.20 8.04
@ 187 Mhz. 5.74 9.15 11.81
@ 211 Mhz. 6.23 9.50 12.47
@ 250 Mhz. 6.72 10.50 13.45
@ 300 Mhz. 7.38 11.50 14.60
@ 350 Mhz. 7.94 12.45 15.75
@ 400 Mhz. 8.53 13.30 16.73
@ 450 Mhz. 9.02 14.35 17.72
@ 500 Mhz. 9.51 14.95 18.70
@ 550 Mhz. 9.97 15.70 19.52
Structural return loss (dB/100m)
From 30 to 300 Mhz. >26 >28 >30
From 300 to 550 Mhz. >24 >22 >24
Bending radius, Min (mm) 75 65 65

Construction Specifications

Cable Type RG 11 F RG 6 F RG 59 F
Inner Conductor Solid Bare Copper Solid Bare Copper Solid Bare Copper
Nom. Dia. (mm) 1.63 1.02 0.80
Dielectric Foam PE Foam PE Foam PE
Nom. Dia. (mm) 7.11 4.57 3.55
Outer Conductor - FIRST Bonded Al Tape Bonded Al Tape Bonded Al Tape
Outer Conductor - SECOND Al Braid Al Braid Al Braid
Nom. Coverage (%) 60 60 60
Jacket PVC (Black) PVC (Black) PVC (Black)
Nom. Dia. (mm) 10.00 7.00 6.20

View Complete Details

Ask Latest Price & Details

Single Core Flexible Cables

Single Core Flexible Cables offered by us, are highly reliable cables used for various industrial applications. These Single Core Flexible Cables are available in varied grades and dimensions to meet the clients requisite. Features :
Low conductor resistant
Tough construction
Protect from any mechanical abuses
Optimum quality
Used For Wiring In :
Control panels
Machines
Electrical installations in small, medium and large industries

View Complete Details

Ask Latest Price & Details

Automobile Battery Cables

We bring forth Automobile Battery Cables that are appreciated for their qualitative features such as superior quality and high durability. These Automobile Battery Cables are manufactured as per international quality standards thus find application in various industries. Today, we are listed as the prominent Manufacturer and Supplier of Automobile Battery Cables from India. Special Features :
Low conductor resistant
Saves power consumption
Long life
High insulation resistant
Applications :
Telecommunication industry
Power industry
Computers
Wind energy farms

View Complete Details

Ask Latest Price & Details

Flame Retardant Low Smoke Cables

We are a renowned Manufacturer and Supplier of Flame Retardant Low Smoke Cables, which is fabricated from special PVC compound that ensure emit of less smoke and toxic hydrochloric acid gas. These Flame Retardant Low Smoke Cables have low conductor resistant resulting in power saving. Further, we offer Flame Retardant Low Smoke Cables at competitive prices. Salient Features :
Long life
Fire resistant
High performance
Optimum quality
Ideal For Wiring In :
Residential and commercial complexes
High-rise buildings
Hotels
Hospitals
Schools
Colleges

View Complete Details

Ask Latest Price & Details

Insulated Control Cables

We have specialized in the manufacturing of Insulated Control Cables, which are made of top quality PVC material. Our range of Insulated Control Cables is manufactured as per IS 1554 Part IBS 6346. These Insulated Control Cables are duly tested on various parameters of quality before the final dispatch. Avail, these Insulated Control Cables at affordable prices. Advantages :
Low conductor resistant
Saves power consumption
Long life
High insulation resistant
Available With Insulation :
XLPE - HR PVC
Inner & Outer Sheath
HR PVC, FRLS PVC, FR PVC
Applications :
Telecommunication
Transmission
Click Here For More Details

View Complete Details

Ask Latest Price & Details

Thermocouple Extension Cables

We are into offering superior quality range of Thermocouple Extension Cables, which is used for sensing the temperature. These Thermocouple Extension Cables are manufactured as per IS 8784, ANSI-MC 96, 1, B.S., ENI, DIN and as per customers specifications. Moreover, we offer Thermocouple Extension Cables at market leading prices. Appreciated For :
High durability
High strength
Resistivity to various non- supportive conditions
Optimum quality
Suitable For :
Indoor railway signaling cables
Outdoor railway signaling cables

Range

Extension Cables Conductor Material
Positive Negative
KX(NiCr/NiAl) Chromel Alumel
JX(Fe/CuNi) Iron Constantan
EX(NiCr/CuNi) Chromel Constantan
TX(Cu/CuNi) Copper Constantan
Compensating Cables
KX(A)/VX(NiCr/NiAl) Copper Constantan
SX/RX(PtRh-Pt) Copper Constantan

Standards Referred

Ansi MC-96.1 ENI-163.00 IS : 8784 B. S
Colour Code +ve -ve overall +ve -ve overall +ve -ve overall
Extension Cables
KX Yellow Red Yellow Red Green Green Brown Blue Red
JX White Red Black Red Blue Blue Yellow Blue Black
TX Blue Red Blue Red Black Black White Blue Blue
EX Purple Red Purple Red Violet Violet Brown Blue Brown
Compensating Cables
KX(A)/VX -- -- -- Red Green Green White Blue Red
SX/RX Black Red Green Red White White White Blue Green

View Complete Details

Ask Latest Price & Details

Instrumentation Cables

We are one of the leading Manufacturers and Suppliers of Instrumentation Cables Cables. Our range of low noise cables is manufactured in compliance with Indian and international standards. Instrumentation Cables offered by us are widely demanded due to their high durability and performance among the clients. Acclaimed For :
High durability
High strength
Optimum quality
Easy to install
Suitable For :
Micro processor based instrumentation plants
Projects related to Power, Fertilizer, Refineries, Oil & Gas, Steel, Pharmaceuticals, Chemical, EPC contractors
Engineering equipment

View Complete Details

Ask Latest Price & Details

Multi Core Flexible Cables

We offer superior quality Multi Core Flexible Cables that are manufactured in compliance with international standards. These multi core flexible cables are available in varied dimensions and specification to meet the clients specifications. Highlighting Features :
Low conductor resistance
Tough robust outer PVC jacket
Anti-abrasive
Long life
Provides electrical safety
Used For :
Wiring in control panels
Machines
Various electrical installations

View Complete Details

Ask Latest Price & Details
