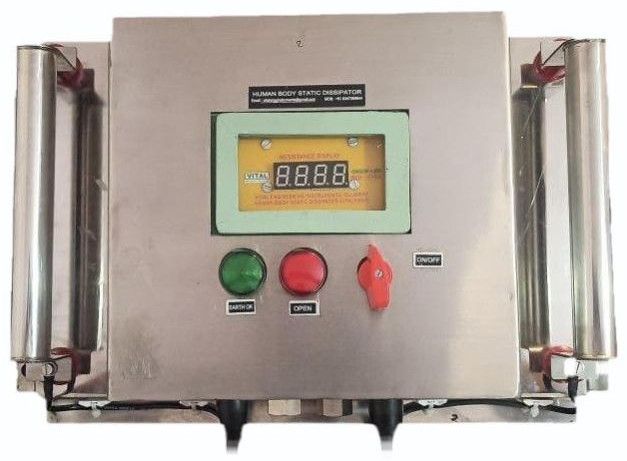

Vital Human Body Static Dissipater.
To discharge the static charge developed in human body to the ground, human body static dissipator provides complete solution, by measuring the resistance of human body and providing conductive path for static charge dissipation to earth. It ensures that, the human body resistance is below 1000K Ohms and safe from risk of spark generated due to static discharge, prior to entering into hazardous area.

INTRINSICALLY SAFE - Vital Human Body Static Dissipator with LAMP & Resistance Display Indication
We are engaged in offering this product to our clients. Our range Includes Human Body Static Dissipator for Discharging Static Electricity from Human Body.
By Grabbing the Touch Handles of the system the person can discharrge his/her body completely , Green Indication will light up upon Sucessful Static Discharge of the human Body
Available in Gas Group IIA IIB IIC(Optional), CIMFR or PESO
To discharge the static charge developed in human body to the ground, human body static dissipator provides complete solution, by measuring the resistance of human body and providing conductive path for static charge dissipation to earth. It ensures that, the human body resistance is below 1000K Ohms and safe from risk of spark generated due to static discharge, prior to entering into hazardous area.

Operation Principle

Human body static dissipator measures the resistance of human body and displays ‘Pass or Open’ depending on the measured value of resistance. It also provides path for static charge of the human body to discharge to earth. When human body has static charge, the resistance is typically above 1 Mega Ohm. When the human body is discharged the resistance falls below 1 Mega Ohm. When the resistance is above 1 Mega Ohm, the device displays ‘Open’. When the resistance is below 1 Mega ohm, the device displays ‘Pass’. A relay output contact is available which can be used for annunciation or interlock with the access door or gate to restrict entry of people only after static charge dissipation.

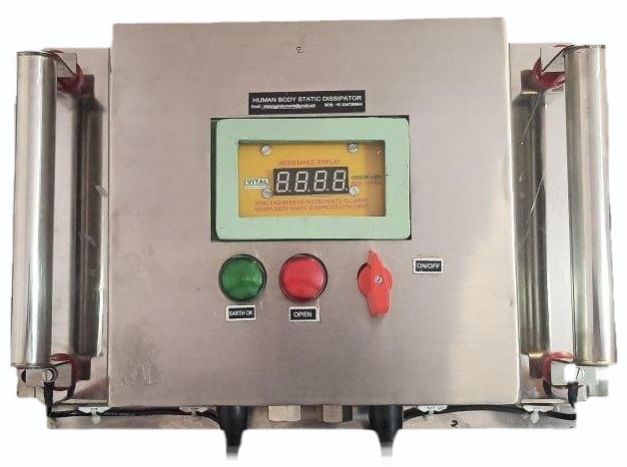

Human Body Static Dissipator

To discharge the static charge developed in human body to the ground, human body static dissipator provides

complete solution, by measuring the resistance of human body and providing conductive path for static charge

dissipation to earth. It ensures that, the human body resistance is below 1000K Ohms and safe from risk of

spark generated due to static discharge, prior to entering into hazardous area.

Operation Principle

Human body static dissipator measures the resistance of human body and displays ‘Pass or Open’ depending

on the measured value of resistance. It also provides path for static charge of the human body to discharge to

earth. When human body has static charge, the resistance is typically above 1 Mega Ohm. When the human

body is discharged the resistance falls below 1 Mega Ohm. When the resistance is above 1 Mega Ohm, the

device displays ‘Open’. When the resistance is below 1 Mega ohm, the device displays ‘Pass’. A relay output

contact is available which can be used for annunciation or interlock with the access door or gate to restrict

entry of people only after static charge dissipation.

Technical specification

Power supply - FLP 230 V AC

Type of Ex protection Ex”d”

Temperature Class T4/T6

Interlock contact YES – 02 NO/NC

Display Resistance Display

LAMP Green – Healthy Discharge

Red – OPEN or Not Discharged

Present resistance value 750K-1 M ohm

Mounting Wall mounting

Handles Test & Ref. Ground handle/Plate – SS304

Power On/Off switch 06 Amp

General Flame Proof Enclosure Specifications

Flame proof (Explosion proof) Ex-d

Area Classification Zone 1 & 2

Gas Groups IIA IB IIC(Optional)

Material Touch handles SS304, SS316(Optional)

Temperature Class T6 (85 deg.C)

INTRINSICALLY SAFE - Vital Human Body Static Dissipator with LAMP & Resistance Display Indication
We are engaged in offering this product to our clients. Our range Includes Human Body Static Dissipator for Discharging Static Electricity from Human Body.
By Grabbing the Touch Handles of the system the person can discharrge his/her body completely , Green Indication will light up upon Sucessful Static Discharge of the human Body
Available in Gas Group IIA IIB IIC(Optional), CIMFR or PESO
To discharge the static charge developed in human body to the ground, human body static dissipator provides complete solution, by measuring the resistance of human body and providing conductive path for static charge dissipation to earth. It ensures that, the human body resistance is below 1000K Ohms and safe from risk of spark generated due to static discharge, prior to entering into hazardous area.

Operation Principle

Human body static dissipator measures the resistance of human body and displays ‘Pass or Open’ depending on the measured value of resistance. It also provides path for static charge of the human body to discharge to earth. When human body has static charge, the resistance is typically above 1 Mega Ohm. When the human body is discharged the resistance falls below 1 Mega Ohm. When the resistance is above 1 Mega Ohm, the device displays ‘Open’. When the resistance is below 1 Mega ohm, the device displays ‘Pass’. A relay output contact is available which can be used for annunciation or interlock with the access door or gate to restrict entry of people only after static charge dissipation.

INTRINSICALLY SAFE - Vital Human Body Static Dissipator with LAMP & Resistance Display Indication
We are engaged in offering this product to our clients. Our range Includes Human Body Static Dissipator for Discharging Static Electricity from Human Body.
By Grabbing the Touch Handles of the system the person can discharrge his/her body completely , Green Indication will light up upon Sucessful Static Discharge of the human Body
Available in Gas Group IIA IIB IIC CIMFR / PESO
To discharge the static charge developed in human body to the ground, human body static dissipator provides complete solution, by measuring the resistance of human body and providing conductive path for static charge dissipation to earth. It ensures that, the human body resistance is below 1000K Ohms and safe from risk of spark generated due to static discharge, prior to entering into hazardous area.

Operation Principle

Human body static dissipator measures the resistance of human body and displays ‘Pass or Open’ depending on the measured value of resistance. It also provides path for static charge of the human body to discharge to earth. When human body has static charge, the resistance is typically above 1 Mega Ohm. When the human body is discharged the resistance falls below 1 Mega Ohm. When the resistance is above 1 Mega Ohm, the device displays ‘Open’. When the resistance is below 1 Mega ohm, the device displays ‘Pass’. A relay output contact is available which can be used for annunciation or interlock with the access door or gate to restrict entry of people only after static charge dissipation.

Vital Human Body Static Dissipator wit LAMP Indication
We are engaged in offering this product to our clients. Our range of all products is widely appreciated by our clients.
