In the consumer products industry, the Vertical Form, Fill, and Seal (VFFS) machines are the quintessence used for a wide variety of packaging applications. VFFS machine is extensively used for the packaging of dry food products like sugar, flour, spices, cereals, pulses, assorted mixtures, namkeen, popcorn, rice, corn, puffed rice, edible oil, etc. VT Corp VFFS machine is the epitome in the flexible packaging due to its quality, service life and sophistication which offers high speed, high accuracy and efficient flexible packaging of a wide variety of consumer or retail products be it in any form such as powder, granules, liquid, paste, etc. The machine forms the pouch out of a heat sealable laminate roll, while simultaneously filling the pouch bags with the product by the help of suitable filler (dosing) and sealing the filled pouch bags. The vertical sealing mechanism remains in contact with the pouch film continuously so that the film does not need to stop to receive its vertical seam. After this, a heated sealing jaws come together to make the top sealing of one bag and the bottom seal of the next bag thus making it a continuous motion machine. Once the material is filled completely in the pouch bags, a sharp knife inside the heat seal jaws moves forward and cuts the bags. The jaw opens and the packaged pouch bag drops down into the take-up conveyor

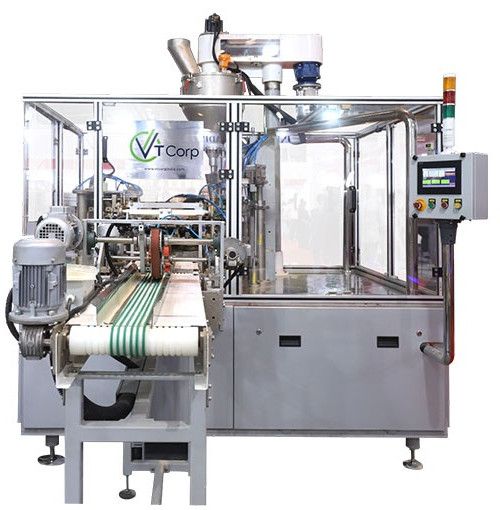

The VT CORP Rotary Pick-Fill-Seal (PFS) Packing Machine is the perfect solution for all types of premade bags, irrespective of their shapes and sizes. These machines can streamline your operations and increase output. The machine is sturdy and compact, and easy to clean and maintain. VT Corp developed a sophisticated kind of packaging technology that enables various fillers to disperse various sorts of materials in a single pouch. The machine is available with 3 types of filling system: Auger FillerCup FillerMulti Head WeigherPiston FillerModels: SimplexDuplex

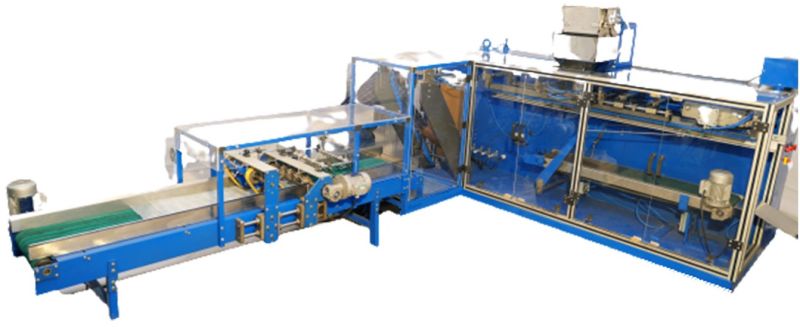

Linear pick fill Machine- is specially designed to pack wide variety of powdered, granule & Liquid form products in pre-formed pouches in quantity. The machine is available with 3 types of filling system: Auger FillerCup FillerMulti Head WeigherPiston Filler

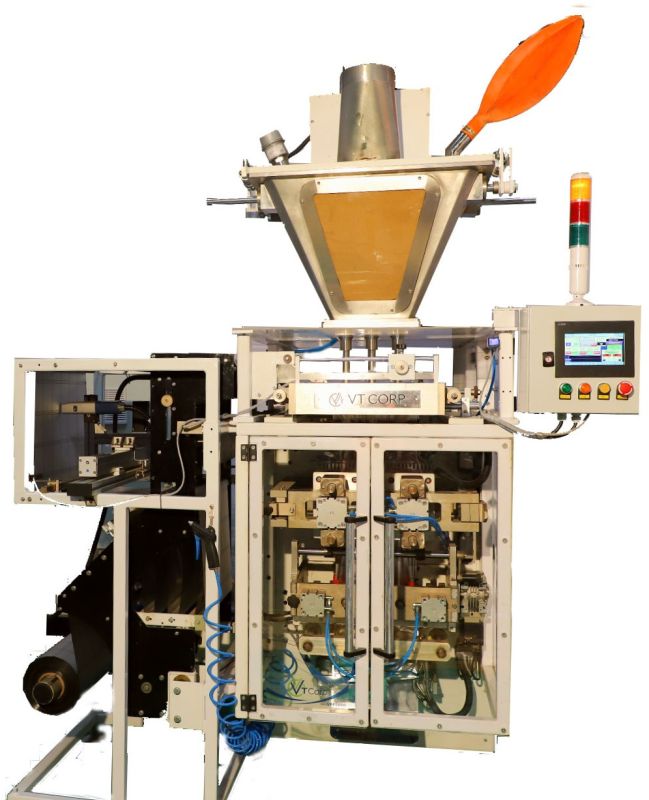

With more than 50 years of expertise in Weighing and bagging machines, VT Corp offers Multi Lane VFFS machine used in packaging of 4 side seal pouch sachets in multiple lanes. Avaiable in 2 lanes to upto 9 lanes depending upon the pouch width. It has a right mix of quality, service life and sophistication due to its reliable design and versatility. VFFS is a Vertical Form Fill Seal packing machine offers speed, accuracy and efficiency for flexible packaging of a wide variety of snacks, granules, powders & Liquid. Types of Filling : Cup Filler 2. Auger Filler 3. Multihead weigher 4. Piston Filler 5. Counting Mechanism 6. Combi Feeder 7. 14 Head Net WeigherTypes of Bagger : 300, 600, 900, 1200Seals Available : Centre, 3 Side, 4 Sides, Gusset, Side Gusset, Penta SealType of Sealing : Impulse Thermal Sealer, Continuous Thermal SealingVFFS Multi-Lane :Available in 4 Side Seal Pouches 2. Available in 2-9 lanesAvailable in 3 Side Seal, Center Seal Pillow PouchFor 3 Side Seal 2 Pouches Per TrackFor Center Seal Pouch Single Pouch Per TrackType of Sealing : Impulse Thermal Sealer, Continuous Thermal SealingSpeed : 70 bag/min for 1kg

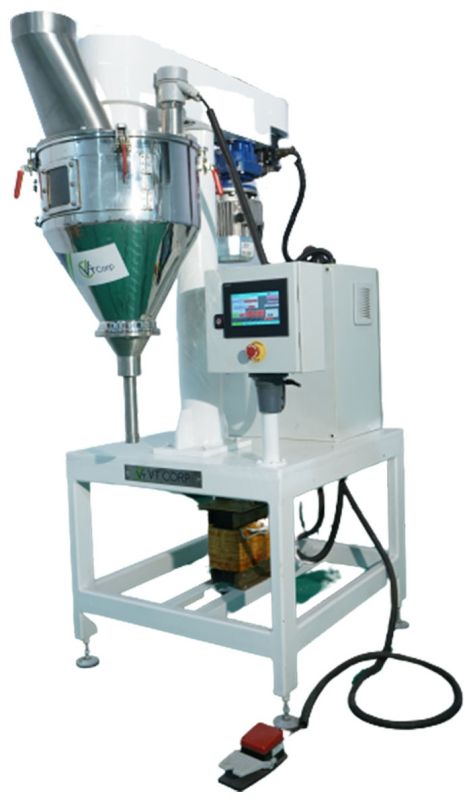

The VT Corp Auger Filler is a vertical screw feeder based on the volumetric feeding principle which propels the material by its accurate number of rotations controlling the feed volume with the help of servo motor. Agitator is an essential part of this filler to keep the material uniform by maintaining its bulk density. Auger screw and the Agitator speed can be set from HMI (Human Machine Interface). Also, the number of rotations of the screw can be set from HMI to get accurate filling of the material in volume. It is most widely used in packaging of non- free flowing products.

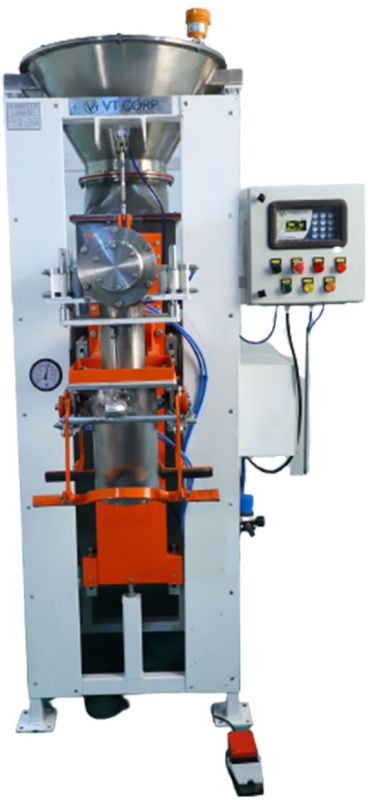

The VT CORP Electronic Screw Packer Model VTC-PMT is a stationary bagging machine and Screw Packer Open Mouth Bag Packing/Filling Machine for packing difficult-flowing powdery bulk materials into open mouth bags with a simultaneous weighing of the bulk material from 05 to 50 Kg. The specially designed screw feeder carries material uniformly & has a very large inlet to prevent arching / bridging normally occurring in the inlet neck portion. It has agitating & conditioning screws on the same shaft to ensure smooth and uniform flow material. The 3-speed controller rotates the screw in 3-speeds-coarse, fine & superfine to ensure very high accuracy in filling. VTC-PMT is also available in Multi Head Net Weigher

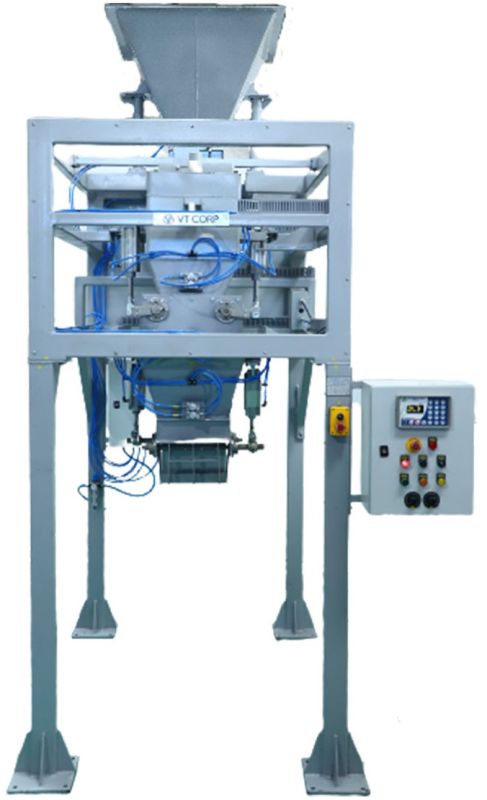

The VT CORP Electronic Packer Model "VTC-GFPN" is a gravity feed packer specifically for Sponge Packing and granular products. The GFPN is a stationary open-mouth bag filling machine that weighs bulk material from 20 to 50 kg at the same time. The bulk material is passed through the double weigh into a bag with coarse and fine and super fine flow control. The net weigher has a high discharge rate with very high accuracy on account of variable feeding speeds. We created a microprocessor-based controller for filling and weighing units on packers.

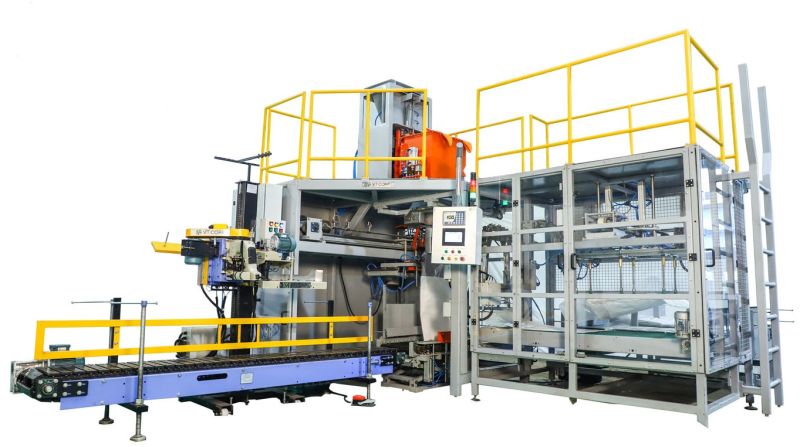

The Automatic Pick Fill Sealing Machine and Pouch Packing Machine is used for filling various types of solids and powders. The machine works automatically in picking, filling, and sealing of open Mouth Bags. It offers flexibility of using specific products with customized feeders. We have customized the machine to pack all type of Powder & Granules material and currently worked for a Dry Wall Putty in Open Mouth Bags with the help of a robotic arm to pick the bags as a primary operation and then fill the material followed by stitching/sealing the bags which makes the machine fully automated, to make this process dust free for the good working environment we have provided a bag filter mechanism with the machine.

The VT CORP Electronic Packer Model VTC-VIP is a stationary valve type bag filling machine for packing easy-flowing powdery bulk materials into valve bags with a simultaneous weighing of the bulk material from 20 to 50 Kg. The bulk material is passed through a filling impeller into a valve bag with coarse and fine flow control. Simultaneous weighing of the filling process (gross system) ensures very high output of each filling station. The machine comes with a bag resting on a saddle during filling. It is therefore possible to use paper bags with only two layers without special valve reinforcement. We created a microprocessor-based controller for filling and weighing units on packers, and as the first to launch the electronic stationary packer, we have played a significant role in that evolution.

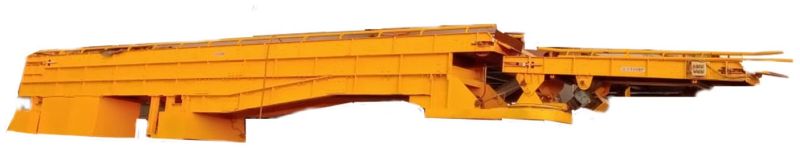

A compact, efficient, cost-effective, and automated system that loads bags in layers straight into trucksEnable bags to be put directly into the truck/cargo bed from the packaging machine's belt conveyorLoading @ roughly 2400 bags per hourIdeal for 24 ft., 32 ft., and 40 ft. vehicles, as well as practically any style of bagIncreases loading capacity as well as reduces time and manpowerMinimizing loading, waiting, and delivery timesAutomatic Truck Loaders Machine In IndiaAutomatic Truck Loading System by VT Corp provides benefits to the Users from reducing loading and idle time, minimal man-power, high loading capacities, greater operator safety and user friendly operation. Automatic Truck Loading System have become an Ideal solution in global market for improving agility and safety during loading bags at dispatch process. The more dispatch an industry has, the greater will be the flow of goods i.e. the number of trucks that enter and leave will be greater. Practically, it usually takes about 45 to 60 minutes to load a truck manually (considered 600 bags of 50 kg), depending on the type of products and their weight. By using Automatic Truck Loading System, this operation could be reduced to under 15 to 20minutes.

Jumbo Bag Packings/Filling Machine is used for dust-free and efficient filling of large bags and FIBCs. It is suitable for all types of Bulk Bag Packing Machine for bulk solids (granules, powder, pallets, and flakes) and can be equipped with a variety of dosing feeders depending on the product's characteristics. The Jumbo Bag Filling Machine's operation is planned to completely fill the bags with material, leaving no empty pockets or areas of aerated material. This indicates that the bag is sturdy, won't deform, and is simple to handle and stack. Additionally, it refers to using the entire volume of the bag. The huge bag is attached to the machine by the operator, who then raises its top spout to fit the filling spout. The pneumatic cylinders raise the bag. For bag inflation, the butterfly valves position themselves. The bag is raised and lowered by a pneumatic cylinder to ensure even filling and the absence of any empty pockets. Dual purpose fan - the Centrifugal fan which is used for both bag inflation and for dust extraction. Butterfly Valves provided on the ducting change their position automatically. Types of WeigherNet WeigherGross WeigherMulti Head Net Weigher

The VTC Weigh Feeder is ideal for continuous operation or burst operations where accurate volume or weight control of feeders is required. Compact, robust and reliable, the VTC Weigh Feeder is an excellent choice for a wide range of bulk solids applications. Designed for maximum efficiency and productivity, its unique design offers many advantages over traditional bulk solids processing methods; such as easy access to product supply and control, low wastage, and improved quality due to reduced product blending.
