LOW PRESSURE CAPSULE GAUGE Capsule Pressure gauges are designed for measuring low/very low pressures and vacuum. The pressure medium needs to be gaseous. The capsule consists of two diaphragms joined and sealed around their circumference. Several such capsules may be combined to enable measurement of very low pressures. Our range of capsule starts from Min 0-100 MMWC to Max 0-10, 000 MMWC. Absolute pressure gauges are also available as per the range desired by client Technical Specification For MMWC, M BAR GAUGE, TORR GAUGE Dial Size 63mm, 100mm, 150mmScale Range 0 all measuring units to scale low vacuum, pressureAccuracy 1.0% of FSDCase & Ring AISI 304 SS (BAYONET LOCK TYPE)Bourdon & Socket AISI 316 SSMovement AISI 304 SSDial Aluminium Pointer, black graduation on white backgroundPointer Aluminium, micro zero adjustmentWindow Plain / Toughened Glass Protection Weatherproof IP 65, SAFETY PATTERN GAUGE TO EN871Mounting Bottom, Surface, Back, Panel with 3 holesPressure Element Capsule AISI 316 SSThread Connection 1/4", 3/8", 1/2" BSP & NPT Application GAS FLOW, CNG / LPG GAS LINES, Burner monitoring, Gas production, Medical Applications

YASH INDUSTRIAL VACUUM GAUGE (HEAVY DUTY VERSION) - (YVG) Technical Specification - STANDARD VERSION Accuracy 1% of FSDOperating Pressure 75 % of the Scale Value Over pressure limit 30% of F.S. Case & Bezel Die-cast aluminum weather proof stove enamel black finished case & bezel to ensure IP-55 as per IS-2147 suitable for use outdoor application without any additional protection. Dial & Scale Dial will be made of suitable material black figure on white background with anti-corrosive finished scale and marking over an arc of 2700 confirming to BS-5235 non reflective and marking as per IS-3602. Joints Tig Argon Arc WeldingBourdon AISI 316 SSSocket AISI 304 SSMovement AISI 304 SS Pressure Element Bourdon Tube Range AnyPointer Aluminum, black coloured, Zero adjustableWindow Plain / Toughened Glass Thread Connection 1/2" BSP / NPT MMounting Bottom Application: ANY TYPE OF INDUSTRY ESPECIALLY CHEMICAL / PHARMACEUTICAL INDUSTRIES

Diaphragm sealed gauge are designed & recommended to isolate the measuring system of a pressure gauge from corrosive, pasty or dangerous fluid depending on the viscosity, pressure, vacuum, solidification of a particular process medium. The diaphragm is argon arc welded to the top chamber to ensure a perfect selling "No LEAK". The welded construction facilitates removal of the gauge for repair/service without process shut down. They are also ideal for low pressure measurement of dry and gaseous media, commercial heating, level measurement, gases distribution & filtration system CHEMICAL SEALED DIAPHRAGM GAUGE Technical Specification Scale Dial 100mm, 150mm, 250mm Scale Range 0 all measuring units to scale pressure, vacuumAccuracy 1.0% of FSDCase & Ring AISI 304 SS (BAYONET LOCK TYPE)Joints Tig Argon Arc WeldingElement Diaphragm AISI 316 SS / AISI 316 SSL/ Monel / Teflon CoatedFlanges AISI 316 SSMovement AISI 304 SSAll wetted parts AISI 316L SSBourdon & Socket AISI 316 SSProtection Weatherproof IP 65, SAFETY PATTERN GAUGE TO EN871Dial Aluminium Pointer, black graduation on white backgroundPointer Aluminium, micro zero adjustmentWindow Acrylic / Toughened Glass Thread Connection 3/8", 1/2" BSP & NPT Threads M-20 Flanged connection Mounting Bottom, Surface(OPTIONAL) LIQUID FILLING, ELECTRIC CONTACT Applications:Chemical & Petrochemical, Plastic & paper, Pharmaceutical, water treatment

DIGITAL TEST GAUGE YG 309 Technical Specification -STANDARD VERSION: 100mm High resolution Imported Sensor gaugeMedia: Air/ Gas / Liquid With any media that will not adversely affect SS 316Measuring Units: Selection of 8 types Engineering Units (Kg/Cm2, Bar, PSI, KPA, MMWC, MM Hg, IN WC, IN HG) Display: 5 Digit LED Display 15mmMin/Max Capture, On / OFF, Zero adjustment Accuracy 0.1% of FSDCase Aluminum Anodize 100mm, Internal Working Complete SS Internal PartsThread Connection 1/4" BSP Mounting Bottom Power Supply 7.5 VDC (1.5V X 5No Alkaline) Duracell type MN 1500 Battery Life 1000 HoursTemperature Storage -10 to +50 Degree Celsius, Alongwith Calibration Certificate For YG 309 ModelFor Range: (-) 1 to 700 bar

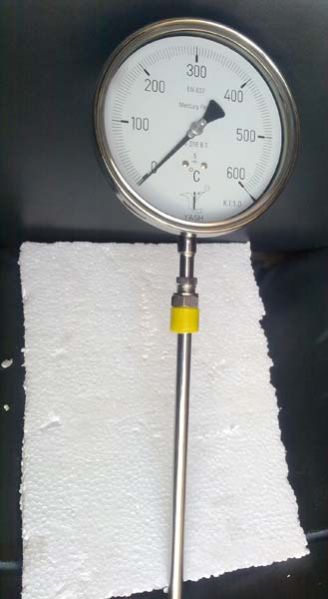

YASH MERCURY FILLED TEMPERATURE GAUGE WITH CAPILLARY (YETG)Technical Specification -STANDARD VERSION: 100mm MFG Standard ASME B40Accuracy 1 % of FSDOver limit temperature 15% of full scale range or 600C whichever is minScales C (standard), F, Dual Scale C/F Construction Housing Cylindrical Open FrontCase & Ring AISI 304 SS, Snap Action Bayonet typeZero Adjustment Micro Zero Adjustable Joints Tic Argon Arc WeldingProcess Connection AISI 316 SSStem & Shaft AISI 316 SSCapillary 3 way micro bore SS 304 Capillary Pressure element Mercury liquid Protection IP 65, Accuracy Class 1 as per EN13190Dial Aluminum, black graduation on white backgroundPointer Aluminum, black colouredThread Connection 1/2" BSP M Mounting BottomWindow Plain Glass

One of the most versatile & widely used devices for gauging temperature applications. With mercury gas in element & entire internal assembly of aisi 316 giving accurate 1% fsd accuracy in cf. Heavy duty all ss export quality industrial temperature gauge

We offer electric contact gauges.used for control of pressure audible visible alarms. Choice of low action normal contact, snap action magnetic contact or inductive contact, adjustable with different mode of switching action

High class complete heavy duty Stainless steel gauge with internals of AISI SS316 as per safety pattern standard of EN 837 used for regular & frequent gauging of pressure & vacuum measurement. Export quality industrial gauge with heavy dial physical thickness.

Applied industries:Food, Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers, Beverages, Chemical / Pharmaceutical Industries.

Accurate Economical complete Stainless steel gauge with internals of AISI SS316 as per safety pattern standard of EN 837 used for regular & frequent gauging of pressure & vacuum measurement. Export quality industrial purpose

Applied industries:Food, Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers, Beverages, Chemical / Pharmaceutical Industries.

Liquid filled complete heavy duty Stainless steel gauge with internals of AISI SS316 as per safety pattern standard of EN 837 used for regular & frequent gauging of high required pressure & vacuum measurement. Export quality industrial purpose with heavy dial physical thickness

Applied industries: Food, Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers, Beverages, Chemical / Pharmaceutical Industries.

For vacuum to pressure measurement - Heavy duty Stainless steel gauge with internals of AISI SS316 as per safety pattern standard of EN 837 used for regular & frequent gauging of pressure & vacuum measurement. Export quality industrial purpose

Applied industries: Food, Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers, Beverages, Chemical / Pharmaceutical Industries.

Diaphragm sealed unit with pressure element made of AISI 316 diaphragm as per safety pattern standard of EN 837 with no LEAK used for regular & frequent gauging of low pressure & vacuum measurement. Heavy duty Diaphragm gauge with top & bottom chamber of all SS. Export quality industrial purpose

Applied industries:Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers, Beverages, Chemical / Pharmaceutical Industries, Plastic & paper, water treatment

Compact capsule type Diaphragm sealed unit with pressure element made of AISI 316 diaphragm as per safety pattern standard of EN 837 used for regular & frequent gauging of pressure & vacuum measurement. Export quality industrial purpose

Applied industries:Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers, Beverages, Chemical / Pharmaceutical Industries, Plastic & paper, water treatment

Diaphragm sealed gauge with Top & Bottom sealed unit made of AISI 316 Diaphragm. This gauge gives way to measure pressure when viscous liquid gets stuck & allows resistance for highly aggressive liquids in paper & pulp applications

Applied industries:Paper & Pulp industries, Chemical / Pharmaceutical Industries

Schaffers Diaphragm type gauge with sealed unit of bottom chamber of AISI 316 diaphragm are used for gauging of highly aggressive & viscous liquid pressure.

Applied industries:Petrochemical, Power, Energy, Thermal, Chemical / Pharmaceutical Industries

Available in brass & SS internals for measurement of NH3 Ammonia gas with concentric temperature scales. Utility gauge for commercial & industrial use, as per customer requirement

Applied industries:Fisheries, Ice-Plants, Chilling Plants, Cold Storages, Breweries, Milk Dairy Plants

Available in complete SS internals for measurement of concentric temperature scales for R-12, R-22, R-502, R-134A, R-404A applications. Utility gauge for commercial & industrial use, as per customer requirement

Applied industries:Refrigeration, Ice-Plants, Chilling Plants, Cold Storages

High accuracy 0.25% FSD gauge for testing & calibration applications - completely made of High quality AISI 316 internals for gauging pressure & vacuum measurement. Tested against Dead weight testers & supplied along with calibration certificate. Export quality industrial purpose

Applied industries: CALIBRATION / TESTING IN LABORATORY, FITS AT VARIOUS PROCESS INDUSTRIES

High accuracy 0.50% FSD gauge for testing & calibration applications - completely made of High quality AISI 316 internals for gauging pressure & vacuum measurement. Tested against Dead weight testers & supplied along with calibration certificate. Export quality industrial purpose

Applied industries:CALIBRATION / TESTING IN LABORATORY, FITS AT VARIOUS PROCESS INDUSTRIES

Range of draught gauges starts from Min 0-50 (-25 to +25) MMWC

Applied industries:Vacuum Applications, Gas Flow, CNG / LPG Gas Lines, Burner monitoring, Gas production, Medical Applications

High concentrated gauge for gauging applications with high pressure & viscous liquids where no leakage has to be maintained. Liquid filled Export quality industrial purpose

Applied industries:Pharmaceutical, Plastic & Paper, Chemical, Dairy, Milk Industries

High concentrated gauge for gauging applications with high pressure & viscous liquids where no leakage has to be maintained. Export quality industrial purpose

Applied industries:Petrochemical, Power, Chemical / Pharmaceutical Industries

These gauges are intended for measuring the pressure differential existing across two media or two parts of a system. The pressure element separates the two pressurized media, and deflects proportional to the difference in pressures between the media, irrespective of the absolute pressures applied. This deflection is converted into the rotation of a concentric pointer on a dial, similar to regular pressure gauges. The absolute value of either of the pressures is not usually indicated

Our gauge has been widely accepted by many OEMs around the world. Even after comparisons from other Asian & European companies- our clients has really appreciated the interegated technical workmanship & the ground quality we supply them. We can assure you the best quality & with economical pricing. They are portable battery operated which comes in leather case and are designed for harsh conditions.

To measure temperature at a long distance or where the application is difficult to gauge, AISI 316 Capillary with armor is attached to the mounting to allow mercury / gas in element to measure temperature in C/F. Heavy duty ALL SS Export quality industrial Temperature gauge

Applied industries:Petrochemical, Power, Energy, Thermal, Chemical & Petrochemical, Plastic & paper, Air conditioning Food and beverages

1.Bimetal temperature gauge is one of our most popular temperature measuring instruments. Rugged & reliable. This kind of temperature gauge works on the principle of solid expansion and it consists of a bimetal strip. As the temperature changes, the bimetal expands in return and helical bimetal rotates at its free ends, thus turning the pointer to a new position on the dial

Commonly used to measure through Bi-metal strip element to measure temperature in C/F. With 2% accuracy & low priced temperature gauge. Export quality industrial Temperature gauge

Applied industries:Petrochemical, Power, Energy, Thermal, Chemical & Petrochemical, Plastic & paper, Air conditioning Food and beverages

Edgewise DRAUGHT GAUGES We specialize in the production and export of draught gauge. It is used in different industries and is available with us in standard as well as customized options, as per our clients specifications. Edgewise vertical shaped draught gauges are designed for measuring low/very low pressures & vacuum. Our range of draught gauges starts from Min 0-50(-25 to +25) MMWC. Technical Specification Dial Size 166 x 48 mm, 200 x 104 mm , 150 x 78mmScale Range 0 all measuring units to scale low vacuum, pressureAccuracy 1.6% of FSDCase & Ring AISI 304 SS, Black powder coatedJoints Tig Argon Arc WeldingWetted parts AISI 316 SSMovement AISI 304 SSEnclosure Pressed steel weather-proof to IP-65, of self enameled Grey finish. Mounting Flush panel with back entry Connection size , 1/2 NPT (M) compression fitting type Standard fitment External zero adjustment Dial Black graduation of white backgroundWindow AcrylicPointer Aluminium Black coloured externally zero adjustableGasket Neoprene
