Elevators

Our Complete range of products are Mild Steel Bucket Elevator, Chain Elevator and Bucket Elevator.

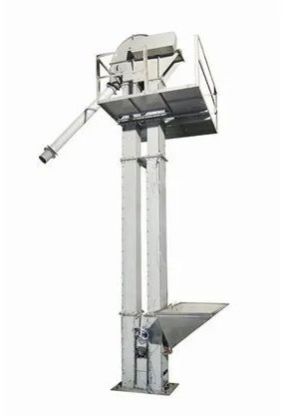

Mild Steel Bucket Elevator

Certification ISO 9001:2008
Country of Origin India
Material Mild Stee
Capacity 1 TPH To 50 TPH
Lift Height Up To 30 Meters
Number Of Flower Bucket Elevators
Drive System Belt Or Chain
Motor Type Geared Motor
Components Inlet Hopper, Boot Section, Head Section, Intermediate Casing
Safety Features Anti-reverse Mechanisms, Belt Tracking Sensors, Overload Protection

The structure is fabricated using powder-coated or painted mild steel channels and sheets, with a rugged casing to contain the belt and buckets. The buckets are made of mild steel or reinforced plastic depending on the material type. The elevator typically operates using a belt or chain drive system, powered by a geared motor and pulley arrangement. Capacities can range from 1 TPH to 50 TPH or more, with lifting heights up to 30 meters. The system includes an inlet hopper, boot section, head section with discharge chute, and intermediate casing. Safety features include anti-reverse mechanisms, belt tracking sensors, and overload protection. The design allows for easy inspection and maintenance, with access doors at key sections and optional dust-tight enclosures for cleaner operation.
