Our Products
Our offered Product range includes Crane Rail EI 80 X 100 Hydraulic Buffer for Overhead Cranes, Hydraulic Buffer EI50x100 and Industrial Hydraulic Buffer.

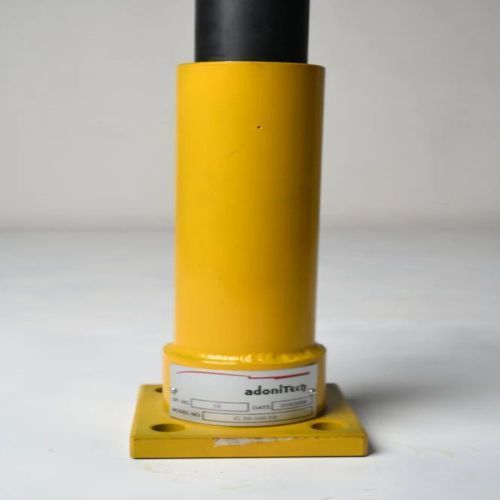

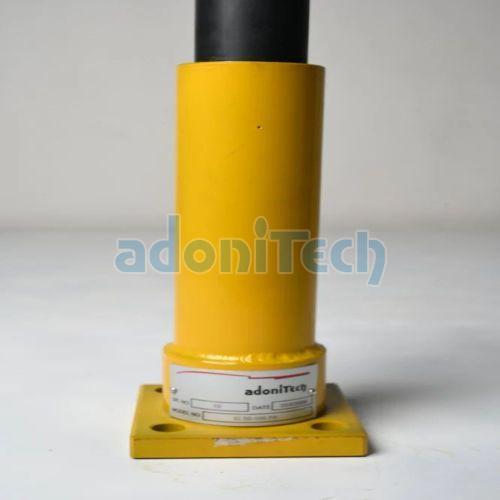

Hydraulic Buffer – Model EI 80 × 100 / AKHG 80-100
The EI 80 × 100 hydraulic buffer is a medium-duty energy absorption device designed for overhead cranes, transfer cars, and industrial safety systems. Featuring a Yellow epoxy-coated body, Arkor-finished hardened chrome-plated piston rod, and a PU stroker cap, it ensures long-term corrosion resistance and consistent damping performance in harsh environments.
Technical Specifications| Stroke Length | 100 mm |
| Max. Energy per Cycle | 15.6 kJ |
| Max. Buffer Force | 160 kN |
| Return Mechanism | Nitrogen gas |
| Filling Medium | Oil + Nitrogen gas |
| Rod Finish | Hardened chrome plated with Arkor coating |
| Body Finish | Yellow epoxy paint |
| Cap Material | Polyurethane (PU) |
| Mounting Options | Front flange (FF), Rear flange (FR), or custom |
| Weight | 22 kg |
| Operating Temperature | –10°C to +80°C (Standard), –35°C to +100°C (Optional) |
Additional Information:
Payment Terms : D/P, T/T
Hydtaulic Buffer with NItrogen Return
\nStroke 100 mm
\nSize 65/50
\nBellows included
\nEnergy Capacity 6900 NM
Rubber Buffer
