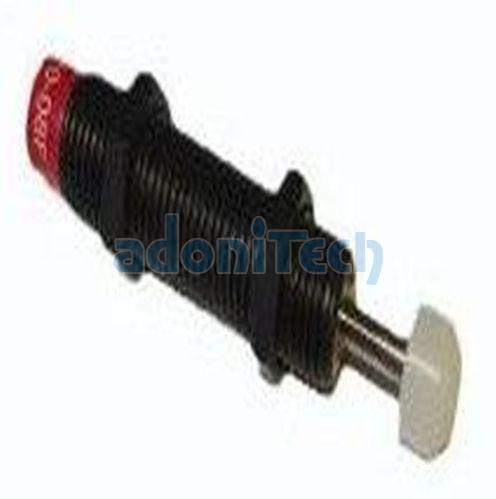

We are leaders in the market for providing best range of AC108FS Mild Steel Industrial Shock Absorbers, Ei 50 150 Cmb Hydraulic Buffer, Ma 4540 Industrial Shock Absorbers, AC105FVS Industrial Shock Absorbers and AC 2220M Industrial Shock Absorbers
The Hydraulic Buffer EI 50 150 CMB appears to correspond to the CMB-50-150 model from Dayton Lamina\'s Accu-Bend Compact Bender series. This unit is designed for precision bending applications in industrial settings.
\nKey Specifications
\nBrand: Lamina
\nModel: CMB-50-150
\nBender Type: Accu-Bend Compact
\nBender Length: 150 mm (5.91 inches)
\nFront Saddle Width (B): 35 mm (1.38 inches)
\n

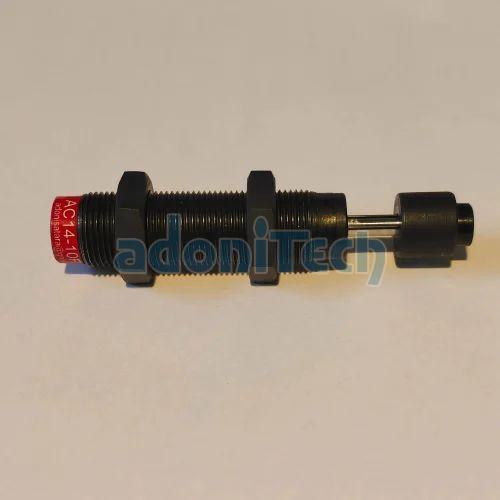

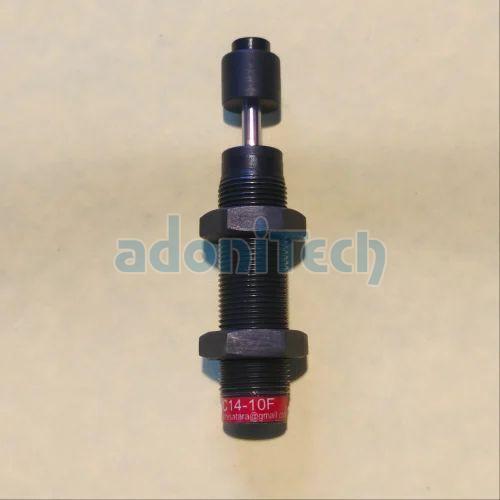

\n Fixed Hydraulic Shock Absorber – Model AC-14-12-H\n
The AC-14-12-H is a compact, high-hardness fixed hydraulic shock absorber designed for emergency damping in industrial automation and defense-grade systems. Featuring a Black Arkor-treated body, hardened stainless steel piston rod, and high-speed damping characteristics, it is a fast-moving product trusted for critical impact protection.
\n Technical Specifications\n| Stroke Length | \n12 mm | \n
| Max. Energy per Cycle | \n15 Nm | \n
| Max. Energy per Minute | \n600 Nm/min | \n
| Effective Mass Range | \nUp to 100 kg | \n
| Max. Collision Velocity | \n3.5 m/s | \n
| Thread Size | \nM14 × 1.5 | \n
| Body Material | \nMild steel with Black Arkor finish | \n
| Rod Material | \nHardened stainless steel | \n
| Return Mechanism | \nInternal spring | \n
| Operating Temperature | \n–5°C to +70°C | \n
| Service Life | \nUp to 800, 000 cycles | \n
| Stock Status | \nBest seller – available ex-stock | \n

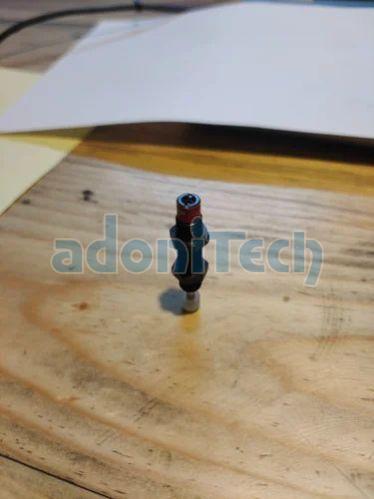

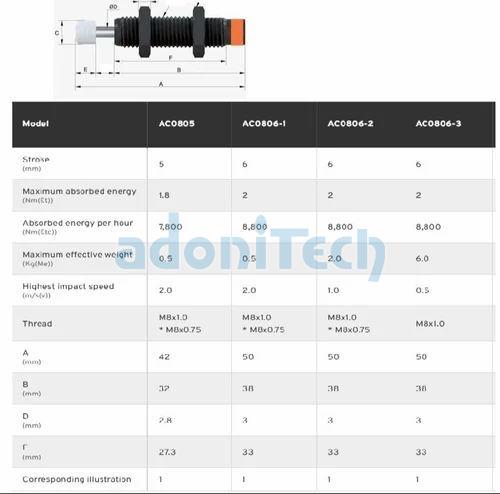

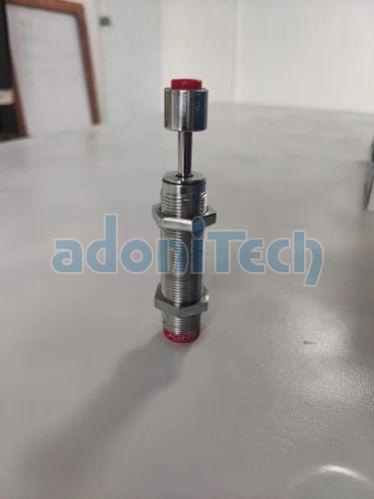

\n Adjustable Shock Absorber – Model AC8-6-SS\n
The AC8-6 is a compact, precision-engineered adjustable hydraulic shock absorber designed for light-load, high-speed industrial applications. With a stainless steel body, hard chrome plated piston rod, and PU stroker cap, it delivers reliable energy absorption and smooth deceleration in tight spaces.
\n Technical Specifications\n| Stroke Length | \n6 mm | \n
| Max. Absorbed Energy (per cycle) | \n1.4 Nm | \n
| Max. Effective Mass | \n0.5 – 6.0 kg | \n
| Max. Impact Speed | \n0.5 – 2.0 m/s | \n
| Operating Temperature | \n–10°C to +80°C | \n
| Thread Size | \nM8 × 0.75 | \n
| Body Material | \nStainless Steel (SUS303) | \n
| Rod Finish | \nHard Chrome Plated | \n
| Return Mechanism | \nSpring return | \n
| Cap Material | \nPolyurethane (PU) | \n
| Weight | \n11 g | \n
| Cycles | \nUp to 800, 000 | \n

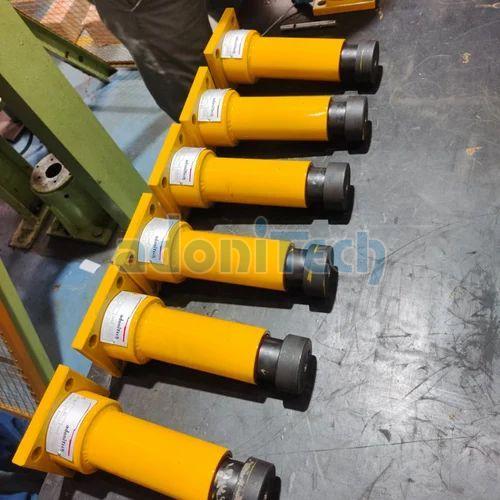

\n Hydraulic Buffer – Model AKHG65-75\n
The AKHG65-75 hydraulic buffer from is a high-performance energy absorption device engineered for demanding industrial applications. It is part of the AKHG Series, known for its robust design, self-adjusting damping, and compliance with global safety standards.
\n Technical Specifications\nIdeal for:
\nAdditional Information:
Payment Terms : T/T

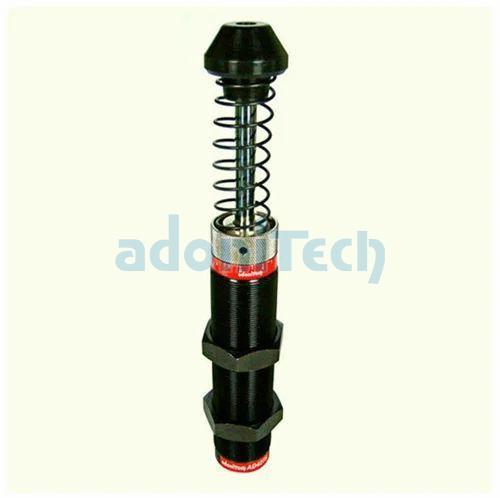

\n\n Adjustable Shock Absorber – Model AD-3650-M\n
The AD-3650-M is a robust, high-performance adjustable hydraulic shock absorber designed for medium-to-heavy industrial applications. Featuring a Black Arkor-treated body, external spring return, and bottom-end adjustment, it delivers precise energy absorption and long service life in demanding environments.
\n Technical Specifications\n| Stroke Length | \n50 mm | \n
| Max. Absorbed Energy (per cycle) | \n300 Nm | \n
| Max. Absorbed Energy (per minute) | \n1800 Nm/min | \n
| Effective Mass Range | \nUp to 1450 kg | \n
| Max. Impact Speed | \n3.5 m/s | \n
| Thread Size | \nM36 × 1.5 | \n
| Body Material | \nHardened steel with Black Arkor finish | \n
| Rod Material | \nHardened chrome-plated stainless steel | \n
| Return Mechanism | \nExternal spring | \n
| Adjustment Location | \nBottom-end rotary knob | \n
| Operating Temperature | \n–5°C to +70°C | \n
| Service Life | \nUp to 800, 000 cycles | \n
| Weight | \n1100 g | \n
| Stock Status | \nBest seller – available ex-stock | \n
Additional Information:
Payment Terms : D/A, D/P, T/T, Western Union,

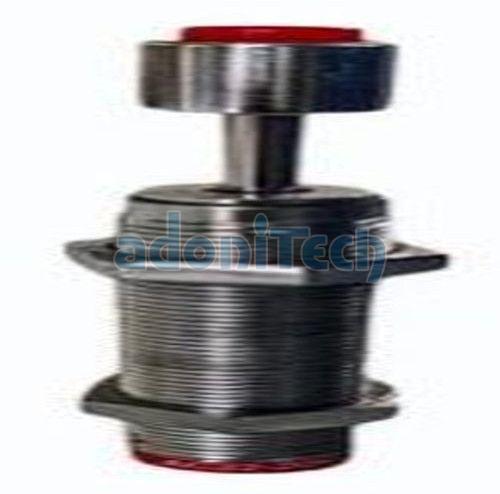

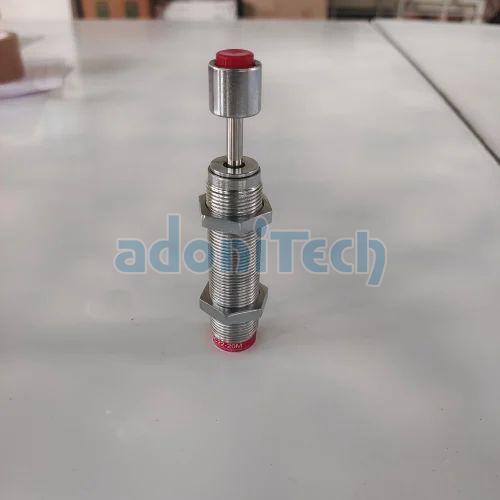

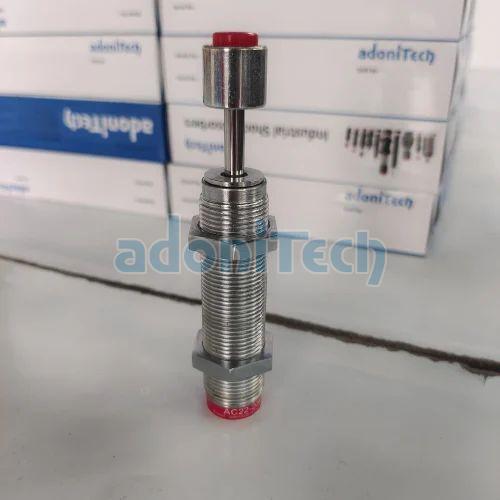

The AC2220M Industrial Shock Absorber is a compact, adjustable hydraulic damper designed for medium-duty industrial applications. It is engineered to provide precise energy absorption and deceleration control in various machinery setups.
\nKey Specifications
\nThread Size: M22 x 1.5
\nStroke Length: 20 mm
\nEnergy Absorption per Cycle: 50 Nm
\nEnergy Absorption per Hour: 60, 000 Nm/h
\nSurface Finish: Black nitrided anti-corrosive coating
\n\n Fixed Hydraulic Shock Absorber – Model YSRA-32-60-C\n
The YSR-32-60-C is a compact, high-efficiency fixed hydraulic shock absorber designed for industrial automation, rotary actuators, and linear motion systems. Manufactured by Festo, it features a galvanized steel body, high-alloy chrome-plated piston rod, and self-adjusting damping for consistent energy absorption across a wide range of impact conditions.
\n Technical Specifications\n| Stroke Length | \n60 mm | \n
| Max. Energy per Cycle | \n380 J | \n
| Max. Energy per Hour | \n220, 000 J | \n
| Max. Stop Force | \n6, 000 N | \n
| Impact Velocity | \nUp to 3.0 m/s | \n
| Reset Time | \n0.5 s (room temp), 1 s (low temp) | \n
| Reset Force | \n20 N | \n
| Min. Insertion Force | \n160 N | \n
| Load Range | \nUp to 400 kg | \n
| Body Material | \nGalvanized steel | \n
| Rod Material | \nHardened high-alloy steel, chrome plated | \n
| Mounting | \nLock nut | \n
| Operating Temperature | \n–10°C to +80°C | \n
| Weight | \n1220 g | \n
| Corrosion Resistance Class | \nCRC 2 (moderate stress) | \n
| Compliance | \nRoHS, VDMA24364-B2-L (PWIS conformity) | \n
Additional Information:
Payment Terms : L/C, T/T
\n\n Adjustable Shock Absorber – Model AD3650\n
The AD3650 is a high-performance adjustable hydraulic shock absorber designed for industrial applications requiring precise energy absorption across varying impact speeds and loads. Its robust construction, corrosion-resistant finish, and spring return mechanism make it ideal for automation, robotics, and heavy machinery.
\n Technical Specifications\n| Stroke Length | \n50 mm | \n
| Max. Absorbed Energy (per cycle) | \n300 Nm | \n
| Max. Effective Mass | \n750 kg | \n
| Max. Impact Speed | \n3.0 m/s | \n
| Operating Temperature | \n–10°C to +80°C | \n
| Thread Size | \nM36 × 1.5 | \n
| Weight | \n1100 g | \n
| Finish | \nBlack Arkor (oxidized steel) | \n
| Rod Material | \nHard chrome plated stainless steel | \n
| Return Mechanism | \nSpring return with PU stroker cap | \n
| Service Life | \nUp to 800, 000 cycles | \n
Additional Information:
Payment Terms : T/T

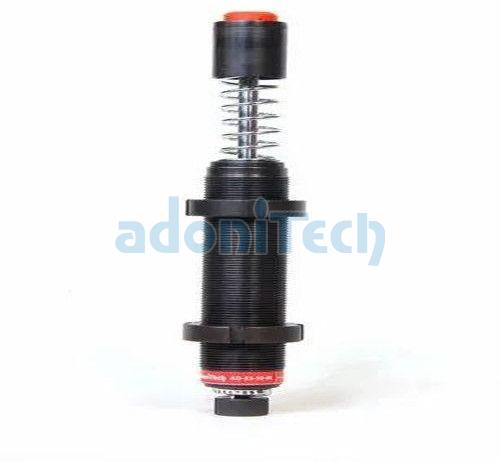

\n Adjustable Shock Absorber – Model AD-33-50-M\n
The AD-33-50-M is a medium-duty adjustable hydraulic shock absorber designed for industrial applications requiring precise energy absorption and compact form factor. Featuring a Black Arkor finish, hardened chrome-plated piston rod, and a PU stroker cap, this model offers bottom-end damping adjustment and spring return for consistent performance across variable loads.
\n Technical Specifications\n| Stroke Length | \n50 mm | \n
| Max. Absorbed Energy (per cycle) | \n385 Nm | \n
| Max. Absorbed Energy (per hour) | \n98, 962 Nm/h | \n
| Effective Mass Range | \n1, 400 – 2, 400 kg | \n
| Max. Impact Speed | \n3.3 m/s | \n
| Thread Size | \nM33 × 1.5 | \n
| Body Material | \nHardened steel with Black Arkor finish | \n
| Rod Material | \nHardened chrome-plated steel | \n
| Return Mechanism | \nSpring return | \n
| Adjustment Location | \nBottom-end rotary knob | \n
| Cap Material | \nPolyurethane (PU) | \n
| Operating Temperature | \n–10°C to +80°C | \n
| Service Life | \nUp to 800, 000 cycles | \n
Additional Information:
Payment Terms : T/T
Delivery Time : ex-stock

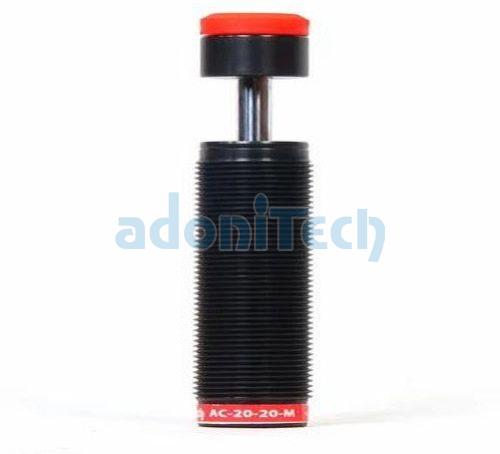

\n\n Fixed Hydraulic Shock Absorber – Model AC-20-20-M\n
The AC-20-20-M is a compact, high-performance fixed hydraulic shock absorber designed for medium-duty industrial applications. Engineered with a Black Arkor-treated body, hardened stainless steel piston rod, and multiple rod-end cap options, it offers reliable energy absorption and long service life in demanding environments.
\n Technical Specifications\n| Stroke Length | \n20 mm | \n
| Max. Energy per Cycle | \n40 Nm | \n
| Max. Energy per Hour | \n60, 000 Nm/h | \n
| Effective Mass Range | \nUp to 700 kg | \n
| Thread Size | \nM20 × 1.5 | \n
| Body Material | \nMild steel with Black Arkor finish | \n
| Rod Material | \nHardened stainless steel (Grade 316) | \n
| Operating Temperature | \n–5°C to +70°C | \n
| Service Life | \nUp to 800, 000 cycles | \n
| Stock Status | \nAvailable ex-stock at best price | \n
Additional Information:
Payment Terms : D/P, T/T

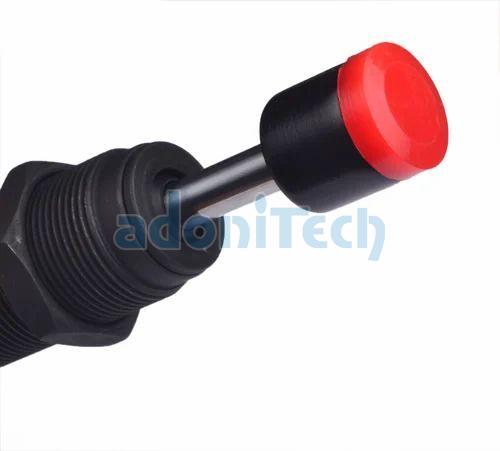

The AD1613F industrial shock absorber is part of the AD Series of adjustable hydraulic dampers, designed for medium-duty applications requiring precise energy absorption and deceleration control. While specific details for the AD1613F model are not readily available, we can infer its characteristics based on the AD Series specifications.
\nKey Specifications (Based on AD Series)
\nModel: AD1613F
\nStroke Length: Approximately 13 mm
\nThread Size: Likely M16 x 1.5
\nMaximum Absorbed Energy per Cycle: Approximately 22 Nm
\nMaximum Energy Absorption per Hour: Around 27, 500 Nm/h
\nMaximum Effective Mass: Approximately 130 kg
\nMaximum Impact Speed: Up to 3.0 m/s
\nOperating Temperature Range: -10°C to +80°C
\nBody Material: Typically constructed from high-strength materials with surface treatments for enhanced durability
\nWeight: Approximately 230 g
\n
\n\n Adjustable Shock Absorber – Model AD-42-25-M\n
The AD-42-25-M is a compact, high-strength adjustable hydraulic shock absorber designed for medium-duty industrial applications. Featuring a Black Arkor-treated body, hardened chrome-plated piston rod, and optional PU stroker cap, this model offers bottom-end adjustment via a precision thimble for fine-tuned damping control.
\n Technical Specifications\n| Stroke Length | \n25 mm | \n
| Max. Absorbed Energy (per cycle) | \n260 Nm | \n
| Max. Absorbed Energy (per hour) | \n125, 000 Nm/h | \n
| Effective Mass Range | \n900 – 3, 000 kg | \n
| Max. Impact Speed | \n3.5 m/s | \n
| Thread Size | \nM42 × 1.5 | \n
| Body Material | \nHardened steel with Black Arkor finish | \n
| Rod Material | \nHardened chrome-plated steel | \n
| Return Mechanism | \nSpring return | \n
| Adjustment Location | \nBottom-end thimble | \n
| Cap Material | \nOptional Polyurethane (PU) | \n
| Operating Temperature | \n–10°C to +80°C | \n
| Service Life | \nUp to 800, 000 cycles | \n
Additional Information:
Payment Terms : D/P, T/T,
Packaging Details : CARTON BOX
Product Details:
\n
\n Adjustable Shock Absorber – Model AD-42-50-M\n
The AD-42-50-M is a heavy-duty adjustable hydraulic shock absorber designed for industrial and defense-grade applications. Engineered with a Black Arkor finish, hardened chrome-plated piston rod, and a PU stroker cap, it delivers precise energy absorption and long-term durability in high-impact environments.
\n Technical Specifications\n| Stroke Length | \n50 mm | \n
| Max. Absorbed Energy (per cycle) | \n500 Nm | \n
| Max. Absorbed Energy (per hour) | \n150, 000 Nm/h | \n
| Effective Mass Range | \n1, 650 – 17, 000 kg | \n
| Spring Return Force | \n60 – 90 N | \n
| Thread Size | \nM42 × 1.5 | \n
| Body Material | \nHardened steel with Black Arkor finish | \n
| Rod Material | \nHardened chrome-plated steel | \n
| Cap Material | \nPolyurethane (PU) | \n
| Operating Temperature | \n–10°C to +80°C | \n
| Service Life | \nUp to 800, 000 cycles | \n
Additional Information:
Payment Terms : T/T
Delivery Time : 2 weeks
\n
FIXED HARDNESS
\nTHREADING M 25 X 1.5
\nSTROKE 40MM

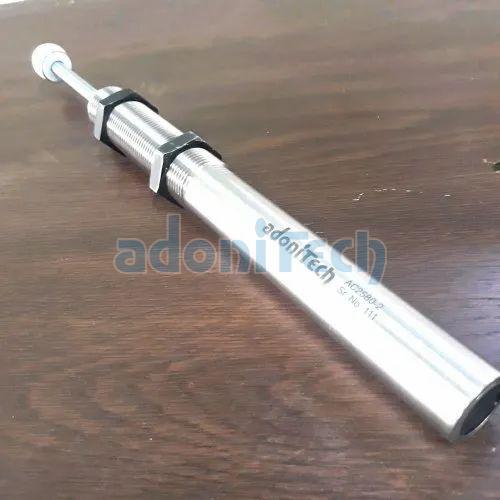

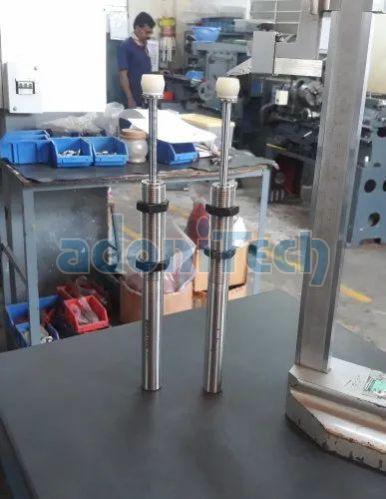

\n Adjustable Shock Absorber – Model AC-25-80-M (Stainless Steel Version)\n
The AC-25-80-M is a long-stroke, high-performance adjustable hydraulic shock absorber designed for demanding industrial and hygienic environments. Engineered with a stainless steel body, hardened stainless steel piston rod, and precision damping control, it delivers exceptional performance and extended service life in food-grade machinery and automation systems.
\n Technical Specifications\n| Stroke Length | \n80 mm | \n
| Max. Energy per Cycle | \n120 Nm | \n
| Max. Energy per Hour | \n180, 000 Nm/h | \n
| Effective Mass Range | \n1, 000 – 2, 500 kg | \n
| Max. Impact Speed | \n3.5 m/s | \n
| Thread Size | \nM25 × 1.5 | \n
| Body Material | \nStainless Steel (Grade 304/316) | \n
| Rod Material | \nHardened stainless steel, chrome plated | \n
| Return Mechanism | \nInternal spring | \n
| Adjustment Location | \nBottom-end rotary knob | \n
| Operating Temperature | \n–5°C to +70°C | \n
| Service Life | \nUp to 1 million cycles | \n
| Finish | \nFood-grade polish or optional Black Arkor (for non-food use) | \n
| Stock Status | \nFast-moving item – available ex-stock | \n
Additional Information:
Payment Terms : D/A, D/P, T/T
Packaging Details : PAPERPACK
Delivery Time : 2 weeks
\n\n Fixed Hydraulic Shock Absorber – Model AC-16 07-A\n
The AC-167-A is a compact, high-precision fixed hydraulic shock absorber engineered for pad printing systems and light-duty automation. Designed for consistent energy absorption and minimal rebound, it features a Black Arkor-treated body, hardened stainless steel piston rod, and multiple rod-end configurations to suit diverse mounting needs.
\n Technical Specifications\n| Stroke Length | \n20 mm | \n
| Max. Energy per Cycle | \n25 Nm | \n
| Max. Energy per Hour | \n45, 000 Nm/h | \n
| Effective Mass Range | \n3 – 25 kg | \n
| Thread Size | \nM16 × 1.5 | \n
| Body Material | \nHardened steel with Black Arkor finish | \n
| Rod Material | \nHardened stainless steel | \n
| Return Mechanism | \nInternal spring | \n
| Operating Temperature | \n–5°C to +70°C | \n
| Service Life | \nUp to 1 million cycles | \n
| Stock Status | \nBest seller – available ex-stock | \n
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : ex-stock
Threading M 45 x 1.5
\nStroke 50 mm
\n

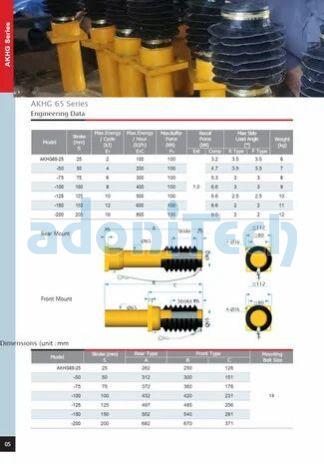

\n\n Hydraulic Buffer – Model AKHG65-25\n
The AKHG65-25 hydraulic buffer from KOBA is a compact, high-efficiency energy absorption device designed for industrial applications requiring short stroke deceleration. As part of the AKHG Series, it offers precision damping and robust construction, ideal for space-constrained environments.
\n Technical Specifications\nAdditional Information:
Payment Terms : T/T
Single acting
\nshock Absorber
\nTHREADING M 16 X 1.5
\nStroke 13 mm
\n

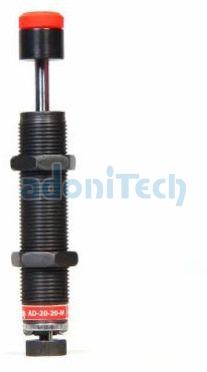

The AC2020M Industrial Shock Absorber is a compact, self-compensating hydraulic damper designed for medium-duty applications. It is engineered to provide effective energy absorption and deceleration control in various industrial machinery setups.
\nKey Specifications
\nThread Size: M20 x 1.5
\nStroke Length: 20 mm
\nMaximum Energy Absorption per Cycle: 40 Nm
\nMaximum Energy Absorption per Hour: 60, 000 Nm/h
\nMaximum Effective Mass: Up to 700 kg
\n
\n
The AD 4275MU is a model of adjustable industrial shock absorber designed for heavy-duty applications. Manufactured by Hypex d.o.o., it is part of their BLAILEC AD-4275 series. This shock absorber is engineered to manage high kinetic energy loads, making it suitable for use in industrial automation, material handling systems, and heavy machinery.hypex.si
\nKey Features
\nAdjustable Damping: The AD 4275MU allows for fine-tuning of the damping force, enabling customization to specific application requirements.
\nHeavy-Duty Design: Built to withstand substantial impact forces, it is ideal for applications involving high-speed or high-mass movements.
\nMaintenance-Free Operation: Designed for durability and longevity, reducing the need for frequent maintenance.
\nVersatile Mounting Options: Offers flexibility in installation to accommodate various machinery configurations.
\n
Hydraulic Buffer – Model AKHG65-50
\nThe AKHG65-50 hydraulic buffer is a compact, high-performance energy absorption device designed for industrial and heavy-duty applications. Engineered by KOBA, it features a self-adjusting damping system, hard chrome-plated piston rod, and epoxy-coated body, ensuring reliable performance across demanding environments.
\n Technical Specifications\n| Stroke Length | \n50 mm | \n

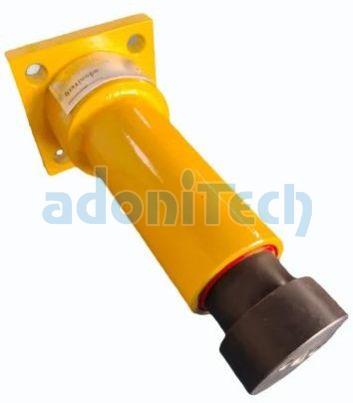

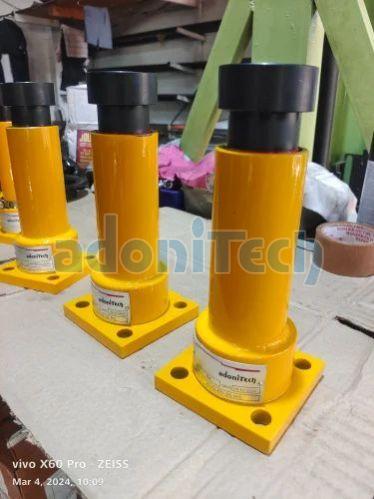

| Max. Energy per Cycle | \n4 kJ | \n
| Max. Buffer Force | \n100 kN | \n
| Return Mechanism | \nNitrogen gas | \n
| Filling Medium | \nOil + Nitrogen gas | \n
| Operating Temperature | \n–10°C to +80°C (Standard), –40°C to +120°C (Special) | \n
| Piston Rod | \nHard chrome plated (≥25 µm) | \n
| Body Finish | \nEpoxy paint coating | \n
| Mounting Options | \nRear flange (RS), front flange (FS), clevis, or custom | \n
| Weight | \n3.5–4.7 kg | \n
Additional Information:
Payment Terms : T/T

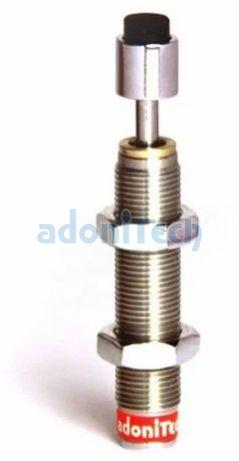

\n\n Fixed Hydraulic Shock Absorber – Model AC-14-12-M\n

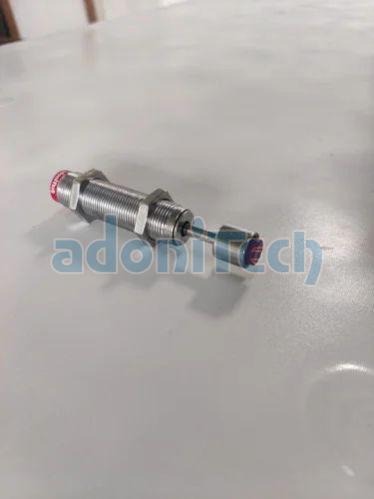

The AC-14-12-M is a compact, precision-engineered fixed hydraulic shock absorber designed for light-duty industrial applications, including food processing machinery. With a Black Arkor-treated body for corrosion resistance and an optional stainless steel version for hygienic environments, it offers reliable energy absorption and long service life.
\n Technical Specifications\n| Stroke Length | \n12 mm | \n
| Max. Energy per Cycle | \n15 Nm | \n
| Thread Size | \nM14 × 1.5 | \n
| Body Material | \nMild steel with Black Arkor finish (default) or Stainless Steel (optional) | \n
| Rod Material | \nHardened stainless steel | \n
| Return Mechanism | \nInternal spring | \n
| Operating Temperature | \n–5°C to +70°C | \n
| Service Life | \nUp to 1 million cycles | \n
| Stock Status | \nBest seller – available ex-stock | \n
Additional Information:
Payment Terms : L/C, D/A, D/P
Packaging Details : paper packt
SHOCK ABSORBER FOR TURNSTILE APPLICATION
THREADING M 20 X 1.5
STROKE 20 MM
BLACK FINISH
METTALIC END CAP
Mr.Paresh Adavani (Adoni Tech)
1st Floor, Jeevan Chaya Housing Society, Sharda, Satara, Maharashtra - 415001
https://www.adonitech.in
Share us via
