Product Details:

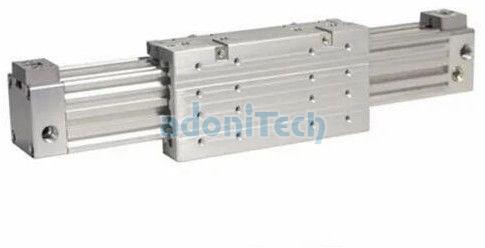

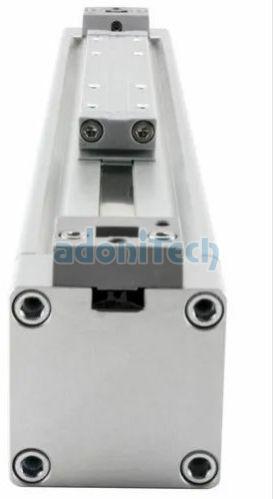

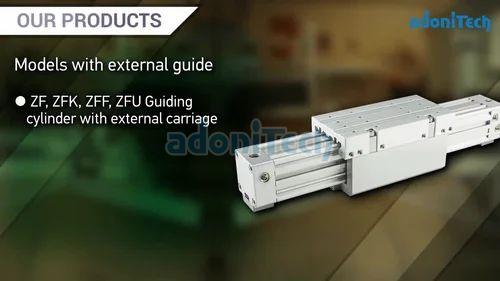

These guiding cylinders are characterized by an additional external guide carriage. The carriage is stabilised by guiding bars in the grooves of the profile tube.

Thanks to the stabilisation of the carriage in the profile tube grooves, the guiding cylinder has significant better performance data compared to the standard cylinder.

ZF and ZFK are the standard models of various guiding cylinders.

Profile Tube

The profile tube system comprises the diameters 18 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm. The special outside geometry of the individual tubes has features such as furrows and grooves etc. that enable the attachment of various components such as guide carriages, guide rails, various accessories, switches etc.

End Caps

The standard end cap pair consists of an end cap with 5 connection openings and an end cap with 3 connection openings. Lanamatic normally assumes that the 3-hole end cap is located on the left end and the 5-hole end cap is located on the right end of a cylinder. This is also shown in the drawing of this catalogue. However, the cylinder can of course be installed the other way round in any given application without impairing its functionality.

Connection Variants

The special air ducting design inside the end caps and the profile tube (tube diameter 25 mm to 63 mm) enable numerous different connection variants for most of our cylinder models. The following connection variants are predominantly used: — Design with connection on one side of both end caps (standard)

The Article Numbers Schemes

Scheme for cylinders consists of 3 blocks of numbers with 4 digits each. ls\' number block cylinder model and diameter: Digits 1 and 4 determine the cylinder model. Digits 2 and 3 determine the inner diameter of the cylinder (18 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm). 2nd number block — connection variant or special di-mensions and information for certain special cylinder models: In most cylinder models, the 4th digit of the number block provides information on the connection configuration of the cylinder. 0000 stands for standard connection via both end caps 0001 stands for the variant with connection on the underside of both end caps 0002 stands for the variant with connection on one side of one end cap 0004 stands for the variant with connection on the front side of both end caps In the ZTS/ZTK and ZGS/ZGK special cylinders, the 2nd number block determines the dimension Al of a model-specific distance (see detailed information on the corres-ponding cylinder models).

The cylinder program has a modular design with standard cylinder models and various attachment parts. - The compact desing of the profi le tube and yoke allows the mounting of the cylinder at minimum space requirements. - An even shorter installation length can be achieved using the shorter yoke variant (approx. -40 %) with slightly lower performance characteristics. - The optimized profi le tube design guarantees low defl ec-tion and slot widening at minimum material usage. - The stroke can be freely selected up to 6, 000 mm. - Longitudinal grooves on all sides of the profi le enable installation of attachment parts (guide carriage) over the entire stroke length. - T- and C-grooves enable installation of switches. - Front and side wipers of the yoke help prevent dirt accu-mulations along the slot. - The standard end caps enable various connection variants. - The pin cushioning damping can be adjusted without steps.

Notes

The provided data is for product description purposes only and is not to be construed as guaranteed properties in the legal sense.

Product Details:

\n

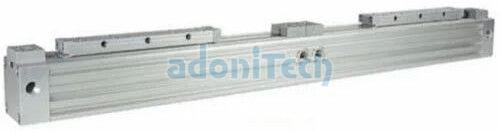

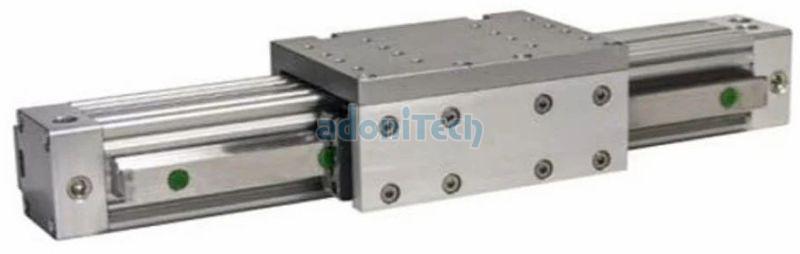

• Special cylinder with 2 or more separate cylinder chambers in one profile tube with one yoke each. The cylinder chambers are controlled separately.
\n
• Depending on the requirement, ZG can be used in the ZS/ZK or ZF/ZFK version. Mixed versions are possible.
\n
• The installation distance of the 2 yokes can be selected independently of the stroke as per the application requirements (A1).
\n
• ZG can be used for various functions. Application-specific grippers enable
\n

Product Details:

These guiding cylinders are characterized by an additional external guide carriage. The carriage is stabilised by guiding bars in the grooves of the profile tube.

Thanks to the stabilisation of the carriage in the profile tube grooves, the guiding cylinder has significant better performance data compared to the standard cylinder.

ZF and ZFK are the standard models of various guiding cylinders.

Profile Tube

The profile tube system comprises the diameters 18 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm. The special outside geometry of the individual tubes has features such as furrows and grooves etc. that enable the attachment of various components such as guide carriages, guide rails, various accessories, switches etc.

End Caps

The standard end cap pair consists of an end cap with 5 connection openings and an end cap with 3 connection openings. Lanamatic normally assumes that the 3-hole end cap is located on the left end and the 5-hole end cap is located on the right end of a cylinder. This is also shown in the drawing of this catalogue. However, the cylinder can of course be installed the other way round in any given application without impairing its functionality.

Connection Variants

The special air ducting design inside the end caps and the profile tube (tube diameter 25 mm to 63 mm) enable numerous different connection variants for most of our cylinder models. The following connection variants are predominantly used: — Design with connection on one side of both end caps (standard)

The Article Numbers Schemes

Scheme for cylinders consists of 3 blocks of numbers with 4 digits each. ls\' number block cylinder model and diameter: Digits 1 and 4 determine the cylinder model. Digits 2 and 3 determine the inner diameter of the cylinder (18 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm). 2nd number block — connection variant or special di-mensions and information for certain special cylinder models: In most cylinder models, the 4th digit of the number block provides information on the connection configuration of the cylinder. 0000 stands for standard connection via both end caps 0001 stands for the variant with connection on the underside of both end caps 0002 stands for the variant with connection on one side of one end cap 0004 stands for the variant with connection on the front side of both end caps In the ZTS/ZTK and ZGS/ZGK special cylinders, the 2nd number block determines the dimension Al of a model-specific distance (see detailed information on the corres-ponding cylinder models).

The cylinder program has a modular design with standard cylinder models and various attachment parts. - The compact desing of the profi le tube and yoke allows the mounting of the cylinder at minimum space requirements. - An even shorter installation length can be achieved using the shorter yoke variant (approx. -40 %) with slightly lower performance characteristics. - The optimized profi le tube design guarantees low defl ec-tion and slot widening at minimum material usage. - The stroke can be freely selected up to 6, 000 mm. - Longitudinal grooves on all sides of the profi le enable installation of attachment parts (guide carriage) over the entire stroke length. - T- and C-grooves enable installation of switches. - Front and side wipers of the yoke help prevent dirt accu-mulations along the slot. - The standard end caps enable various connection variants. - The pin cushioning damping can be adjusted without steps.

Notes

The provided data is for product description purposes only and is not to be construed as guaranteed properties in the legal sense.

Product Details:

\n

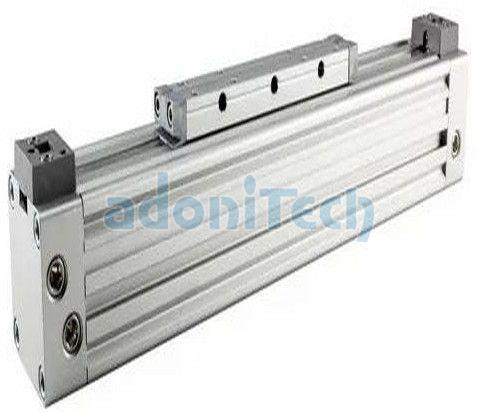

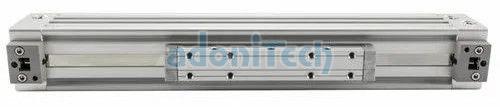

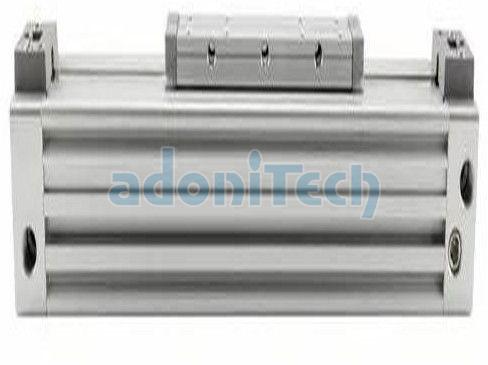

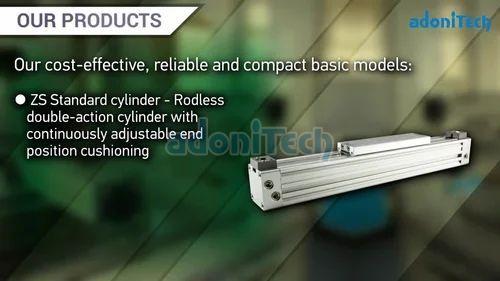

• ZS and ZK are the basis cylinder models that almost all other cylinder models are based on.
\n
• The ZK Standard cylinder short, compared to the ZS Standard cylinder, is characterized by offering up to 40 % shorter overall cylinder length at the same stroke due to its shorter yoke (depending on the stroke length).
\n
• The shorter yoke of the ZK Standard cylinder short brings slightly lower performance data regarding forces and torques in comparison with the ZS Standard cylinder.
\n
• ZS and ZK models are generally delivered with a yoke with an integrated magnet. Any additional guide systems and accessories can be installed to ZS and ZK models later on.
\n

Product Details:

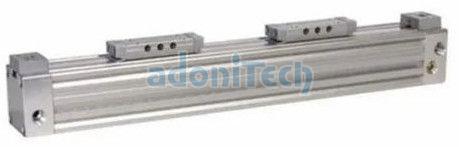

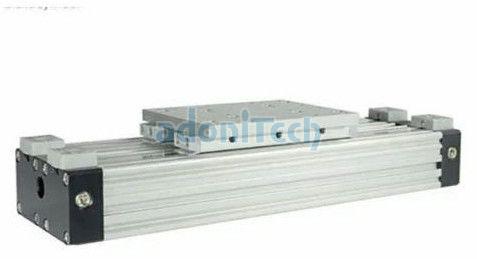

Special cylinder with 2 yokes arranged in series for supporting longer parts.

Depending on the requirement, ZT can be used in the ZS/ZK, ZF/ZFK or ZSS/ZKS versions.

The installation distance of the 2 yokes in series can be selected independently of the stroke as per the application requirements (A1).

Depending on the installation of the ZT, it may be used as a parallel cylinder as well.

Part list

Product Details:

\n
• These guiding cylinders are characterized by an additional external guide carriage. The carriage is stabilised by guiding bars in the grooves of the profile tube.
\n
• Thanks to the stabilisation of the carriage in the profile tube grooves, the guiding cylinder has significant better performance data compared to the standard cylinder.
\n
• ZF and ZFK are the standard models of various guiding cylinders.
\n

Profile Tube

\n
• The profile tube system comprises the diameters 18 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm. The special outside geometry of the individual tubes has features such as furrows and grooves etc. that enable the attachment of various components such as guide carriages, guide rails, various accessories, switches etc.
\n

End Caps

\n
• The standard end cap pair consists of an end cap with 5 connection openings and an end cap with 3 connection openings. Lanamatic normally assumes that the 3-hole end cap is located on the left end and the 5-hole end cap is located on the right end of a cylinder. This is also shown in the drawing of this catalogue. However, the cylinder can of course be installed the other way round in any given application without impairing its functionality.
\n

Connection Variants

\n
• The special air ducting design inside the end caps and the profile tube (tube diameter 25 mm to 63 mm) enable numerous different connection variants for most of our cylinder models. The following connection variants are predominantly used: — Design with connection on one side of both end caps (standard)
\n

The Article Numbers Schemes

\n
• Scheme for cylinders consists of 3 blocks of numbers with 4 digits each. ls\' number block cylinder model and diameter: Digits 1 and 4 determine the cylinder model. Digits 2 and 3 determine the inner diameter of the cylinder (18 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm). 2nd number block — connection variant or special di-mensions and information for certain special cylinder models: In most cylinder models, the 4th digit of the number block provides information on the connection configuration of the cylinder. 0000 stands for standard connection via both end caps 0001 stands for the variant with connection on the underside of both end caps 0002 stands for the variant with connection on one side of one end cap 0004 stands for the variant with connection on the front side of both end caps In the ZTS/ZTK and ZGS/ZGK special cylinders, the 2nd number block determines the dimension Al of a model-specific distance (see detailed information on the corres-ponding cylinder models).
\n
• The cylinder program has a modular design with standard cylinder models and various attachment parts. - The compact desing of the profi le tube and yoke allows the mounting of the cylinder at minimum space requirements. - An even shorter installation length can be achieved using the shorter yoke variant (approx. -40 %) with slightly lower performance characteristics. - The optimized profi le tube design guarantees low defl ec-tion and slot widening at minimum material usage. - The stroke can be freely selected up to 6, 000 mm. - Longitudinal grooves on all sides of the profi le enable installation of attachment parts (guide carriage) over the entire stroke length. - T- and C-grooves enable installation of switches. - Front and side wipers of the yoke help prevent dirt accu-mulations along the slot. - The standard end caps enable various connection variants. - The pin cushioning damping can be adjusted without steps.
\n

Notes

\n
• The provided data is for product description purposes only and is not to be construed as guaranteed properties in the legal sense.
