The main aim of the project is to design a versatile device that can control DC motor by using GSM technology of wireless communication. This device can be used to control the speed and direction of the DC motor. A GSM modem provides the communication interface. It transports device protocols transparently over the network through a serial interface. A GSM modem is a wireless modem that works with a GSM wireless network. This GSM Modem can accept any GSM network operator SIM card and act just like a mobile phone with its own unique phone number. Advantage of using this modem will be that you can use its RS232 port to communicate and develop embedded applications. Applications like SMS Control, data transfer, remote control and logging can be developed easily. The modem can either be connected to PC serial port directly or to any microcontroller. This project is designed in such a way that a GSM modem will be interfaced to the controller through serial port interface along with a DC motor through voltage driver IC L293D.The microcontroller will be programmed in such a way that some predefined messages will be assigned to the controller for controlling the speed and direction of the DC motor. When ever the user wants to control the motor, he has to send predefined messages to vary the speed and direction of the motor to the modem. When the modem receives data (SMS), it will intimate the same to the microcontroller. Now, it is the job of the controller performs the predefined task of rotating the motor clockwise, anticlockwise and increasing, decreasing the speed of the dc motor in accordance with the message received from the modem. A 16X2 LCD will be interfaced to the controller to display the status of the DC motor. This project uses regulated 5V, 500mA power supply. 7805 three terminal voltage regulator is used for voltage regulation. Full wave bridge rectifier is used to rectify the ac output of secondary of 230/12V step down transformer.

This project is aimed to design a system to control the agriculture field motor by using a wireless technology called GSM technology. This GSM Modem can accept any GSM network operator SIM card and act just like a mobile phone with its own unique phone number. Advantage of using this modem will be that you can use its RS232 port to communicate and develop embedded applications. Applications like SMS Control, data transfer, remote control and logging can be developed easily. The modem can either be connected to PC serial port directly or to any micro controller. Villages are the backbone of our nation. The farmers strive hard day and night to yield very good results in their farm. They know the entire process how to produce a farm, when to provide water to the farms etc. When it is the time to water the farms, they just stop their current works then and there and rush to the farms to start the pump sets to water the farms. This project provides an excellent solution to this process. The farmer need not go to the farm to water his field. He can sit at his present place and start the motor on to water his field. No cabling or hardware connections are required to do this. Everything will be carried in a wireless fashion and this system is entirely an automated product. This project is designed in such a way that a GSM modem is interfaced to the controller through serial port along with a motor. The GSM modem performs the task of receiving the message from the mobile and sending the messages to the mobile from the controlling unit. If the farmer wishes to water his field, he needs to switch on the motor. Thus, he has to send a predefined message to the modem from his mobile. The GSM modem receives this message and intimates the same to the micro controller. Now it is the job of the controller to switch ON/OFF the motor in accordance with the received message. This project uses regulated 5V, 500mA power supply. 7805 three terminal voltage regulator is used for voltage regulation. Bridge type full wave rectifier is used to rectify the ac output of secondary of 230/12V step down transformer.

The main aim of the project is to design a versatile device that can control DC motor by using GSM technology of wireless communication. This device can be used to control the speed and direction of the DC motor. A GSM modem provides the communication interface. It transports device protocols transparently over the network through a serial interface. A GSM modem is a wireless modem that works with a GSM wireless network. This GSM Modem can accept any GSM network operator SIM card and act just like a mobile phone with its own unique phone number. Advantage of using this modem will be that you can use its RS232 port to communicate and develop embedded applications. Applications like SMS Control, data transfer, remote control and logging can be developed easily. The modem can either be connected to PC serial port directly or to any microcontroller. This project is designed in such a way that a GSM modem will be interfaced to the controller through serial port interface along with a DC motor through voltage driver IC L293D.The microcontroller will be programmed in such a way that some predefined messages will be assigned to the controller for controlling the speed and direction of the DC motor. When ever the user wants to control the motor, he has to send predefined messages to vary the speed and direction of the motor to the modem. When the modem receives data (SMS), it will intimate the same to the microcontroller. Now, it is the job of the controller performs the predefined task of rotating the motor clockwise, anticlockwise and increasing, decreasing the speed of the dc motor in accordance with the message received from the modem. A 16X2 LCD will be interfaced to the controller to display the status of the DC motor. This project uses regulated 5V, 500mA power supply. 7805 three terminal voltage regulator is used for voltage regulation. Full wave bridge rectifier is used to rectify the ac output of secondary of 230/12V step down transformer.

This project is aimed to design a data logger system using which the industrial parameters such as temperature, Humidity, fire and light can be monitored. A GSM technology will be used in this project for wireless communication as it is cheap and simple to implement. A GSM modem provides the communication interface. It transports device protocols transparently over the network through a serial interface. A GSM modem is a wireless modem that works with a GSM wireless network. This GSM Modem can accept any GSM network operator SIM card and act just like a mobile phone with its own unique phone number. Advantage of using this modem will be that you can use its RS232 port to communicate and develop embedded applications. Applications like SMS Control, data transfer, remote control and logging can be developed easily. The modem can either be connected to PC serial port directly or to any microcontroller. This project is designed in such a way that A GSM modem is interfaced to the controller using serial communication along with a temperature, fire, and humidity and light sensors. The temperature sensor will be interfaced to the controller through an ADC to convert the analog value sensed into the digital value .The microcontroller continuously monitors the status of the sensors. Whenever the user wants to read the data from the sensors he has to send a predefined message to the modem. The modem receives the predefined messages and intimates the same to the microcontroller. Now, it is the job of the microcontroller to read the values from the corresponding sensors process it and send the requested values to the user mobile. A 16X2 LCD will be interfaced to the controller to display the values of the sensors. This project uses regulated 5V, 500mA power supply. 7805 three terminal voltage regulator is used for voltage regulation. Bridge type full wave rectifier is used to rectify the ac output of secondary of 230/12V step down transformer.

This project is aimed to design a data logger system using which the industrial parameters such as temperature, Humidity can be monitored. A GSM technology will be used in this project for wireless communication as it is cheap and simple to implement. A GSM modem provides the communication interface. It transports device protocols transparently over the network through a serial interface. A GSM modem is a wireless modem that works with a GSM wireless network. This GSM Modem can accept any GSM network operator SIM card and act just like a mobile phone with its own unique phone number. Advantage of using this modem will be that you can use its RS232 port to communicate and develop embedded applications. Applications like SMS Control, data transfer, remote control and logging can be developed easily. The modem can either be connected to PC serial port directly or to any microcontroller. This project is designed in such a way that A GSM modem is interfaced to the controller using serial communication along with a temperature, and humidity sensors. An eight channel adc ADC0808 is used to convert the analog values sensed into the digital values .The microcontroller continuously monitors the status of the sensors. Whenever the user wants to read the data from the sensors he has to send a predefined message to the modem. The modem receives the predefined messages and intimates the same to the microcontroller. Now, it is the job of the microcontroller to read the values from the corresponding sensors process it and send the requested values to the user mobile. A 16X2 LCD will be interfaced to the controller to display the values of the sensors. This project uses regulated 5V, 500mA power supply. 7805 three terminal voltage regulator is used for voltage regulation. Bridge type full wave rectifier is used to rectify the ac output of secondary of 230/12V step down transformer.

This project is aimed to design a railway accident identification and alerting system by using wireless communication GSM technology. A GSM modem provides the communication interface. It transports device protocols transparently over the network through a serial interface. A GSM modem is a wireless modem that works with a GSM wireless network. This GSM Modem can accept any GSM network operator SIM card and act just like a mobile phone with its own unique phone number. Advantage of using this modem will be that you can use its RS232 port to communicate and develop embedded applications. Applications like SMS Control, data transfer, remote control and logging can be developed easily. The modem can either be connected to PC serial port directly or to any microcontroller. It can also be used in GPRS mode to connect to internet and do many applications for data logging and control. In GPRS mode you can also connect to any remote FTP server and upload files for data logging. This GSM modem is a highly flexible plug and play quad band SIM300 GSM modem for direct and easy integration to RS232 applications. Supports features like Voice, SMS, Data/Fax, GPRS and integrated TCP/IP stack. This project is designed in such a way that a GSM modem is interfaced to the controller using serial communication. The main aim of this project is to alert people from railway accidents by using vibration sensor. A vibration sensor is interfaced to the controller. This sensor can found railway accidents. Each railway coach contain single vibration sensor. If train move normally no vibrations occurr. If accident occurs any one of the sensor in train must be activated and microcontroller takes signal from the sensor. After detecting pulse from sensor microcontroller sends SMS to particular numbers through GSM modem and for alerting buzzer will be on. Microcontroller sends accident report along with coach number which is affected by accident. This effected coach number find out by sensor physical placing in coaches. A buzzer will be interfaced to the controller for alert. A 16X2LCD will be interfaced to the controller for displaying the status of the sensor. This project uses regulated 5V, 500mA power supply. 7805 three terminal voltage regulator is used for voltage regulation. Bridge type full wave rectifier is used to rectify the ac output of secondary of 230/12V step down transformer.

Security is primary concern for everyone. There are many ways to provide security at homes or in industries. The main aim of this project is to continuously monitor the industries and if any lethal gas is detected, the system should alert the siren and also inform immediately to the person concerned by using wireless communication system GSM. This system totally eliminates a person who has to monitor the house or industry all the time. A GSM modem provides the communication interface. It transports device protocols transparently over the network through a serial interface. A GSM modem is a wireless modem that works with a GSM wireless network. This GSM Modem can accept any GSM network operator SIM card and act just like a mobile phone with its own unique phone number. Advantage of using this modem will be that you can use its RS232 port to communicate and develop embedded applications. Applications like SMS Control, data transfer, remote control and logging can be developed easily. The modem can either be connected to PC serial port directly or to any microcontroller. This project is designed in such a way that a GSM modem will be interfaced to the controller using serial communication along with a gas sensor .This control unit will be fixed in the house or in an industry. A buzzer is also interfaced to the microcontroller for an audio identification. The micro controller continuously monitors the status the sensor. Whenever the status of the sensor changes, microcontroller detects this and sends a predefined message to the modem. The modem sends the same message to the user mobile number and the user can take the necessary action immediately. The siren will be alerted simultaneously. A 16X2 LCD will be interfaced to the controller to display the status of the sensor. This project uses regulated 5V, 500mA power supply. 7805 three terminal voltage regulator is used for voltage regulation. Bridge type full wave rectifier is used to rectify the ac output of secondary of 230/12V step down transformer.

According to ancient Greek scripts BIOMETRICS means study of life. Biometrics studies commonly include fingerprint, face, iris, voice, signature, and hand geometry recognition and verification. Many other modalities are in various stages of development and assessment. Among these available biometric traits, Finger Print proves to be one of the best traits providing good mismatch ratio and also reliable. To provide perfect security and to make our work easier, we are taking the help of two different technologies viz. EMBEDDED SYSTEMS and BIOMETRICS. Firstly discussing about Biometrics we are concentrating on Fingerprint scanning. For this, we are using FIM 3030N/other high voltage module as a scanner. This module has in-built ROM, DSP and RAM. In this, we can store the fingerprints of up to 100 users. This module can operate in 2 modes i.e., Master mode and User mode. We will be using Master mode to register the fingerprints which will be stored in the ROM present on the scanner with a unique id. This application will be mostly used in security buildings and constructions. The persons who want to use lift, they need to use finger print module. This finger print module allow only who are already enroll. Whenever person wants to use lift, scan his image through module. If image is valid then lift doors open automatically. Otherwise it gives beep sound and door doesnt open. The DC gear motor rotates in clock and anti clockwise directions.L293D is a driver to operate DC gear motor. The validations of image scanning, lift operation and enroll process will be displayed on 16X2 LCD. Here we use 8051 as a microcontroller with 5v DC Power supply. Serial (UART) protocol is primary concern here. The heart of this project is Bio metric module which works on serial (UART) protocol. 16X2 LCD display is connected to microcontroller through digital I/O pins.

This project is aimed to design a generalized identity system for student ID and bus pass instead of two different cards, using RFID technology. Radio Frequency Identification (RFID) Card Readers provide a low-cost solution to read passive RFID transponder tags up to 2 inches away. The RFID Card Readers can be used in a wide variety of hobbyist and commercial applications, including access control, automatic identification, robotics navigation, inventory tracking, payment systems, and car immobilization. The RFID card reader read the RFID tag in range and outputs unique identification code of the tag at baud rate of 9600. The data from RFID reader can be interfaced to be read by microcontroller or PC. The significant advantage of all types of RFID systems is the non contact, non-line-of-sight nature of the technology. Tags can be read through a variety of substances such as snow, fog, ice, paint, crusted grime, and other visually and environmentally challenging conditions, where barcodes or other optically read technologies would be useless. This project can provide security for the industries, companies, etc. This project is designed on 8051 micro controller, in this project we issue an RFID card to each individual , which is unique for each student, this RFID card holds the details of the student like the name , gender etc. in an electronic memory format, using this system we can eliminate the fake bus pass, and student ID when the card is shown to the reader the information present in the card is read by the reader and displayed in to the LCD connected to the microcontroller. This project uses regulated 5V, 500mA & 12V, 500mA power supply. 7805 and 7812 three terminal voltage regulators are used for voltage regulation. Bridge type full wave rectifier is used to rectify the ac output of secondary of 230/12V step down transformer.

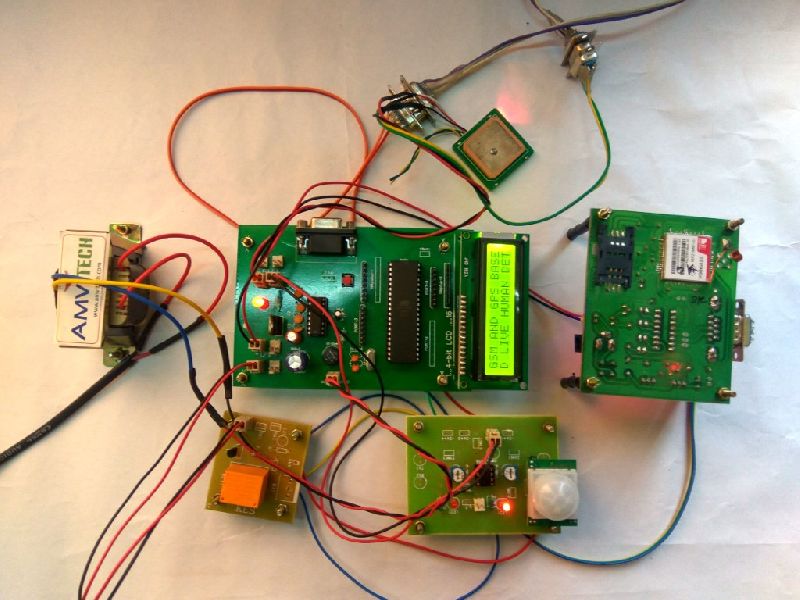

This project is aimed to build a prototype of human detection robot, which uses a PIR sensor to detect if any human being is present in its vicinity and wireless communications GSM and GPS A GSM modem provides the communication interface. It transports device protocols transparently over the network through a serial interface. A GSM modem is a wireless modem that works with a GSM wireless network. This GSM Modem can accept any GSM network operator SIM card and act just like a mobile phone with its own unique phone number. Advantage of using this modem will be that you can use its RS232 port to communicate and develop embedded applications. Applications like SMS Control, data transfer, remote control and logging can be developed easily. The modem can either be connected to PC serial port directly or to any microcontroller. Global Positioning System (GPS) satellites broadcast signals from space that GPS receivers, use to provide three-dimensional location (latitude, longitude, and altitude) plus precise time. GPS receivers provides reliable positioning, navigation, and timing services to worldwide users on a continuous basis in all weather, day and night, anywhere on or near the Earth. This ultra-sensitive GPS receiver can acquire GPS signals from 65 channels of satellites and output position data with high accuracy in extremely challenging environments and under poor signal conditions due to its active antenna and high sensitivity. The GPS receivers -160dBm tracking sensitivity allows continuous position coverage in nearly all application environments. The output is serial data of 9600 baud rate which is standard NMEA 0183 v3.0 protocol offering industry standard data messages and a command set for easy interface to mapping software and embedded devices. This project is built around 8051 micro controller, which employs a PIR sensor to sense presence of any moving objects, which we refer here to be a human. The sensor information is fed to the controller. Inside the controller we embedded a code which checks the status of the sensor. When a signal corresponding to the human presence is detected, it takes the coordinates from the GPS modem and sends the information about the location and the live human status to a mobile phone number, through GSM modem. Our project finds its application in rescue operations at the times of natural calamities like earth quakes and tsunamis, to search for the live human beings from the carcases and debris spread irregularly, where there may not be a possibility for rescue team to creep in. This project uses regulated 5V, 500mA power supply. 7805 three terminal voltage regulator is used for voltage regulation. Bridge type full wave rectifier is used to rectify the ac output of secondary of 230/12V step down transformer.

Radio Frequency Identification (RFID) Card Readers provide a low-cost solution to read passive RFID transponder tags up to 2 inches away. The RFID Card Readers can be used in a wide variety of hobbyist and commercial applications, including access control, automatic identification, robotics navigation, inventory tracking, payment systems, and car immobilization. The RFID card reader read the RFID tag in range and outputs unique identification code of the tag at baud rate of 9600. The data from RFID reader can be interfaced to be read by microcontroller or PC. This GSM Modem can accept any GSM network operator SIM card and act just like a mobile phone with its own unique phone number. Advantage of using this modem will be that you can use its RS232 port to communicate and develop embedded applications. Applications like SMS Control, data transfer, remote control and logging can be developed easily. The modem can either be connected to PC serial port directly or to any microcontroller. It can be used to send and receive SMS or make/receive voice calls. It can also be used in GPRS mode to connect to internet and do many applications for data logging and control. In GPRS mode you can also connect to any remote FTP server and upload files for data logging. This project is aimed to design a system which sends an SMS to the parents about the present and absent status of the student. This project is designed on a microcontroller and RFID reader, each student is issued an RFID card, which stores the student roll number and his/her name. This system is provided with a start and stop button. When the start button is pressed, the system starts accepting the attendance through RFID cards, the details of the cards is been sent to micro controller through serial communication interface. The attendance is stopped when the STOP button is pressed, The micro controller now segregates all the present and absent list of students and send the status to their respective parents mobile numbers. This project is also interface with a 16x2 LCD which displays the status of the system. This project uses regulated 5V, 500mA power supply. Unregulated 12V DC is used for relay. 7805 three terminal voltage regulator is used for voltage regulation. Full wave bridge rectifier is used to rectify the ac output of secondary of 230/12V step down transformer.
