Pumps, Pumping Machines & Parts

We offer a complete product range of Bravo 400 Slurry Pump, 50Hz Salvador Inox Stainless Steel Pumps, 50Hz Mega Inox Stainless Steel Pumps, 50Hz Senior Sludge Pumps and 50Hz Sandy N/H Sludge Pumps

Bravo 400 Slurry Pump

Pump type Electrical submersible slurry pump
Classification IP 68
Max submersion 20 m/66 ft
Cabel 20 m/66 ft SUBCAB This pump requires an external starter box
Discharge connection Victaulic
Limitations Allowed pH range 5.5 - 14
Max liquid temp 40°C/104°F (70°C/158°F on request)

Specification

50 Hz	Bravo 400
Discharge connection	4"
Rated power P2 [kW]	13,5
Max. power consumption P1 [kW]	16
Shaft speed [rpm]	1455
Rated current at 230V	47 A
Rated current at 400V	28 A
Rated current at 500V	21 A
Solids passage with agitator [mm]	30
Height [mm]	1148
Diameter [mm]	595
Weight [kg]	231

View Complete Details

Ask Latest Price & Details

50Hz Salvador Inox Stainless Steel Pumps

Pump type Electrical submersible
Classification IP 68
Max submersion 20m
Cable H07RN8-F, length 20m 4x1.5 mm2 4x2.5 mm2
Discharge connection Hose, BSP or NPT
Limitations pH 2-10
Max liquid temp 40°C

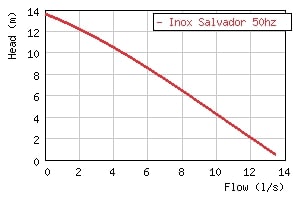

Graph Image 01

Download Detail File : Click Here

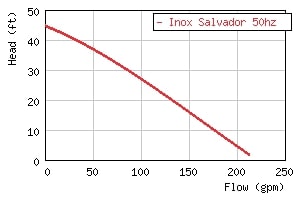

Graph Image 02

Download Detail File : Click Here

Specification

50 Hz	Salvador Inox
Discharge connection	3"
Rated power P2 [kW]	2,0
Max. power consumption P1 [kW]	2,7
Shaft speed [rpm]	2800
Rated current at 230V	7,7 A
Rated current at 400V	4,4 A
Rated current at 500V	3,4 A
Solids passage [mm]	50
Height [mm]	645
Width [mm]	375
Weight [kg]	47

View Complete Details

Ask Latest Price & Details

50Hz Mega Inox Stainless Steel Pumps

Pump type Electrical submersible
Classification IP 68
Max submersion 75m
Limitations pH 2-10
Max liquid temp 40°C

Cable :

20m (requires external starter) DOL: 1 x 3x50+2G35/2+S(2x0, 5) YD: 2 x 4G25+S(2x0, 5) Other options available on request

Discharge connection : H: 4” EN 1092-2 tab. 9 / ASME B 16.5-1996;tab.8 / undrilled N: 6” EN 1092-2 tab. 9 / ASME B 16.5-1996;tab.8 / undrilled

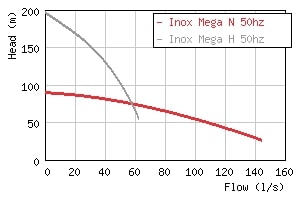

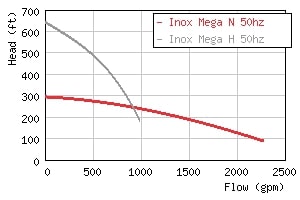

Graph Image 01

Download Detail File : Click Here

Graph Image 02

Download Detail File : Click Here

Specification

50 Hz	N	H
Discharge connection	6" (DN150)	4" (DN100)
Rated power P2 [kW]	85	85
Max. power consumption P1 [kW]	90	90
Shaft speed [r.p.m.]	2965	2965
Rated current at 400V	141	141
Rated current at 500V	111	111
Rated current at 1000V	56	56
Solids passage [mm]	10	10
Height [mm]	770	1250
Width [mm]	1180	700
Weight [kg]	925	1015

View Complete Details

Ask Latest Price & Details

50Hz Senior Sludge Pumps

Pump type Electrical submersible Three-phase
Classification Class IP 68
Max submersion 20 meters
Cable 20 meters, SUBCAB: 3-phase: 4G2.5mm2
Discharge connection Hose, ISO-G or NPT
Limitations pH 5-8
Max liquid temp 40°C

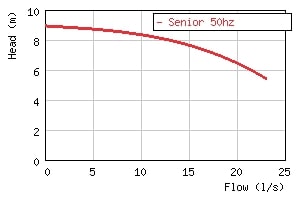

Graph Image 01

Download Detail File : Click Here

Graph Image 02

Download Detail File : Click Here

Specification

50 Hz	Senior
Discharge connection	4"
Rated power P2 [kW]	3,2 kW
Max. power consumption P1 [kW]	4,2 kW
Shaft speed [r.p.m.]	1400
Rated current at 230V	13 A
Rated current at 400V	7,6 A
Rated current at 500V	6,0 A
Rated current at 1000V	3,3 A
Solids passage [mm]	80
Height [mm]	867
Diameter [mm]	480
Weight [kg]	56

View Complete Details

Ask Latest Price & Details

50Hz Sandy N/H Sludge Pumps

Pump type Electrical submersible Three-phase
Classification IP 68
Max submersion 20 meters
Cable 20 meters, SUBCAB: 3-phase: 4G2.5mm2
Discharge connection Hose, ISO-G or NPT
Limitations pH 5-8
Max liquid temp 40°C

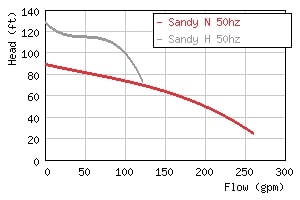

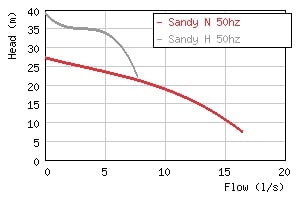

Graph Image 01

Download Detail File : Click Here

Graph Image 02

Download Detail File : Click Here

Specification

50 Hz	N	H
Discharge connection	3"	3"
Rated power P2 [kW]	5,6	5,6
Max. power consumption P1 [kW]	6,7	6,7
Shaft speed [r.p.m.]	2890	2890
Rated current at 230V	19 A	19 A
Rated current at 400V	11 A	11 A
Rated current at 500V	8,7 A	8,7 A
Solids passage [mm]	46	32
Height [mm]	867	867
Width [mm]	460	430
Diameter [mm]	320	320
Weight [kg]	56	56

View Complete Details

Ask Latest Price & Details

50Hz Major Inox Stainless Steel Pumps

Pump type Electrical submersible Three-phase
Classification IP 68
Max submersion 20 meters
Cable 20 meters, SUBCAB: 3-phase: 4G2.5mm2
Discharge connection N : 4" - hose, ISO-G or NPT H : 3" - hose, ISO-G or NPT
Limitations pH 2-11
Max liquid temp 40°C

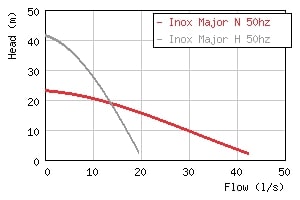

Graph Image 01

Download Detail File : Click Here

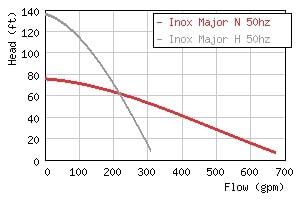

Graph Image 02

Download Detail File : Click Here

Specification

50 Hz	N	H
Discharge connection	4"	3"
Rated power P2 [kW]	6,3	6,3
Max. power consumption P1 [kW]	7,3	7,3
Shaft speed [rpm]	2840	2840
Rated current at 400V	12 A	12 A
Rated current at 500V	9,4 A	9,4 A
Solids passage [mm]	8,5	8,5
Height [mm]	665	665
WIdth [mm]	333	333
Weight [kg]	65	65

View Complete Details

Ask Latest Price & Details

50Hz Solid Sludge Pumps

Pump type Electrical submersible One-phase
Classification IP 68
Max submersion 10 m
Cable 10 m, H07RN-F, 3x1mm2
Discharge connection Hose, BSP or NPSM
Limitations pH 5-8
Max liquid temp 40°C

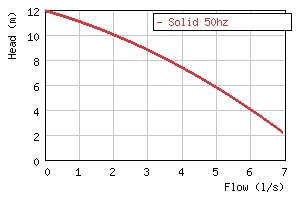

Graph Image 01

Download Detail File : Click Here

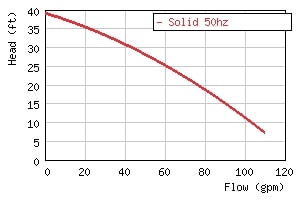

Graph Image 02

Download Detail File : Click Here

Specification

50 Hz	Solid
Discharge connection	2"
Rated power P2 [W]	900
Max. power consumption P1 [W]	1200
Shaft speed [rpm]	2800
Rated current at 115V	11 A
Rated current at 230V	5,2 A
Solids passage [mm]	38
Height[mm]	510
Width [mm]	263
Weight [kg]	17

View Complete Details

Ask Latest Price & Details

50Hz Master Inox Stainless Steel Pumps

Pump type Electrical submersible Three-phase
Classification IP 68
Max submersion 20 meters
Cable 20 meters, SUBCAB: 3-phase: 4G2.5mm2
Discharge connection N : 4" - hose, ISO-G or NPT H : 3" - hose, ISO-G or NPT
Limitations pH 2-11
Max liquid temp 40°C

Graph Image 01

Download Detail File : Click Here

Graph Image 02

Download Detail File : Click Here

Specification

50 Hz	N	H
Discharge connection	4"	3"
Rated power P2 [kW]	8,0	8,0
Max. power consumption P1 [kW]	9,2	9,2
Shaft speed [rpm]	2855	2855
Rated current at 400V	15 A	15 A
Rated current at 500V	12 A	12 A
Solids passage [mm]	8,5	8,5
Height [mm]	720	720
Width [mm]	333	333
Weight [kg]	77	81

View Complete Details

Ask Latest Price & Details

50Hz Minette Inox Stainless Steel Pumps

Pump type Pump type: Electrical submersible
Classification IP 68
Max submersion 20m
Cable H07RN8-F, length 20m 4x2.5mm2, U=400-575 V
Discharge connection Hose, BSP or NPT
Limitations pH 2-10
Max liquid temp 40°C

Graph Image 01

Download Detail File : Click Here

Graph Image 02

Download Detail File : Click Here

Specification

50 Hz	Minette Inox
Discharge connection	3"
Rated power P2 [kW]	2
Max. power consumption P1 [kW]	2.6
Shaft speed [rpm]	2715
Rated current at 230V	7,7 A
Rated current at 400V	4,4 A
Rated current at 500V	3,4 A
Solids passage [mm]	7,5
Height [mm]	535
Width [mm]	300
Weight [kg]	44

View Complete Details

Ask Latest Price & Details

50Hz Sandy Inox Stainless Steel Pumps

Pump type Electrical submersible Three-phase
Classification IP 68
Max submersion 20 meters
Cable 20 meters, SUBCAB: 3-phase: 4G2.5mm2
Discharge connection Hose, ISO-G or NPT
Limitations pH 2-11
Max liquid temp 40°C

Graph Image 01

Download Detail File : Click Here

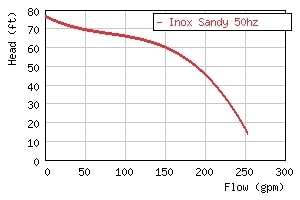

Graph Image 02

Download Detail File : Click Here

Specification

50 Hz	Sandy Inox
Discharge connection	3"
Rated power P2 [kW]	6,3
Max. power consumption P1 [kW]	7,3
Shaft speed [rpm]	2840
Rated current at 400V	12 A
Rated current at 500V	9,4 A
Solids passage [mm]	46
Height [mm]	755
Width [mm]	480
Weight [kg]	86

View Complete Details

Ask Latest Price & Details

50Hz Senior Inox Stainless Steel Pumps

Pump type Electrical submersible Three-phase
Classification IP 68
Max submersion 20 meters
Cable 20 meters, SUBCAB: 3-phase: 4G2.5mm2
Discharge connection Hose, ISO-G or NPT
Limitations pH 2-11
Max liquid temp 40°C

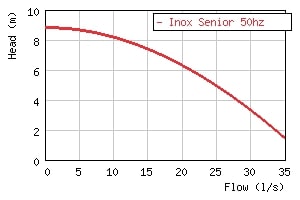

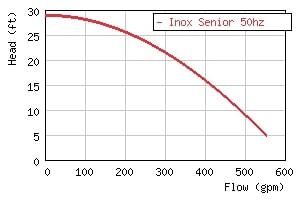

Graph Image 01

Download Detail File : Click Here

Graph Image 02

Download Detail File : Click Here

Specification

50 Hz	Senior Inox
Discharge connection	4"
Rated power P2 [kW]	4,1
Max. power consumption P1 [kW]	5,2
Shaft speed [rpm]	1350
Rated current at 230V	15 A
Rated current at 400V	8,8 A
Rated current at 500V	7,7 A
Solids passage [mm]	80
Height [mm]	755
Diameter [mm]	480
Weight [kg]	86

View Complete Details

Ask Latest Price & Details

Bravo 500 Slurry Pump

Pump type Electrical submersible slurry pump
Classification IP 68
Max submersion 20 m/66 ft
Cable 20 m/66 ft SUBCAB This pump requires an external starter box
Discharge connection Victaulic
Limitations Allowed pH range 5.5 - 14
Max liquid temp 40°C/104°F (70°C/158°F on request)

Specification

50 Hz	Bravo 500
Discharge connection	4"
Rated power P2 [kW]	18
Max. power consumption P1 [kW]	21
Shaft speed [rpm]	1460
Rated current at 230V	62 A
Rated current at 400V	36 A
Rated current at 500V	29 A
Solids passage with agitator [mm]	40
Height [mm]	1273
Diameter [mm]	595
Weight [kg]	293

View Complete Details

Ask Latest Price & Details

Bravo 600 Slurry Pump

Pump Type Electrical submersible slurry pump
Classification IP 68
Max Submersion 20 m/66 ft
Cable 20 m/66 ft SUBCAB This pump requires an external starter box
Discharge connection Victaulic
Limitations Allowed pH range 5.5 - 14
Max liquid Temp 40°C/104°F (70°C/158°F on request)

Specification

50 Hz	Bravo 600
Discharge connection	4"
Rated power P2 [kW]	22
Max. power consumption P1 [kW]	25
Shaft speed [rpm]	1460
Rated current at 230V	73 A
Rated current at 400V	41 A
Rated current at 500V	33 A
Solids passage with agitator [mm]	40
Height [mm]	1273
Diameter [mm]	595
Weight [kg]	293

View Complete Details

Ask Latest Price & Details

Bravo 200 Slurry Pump

Pump type Electrical submersible three-phase Slurry pump
Classification IP 68
Max submersion 20 m/66 ft
Cable 20 m/66 ft SUBCAB This pump requires an external starter box
Discharge connection Hose, BSP or NPT
Limitations pH 5.5-14
Max liquid temp 40°C/104°F (70°C/158°F on request)

Specification

50 Hz	Bravo 200
Discharge connection	4"
Rated power P2 [kW]	4,7
Max. power consumption P1 [kW]	5.7
Shaft speed [rpm]	1445
Rated current at 230V	17 A
Rated current at 400V	9.6 A
Rated current at 500V	7.7 A
Solids passage [mm]	50
Height [mm]	760
Diameter [mm]	460
Weight [kg]	157

View Complete Details

Ask Latest Price & Details

Bravo 300 Slurry Pump

Pump type Electrical submersible three-phase Slurry pump
Classification IP 68
Max submersion 20 m/66 ft
Cable 20 m/66 ft SUBCAB This pump requires an external starter box
Discharge connection Hose, BSP or NPT
Limitations pH 5.5-14
Max liquid temp 40°C/104°F (70°C/158°F on request)

Specification

50 Hz	Bravo 300
Discharge connection	4"
Rated power P2 [kW]	5.9
Max. power consumption P1 [kW]	7.1
Shaft speed [rpm]	1450
Rated current at 230V	21 A
Rated current at 400V	12 A
Rated current at 500V	9.5 A
Solids passage [mm]	50
Height [mm]	760
Diameter [mm]	460
Weight [kg]	157

View Complete Details

Ask Latest Price & Details

Bravo 700 Slurry Pump

Pump Type Electrical submersible slurry pump
Classification IP 68
Max Submersion 20 m/66 ft
Cable 20 m/66 ft SUBCAB This pump requires an external starter box
Discharge Connection Victaulic
Limitations Allowed pH range 5.5 - 14
Max liquid Temp 40°C/104°F (70°C/158°F on request)

Specification

50 Hz	Bravo 700
Discharge connection	6"
Rated power P2 [kW]	37
Max. power consumption P1 [kW]	40
Shaft speed [rpm]	1475
Rated current at 400V	66 A
Rated current at 500V	54 A
Solids passage with agitator [mm]	36
Height [mm]	1652
Diameter [mm]	875
Weight [kg]	613

View Complete Details

Ask Latest Price & Details

Bravo 800 Slurry Pump

Pump Type Electrical Submersible Slurry Pump
Classification IP 68
Max Submersion 20 m/66 ft
Cable 20 m/66 ft SUBCAB This pump requires an external starter box
Discharge Connection Victaulic
Limitations Allowed pH range 5.5 - 14
Max liquid Temp 40°C/104°F (70°C/158°F on request)

Specification

50 Hz	Bravo 800
Discharge connection	6"
Rated power P2 [kW]	45
Max. power consumption P1 [kW]	49
Shaft speed [rpm]	1475
Rated current at 400V	82 A
Rated current at 500V	63 A
Solids passage with agitator [mm]	36
Height [mm]	1652
Diameter [mm]	875
Weight [kg]	613

View Complete Details

Ask Latest Price & Details

Bravo 900 Slurry Pump

Pump Type Electrical Submersible Slurry Pump
Classification IP 68
Max Submersion 20 m/66 ft
Cable 20 m/66 ft SUBCAB This pump requires an external starter box
Discharge Connection Victaulic
Limitations Allowed pH range 5.5 - 14
Max liquid Temp 40°C/104°F (70°C/158°F on request)

Specification

50 Hz	Bravo 900
Discharge connection E	6"
Rated power P2 [kW]	70 kW
Max. power consumption P1 [kW]	75 kW
Shaft speed [rpm]	1475
Rated current at 400V	132 A
Rated current at 500V	102 A
Solids passage with agitator [mm]	36
Height [mm]	1779
Diameter [mm]	875
Weight [kg]	845

View Complete Details

Ask Latest Price & Details

50Hz Salvador Sludge Pumps

Pump type Electrical submersible One-phase and Three-phase
Classification IP 68
Max submersion 20 meters
Cable 20 meters, SUBCAB: 1-phase: 3G1.5mm2 3-phase: 4G1.5mm2
Discharge connection Hose, ISO-G or NPT
Limitations pH 5-8
Max liquid temp 40°C

Graph Image 01

Download Detail File : Click Here

Graph Image 02

Download Detail File : Click Here

Specification

50 Hz	1-ph	3-ph
Discharge connection	3"	3"
Rated power P2 [kW]	1,5	2,2
Max. power consumption P1 [kW]	1,9	2,7
Shaft speed [r.p.m.]	2830	2800
Rated current at 230V	8,4 A	8,1 A
Rated current at 400V	-	4,5 A
Rated current at 500V	-	3,6 A
Solids passage [mm]	50	50
Height [mm]	782	782
Width [mm]	249	249
Weight [kg]	33	33
