Charun Instruments

Maninagar, Ahmedabad, Gujarat

We Provide Best Quality Digital Oil Flow Meter suitable for 12" Line Size. The Feature for the same are as belowFlow Range: 0-35 LPMAccuracy 0.5%Subtotal 999.99 LTotaliser 9999 LMax. Pressure: 50 barSuitable for Viscocity up to 5000 mPasSelection of Unit Litres Gallons Pints Quarts

We bring forth Digital pH Meter that is housed in a compact and pleasing two tone color cabinet. This Instrument is designed for taking accurate pH measurements in chemical research laboratories and industries. The Digital pH Meter is suitable for routine analysis in chemical laboratory or student usage in a teaching institution. We also provide Online as well as Pen Type pH Meter of best quality. Advantages

• High performance
• Superior quality
• Precision design
• Good circuit design

Used In

• Dyes
• Intermediates
• Drugs
• Pharmacies
• Food
• Fertilizers
• Water

We are offering a quality range of Digital Fuel Flow Meters in the market. Our Digital Fuel Flow Meter comes with 4 unit options Liters (L) /Gallons (GAL)/ Pints (PT)/ Quarts (QT). The battery inside this Digital Fuel Flow Meter offer 9000 hours of operation approximately. By fine adjusting, the accuracy of this Digital Fuel Flow Meter can be as high as ± 0.3%.

We have a fine quality Lux Meter, which is available within various technical specifications. These lux meters are used for timed mean calculation or multi-point. Our product ensures precise and easy read-out with accurate measurement. Easy to hold, being compact and light weight, this lux meter is reliable and have durable finish standard. This lux meter bears built-in low battery indicator which indicates when battery gets slow.

We are a trusted Manufacturer, Exporter and Supplier of Digital Oil Flow Meter. Digital Oil Flow Meter, offered by us, provides measurement with a precision of ±0.5%. Our Digital Oil Flow Meter can measure highest pressure up to 50 bars. These Digital Oil Flow Meters are precisely engineered, and are available with us at competitive prices. Functions

• Reset to  : press RESET to reset the subtotal to zero.
• Cumulative Total : The Cumulative Total is automatically showed below the subtotal. When the cumulative total reaches a maximum reading it will automatically reset to zero.
• Units Switch : press MOVE and hold for 3 seconds, press RESET for for units shift among Liters(L) / Gallons(GAL) / Pints(PT) / Quarts(QT). Press MOVE again for locking the unit.

MaintenanceThe meter is virtually maintenance-free. However, it is important the gears moves freely. Keep the meter clean and free of contaminants. Note : For the most accurate reason, before using, make sure there is no air in the system and meet the meters minimum flowrate requirements

We are counted amongst the prominent Manufacturers, Exporters and Suppliers of Turbine Flow Meter in Gujarat, India. Our High accuracy Turbine Flow Meter is suitable for measuring the low flow applications as well as Beverage / Tea / Coffee Vending machines. We can give a customized solution based on various client applications.



The Basic Features are as mentioned below.

• Available in Various Sizes from 6mm (1/4") 50 mm (2")
• Available in Plastic, SS Body
• In Plastic Body, Available in Flow Range from 0.15 200 LPM
• In SS body, Available from ½” to 6"
• Working Voltage : 4.5 24 V DC
• Working Pressure 5 12 bar
• Working Temperature up to 120° C
• Output : Pulse, 4-20 mA, RS485, HART
• Connection : Threaded, Flanged, Tri Clover
• Typical Application : Tea / Coffee / Beverage / Water Vending Machines
• Best Suited for Low Flow Measurements




Details :

• Turbine Flow Sensor TFS06
  • Connection Size 6 mm
  • Flow Range 0.15 LPM 3 LPM

• Turbine Flow Sensor TFS12
  • Connection Size 12 mm
  • Flow Range 0.5 LPM 25 LPM

• Turbine Flow Sensor TFS20
  • Connection Size 20 mm
  • Flow Range 1 LPM 40 LPM

• Turbine Flow Sensor TFS25
  • Connection Size 25 mm
  • Flow Range 1 LPM 60 LPM

• Turbine flow sensor TFS40
  • Connection size 40mm
  • Flow Range : 1 LPM 150 LPM

• Turbine Flow Sensor TFS50
  • Connection Size 50mm
  • Flow Range : 1 LPM 200 LPM

Vibration Meter, offered by us, is widely used for industrial vibration monitoring. This Vibration Meter offers measurement in the frequency range of 10 Hz-1 KHz. It also features super large LCD display, memory function to recall minimum and maximum reading with recall. Also, our Vibration Meter requires 6 mA DC power for operation. Features

• Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment and looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed.
• Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954.
• Supply with vibration sensor & magnetic base, full set.
• Velocity Range : 200 mm/s.
• Acceleration Range : 200 m/s²
• RMS & Peak measurement
• Data hold, Memory ( Max. & Min. )
• Separate vibration probe.
• Optional data acquisition software.
• Microcomputer circuit.
• Auto shut off saves battery life.
• Hard carrying case include.

The CHARUN make Electromagnetic Flow Meter called as Magmax Virtually approaches the ideal flow meter suitable for wide range of liquid flow measurements even with very low conductivities. The meter offers no resistance to flow hence the pressure drop is almost negligible. The measurement being based on Faraday`s Law of Electromagnetic Induction, is independent of viscosity, density, pressure & temperature of flowing medium. The measurement is not affected by solid impurities as long as the min. conductivity of 5 ms /cm is available. It is a true volumetric flow measurement. We offer various materials of construction for meter lining & electrodes to cover majority of corrosive liquids. Principle Advantages

• Use of pulsed DC magnetisation & auto zero technique offers excellent long term zero stability
• Measurement is independent of velocity profile across the diameter of the pipe- line
• Measurement results are independent of density, viscosity, pressure, temperature, solid - impurities & conductivity variations [above 5 ms /cm]
• No additional pressure drop across the meter which relieves the process designer while sizing his pumping requirements
• Simple to install as no special precautions of straight pipe lengths required
• Compatible with virtually all corrosive / non - corrosive liquids
• Protection class offered IP 65
• Reasonably higher ratio of Return on Investment to Investment

Principle Of OperationThe method of flow measurement is based of Faraday`s law of electromagnetic induction. When a conductor moves within a magnetic field, voltage is induced in it which is proportional to the velocity of conductor. In this case the conductor is flowing media. The equation is as below

• E = B.V.D where
• E = Induced voltage [proportional to velocity]
• B = Magnetic flux density
• v = Mean velocity of the media
• d = Distance between the sensing electrodes

For a given size of flow tube & compatible amplitier the flux density 'B is constant, the distance between the electrodes is constant. Hence, the induced voltage is proportional to the velocity of the flowing media. Thus, the unit can be calibrated in terms of volumetric flow rate by knowing the cross - sectional area of the Tube. Applications

• Effluent Treatment Plants
• Sewage Treatment Plants
• Water Supply Schemes
• Steel & Aluminium
• Sugar Industries & Distilleries
• Pulp & Paper
• Chemical & Pharmaceutical
• Petrochemicals & Fertilizers
• Food & Drugs

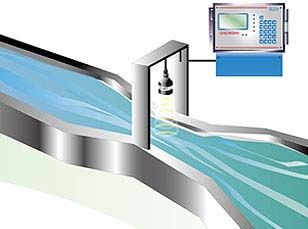

We are a major Manufacturer, Exporter and Supplier of Open Channel Flow Meter in Gujarat, India. Open Channel Flow Meters are useful for measuring flow in Canals, Weirs or any type of open channels where flowing media is not enclosed in any type of pipe. There are many ways of measuring flow in the Open channel.

Open Channel Flowmeter - Non Contact Type : We are using Ultrasonic Transmitter to measure the flow in Open channel for non-contact type Flow measurement. Ultrasonic type Open channel Flowmeters are easy to install in any channel and are having  a non-contact operation, which makes them less vulnerable to atmospheric effects and mechanical wear & tear.



Principal Advantages of our Open Channel Flowmeter are

• Non-contact Type
• Accuracy Better than 1%
• Indicator Unit can be located up to 100 meters from the Sensor Location
• Flow Measurement in Various Engineering Units
• Easy to Install
• No Moving Parts so practically lower Maintenance

Open Channel Flowmeter - Contact Type : We are using Top Mount Type Magnetic Float Type Transmitter for measuring flow in Open Channel for Contact Type Flow Measurement. These Flow meters are easy to install in any channel and having good maintenance free working life.



Principal Advantages of Our Open Channel Flowmeter are -

• Economical Compared to Non-contact Type
• Easy to Install
• Easily Settable on Site
• Easy to Maintain
• Better Accuracy
• Indicator unit can be located up to 100 meters from the Sensor Location
• Flow Measurement in Various Engineering Units

Clients can avail a quality assortment of pocket size Sound Level Meters from us at market leading prices. This Sound Level Meter features a large LED display on which results can be easily read. It also has AC/DC output for system expansion and external calibration VR. Our Sound Level Meter is measures sound in the range of 30-130 dB. Highlights

• Main specification meet IEC 651 type 2.
• A, C weighting.
• Max. hold.
• Fast/slow time weighting. AC/DC output.
• Range : 3 ranges, 30 to 130 dB.
• Mini pocket size.
• DC 9V battery ( 006P ) or DC 9V adapter in.

Features

• Large LCD display, easy to read.
• Time weighting and frequency weighting meet, IEC 61672 type 2.
• A & C weighting networks are conformity to standards
• 0.5" standard out size of the microphone
• Time weighting (Fast & Slow) dynamic characteristic modes.
• AC / DC output for system expansion
• External calibration VR
• Condenser microphone for high accuracy & long-term stability.
• MAX. HOLD function for stored the maximum value
• Warning indicator for over and under load.
• Low battery indicator
• LCD display for low power consumption & clear read-out even in bright ambient light condition
• Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case
• Pocket and light weight design allow one hand operation
• Power by 006P DC 9V battery or DC 9V adapter

Clients can avail excellent quality Diesel Flow Meter in the market. Our Diesel Flow Meter performs well at the temperature range of 10-50 degree Celsius. This Diesel Flow Meter is appreciated for its high accuracy, sturdy construction, high quality and competitive price. We offer Diesel Flow Meter in suitable packaging to the clients. Functions

• Reset the subtotal too  : Turn the knob by clockwise direction till the subtotal to
• Reset the total too : The total readout will reset to zero automatically after 99999999
• Fine Adjusting the accuracy : The accuracy of the counter can be adjusted by the adjusting screw. Turn the adjusting screw by clockwise direction for output less liquid, while turn the adjusting screw by anti-clockwise direction for output more liquid. For example : If the counter shows 100 Liter, while the output is 101 Liter, turn the adjusting screw by clockwise direction. If the counter shows 100 Liter, while the output is 99 Liter, turn the adjusting screw by anti-clockwise direction. (Before adjusting, please screw off the safety capnut)

We are offering Lux Meters in the market. Lux Meters are used for measuring luminous flux per unit area. Our range of Lux Meters includes Digital Light Lux Meter (LX-101A) and Digital Light Lux Meter (LX-1102). These Lux Meters provide reading in high accuracy. Also, these Lux Meters are available in various specifications to meet varying requirements of clients.

We are offering Magnetic Flow Meter for Industrial use: - An Inferential, Dry Dial type Water Meter with Magnetic Drive and Vacuum Sealed Register, Conforms to ISO 4064, Class-B. - Highly Sensitive to low flow rates and very accurate over its entire flow range. - Low Head Loss - Self Lubricating Gears - Long Maintenance free working Life - Hot Version available up to 90 Degree Centigrade.

Owing to a vast experience and in-depth knowledge, we have emerged as a prominent Manufacturer, Exporter and Supplier of Vortex Flow Meter in Gujarat, India. The clients can avail from us the best Quality Vortex Flow Meter. This flow meter is best suited for measuring the flow or consumption of LPG, CNG, Natural Gas and any type of Gas, with the best accuracy. We manufacture them by using the best quality materials and updated techniques. It is known for its sturdy structure, perfect finish, and optimum functionality.

We offer Electromagnetic Flow Meter-02. it is called as magmax virtually approaches the ideal flow meter suitable for wide range of liquid flow measurements even with very low conductivities. the meter offers no resistance to flow hence the pressure drop is almost negligible. the measurement being based on faraday`s law of electromagnetic induction, is independent of viscosity, density, pressure & temperature of flowing medium. the measurement is not affected by solid impurities as long as the min. conductivity of 5 ms /cm is available. it is a true volumetric flow measurement. we offer various materials of construction for meter lining & electrodes to cover majority of corrosive liquids. principle advantagesuse of pulsed dc magnetisation & auto zero technique offers excellent long term zero stability measurement is independent of velocity profile across the diameter of the pipe- linemeasurement results are independent of density, viscosity, pressure, temperature, solid - impurities & conductivity variations [above 5 ms /cm]no additional pressure drop across the meter which relieves the process designer while sizing his pumping requirementssimple to install as no special precautions of straight pipe lengths requiredcompatible with virtually all corrosive / non - corrosive liquidsprotection class offered ip 65reasonably higher ratio of return on investment to investmentprinciple of operationthe method of flow measurement is based of faraday`s law of electromagnetic induction. when a conductor moves within a magnetic field, voltage is induced in it which is proportional to the velocity of conductor. in this case the conductor is flowing media. the equation is as belowe = b.v.d wheree = induced voltage [proportional to velocity]b = magnetic flux densityv = mean velocity of the mediad = distance between the sensing electrodesfor a given size of flow tube & compatible amplitier the flux density 'b is constant, the distance between the electrodes is constant. hence, the induced voltage is proportional to the velocity of the flowing media. thus, the unit can be calibrated in terms of volumetric flow rate by knowing the cross - sectional area of the tube. applicationseffluent treatment plantssewage treatment plantswater supply schemessteel & aluminiumsugar industries & distilleriespulp & paperchemical & pharmaceuticalpetrochemicals & fertilizersfood & drugsclick here for more details to enquire about the desired product(s), just check the box and then click inquiry now button which is provided below.
