Baoding Guokun Machinery Co., Ltdand Baoding Guokun Export and Import Trading Co., Ltd are located in Baoding city, Hebei province, China. Our sand-casting factory occupies a total area of 30, 000 square meters, which havecasting foundryworkshop, grinding, sandblasting and precision machining shop, laboratory and warehouse. Baoding Guokun has equipped with 4 sets medium-frequency electric furnaces, 15 sets automatic shell core machinery, automatic sand-casting molding line, 7 sets CNC machinery, 20 sets CNC Lathe, and the complete quality inspection devices for mechanical testing and chemical analysis, including tensile strength, hardness tester, metallographic inspection, spectrometer, ultrasonic testing and special testing devices. Before shipping, the quality reports for all inspection will be issued and mailed to our customers. We can offer green sand casting, resin sand casting, precoated sand casting, shell mold casting process for your OEM casting parts.

Cast gray iron is a type of cast iron which made up of carbon, silicon, and manganese. The grey iron is the most common cast iron and is named for its gray color when it fractures due to the presence of graphite flakes. Due to high thermal conductivity, excellent vibration damping, good corrosion resistance, and easy to machine, the cast gray iron is mainly used for automotive, construction, cookware, pump, valve, truck, agriculture, mining, such as gearbox housing, pump shell, valve body, motor housing, etc.

Gray cast iron: ASTM A48 Standard Specification for Gray Iron Castings

This specification covers gray iron castings intended for general engineering use where tensile strength is a major consideration. Castings are classified on the basis of the tensile strength of the iron in separately cast test bars. The casting surface shall be free of adhering sand, scale, cracks and hot tears, as determined by visual examination.

Baoding Guokun can use grey cast iron to produce the following products:

Pump casting: Pump casing, pump housing, pump shell, pump back liner, pump cover plate, hydraulic pump parts and other customized pump replacement parts.

Valve casting: Valve body, valve seating, industrial valve fittings and other valve casting components.

Automotive casting: engine blocks, brake systems, brake disc, clutch plates, cylinder liners, and positions, etc.

Agricultural machinery casting parts: plow shares, tillers, irrigation system components, and other tractor casting parts.
Please contact amy@ to get a quotation.

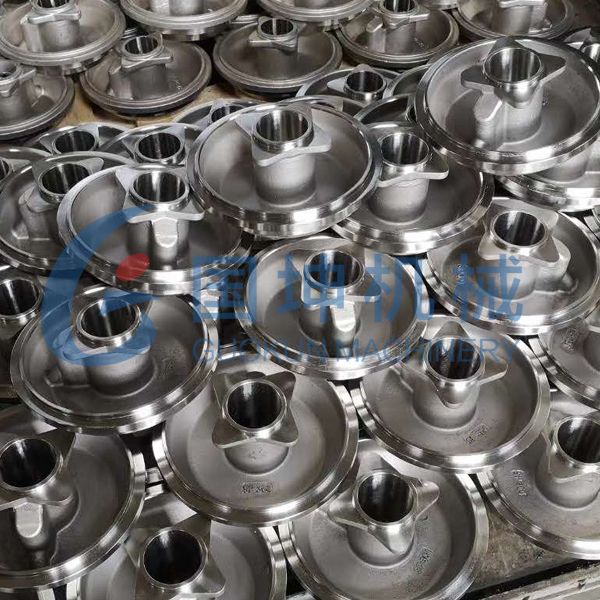

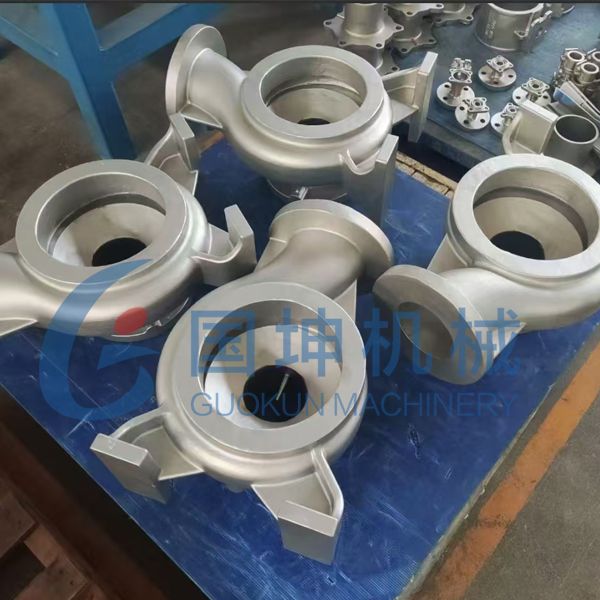

Baoding Guokun can manufacture a multitude of pump casting parts, for example, pump housing, pump casing, cast pump body, pump mounting bracket, casting pump impeller, volute casing, pump casing cover, back liner, pump volute, pump bearing bracket, pump vane and all other customized pump cast pump components for the centrifugal pumps, vertical centrifugal pump, horizontal centrifugal pump, fire hydrant pump, gear pump, lobe pump, piston pump vacuum pump and water pump. Depending on your pump types and requirements, Baoding Guokun can cast and machine different pump replacement parts in heat-resistant stainless steel, ductile iron, gray iron, aluminum alloys and other metals.

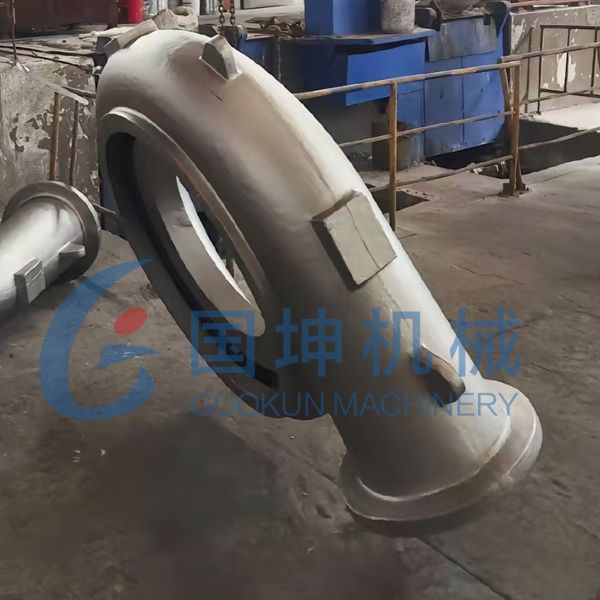

What's the pump casing?

Thepump casingis a metal casting outer housing, pump volute or pump shell that holds a pump and protects the internal pump parts, allowing fluid to flow through while maintaining pressure and preventing leaks by sealing off the inside of the pump from the atmosphere.

The two main types of casings in centrifugal pumps arevolute casingsand diffuser casings. A very common classification of pump casings is the diffuser construction. A diffuser is actually a series of vanes surrounding the impeller which accepts the discharge of liquid from the impeller.

Metal process forpump castings:

Investment castingcast steel pump parts: Silica sol investment casting process is a very efficient and accurate casting technique that offers high precision, net-shape pump castings, smooth casting surface, reduced machining process for your stainless steel pump casting parts in UNS S31600, 316, 304, 316L, CF8, CF8M and other stainless steels.
Please contact amy at guokunjcasting dot comto get a quotation.

Baoding Guokunis a25 years' experience casting factory in sand molding process and investment casting process for motor casting and engine casting parts, motor shell, end bracket, frame, cooling fan, end bracket, bearing housing and other custom motor casting in cast iron, cast steel and aluminum alloys.

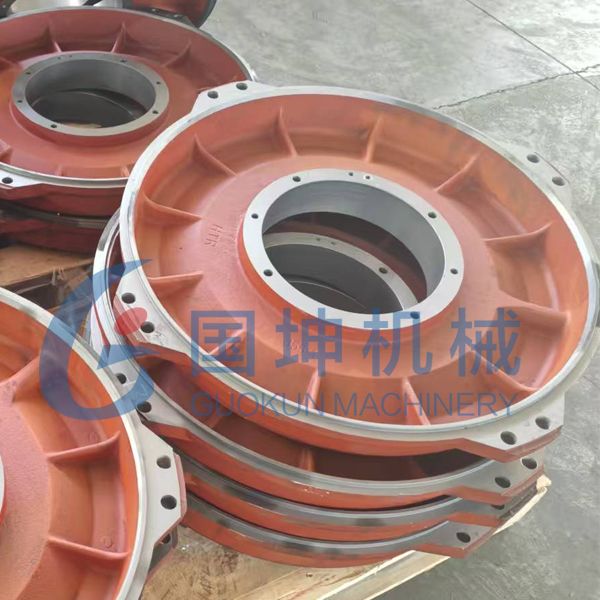

What is motor bearing cover ormotor end cover?

The casting motor bearing end cover is an important and protective motor casting parts that seals and shields the bearings within an electric motor, preventing contaminants like dust and moisture from entering while helping to retain lubrication, thus extending the bearing's working life and improve the motor performance.

What's metal casting process for cast iron motor end cover?

Sand casting processis an industrial metal casting process that involves creating amold from sand and pouring molten metal into it, generally used to cast the shaped parts of nearly any design, including large parts and those with internal passages. Baoding Guokun can produce various sand cast parts in cast iron, ductile iron, gray iron, low-carbon steel, mild steel, alloy steel forpump, valve, agriculture, railway, road, forklift, tillage, mining, automotive, medical, food, and aircraft, etc.

What's material for customized electric motor end cover?

Ductile iron motor bearing cover:ASTM A536Gr.65-45-12, Gr.60-40-18, Gr.80-55-06; GGG40, GGG50, GGG60. JIS-FCD40, FCD50, FCD60, QT450-12, etc

Gray Ironmotor end cover: ASTM A48 class20, calss30, class 35, class 40, DIN 1691 GG20, GG25, GG30, JIS-FC10, FC15, FC25, HT200, HT250, HT300, etc.

Stainless steel motor end cover: 316, 304, CF8, CF8M, 1.4308, 1.4408, etc.

Alloy steel motor end covers: DIN-GS-40Mn5, GS-20Mn5, 35CrMo4, ASTM A487, Grade 4castings, etc.

Carbon steel motorend covers:ASTM A216Gr. WCB, WCC, WCA, 1.0446, 1.0416, etc.

Aluminum alloy motor end covers: ASTM A356, A380, ADC10, ADC12, etc.

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry &supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry. Baoding Guokun has been specialized in the designing and manufacturing of various valve components for ball valve, gate valve, globe valve, butterfly valve, through conduit gate valve, knife gate valve, bellow valve, strainers and flow control components.

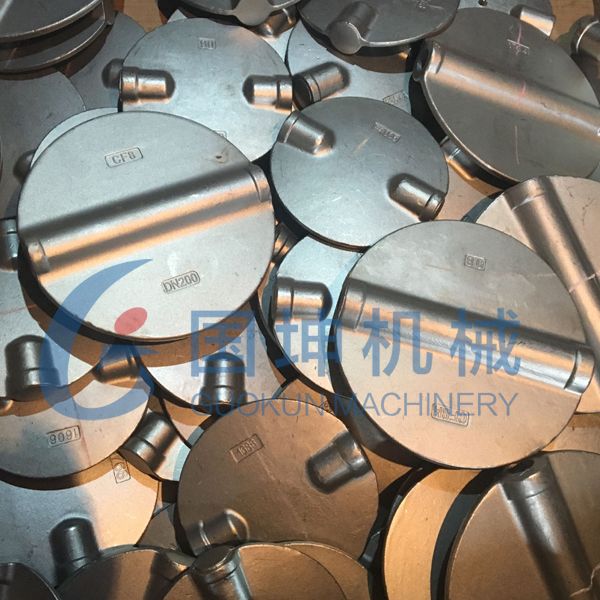

What is avalve disc?

The valve disc is an important movable component within avalve that controls the flow of fluid by either allowing it to pass through or block it, depending on its position; essentially, it's the valve components that directly regulates the fluid flow by creating aseal against the valve seat when closed.

A broad line of materials is offered and fabricated in Baoding Guokun.

Steel material ranges from cast steel, forged steel to special alloy steel like Monel, Duplex.

Cast iron materials in GG20, GG25 or ductile iron of GGG40, GGG50, etc.

Aluminum, brass, copper and bronze valve parts can be produced in our factory.

What's the best material for avalve disc?

Stainless steel is the most common valve disc material because of its anti-corrosive, anti-heat and anti-contamination properties. The Baoding Guokun stainless steel casting valve disc is made asinvestment casting process, or lost-wax casting process that results in asignificantly improved surface finish &casting tolerance and valve disc quality than other sand cast stainless steel valve disc and bronze valve disc.
Two types of investment cast processes: Silica Sol process and the water glass process.

The Silica Sol process is used to cast complex high-quality parts with requirements of avery good surface finish and close dimensional tolerances. This process can range from aweight of just afew ounces to approximately 80 pounds. If you are concerned with precision in very small parts, we are especially proficient at very fine detail work including teeth and serrations.

The water glass process is typical of the process in the early stages of investment castings. It generally is capable of much larger castings than the Silica Sol process, but does not have as good of surface finish or tolerances. The water glass process provides parts that have better surface finish and dimensional tolerances than sand castings. This process may range in weight from several ounces to approximately 200 pounds.

First article layouts and spectrometer material certifications are provided with all first article samples.

Custom service: Avariety of secondary operations can be performed on both types of investment castings. They include heat treatment, machining, plating, painting, polishing and buffing, assembly services and even custom packaging.

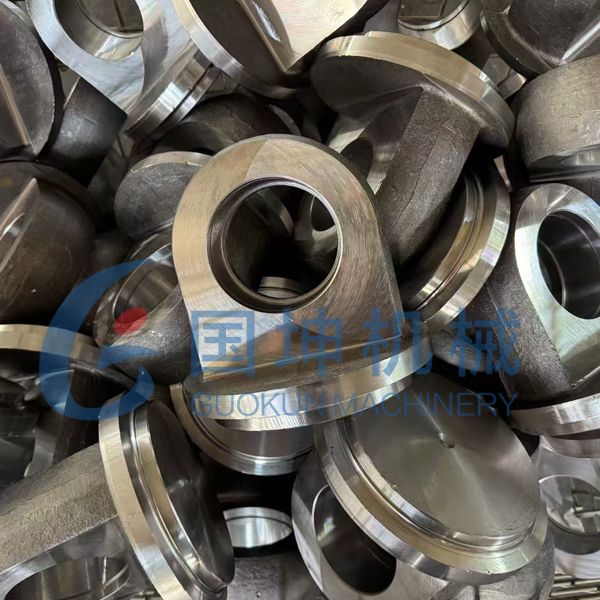

Drop forging, also called closed die forging is ametal shaping process where aheated metal billet is placed between dies and struck by ahammer or press to form the desired shape. It is commonly used for high-strength components like hydraulic cylinder yokes, connecting rods, gears.

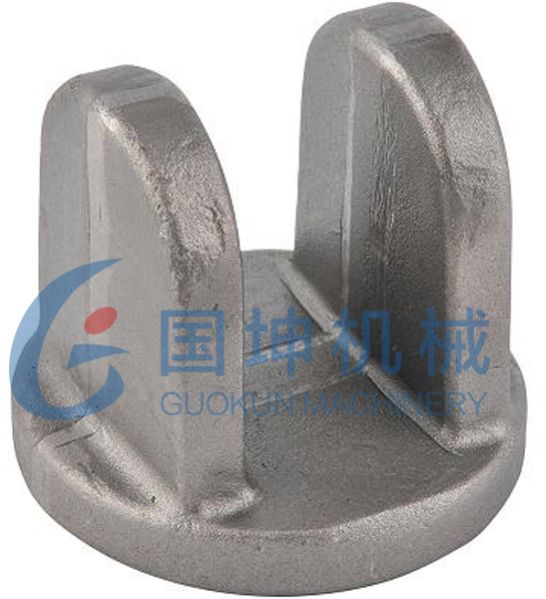

The hydraulic cylinder yoke is acritical component that connects the cylinder to other heavy-duty machinery, such as construction equipment, excavators, loaders, cranes, agricultural machinery, tractors, harvester, mining &industrial hydraulic lifting equipment.

Advantage of Baoding Guokun drop forged yokes

Superior strength: Grain flow follows the yoke's shape, enhancing structural integrity.

High durability:Resists fatigue, impact and heavy loads better than cast yokes or welded yokes.

Precision &consistency: Tight tolerances ensure reliable performance in hydraulic systems.

Cost-effective for mass production: Lower per unit cost compared to machining from solid billet.

Better surface finish: Reduced porosity compared to casting.

Baoding Guokun Machinery Co., Ltd and Baoding Guokun Export and Import Trading Co., Ltd are located in Baoding city, Hebei province, China. Our sand-casting factory occupies atotal area of 30, 000 square meters, which have casting foundry workshop, grinding, sandblasting and precision machining shop, laboratory and warehouse. Baoding Guokun has equipped with 4sets medium-frequency electric furnaces, 15 sets automatic shell core machinery, automatic sand-casting molding line, 7sets CNC machinery, 20 sets CNC Lathe, and the complete quality inspection devices for mechanical testing and chemical analysis, including tensile strength, hardness tester, metallographic inspection, spectrometer, ultrasonic testing and special testing devices. Before shipping, the quality reports for all inspection will be issued and mailed to our customers.
The pump impeller is the rotating component in the pump that directly transfers the energy from the motor into the fluid being pumped. Pump impellers are classified as one of three types: Open impeller, semi-open impeller, or closed impeller. Their classification is based on whether they have aprotective shroud or not.

Baoding GuokunInvestment castingstainless steel pump impeller's steps:

1. Patterns Makings: Creating awax mold of the desired stainless steel pump impellers, and then adding sprues to the wax model to create atree-like structure.
2. Shell Building: Coating the wax pattern with alayer of fire-resistant paint, and then to be sprinkled with sand, so after aperiod of hardening, the surface will form alayer of fire-resistant thin shell.
3. Dewaxing: Removing the wax, the shell is placed into an oven, melting the wax so that it can run out of the shell.
4. Pouring: Pouring the molten stainless steel into the shell, and waiting for solidification under room temperature.
5. Post treatment: After cooling, knock the shell and cut the sprue gate by grinding machinery to achieve net shape impeller castings. Then shot blasting to move mill scales to assure the smooth casting surface.
6. CNC Machining &Balancing

If you have any new inquiry of pump casting, casting pump, stainless steel casting pump parts in 304, 316, CF8, CF8M, pump housing, pump impeller, pump shell, pump cover, pump components, please contact amy at guokunjcasting dot comto get a quotation.

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry &supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry. we also can offer investment casting and sand casting process for your custom metal products.

With amonthly capacity of 10, 000kgs and with more than 25 years of experience ensure the short delivery and the highest valued iron &steel casting parts.

Pump casting, Valve casting, agricultural casting, aircraft casting, railway casting, road casting, motor casting, mining casting, boiler casting, power generation investment casting, Medical casting, marine industry casting.
Lost-foam casting is atype of evaporative-pattern casting process that is similar to investment casting except foam is used for the pattern instead of wax. The lost foam casting techniques take advantage of the low boiling point of polymer foams to simplify the investment casting process by removing the need of melt the wax out of the mold. Compared withinvestment casting methodandsand casting techniques, lost foam casting is one of the most cost-effective and environmentally friendly metal casting process for creating complex and intricate metal parts by using afoam pattern that evaporates when molten metal is poured into it.

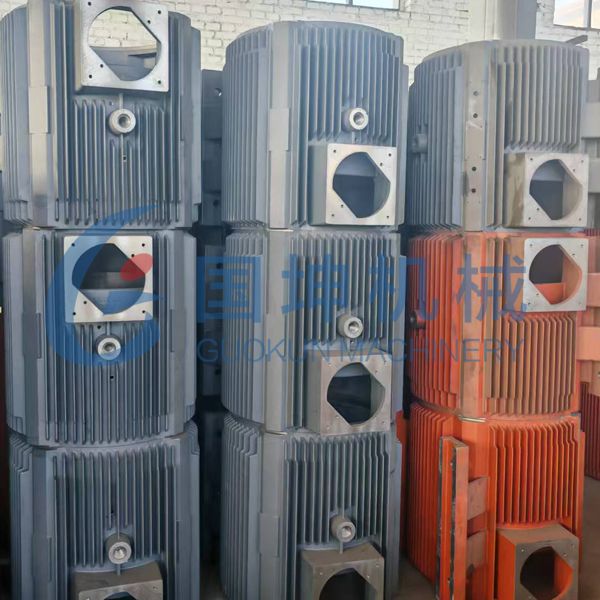

Usually, the material of motor housing is cast iron ASTM A48 or ASTM A536 for the larger motor casing. But the material is no longer limited to steel and pig iron as in the past, the thin and lightweight stainless steel and aluminum alloy are also more popular.
Please contact amy at guokunjcasting dot comto get a quotation.

Baoding Guokun Machinery Co., Ltdand Baoding Guokun Export and Import Trading Co., Ltd are located in Baoding city, Hebei province, China. Our sand-casting factory occupies atotal area of 30, 000 square meters, which havecasting foundryworkshop, grinding, sandblasting and precision machining shop, laboratory and warehouse. Baoding Guokun has equipped with 4sets medium-frequency electric furnaces, 15 sets automatic shell core machinery, automatic sand-casting molding line, 7sets CNC machinery, 20 sets CNC Lathe, and the complete quality inspection devices for mechanical testing and chemical analysis, including tensile strength, hardness tester, metallographic inspection, spectrometer, ultrasonic testing and special testing devices. Before shipping, the quality reports for all inspection will be issued and mailed to our customers. We can offer green sand casting, resin sand casting, precoated sand casting, shell mold casting process for your OEM casting parts. The investment casting and sand casting process are usually the most cost-effective casting techniques to produce complex or simple gearbox casting replacement components in low, medium and high-volume quantities. The types of gearbox reduced housing, helicopter transmission components, gearbox components, main rotor gearbox housing, tail rotor gearbox housing, gearbox casing, transmission housing, bearing housing, we can produced and exported are as follows:

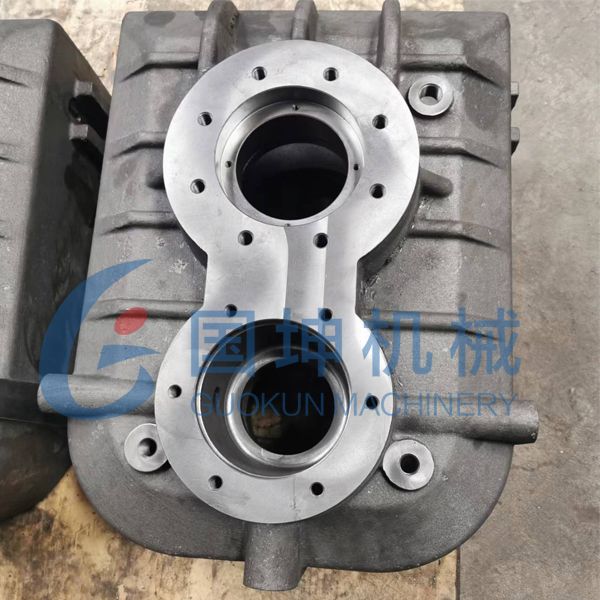

Cast Iron Gearbox Reducer Housing: Durable and commonly used for heavy-duty applications. Mainly produced bysand casting processandlost foam castingprocess.

Aluminum gearbox reducer Housing: Lightweight and corrosion-resistant, often used in applications where weight is aconcern. Mainly produced by gravity casting, sand casting and die casting process.

Stainless Steel helical bevel gearbox Reducedr Housing: Used in corrosive environments or industries like food processing or pharmaceuticals. Mainly produced byinvestment castingor lost wax casting process.
Please contact amy at guokunjcasting dot comto get a quotation.

Drop forging, also called closed die forging is ametal shaping process where aheated metal billet is placed between dies and struck by ahammer or press to form the desired shape. It is commonly used for high-strength components like hydraulic cylinder yokes, connecting rods, gears.
The hydraulic cylinder yoke is acritical component that connects the cylinder to other heavy-duty machinery, such as construction equipment, excavators, loaders, cranes, agricultural machinery, tractors, harvester, mining &industrial hydraulic lifting equipment.
Please contact amy at guokunjcasting dot comto get a quotation.
