Industrial Valves

We are leaders in the market for providing best range of SZ45X Non-rising stem resilient seated gate valve, XZ45X Signal Resilient Seated Gate Valve, H44X Rubber Disc Check Valve, Directly Buried Extension Rod Elastic Seal Gate Valve and SZ41X Rising Stem Resilient Seated Gate Valve

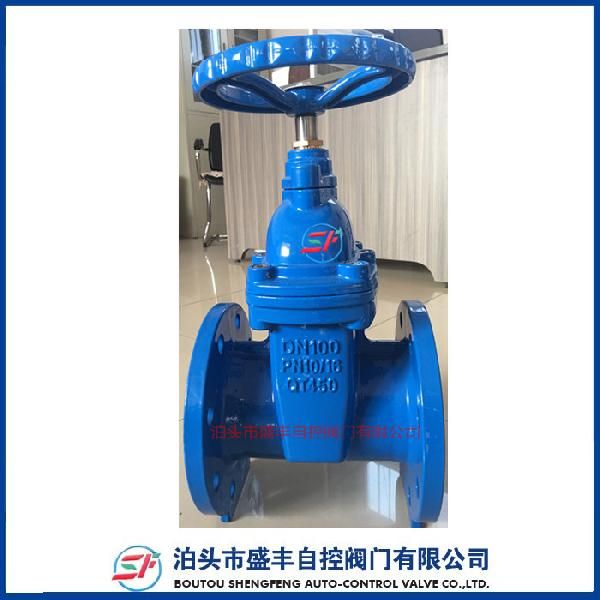

SZ45X Non-rising Stem Resilient Seated Gate Valve

₹ 8,900 / 300 300 Set Get Latest Price

Min. Order (MOQ) 10 Set(s)
Brand Name SZ45X
Material ducile iron
Packaging Type blue
Country of Origin cangzhou
Pressure 1.0 1.6 2.5mpa
Temperature Of Media 0-80
Nominal pressure 1.0mpa 1.6mpa 2.5mpa

Characteristic:1.The seal is designed with dustproof ring plus three "O" seal ring, reliable sealing, on-line replaceable2.Both gate and aluminum bronze bearing are in inaid design good self lubrication, high strength and can have the aluminum bronze bearing replaced withoutneed to replace the gate integrally, aftere a long time use.3.rubber wrapped gate anti-corrosion, good tightness.4.advance surface treatment, coated with non-toxic epoxy resign static power, anti-corrosion, pollution-free, can be used drinking water pipeline.5.The body is designed without gate slot, the smooth passage will not get impurities filling up, more applicable for sewage working condition.6.The integral seal works raliably, for the high pressure seal, leaving zero leakage under 1.5times nominal pressure and for the low pressure one , under 0.02mpa.Z45X Non-rising stem resilient seated gate valve main Z45X Non-rising stem Technical parameters: Material of main parts: No part material1 Body Ductile iron 2 Disc Suctile iron packed with NBR3 Bolt CS SS4 Gasket EPDM NBR5 Cover Ductile iron6 Stem stainless steel7 O-ring EPDM silicone8 Thrust bearing brass9 Bolt CS SS10 Gland Ductile iron11 Dust proof gasket EPDM NBR12 Hand wheel Ductile ironHow to reach our factoryby plane:From Beijing airport:240kms, 3 hours by driving.From Tianjin airport:150kms, 2 hours by driving.By Train:From beijing South railway station:224Kms, 1 hoursFrom Shanghai Hongqiao railway station:1167Kms

View Complete Details

Ask Latest Price & Details

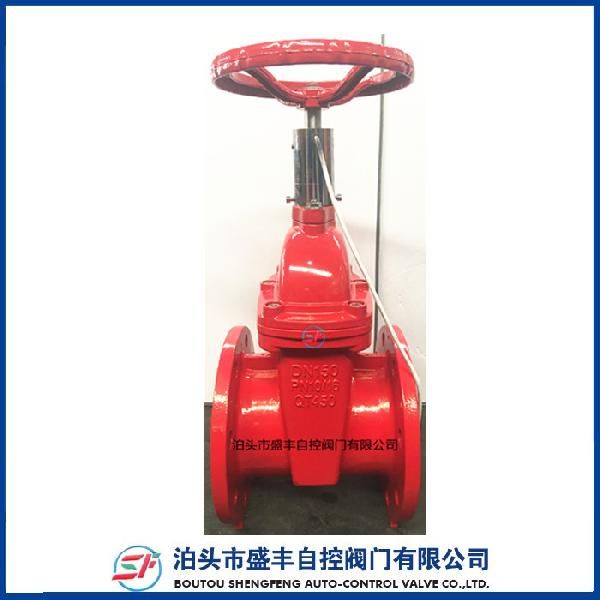

XZ45X Signal Resilient Seated Gate Valve

₹ 890 / 300 300 Set Get Latest Price

Min. Order (MOQ) 10 Set(s)
Brand Name XZ45X
Material ductile iron
Packaging Type blue
Country of Origin cangzhou
Pressure 1.0 1.6 2.5mpa

Xz45x signal resilient seated gate vlave purpose:signal gate valve and signal butterfly valve are used in automatic sparying water pipeline in fire protection system to mon-itor the water supplu pipeline and indicate the valve's opening at a long distance.rising stem gate valve and opening indicator gate valve are often used in fire protection system , and if the installation position is high to the ground, rising stem gate valve is used and can show the valve's opening clearly while if the installation position is low , opening indictor gate valve is used.Technical parameters: nominal voltage:24v.dcac all can maximum working voltag:220v rated current:5a contact resistance:1m insulation resistance5m working enviroment tempetature:-1085 material of main parts: coverbodynodular cast iron stem:stainless steel o ring:nbr stem nut:copper alloy fashboard:nodular cast iron lining rubber split ring:copper alloy combination lock:stainless steel how to reach our factoryby plane:from beijing airport:240kms, 3 hours by driving.From tianjin airport:150kms, 2 hours by driving.By train:from beijing south railway station:224kms, 1 hoursfrom shanghai hongqiao railway station:1167kms, 4.5 hoursby car:from cangzhouxi railway station:45kms, 40 minutes. Our addressbotou industry park, cangzhou city, hebei province , botou shengfeng auto-valve co, . Ltd is a specialized manufacture enterprise that focuses producing, installing, sale and service. The main products include gate valve, waterpower

View Complete Details

Ask Latest Price & Details

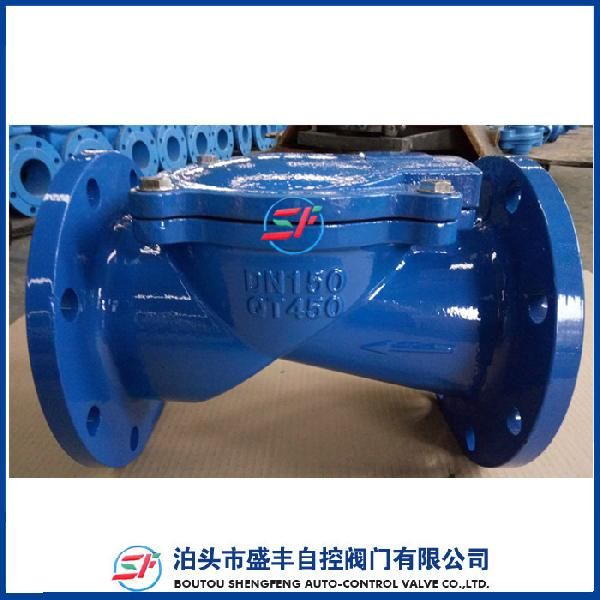

H44X Rubber Disc Check Valve

₹ 890 / 300 300 Set Get Latest Price

Min. Order (MOQ) 10 Set(s)
Brand Name shengfeng
Material ductile iron
Pressure 1.0 1.6 2.5mpa
Packaging Type blue
Country of Origin cangzhou
Temperature Of Media 0-80℃

H44x rubber disc check valve purpose: the flap of this valve is coated with rubber on its outer layer and its switching duration can be up to 1 million times.and it is , with the full-flow area design, features by small head loss, not easy piled-up of foreign matters and simple repair.suitable for the water supply and drainge system mounted in the pipeline or on the pump outlet, prevent both pump and pipeline from being damage due to medium's back-flow and water hammer.it can also be mounted on the by-pass pipe for water in and out of a reservoir to assist the water of the reservior to flow back to the water supply system. Nominal pressure1.0-1.6mpa nominal diameter:50-600mm applicable medium:water applicable temperature:0-80 flanged standard:gbt 17241.6 gbt 9113 testing standard:gb13972 api1598 how to reach our factoryby plane:from beijing airport:240kms, 3 hours by driving.From tianjin airport:150kms, 2 hours by driving.By train:from beijing south railway station:224kms, 1 hoursfrom shanghai hongqiao railway station:1167kms, 4.5 hoursby car:from cangzhouxi railway station:45kms, 40 minutes.

View Complete Details

Ask Latest Price & Details

Directly Buried Extension Rod Elastic Seal Gate Valve

₹ 890 / 300 300 Set Get Latest Price

Min. Order (MOQ) 10 Set(s)
Brand Name shengfeng
Material ductile iron
Packaging Type blue
Country of Origin cangzhou
Pressure 1.0 1.6 2.5mpa
Temperature Of Media 0-80℃

purpose: This valve is mounted on various enderground pipeline and used as a big-way installation for tap water , sweage treatment etc. characteristics: Directly buried technique .no need of a gate valve, reducing the laboring for installation and the buried depth can be adjusted.long life, without internal leak, of the merits with an elastic gate valve, no affection to the traffic, safe and reliable, integrated with the underground portion, effectively protected against robbing. performance specification: Nominal pressure:1.0mpa 1.6mpa 2.5mpa shell test:1.5map 2.4mpa 3.75mpa sealing test:1.1mpa 1.76mpa 2.75mpa working temperture:100 applicable medium water sewage How to reach our factoryby plane:From Beijing airport:240kms, 3 hours by driving.From Tianjin airport:150kms, 2 hours by driving.By Train:From beijing South railway station:224Kms, 1 hoursFrom Shanghai Hongqiao railway station:1167Kms, 4.5 hoursBy Car:From CangzhouXi railway station:45kms, 40 minutes.

View Complete Details

Ask Latest Price & Details

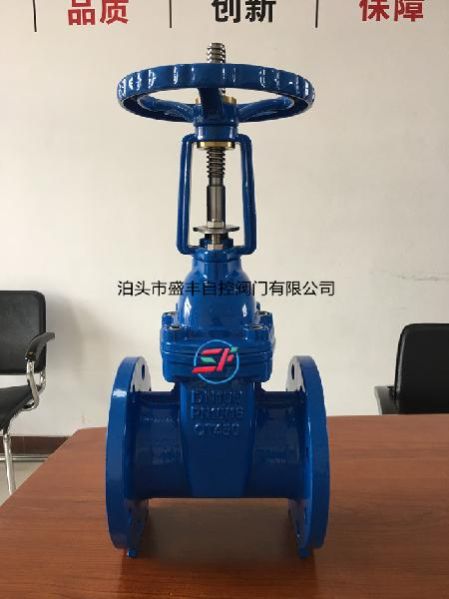

SZ41X Rising Stem Resilient Seated Gate Valve

₹ 890 / 300 300 Set Get Latest Price

Min. Order (MOQ) 10 Set(s)
Packaging Type blue

Product overview:the valve disc is rubber-pached to get excellent saaling effect by the rubber's resilient deformation.nonrising resilient seated gate valve solve the problem in general gate valves such as leakage, rusting etc.and saves installation space.it is used widely in tap water industry, sweage treatment , shipping construction, petrolum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.How to reach our factoryby plane:from beijing airport:240kms, 3 hours by driving.From tianjin airport:150kms, 2 hours by driving.By train:from beijing south railway station:224kms, 1 hoursfrom shanghai hongqiao railway station:1167kms, 4.5 hoursby car:from cangzhouxi railway station:45kms, 40 minutes. Our addressbotou industry park, cangzhou city, hebei province botou shengfeng auto-valve co, . Ltd is a specialized manufacture enterprise that focuses producing, installing, sale and service.

Additional Information:

Payment Terms : L/C, D/P, T/T, Western Union

Packaging Details : wooden

Delivery Time : 30days
