Changsha Bangcheng Automatic Control System CO.,Ltd.

Changsha, Arunachal pradesh, China

• MOQ 1 Set(s)

We are offering gas sampling probe. Sp223 sampling device, is a self heating and implementation of the temperature control of the sampling device. The device is suitable for continuous collection of exhaust gas samples after combustion process. Typical using for power plant flue, cement production process, such as dust, high water sample gas collection under the action of the air pump, the measured gas samples into the device cavity by the sampling tube of insertion of the flue wall, flow into the sample gas output port through the dust filter. In the process, the temperature of the samples gas is always in a high state(the thermostat maximum temperature control set point of 200 degrees), so that the water in the sample gas can not be condensed, thus improve the working conditions of the filter obviously, the setting of the temperature controller in the device depends on the dew point value of the water vapor in the sample gas, to ensure that no condensation occurs during this process, the setting temperature should be 20~30 degree higher than the dew point.

• MOQ 1 Set(s)

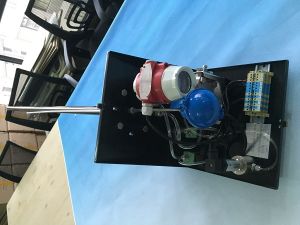

Bc-pt pitometer is based on the principle of differential pressure measurement of the traditional pitot tube for design.it can be used for all kinds of boilers, furnaces and flue exhaust pipes of mine gas velocity, dynamic pressure, static pressure and temperature on-line monitoring. Bc-pt pitot tube flow meter is mainly composed of the “s” type pitot tube detection head, pitot tube protection sleeve, differential pressure transmitter, purge control solenoid valve and control box.for the models with pressure and temperature measurement, there are additional pressure and temperature transmitters. When measuring, the pitot tube detection head is inserted into the pipeline, and the dynamic pressure and static pressure probe center axis in the flow section center and consistent with the flow direction, the total pressure probe hole positive coping flow, and to detect the total pressure of the fluid flow, then pass to the transmitter, at the same time, static probe hole pickup will also transfer to the throttle pressure transmitter, the transmitter read the total static pressure value, the total pressure = dynamic pressure + law of static pressure, seek out the difference and application of the formula to calculate the flow velocity, and also flue cross-sectional area of the pitot tube input control board, calculate the gas flow velocity.it can be displayed directly in the field and convert it to the corresponding velocity ratio of current (4~20ma) output to the dcs。equipped with temperature and pressure transmitter integration pitot tube current meter can also convert the measured velocity calculation to gb standards state of flow, and meet the requirements of the national standard of cems flow measurement.

• MOQ 1 Set(s)

We are offering sample gas cooler. The ecm 12 series gas cooler is manufactured to perform gas analysis to decrease the dew point of humid gas and avoid the process of condensation in the analyzing units.accurate measurements of gases require gas samples with stable dew points even under harsh ambient conditions.the stable and reduced gas dew point inhibits water vapor, hence improve measuring precision and extend the service life of the whole equipment. The ecm models provide a compressor-type cooling system connected to a cooling block. The cooling block evenly dissipates the heat thus supporting the highly efficient working procedure of heat ex-changers.in the non-stop process of the compressor, the automatic thermostat system achieves the automatic constant temperature of the heat ex-changers. The whole cooling system is 100% cfc free and requires no maintenance services.it is capable of self temperature-evaluation, keeping constant temperature, making sure the stability of the outlet sample gas dew point and ruled out the temperature fluctuations caused by the traditional condenser switch mode. The cooling block accommodates either a single stream or a dual stream heat ex-changers based on the actual demand.the condensate can be removed by peristaltic pumps.
