Fbi Packing Co., Ltd.

china, China

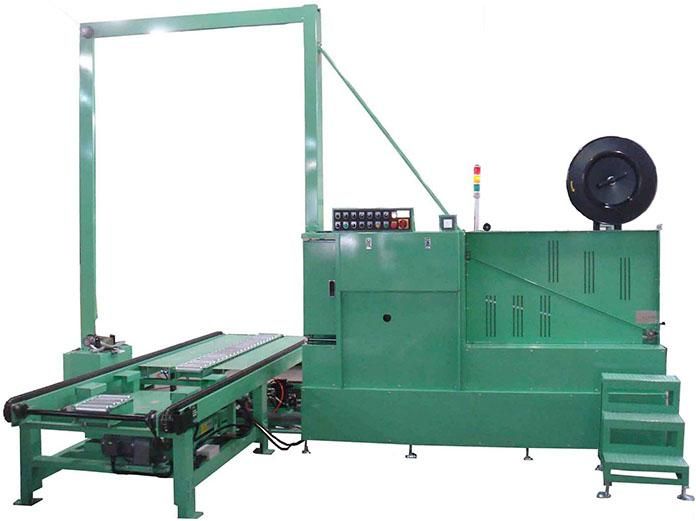

We are offering vertical strapping machine, machine dimensions(mm) l * w * h+weight: 3950 * 660 * 2883+550kgstandard arch dimensions(mm) w*h: 2250*1600(can be customized)standard package dimensions(mm) w*h: (1000-1200)*(800-2000)pppet strap dimensions: strap width:12, 15, 19mmstrap tension: max. 700n (adjustable)strapping speed: 15sper strapoperate mode(with touch screen): manual +auto(easy to install to fully automatic packing system)plc control system: the strapping head has 250mm shift motion(400mm optional)auto-caution when strap is not feed to the right position: both available for pp and pet strapssuitable to install to fully automatic packaging production line: customized non-standard designplc control system: the strapping head has 250mm shift motion(400mm optional)auto-caution when strap is not feed to the right position.: both available for pp and pet strapssuitable to install to fully automatic packaging production line: customized non-standard designauto alarm when abnormal condition emerge: equiped with pallet void feeder for pallet strapping. open type flexible arch. all steel structure, sturdy supporting frame. Using combine with ht-100, the safety of goods on pallet will be 100% guaranteed. power: 380v. 5060hz. 3 phase. 1.2kw.

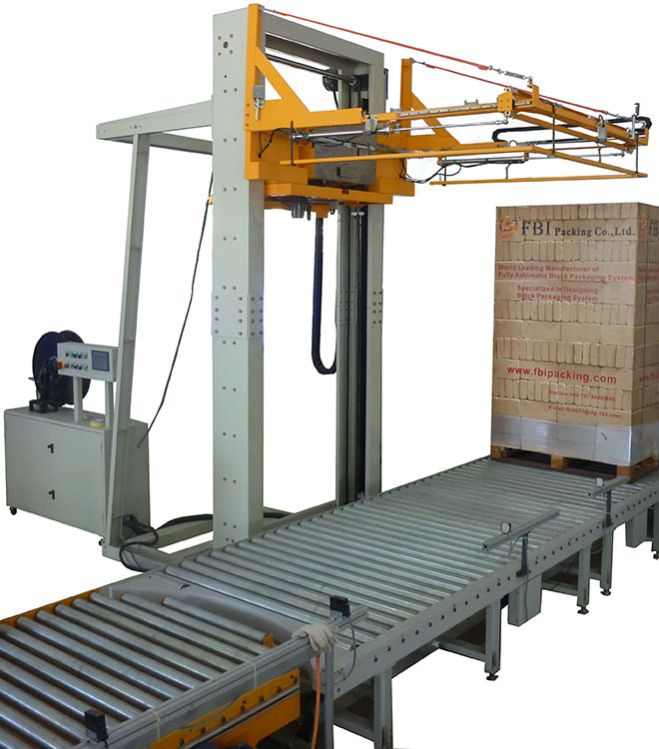

We are offering horizontal strapping machinem, machine dimensions(mm)l * w * h+weight: 1700 * 2655 * 3930+1000kgstandard arch dimensions(mm)w*h: 1450*1600(can be customized)standard package dimensions(mm)l*w*h: (1000-1200)*(1000-1200)*(800-2000)conveyor height: min. 300mmstandard shift motion: 250mm(can be customized)pppet strap dimensions: strap width:12, 15, 19mmstrap tension: max. 700n(adjustable)lifting speed: 1-16mmin(adjustable)strapping speed: 22sper strapoperate mode(with touch screen): manual +auto(easy to install to fully automatic packing system)plc control system: suitable to install to fully automatic packaging production line. Auto-caution when strap is not feed to the right position.: both available for pp and pet strapsprogrammable strapping patterns: auto-alarm when abnormal condition emergecustomized non-standard design: all steel structure, sturdy supporting frame. awith arch collision detection, auto-stop when collide. abnormal detection:strap shortage detectionstrapping failure detection using combine with vs-100 or vt-100, the safety of goods on pallet will be 100% guaranteed. power 220380v. 5060hz. 3 phase. 2kw.
