Gaomi Eastland Oilwell Machinery Co Ltd

Weifang, China

Gaomi eastland oilwell machinery co., ltd module heat-treated and internally hardened for high durability; available in various materials to meet a wide range of applications; standard one-andor-two-piece configuration, with designs available for pressure of 5000psi(35.1mpa), 7500psi(52.7mpa), and 10000psi(70.3mpa); discharge connections available on each side; suction connections on each side or front center. ● 100% interchangeable with oem ● premium forged alloy steel ● made on cnc boring mills ● strict computer controlled heat treat procedures ● rigid inspection fluid end accessories eastland offers a complete line of accessories for oem fluid end modules, cnc machining makes these accessories uniformly dimensional and interchangeable with oem. The perfect exterior surface reflects the superior inside quality. Fluid end accessories include, ● valve and cylinder head plug ● valve and cylinder head thread ring ● upper and lower valve guide ● stud and nut ● gasket, cylinder head gasket, etc. Avaliable mud pump moduletypes: "i" shaped module, "l" shaped module, 5000 psi module, 7500 psi module, southwest type module avaliable mud pump models: emscobomco:f-500f-800f-1000f-1300f-1600fb-1300fb-1600 national:7-p-508-p-809-p-10010-p-13012-p-16014-p-220 oilwell:a-850-pta-1100-pta-1400-pta-1700-pt gardner denver:pz-7pz-8pz-9pz-10pz-11 ideco: t-500t-800t-1000t-1300t-1600 ls national: 3nb-500c, 3nb1000c, 3nb1300c, 3nb1600 wirth:tpk-1000tpk-1600tpk-2200 drillmec:7ts600, 9t1000, 12t1600 russianpumps:unbt-950, unb-600, 8t-650, unbt650, nbt600, unb1180, unb1180l romania: 3pn-1000, 3pn-1600, 3pn-2000 opi:700-hdl | 1000-hdl

• MOQ 1 Pack(s)

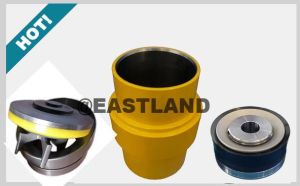

Elw440446 pump can be widely used in all kinds of worksin oil field. When the cylinder liner specification is 6�-3 12�, pistonstructure is recommended and it is suitable for oil-well repair andshallow-well drilling, etc. When the cylinder liner specification is 3 14�-2�, axial piston structure is recommended and it is suitable for high-pressurework. Elw446 mud pump technical specification rated input power 328kw (440hp) rated stroke 320 strokeminute(320spm) stroke 152.4mm �6�� gear ratio 4.578 :1 max. Operation pressure 35mpa valve chamber valve-over api 4# max. Liner dia. 6� max. Liner mud pressure(160 strokeminute)16.9mpa dia. Of suction manifold, 6�(150#) flange dia. Of discharge manifold 3�(900#) flange dia. Pinion shaft 95.25 mm(3.75�) key 22.174x15.9mm dimension:(no included base), 2479x1219x1103 mm weight 4463 kg liner supreme liner(bi-metal liner) for ews446 triplex piston pump has zise from3-12" to 6". With alloy steel outer shell and over 27% chrome inner sleeve. The bore hardness is60 to 65 rc while the hull has high tensile strength of more than 90000psi. Allhy-chrome liner are manufactured with an �hp� lip in case of inner sleeveslippage. Theservice life of this liner is more than 800 hours under normal drillingconditions. Eastland�s hy-chrome liners are made for superior performance undertough corrosive and abrasive conditions. Valve & seat esw446 piston pump uses api4# full open valve & seat with forged alloy struction, deep curburized wear surface and greater fluid flow and easier maintenance and seat pulling. piston eastland offers replacement rubber piston, rubber bonded piston, urethane replacement piston and urethane bonded piston which allows to work under different drilling condition. Size from 3" to 7-12".

• MaterialAlloy steel
• Brand NameGardner Denver
• Pressurehigh pressure
• Powerdiesiel
• Applicationoilwell drilling
• Structurepiston pump
• Mediaacid fluid

• MOQ 1 Piece(s)

Kerr Pumps well service pumps are used for hydraulic fracturing, coiled tubing units, reverse units andcementing. Liner Supreme liner(bi-metal liner) for KERR KA5500 pump With alloysteel outer shell and over 27% chrome inner sleeve. The bore hardness is60 to 65 RCwhile the hull has high tensile strength of more than 90000psi. Allhy-chromeliner are manufactured with an �HP� lip in case of inner sleeveslippage. Theservice life of this liner is more than 800 hours undernormal drillingconditions. Eastland�s hy-chrome liners are made for superiorperformance undertough corrosive and abrasive conditions. Valve & Seat KERR KA5500 pump uses full open valve & seatwith forged alloy struction, deep curburized wear surface and greater fluid flow and easier maintenance andseat pulling. Piston Eastland offers replacement rubberpiston, rubber bonded piston, urethane replacement piston and urethane bondedpiston which allows to work under different drilling condition. Size from 3" to 7-12".

• MOQ 1 Piece(s)

Gardner Denver model TEE pump is the most demanded pump in the well-service market. The TEE is a 165 HP pump with maximum pressure of 10, 000 PSI. The intermittent piston rod load rating of 44, 000 pounds is two to three times greater than the competitor’s pump.It is the most widely accepted pump in that horsepower range for the well-service market Liner Supreme liner(bi-metal liner) for TEE triplex piston pump has zise from2-12" to 4". With alloysteel outer shell and over 27% chrome inner sleeve. The bore hardness is60 to 65 RCwhile the hull has high tensile strength of more than 90000psi. Allhy-chromeliner are manufactured with an “HP” lip in case of inner sleeveslippage. Theservice life of this liner is more than 800 hours undernormal drillingconditions. Eastland ’s hy-chrome liners are made for superiorperformance undertough corrosive and abrasive conditions. Valve & Seat TEE 165 triplex piston pump uses full open screw typevalve & seatwith forged alloy struction, deep curburized wear surface and greater fluid flow and easier maintenance andseat pulling. Piston Eastland offers replacement rubberpiston, rubber bonded piston, urethane replacement piston and urethane bondedpiston which allows to work under different drilling condition. Size from 3" to 7-12".
