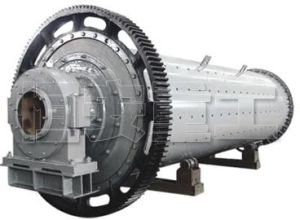

Operation Principle: The ball mill is a horizontal rotating device transmitted by the outer gear, two-chamber, and grid discharging. The materials are transferred to the first grinding chamber through the quill shaft uniformly. There are ladder liner, ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height to impact and grind the materials. After the coarse grinding in the first chamber, materials enter into the second chamber through separating plate, where there are liner plate mounted and steel ball to make the further grinding. The ground materials are discharged through the discharging board, thus the grinding process completes. Technical Parameter Model Φ Rotation Speed Of The Chamber(r/min) Ball Load(t) Feed-In Material Size(mm) Feed-Out Material Size(mm) Capacity(t/h) Power(kw) Weight(t) 900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 4.6 900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 5.6 1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 12 1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 12.8 1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 13.8 1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 15.6 1500×4500 27 11 ≤25 0.074-0.4 3-6 90 21 1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 24.7 1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 28 1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 32 1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 34 1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 36 2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 210 34 2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 42 2100×7000 23.7 26 ≤25 0.074-0.4 8-48 280 50 2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 48.5 2200×6500 21.7 35 ≤25 0.074-0.4 14-26 370 52.8 2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 54 2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 56 2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 65 2700×4000 20.7 40 ≤25 0.074-0.4 12-80 400 94 2700×4500 20.7 48 ≤25 0.074-0.4 12-90 430 102 3200×4500 18 65 ≤25 0.074-0.4 depends the technological conditions 800 137

• MOQ 1 Set(s)

Features: 1. Crushing chamber is deep and has no dead space, which helps improve the feeding capacity and productivity. 2. Our jaw crusher has high reduction ratio and the crushed materials are of the even granularity. 3. Adjustment device of gasket type discharging opening is reliable and convenient to use. The discharging opening has wide adjusting range. This can increase the flexibility of our equipment. 4. Lubrication system is safe and reliable. Accessories are convenient to replace, and little maintenance is needed. 5. Jaw crusher has simple structure, reliable performance and low operating cost. 6. Jaw crusher is a kind of energy saving equipment. Single machine can save 15% ~ 30% energy and whole system saves more than doubled energy. 7. Discharging opening has large adjusting range, so your different requirements can be satisfied. 8. Low noise and little dust. Advantages: 1. Short toggle plate 2. Low hanging 3. Big swing angle 4. Long service life Working Principle: Jaw crusher consists of frame, eccentric shaft, belt wheel, flywheel, movable jaw, side guard plate, toggle plate, toggle backseat, gap adjusting screw, returning spring, fixed jaw plate and movable jaw plate. Toggle plate is also used to guarantee the security. Jaw crusher uses electric motor as the motive power. Eccentric shaft is driven by triangle belt and genera l wheel, which makes movable jaw make reciprocating motion according to the desired trajectory. Then, materials in crushing chamber (consists of fixed jaw plate, movable jaw plate and edge plate) are crushed and the finished materials are discharged from discharging hole. Technical Parameters: Specification and Model Technical Characteristic Motor power (kw) Dimension (L� W� H) (mm) Weight (kg) Max. feeding size (mm) Adjustment range (mm) Production capacity (m3/h) Rotating speed of main shaft (r/min) PEF150�250 125 10-40 1-3 285 7.5 922�745�933 700 PEF200�300 165 20-70 2-8 265 11 1056�1100�1120 800 PEF250�400 210 20-80 5-20 310 18.5 1108�1142�1392 3000 PEF400�600 340 40-90 10-40 275 30 1700�1732�1392 7200 PEF350�750 290 30-55 20-50 300 37 1900�1806�1808 8900 PEF500�750 425 50-100 34-68 275 55 2050�1860�2145 11320 PEF600�900 480 75-200 40-120 255 75 2792�2168�2250 17600 PEF750�1060 630 80-200 80-160 250 90 4180�2560�3070 30530 PEF900�1200 750 100-200 110-200 250 110 5200�2900�3500 50000 PEF1200�1500 1020 150-300 220-400 180 160 4200�3300�3500 106000 PEX150�750 125 10-40 5-15 300 15 1220�1480�1180 3600 PEX250�1000 210 15-55 10-32 300 37 1580�1992�1380 7350 PEX250�1200 210 15-60 12-38 300 37 1530�2192�1380 8700 PEX300�1300 250 20-90 16-65 300 55 1930�2400�1747 11600

Product Feature 1.China ore /stone crusher 2.High quality and lower price 3.Stable performance 4.Low maintenance cost 5.ISO9001:2000 Product Specification/Models Specifications of ore crusher: Model Max. Feed Size (mm) Discharge Size (mm) Capacity (t/h) Motor power (KW) PF-1010 ≤100

Product Feature 1.reliable structure 2.high productivity 3.easy adjustment and economical operation 4.Low noise and power consumption 5.Firm structure and easy operation as well as convenient maintenance. etc Product Specification/Models Technical parameters of cone crusher Model Max Charge Granularity(mm) Width of Discharge Part(mm) Capacity(t/h) Motor Power(kw) Weight(t) PYB 600 65 12-25 20-40 30 5 PYD 600 35 3-13 12-23 30 5.5 PYB 900 115 15-50 50-90 55 11.2 PYZ 900 60 5-20 20-65 55 11.2 PYD 900 50 3-13 15-50 55 11.3 PYB 1200 145 20-50 110-168 110 24.7 PYZ 1200 100 8-25 42-135 110 25 PYD 1200 50 3-15 18-105 110 25.3 PYB 1750 215 25-50 280-480 160 50.3

• MOQ 1 Set(s)
• Brand NameHean
• Place of OriginChina
