Cement And Concrete

Our product range contains a wide range of 80 Ton Cement Silo, Split Loaded Cement Silo, 150 Ton Bulk Cement Silo, 80 Ton Bulk Cement Silo and the Production Standardof Cement Silo

80 Ton Cement Silo

Min. Order (MOQ) 1 Set(s)
overall height 13.5m
Leg height 2m
Screw type LSY180

80 ton cement silo is a closed tank storing bulk materials, such as grain, cement, fly ash and other bulk materials. Material level system are inatalled on the tank, can display the location and number of materials.Hole device can remove sturdy material that has been long deposition. Co-use of cement silo (or cement tank)and screw pump can deliver the material to any location. The tank has the advantages of convenient installation, safe and reliable, is the ideal bulk storage tanks in mixing station. 80 ton cement silo (concrete tank) is made up of the follow parts: the warehouse body, the steel structure part, the climbing ladder, the guardrail, the charging pipe, the dust collector, the pressure relief valve, the high and low material level meter, the discharge valve, etc. Main parameters:Type of cement tank 80TTank diameter 3mvertebral height 2.5mHeight 8mLeg height 2moverall height 13.5mScrew type LSY180

View Complete Details

Ask Latest Price & Details

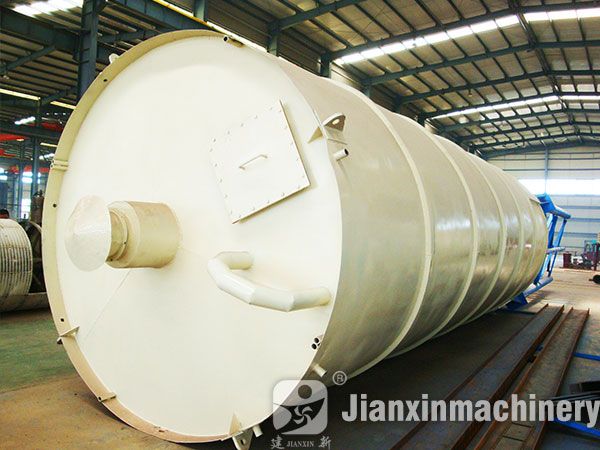

Split Loaded Cement Silo

Brand Name Jianxin
Condition New
Country of Origin Zhengzhou
Certification ISO CE
Power Type Electric
Warranty 12 Months

Split loaded cement silocement mixing station cement silo has the following characteristics:1, enough materialsthe quality of cement silo depends on the quality of the steel used. The cement silos produced by our company are strictly manufactured according to the national and industrial standards. All kinds of steel plate, pipe material and channel steel are purchased in large steel plant, and the quality is trustworthy and accord with the national standard. Relative to some small manufacturers of products, each warehouse weight more than 1-2 tons, can be described as full use of materials. And this is our product quality of the most basic guarantee.2, technical excellencexingyang is china's construction machinery production base, since the last century since 80s, xingyang has gradually emerged a large number of outstanding production enterprises, cultivating a large number of excellent construction machinery design, production and sales personnel, formed in the concrete mixing equipment, stabilized soil mixing equipment, cement silo construction etc. Mechanical products as the leading products, with a good reputation, the best-selling products at home and abroad. Our cement silo adopts steel reinforced welding reinforcement, ensure the cement silo firmness and waterproof; legs are using split design, flexible disassembly, convenient transportation, solid structure; the discharge valve switch flexible, does not leak. It can be said that excellent technology is the key to high quality products.3, model fullour product model is rich, covering all the construction industry required, the main models and technical parameters are shown in the table below:screw conveyor with type of tank diameter, tank height, tank height and matching of main engine30t 2.5m 4.8m 11.4m jd350 lsy 16350t 3m 5.4m 12m js500 lsy 18080t 3m 9m 15.6m js750 lsy 180100t 3m 11.4m 18m js1000 lsy 230150t 3m 23.5m 29m js1000 lsy 230 series

View Complete Details

Ask Latest Price & Details

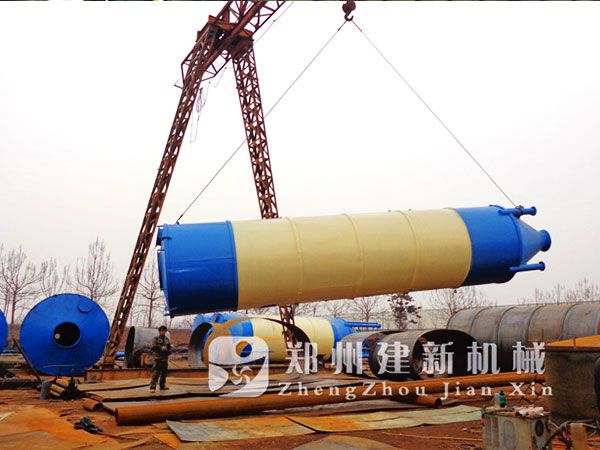

150 Ton Bulk Cement Silo

Brand Name Jianxin
Condition New
Country of Origin Zhengzhou
Certification ISO CE
Warranty 12 Months

cement silo of cement mixing plant:1. 100 tons cement silo is suitable for in engineering construction, commodity concrete mixing station, road and bridge water conservancy project, urban construction and other projects. with features of waterproof, moisture-proof, prevent cement loss, reduce dust pollution in urban air, small footprint, long service life, low cost and so on.2. it consists of steel structure part, ladder, guardrail, feeding pipe, dust remover, pressure relief valve, high and low level gauge, unloading valve and so on.3, the bulk cement silo is cylindrical structure, the bottom is supported by four round pipe supporting legs, the whole warehouse is all steel structure form, and be well welded; the top is equipped with dust remover and pressure relief valve.4. working principle of cement silo:1, when working, must be set up by the special crane, and then put on the prefabricated concrete foundation, and check the 100 tons of bulk cement silo erected after the verticality and the horizontal plane, and then the base and foundation embedded solid welding.2, fixed storage after delivery to the site by the cement bulk cement truck, and then the delivery pipe and the bulk cement silo in the bulk cement truck and the feeding line of cement, gas pressure through the bulk cement vehicle tank cement transported 100 tons of bulk cement silo.3, in the process to transport cement storage silo, operator continuous press the button of dust catcher vibration motor, shake off the dust bag attached to the cement, preventing bag blocking, warehouse explosion occurred. 4, once the bag is blocked, cabin pressure exceeds the top pressure of the safety valve safety pressure, pressure relief valve can be opened to release the pressure in the bin, to prevent the occurrence of explosion accident.5, the warehouse full and lack of material conditions can be observed through the high and low level.

View Complete Details

Ask Latest Price & Details

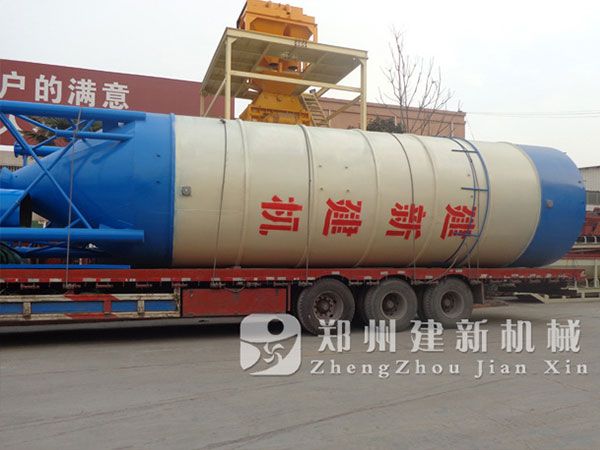

80 Ton Bulk Cement Silo

Brand Name Jianxin
Country of Origin Zhengzhou
Certification ISO CE
Warranty 12 Months

Cement silo of concrete mixing station1.A storage tank, is a type of cone type material, suitable for storing grain, cement, fly ash and other materials, the tank is provided with a positioning system, can display the location and weight of materials, 30-80 tons of cement silo Zhengzhou Jianxin machinery has a removable bottom device that can eliminate the material deposition caused by condensation; can quickly remove object accidentally fall into the tank. Using screw conveyor, the material can be transported to various locations.2. made up of by the following parts: warehouse body steel structure, climbing ladder, guardrail, feeding pipe, dust collector, pressure relief valve, high and low level gauge, discharge valve.3. the bulk cement silo is cylindrical structure, the bottom is supported by four round pipe supporting legs, the whole warehouse is all steel structure form, welded; the top is equipped with dust remover and pressure relief valve.Four, matters need to be paid attention1, the installation process is strictly prohibited warehouse body tilt, leg deformation.2, regularly check the dust collector bag cement attachment, clean up in time.3, the foundation must be firm, in line with the architectural design specifications.4, leg bottom and foundation embedded solid welding.5, do a good job windproof, lightning protection work.6. No strong impact on outrigger and silo.

View Complete Details

Ask Latest Price & Details

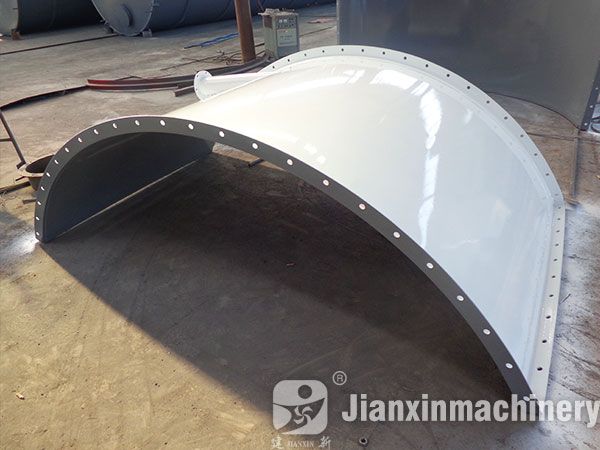

The Production Standardof Cement Silo

Brand Name Jianxin
Condition New
Country of Origin Zhengzhou
Certification ISO CE

Cement silo is suitable for construction of medium scale or above scale, hydropower, highway, port, airport, bridge and other large and medium-sized concrete pre production plant and commodity concrete production plant. It can be used as storage equipment for cement and other kinds of powder in mixing station, mixing building and other mixing equipment.The cement tank consists of steel structure, ladder, guardrail, feeding pipe, dust remover, pressure relief valve, high and low level gauge, unloading valve, etc. Dust removal system, arch breaking device, material level meter, etc. Generally it is a cylindrical support structure, the upper part has dust removal equipment to prevent dust leakage, the lower part is equipped with arch breaking device to prevent powder agglomeration, so that the powder discharging smoothly, and equipped with material level sensing equipment, can be used to grasp the use of materials in the warehouse.The tank is the core part of the cement tank, if the quality of the tank does not pass, it is fatal to the whole cement tank. Tank production should comply with the gbt1804 standard in the it15 level, in order to maintain the symmetry of the tank.

View Complete Details

Ask Latest Price & Details

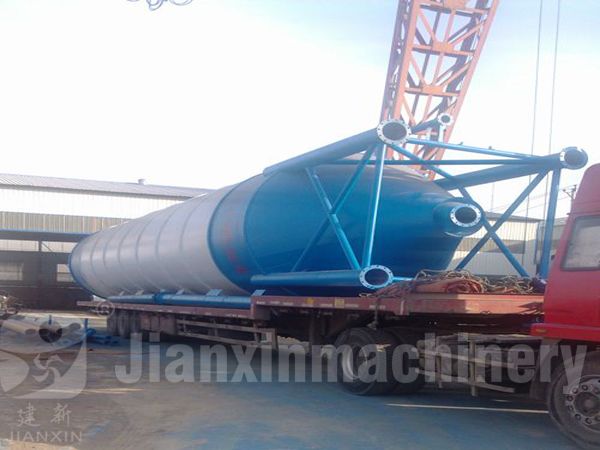

Cement Silo

Brand Name Jianxin
Certification ISO CE

Cement silo (cement tank) compositionThe composition of cement silo (cement tank) is as follows: steel silo part, ladder, guardrail, feeding pipe, dust collector, pressure safety valve, level gauge, discharge valve and so on.Cement silo (cement tank) structureCement silo (cement tank) for the cylindrical structure, the bottom of the four cylinder tube leg support the entire silo, the entire silo for all steel structure, welded together; the top of the precipitator and the pressure relief valve. Cement silo (cement tank) Model parameters:Model Tank Diameter Tank Height The total height of the silo Matched mixer screw conveyor 30T 2.5m 4.8m 11.4m JD350 LSY 163 type50T 3m 5.4m 12m JS500 LSY 180 Type80T 3m 9m 15.6m JS750 LSY 180 type100T 3m 11.4m 18m JS1000 LSY 230 type150T 3m 23.5m 29m JS1000 LSY 230 series200T 4.5m 18.6m 25.2m JS1500 LSY 230 series300T 4.5m 24.6m 29.5m JS2000 LSY 230 series500T 6M 22.2m 28.8m JS3000 LSY 230 series

View Complete Details

Ask Latest Price & Details

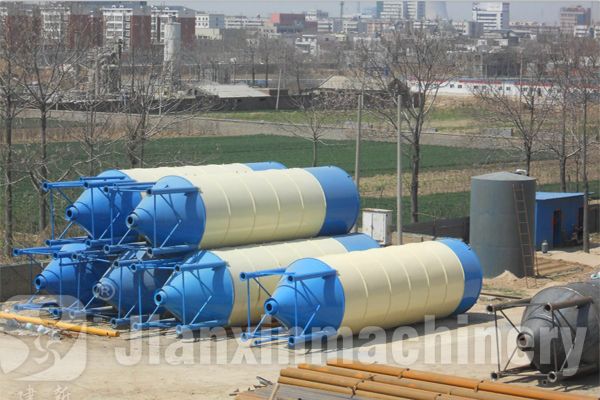

150 Tons Of Bulk Cement Silo

Brand Name Jianxin
Country of Origin Zhengzhou

First, Zhengzhou Jianxin machinery 100 tons of cement silo for construction, commercial concrete mixing plant, road and bridge water conservancy projects, urban construction and other works in bulk cement storage silos. With a waterproof, moisture-proof, to prevent the loss of cement, reducing urban air pollution, small footprint, long life, low cost and so on.Second, the bulk cement silo by the silo steel structure part, ladder, guardrail, feeding tube, dust collector, pressure relief valve, level gauge, discharge valve and other components.Third, the bulk cement silo for the cylindrical structure, the bottom of the tube by the four tubular support the entire silo, the entire silo for all steel structure, welded together; top with a dust collector and pressure relief valve.

View Complete Details

Ask Latest Price & Details
