Shandong Lianshan Zhengyang Trailer Parts Co.,Ltd

• MOQ 10 Set(s)
• Axle tube150*150
• Centre distance of brake chamber354
• Track1850
• Weight490kg
• Brake420*180
• P.C.D335
• Capacity25T
• Total length2270mm
• Hole diameter281
• Stud10-M22*1.5
• Recommended wheel8.50V-20

• MOQ 10 Set(s)
• Hole diameter162
• Centre distance of brake chamber1560
• Brake300*120
• Recommended wheel5.50F-16
• Track2200
• P.C.D222
• Total length2460
• Stud6*30*1.5
• Capacity6ton, 8ton
• Weight220kg, 226kg
• Axle tube108

• MOQ 10 Set(s)
• Axle tube150*150*14
• Weight143kg
• Total length2100mm
• Centre distance of brake chamber420
• Capacity12ton, 14ton, 16ton
• Track1530mm

• MOQ 10 Set(s)
• Capacity10ton, 12ton
• Stud10*M22*1.5
• Tube thickness16mm,19mm
• Weight275kg
• Recommended wheel6.5-16
• Total length2166mm
• Brake311*190
• Track1850mm
• P.C.D225
• Axle tube127
• Hole diameter176
• Centre distance of brake chamber1000

• MOQ 10 Set(s)
• Total length2108mm
• Track1644mm
• Weight120kg
• Centre distance of brake chamber390
• Capacity14ton, 15ton, 16ton, 20ton
• Axle tube150*150

• MOQ 10 Set(s)
• P.C.D335
• Centre distance of brake chamber420
• Brake420*200
• Axle tube150*150
• Recommended wheel7.50V-20
• Weight390kg
• Hole diameter281
• Capacity12ton
• Track1840mm
• Total length2158mm
• Stud10-M22*1.5

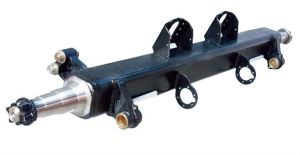

We offer Shipping Trailer Axle. German Style Axle Product Description: 1) Nation standard. 2) Good braking quality. 3) High-intensity. 4) Big rigidity. 5) Long life and strong bearing capacity. 6) Passed the national authoritative department's monitor. 7) ISO9001:2000 and TS16949 certified. 8) Gained old customer's trust. Model No. Capacity (T) Brake (MM) centre distance of brake chamberL4 Axle Tube(mm) centre distance of spring seat L3 Stud P.C.D Track L2(mm) Bearing innerouter Total Length L1(mm) Weight (KG) Recommended Wheel ZY-A1060 12 420*200 420 150*150 ≥980 10-M22*1.5 335 1840 3311833213 ≈2158 390 7.50V-20 ZY-A1061 14 420*200 430 150*150 ≥900 10*M22*1.5 335 1840 3221933215 ≈2172 420 8.5V-20 ZY-A1062 16 420*200 280 150*150 ≥900 10-M22*1.5 335 1840 3222232314 ≈2245 550 8.5V-20 Characteristics of the products as follow: 1).Special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight. 2).High quality alloy solid inserted spindle, through wholly heat treatment, provide superior fatigue capability. 3).High performance premium non-asbestos brake linings, extend service life. 4).Easy for ABS installation. 5).Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety. 6).New tight fit hub capO rings, high property for sealinG 7).Grease lubricant is supplied by Mobil that lengthens the time of free maintenance. 8).Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.
